Blind Corner Drilling Issue with Corner Filler

I've come across an issue with the blind corner cabinet.

When set to a *Right Blind Corner with a blind facia and corner filler added, the machining only panel machine token for screws is adding edge drilling to the corner filler. (*Issue does not occur with Left Blind Corner)

Unfortunately, the Blind Panel & Corner Filler share the same Bay Position, which means adding a part filter to the machine token won't fix the problem as the parts are named the same. (Facia)

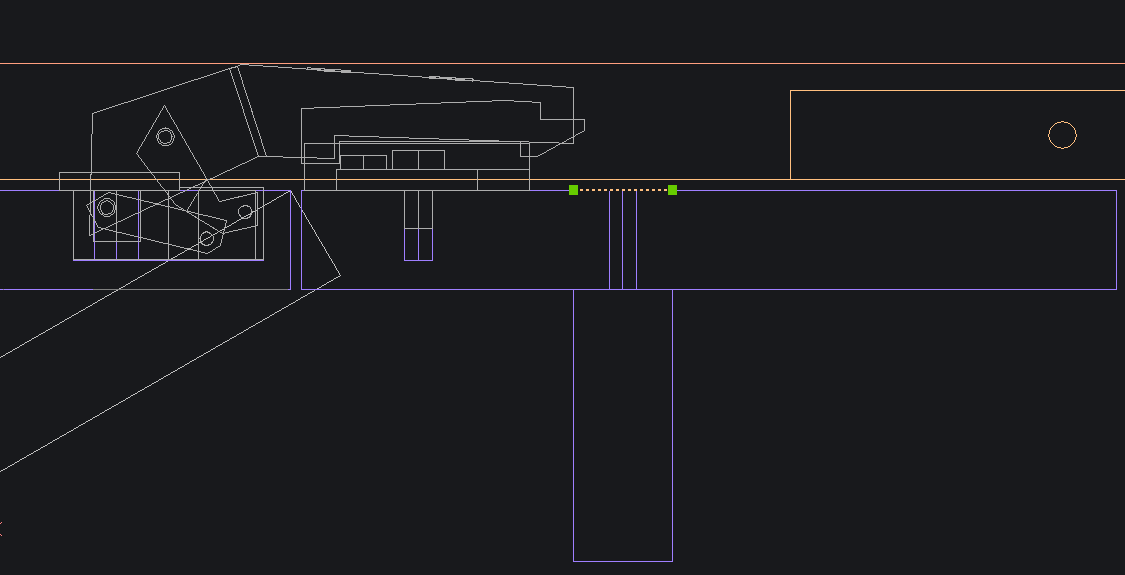

Machining Only Panel - Before


If the machining only panel was shifted to the carcass side of the blind panel and the machine token is amended, the problem is resolved.

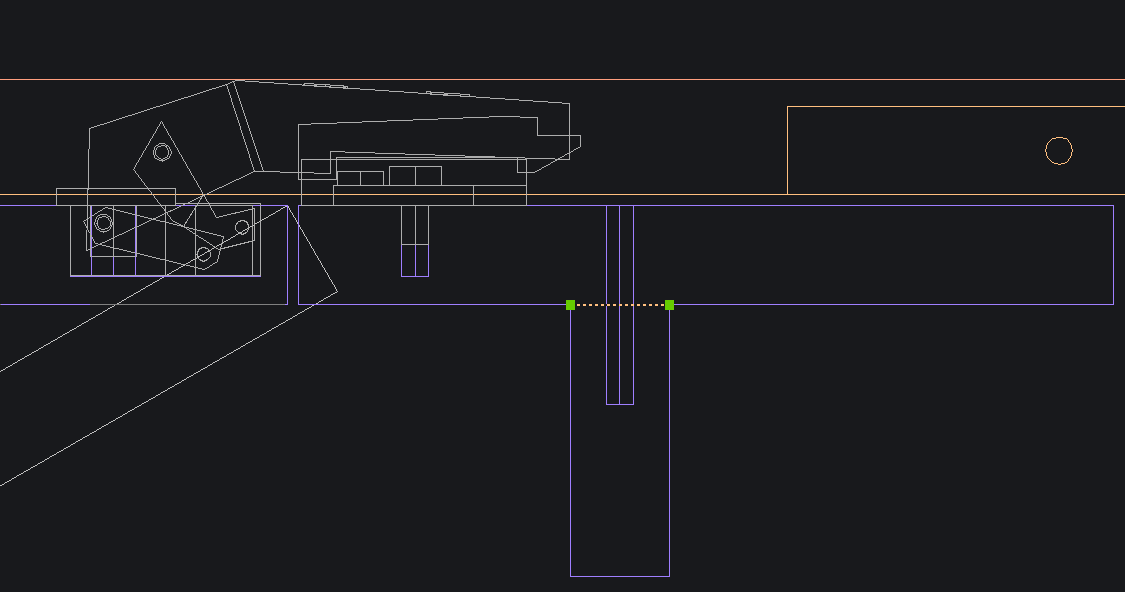

Machining Only Panel - After
I swapped the layer from MV FREEZE for visual representation of the issue and part in question.
