How To Suppress Carcase Parts Drawing In Elevation

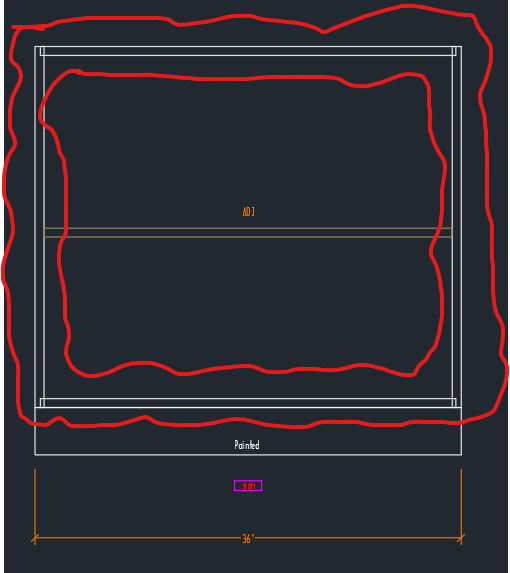

I am hoping one of the MV experts out there can tell me how to suppress the polylines that draw for carcase parts when drawing the elevation view of open cabinets. We used blind dado rabbet construction and MV generates rectangles that overlap eachother as they are drawn the overall length of the parts. I would like to hide these lines then just use a DRAWRECTANGLE drawing token to make the correct lines. So far we have been stretching these by hand so we don't confuse the customer but that is time consuming, especially when you have to redraw the cabinet.
