Parts generated in Solid Analyzer?

Parts generated in Solid Analyzer?

I have two parts that follow a radius on a floating sink elevation . When I run the Solid Model Analyzer I get 4 parts in my list .
Part 2
Part 2 3D Representation

Part 5
Part 5  3D Representation

When I highlight the Part 2 in the parts properties the 3d drawing does not indicate what part it is.

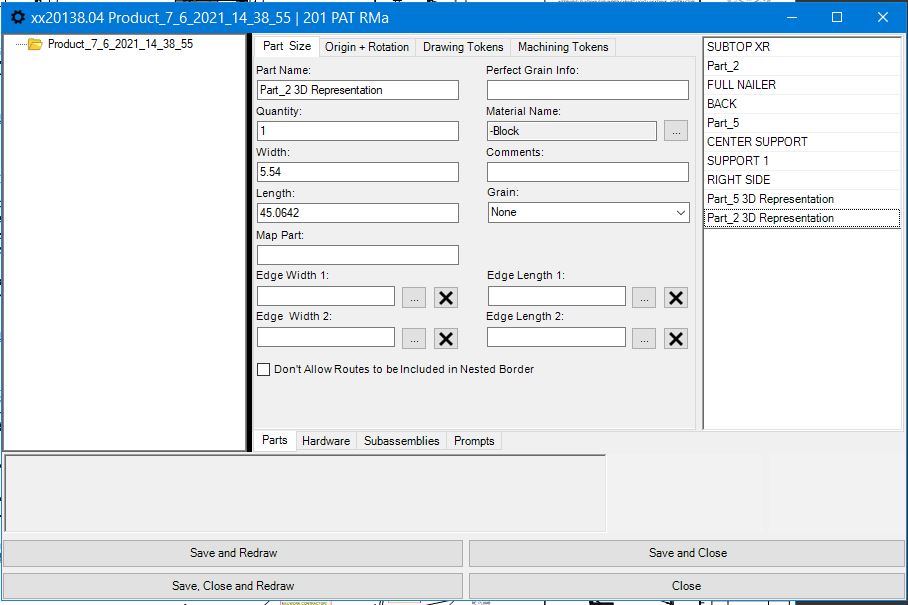

When I highlight the Part 2 3D Representation , I get the highlighted part in the 3d drawing but its also listed as a block  with no material .

Which part in the part properties list do I use? Again, the part 2 is not linked to the drawing and the part 2 3D representation is a block .
