Products drawn in 2D are all over the place but correct in 3D

Products drawn in 2D are all over the place but correct in 3D

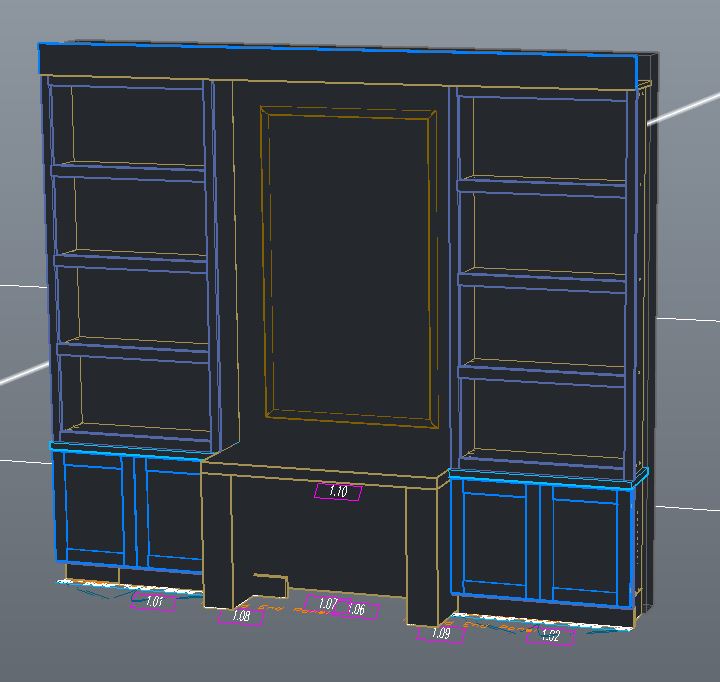

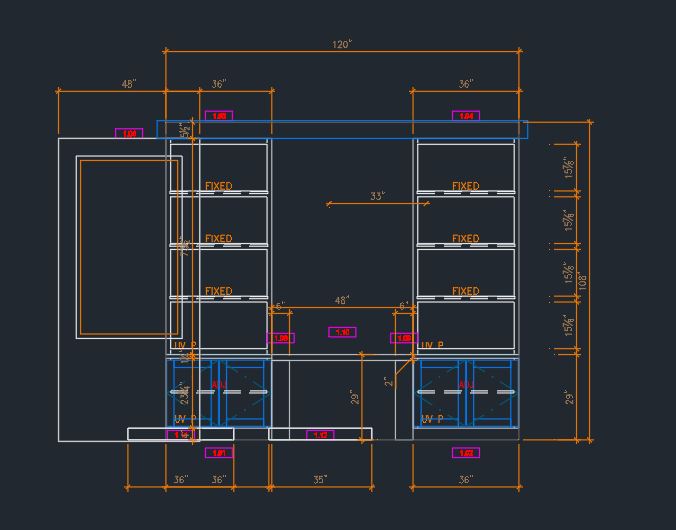

Not really sure what I am doing wrong here. I have moved everything by referencing other cabinets (using bump products, MVMOVE, associating to wall, etc) and when I hit draw wall elevation these products go all over the place. I redraw them in 3D to make sure they stay in place and that holds true. What am I doing, how can I fix this rather than move command and placing where needed?
