Rollout Cutout Prompts, what is the "Rollout Cutout IA"

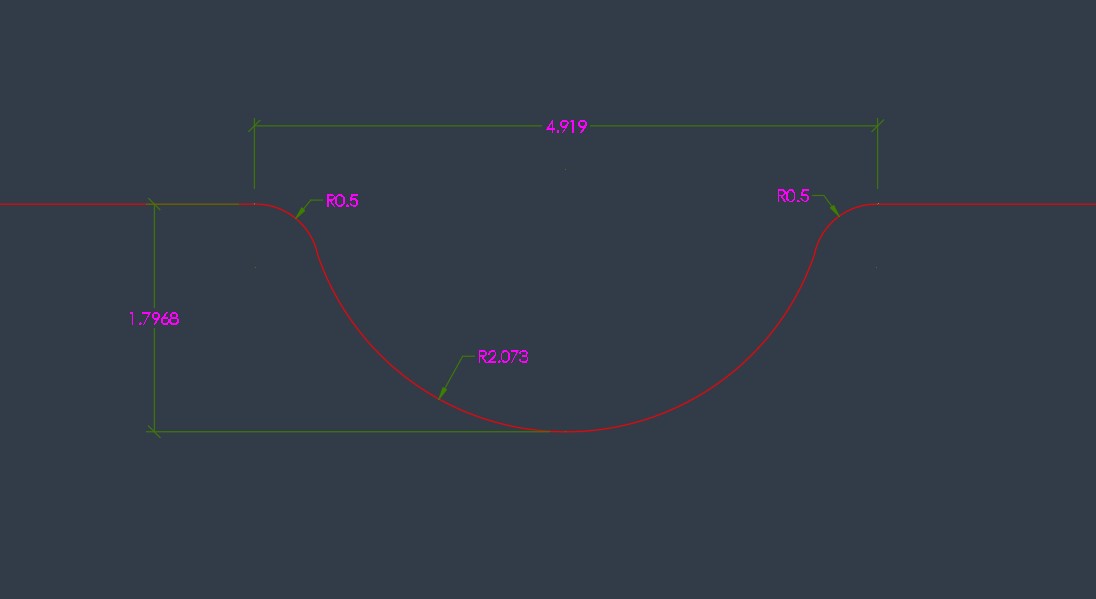

I'm attempting to adjust the rollout drawer front scoop cut so it doesn't come down so far. Currently it looks like a semicircle with transitions. Below is a 2d version of what the stock variables are producing with Rollout Cutout Radius of 2" and Rollout Cutout Transition Radius set to 0.5"

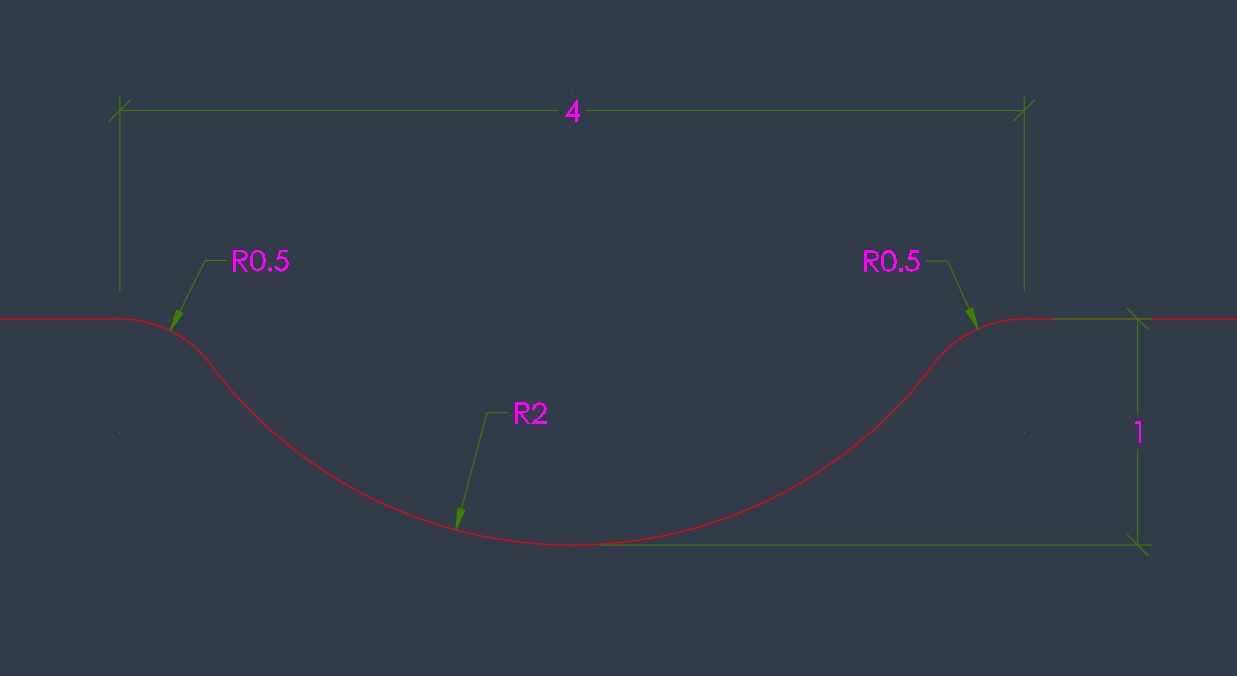

Here's what I'm hoping to accomplish


Has anyone ever adjusted these variables. And what does the IA stand for in Rollout Cutout IA?
Any help on this would be much appreciated. Have a good one.

Jeremiah
