Scribe filler with cleats and toe kick improvements

@Lenny Scianna

Please update the "scribe filler with cleats" subassemblies & Toe kick parts with the following improvements.

Scribe filler with cleats
Add Global "Filler to floor"
Link existing subassembly "Filler to floor" to new global
Add Global "Add fixing cleats"
Link existing subassembly "Add fixing cleats" to new global
Update subassembly parts and z origins so that all parts stretch to the floor if "Filler to floor" is checked
Update the 2D elevation draw token so that it draws the filler to the floor if "filler to floor" is selected
Add a 2D plan token so it draws the "front cleat" if the "Add fixing cleats" prompt is checked.

Toe kick
Update all products "Amount to extend left toe kick" & "Amount to extend right toe kick" prompts to include a deduction in width if new global "filler to floor" and "Add fixing cleats" are checked.

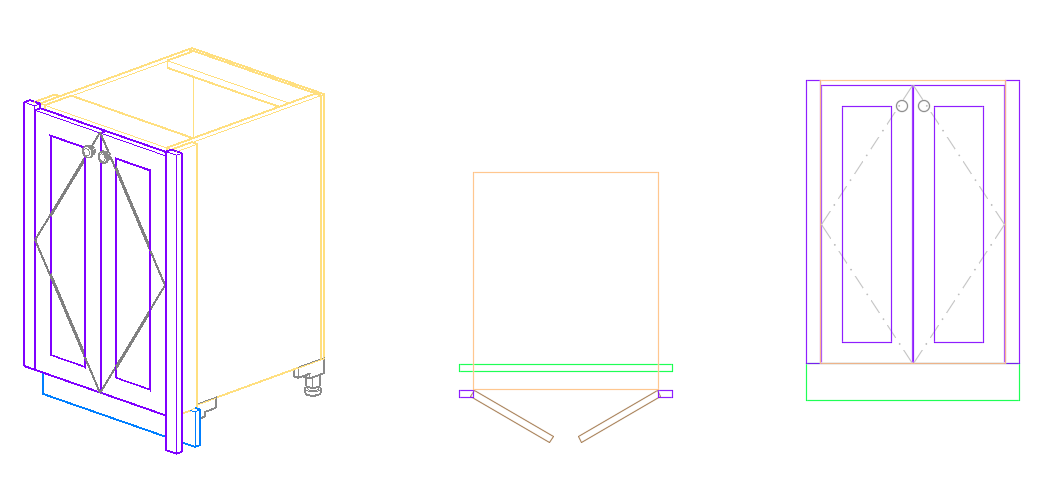

Currently it draws like this with "Filler to floor" & "Add fixing cleats" selected.

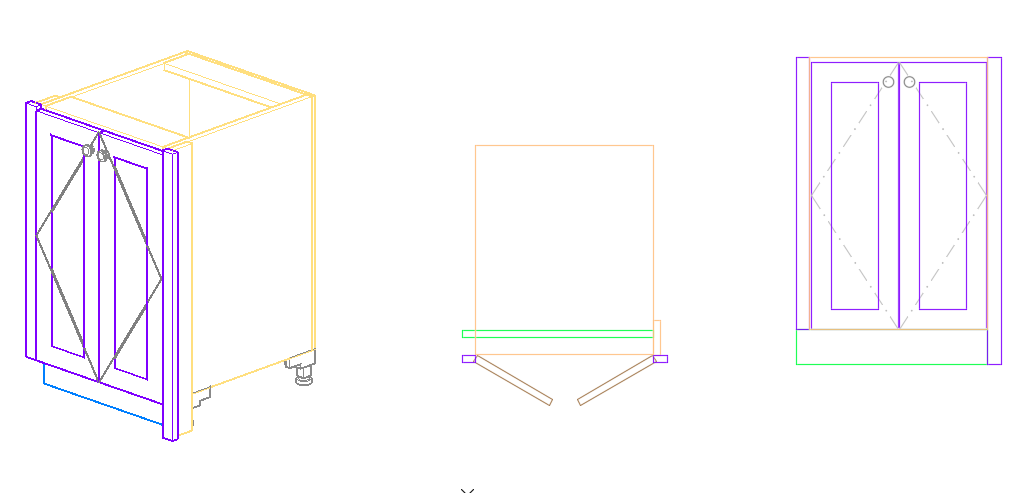

Would be nice if it drew like this
