The conditions editor for a text component has a crucial difference from other components. With this condition editor, a custom text expression can be assigned if the condition evaluates as true.

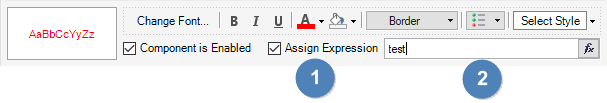

Fig. 1 – Text Expression Formatting Panel

  1. Assign Expression – When this is selected, a text expression is used in the condition.
  2. Text Expression – This is where the custom text expression is entered. If the condition evaluates to true, the expression will be applied to the component.
