This document lists the full range of appliance products within the Microvellum Foundation Library. Appliances are non-cabinet products such as refrigerators, dryers, microwaves, intended to be placed into Microvellum project rooms for visualization and decorative purposes, with none of the products listed in this document producing any manufacturing cut parts or machining when processed in an order. Appliances, in the Foundation Library, can have their model and specifications altered by selecting from one of the different brands available.

This document will reference “Standard Prompts”, referring to the set of prompts that are generally present in all products in the Microvellum Foundation Library catalog by default. These prompts will not be listed among the prompts of products, as they are considered default. Standard Prompts are the following:
  1. Width
  2. Height
  3. Depth
  4. Toe Kick Height
  5. Left/Right Filler Width
  6. Product Name
  7. Product Version
  8. Left/Right Finished End
  9. Left/Right Applied End
  10. Show Construction Options
  11. Show Material Options
  12. Show Advanced Options
  13. Show Flatshot Options
  14. Show 2D Drawing Options
  15. Show Item Number Options
  16. Show Rendering Options
Many of the appliances within this document have different options for the appliance's brand, including the option to create a custom brand. In the event one wishes to use a custom brand, the brand is capable of being added to the dropdown menu and customized via the product's design data. The LookUpTableAppliance table controls brand driven appliance options. If selecting from an existing brand, this table will set the appliance to use each brand's manufacturer specifications, setting dimensions, descriptions, and region availability. If one is creating a custom brand, it is recommended to copy the same format as the existing brands within the LookUpTable.

Wall Oven


Product Category: Appliances

The Wall Oven Product Origin is Floor Height by default. The Product can be placed at any point in the room space. (i.e. at countertop height, on a shelf, etc.)

Product Description

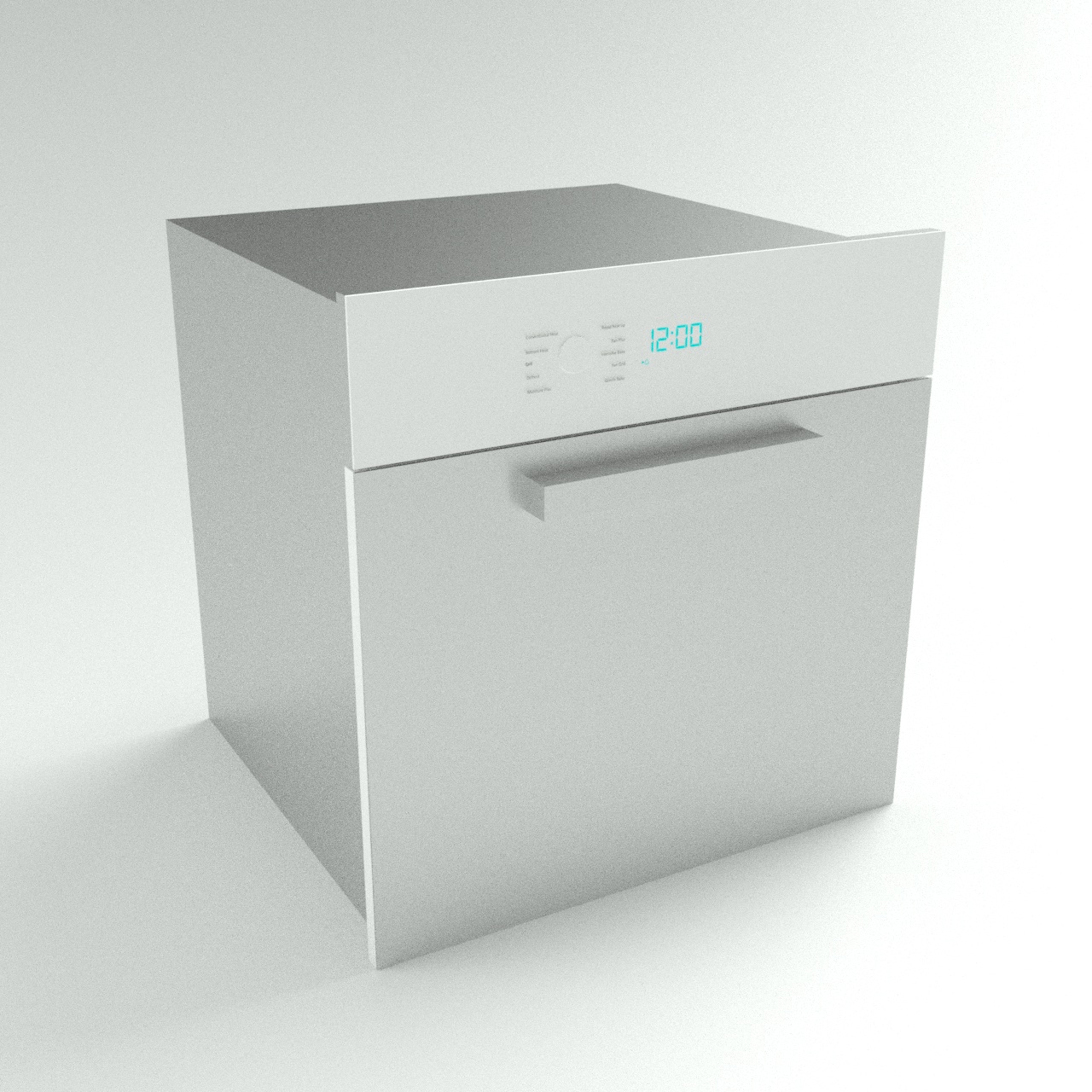

The Wall Oven product is designed for user creativity to achieve a generic Wall Oven size and style while also offering the option to load a preset Wall Oven that is ready for instant selection and placement when needed. The Foundation Library contains a variety of Wall Oven options from two distinct brands:
  1. Smeg
  2. Gaggenau
Basic Prompts/Options:
  1. Brand – Selection prompt for the user to choose between a “Custom” Product or a Brand selection.
  2. Appliance – This Dropdown prompt displays the list of options set in the LookUpTable.

Unique Product Features/Prompts
The “Custom” product option is a user designed Wall Oven that is constructed with parametric DRAWBLOCK parts that do not produce manufacturing cut parts or machining. Each of these parts are controlled by the prompts available when the brand dropdown is set to “Custom.” The following prompts are available for customization when the appliance brand is set to "Custom":

Main Options Tab
  1. Brand Finish
  2. Door Finish
  3. Control Panel Finish
  4. Knob Finish
  5. Top Reveal
  6. Bottom Reveal
  7. Side Reveal
Control Panel Options Tab
  1. Control Panel Height
  2. Framed Glass Control Panel
  3. Full Glass Control Panel
  4. Semi Framed Glass Control Panel
  5. Control Panel Glass Offset Sides
  6. Control Panel Glass Offset Top
  7. Control Panel Glass Offset Bottom
  8. Front Thickness
Door Options Tab
  1. Door Glass Offset Sides
  2. Door Glass Offset Top
  3. Door Glass Offset Bottom
  4. Full Glass
  5. Framed Glass
  6. Semi Framed
  7. Bottom Panel
Handle Options Tab
  1. Handle Length
  2. Handle Depth
  3. Handle Position
Control Knob Options Tab
  1. Control Knob Qty
  2. Control Knob 1 Position
  3. Control Knob 2 Position
  4. Control Knob 3 Position
  5. Control Knob Diameter
  6. Control Knob Depth

LookUpTable Information

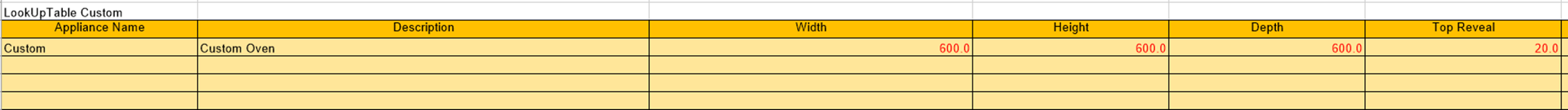

LookUpTableCustom contains the user inputs for a custom appliance option. The user can control and alter all the default parameters to be dynamic and generic for a custom size.


Washing Machine


Product Category: Appliances

Product Description

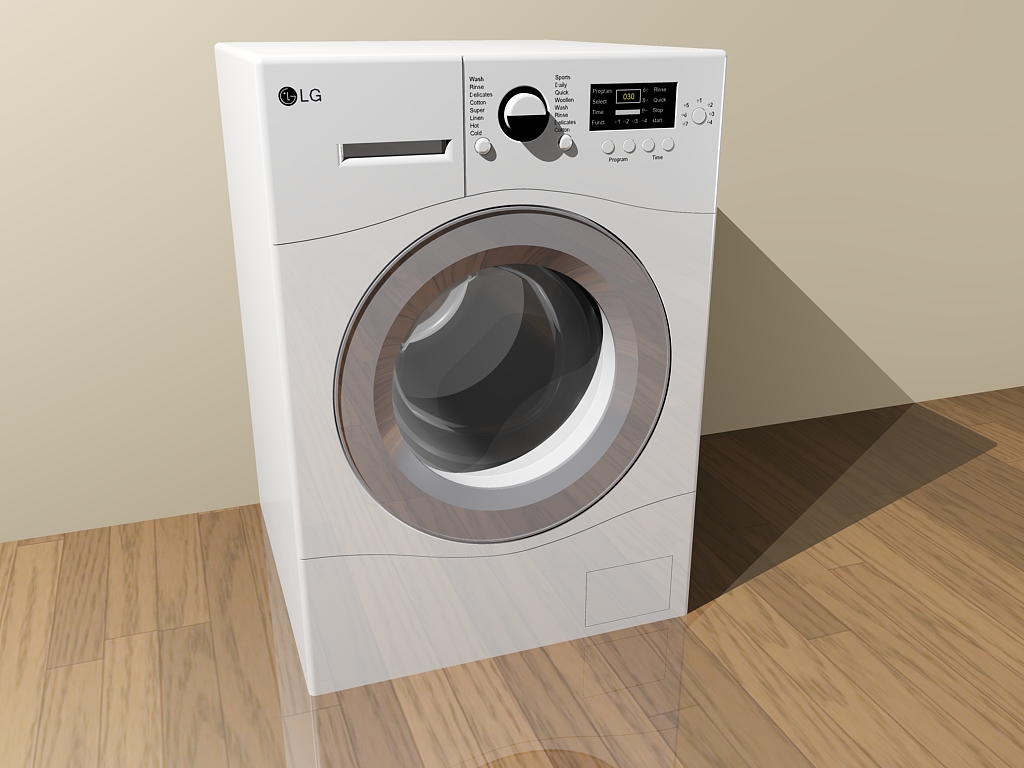

The Washing Machine product is a stand-alone 3D representation for washing machine appliances. This Product does not produce any manufacturing cut parts or machining. The Foundation Library contains The Foundation Library contains 5 distinct Washing Machine brand options:
  1. LG
  2. Simpson
  3. Samsung
  4. Miele
  5. Fisher & Paykel

Basic Prompts/Options
  1. Brand – Selection prompt for the user to choose between a “Custom” Product or a brand selection.
  2. Appliance – This dropdown prompt displays the list of options set in the LookUpTables.
  3. Appliance Finish - Select a product Finish option based on specs to increase visual/rendering quality.

Microwave


Product Category: Appliances

The Microwave Product Origin is Floor Height by default. The Product can be placed at any point in the room space. (i.e. at countertop height, on a shelf, etc.)

Product Description

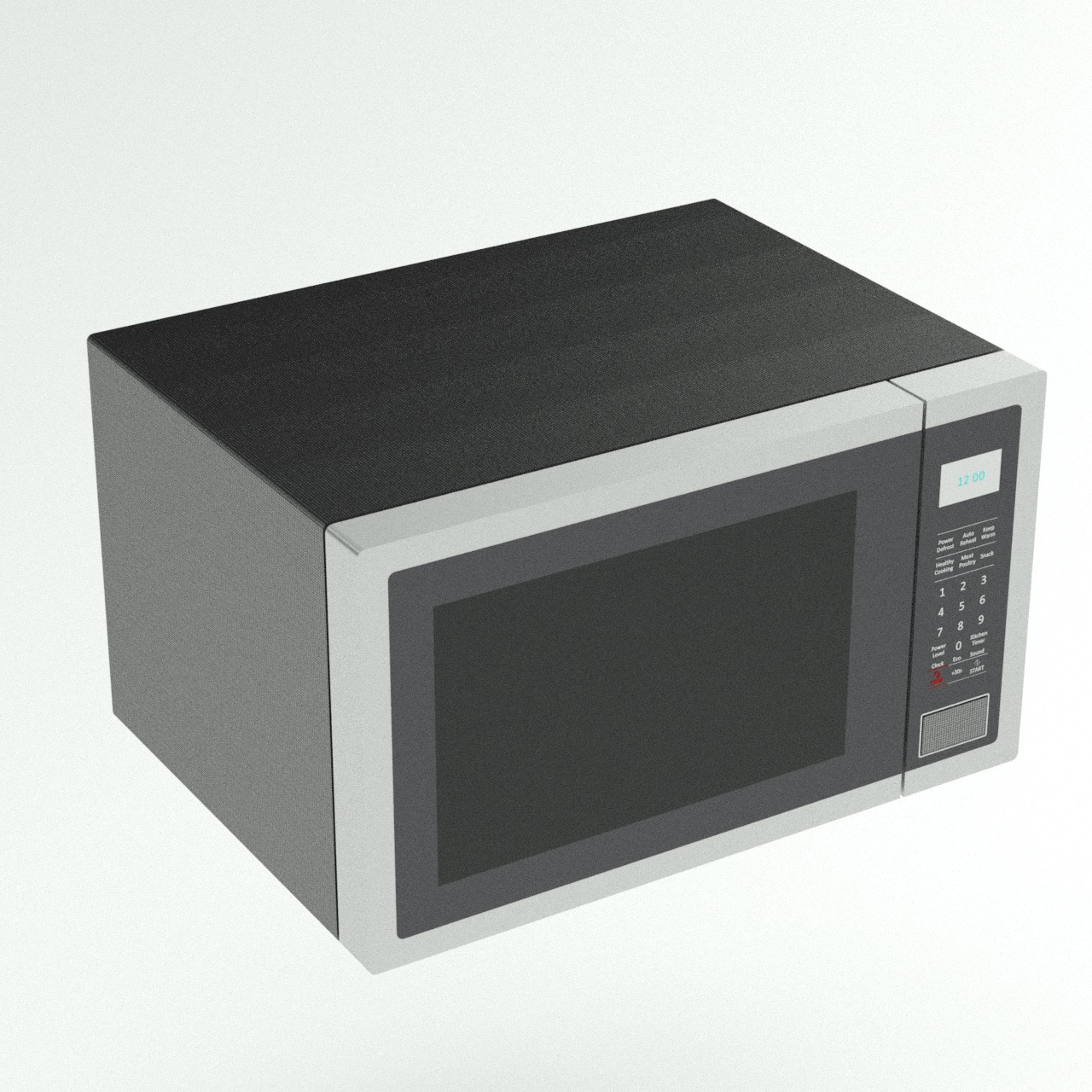

The Microwave product is designed for user creativity, able to accommodate and be modified to the perfect Microwave size and style to suit your needs, while also offering the option to load a preset Microwave that is ready for instant selection and placement when needed. The Foundation Library contains 6 distinct Microwave brand options:
  1. Samsung
  2. GE
  3. Wolf
  4. Smeg
  5. Bosch
  6. Gaggenau

Basic Prompts/Options:
  1. Brand – Selection prompt for the user to choose between a “Custom” Product or a Brand selection.
  2. Appliance – This Dropdown prompt displays the list of options set in the LookUpTable.
  3. Appliance Finish - Select a Product Finish option based on specifications to increase visual / rendering quality.
Unique Product Features/Prompts
The “Custom” product option enables the ability to customize your Microwave to your exact specifications, creating a user-designed Microwave constructed with parametric DRAWBLOCK parts that do not produce manufacturing cut parts or machining. Each of these parts are controlled by the prompts available when the Brand dropdown is set to “Custom.” The following prompts are available when using the "Custom" option:

Main Options Tab
  1. Control Panel Width
  2. Foot Height
  3. Door Gap
  4. Release Type
  5. Button Width
  6. Button Height
  7. Button Position
  8. Surround
  9. Surround Width Left
  10. Surround Width Right
  11. Surround Width Top
  12. Surround Width Bottom
  13. Use Block
Finish Options Tab
  1. Appliance Finish
  2. Door Finish
  3. Control Panel Finish
  4. Button Finish

LookUpTable Information

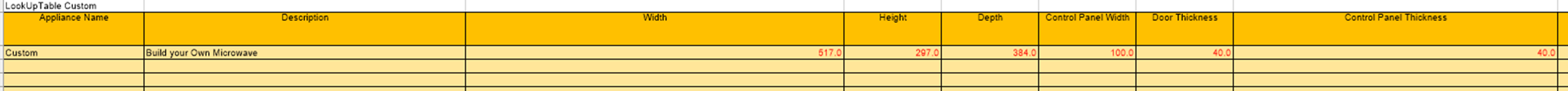

LookUpTableCustom contains the user inputs for a custom appliance option. The user can control and alter all the default parameters to be dynamic and generic for a custom size.


Dryer


Product Category: Appliances

Product Description

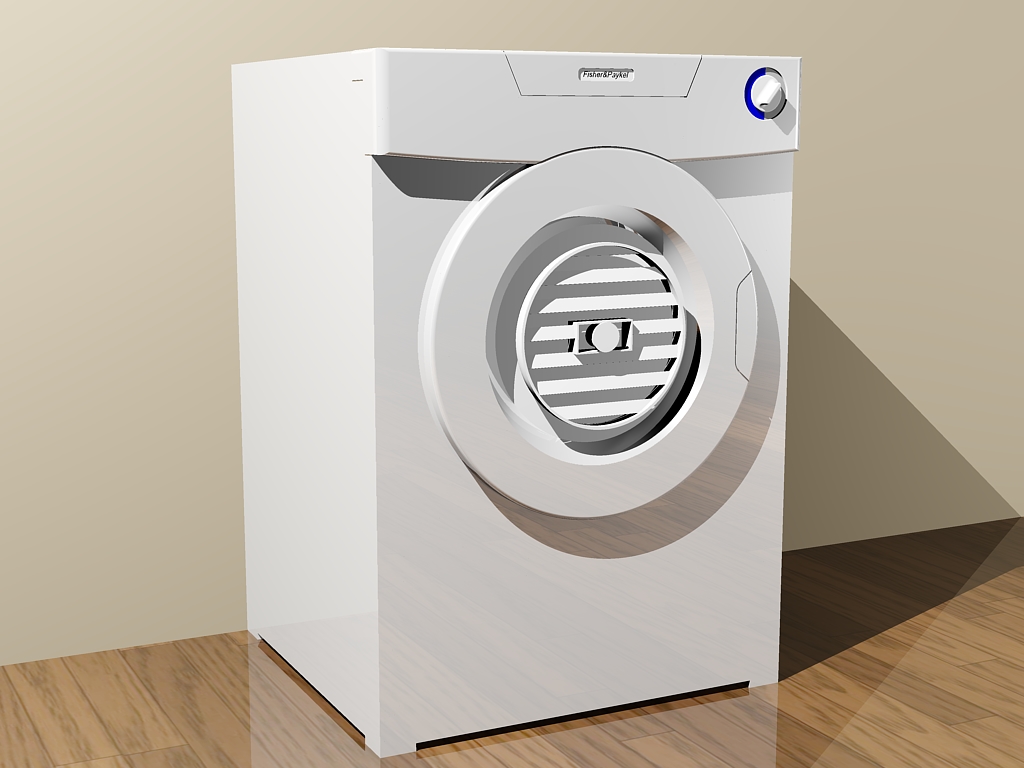

The Dryer product is a stand-alone 3D representation for dryer appliances. This product does not produce any manufacturing cut parts or machining. There is no default "Custom" option in the brand dropdown of this appliance. The Foundation Library contains 5 distinct Dryer brand options:
  1. LG
  2. Simpson
  3. Whirlpool
  4. Miele
  5. Fisher & Paykel
Basic Prompts/Options
  1. Brand – Selection prompt for the user to choose between a “Custom” Product or a Brand selection.
  2. Appliance – This Dropdown prompt displays the list of options set in the LookUpTables.
  3. Appliance Finish - Select a Product Finish option based on specs to increase visual / rendering quality.

Freestanding Range


Product Category: Appliances

Product Description

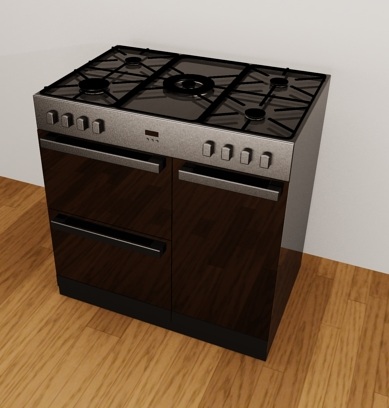

The Freestanding Range product is a stand-alone 3D representation for Range appliances. This product does not produce any manufacturing cut parts or machining. The Foundation Library contains 5 distinct Freestanding Range brand options:
  1. Viking
  2. Belling
  3. Omega
  4. Smeg
  5. Fisher & Paykel
Basic Prompts/Options:
  1. Brand – Selection prompt for the user to choose between a “Custom” Product or a Brand selection.
  2. Appliance – This Dropdown prompt displays the list of options set in the LookUpTables.
  3. Appliance Finish - Select a Product Finish option based on specifications to increase visual / rendering quality.


Fridge


Product Category: Appliances

Product Description

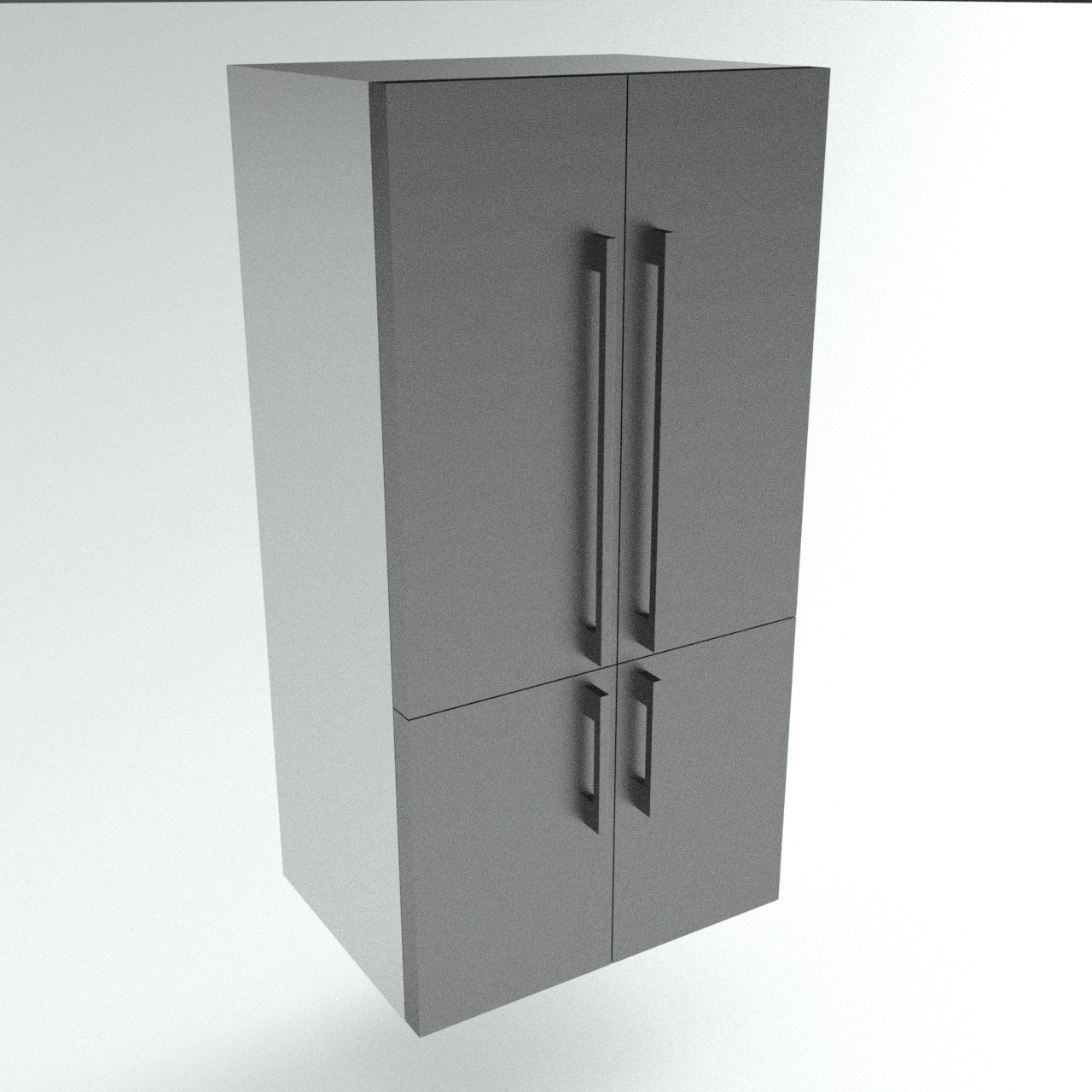

The Fridge product is meticulously designed for user creativity to achieve generic refrigerator styles while also offering the option to load a preset fridge appliance that is ready for instant selection and placement when needed. The Foundation Library contains 7 distinct Fridge brand options:
  1. SUB ZERO
  2. Fisher & Paykel
  3. Bosch
  4. Maytag
  5. Liebherr
  6. Gaggenau
  7. Whirlpool

Basic Prompts/Options:
Brand – Selection prompt for the user to choose between a “Custom” Product or a Brand selection.
Appliance – This Dropdown prompt displays the list of options set in the LookUpTable.
Appliance Finish - Select a Product Finish option based on specifications to increase visual / rendering quality.

Unique Product Features/Prompts
The “Custom” product option is a user designed Fridge that is constructed with parametric DRAWBLOCK parts that do not produce machining. Each of these parts are controlled by the prompts available when the Brand dropdown is set to “Custom.”
The Custom Fridge is constructed based on default/ pre-set configurations that will activate specific driven prompts, available for the user to modify.

Configuration Options: Left Swing, Right Swing, French Door, Side By Side, 1 Drawer, 2 Drawer.

Prompts Available when Using “Custom” Brand Option
  1. Add Vent
  2. Add Handles
  3. Add Glass
  4. Appliance Offset X
  5. Kick Panel Height
  6. Configuration
  7. Bottom Configuration
  8. Body Height
Face Options Tab
  1. Face Height
  2. Bottom Face Height
  3. Left Door Width
  4. Right Door Width
  5. Bottom Left Door Width
  6. Bottom Right Door Width
  7. Door Gap
Vent Options Tab
  1. Vent Position
  2. Vent Height
  3. Vent Slot Qty
Handle Options Tab
  1. Handle Length
  2. Bottom Handle Length
  3. Handle Offset From Side
  4. Handle Width
  5. Handle Offset from Face
  6. Handle Bracket Width
  7. Handle Bracket Length
  8. Handle Offset
  9. Handle Offset Bottom Face
  10. Round Handle
Glass Options Tab
  1. Bottom Rail Width
  2. Top Rail Width
  3. Left Style Width
  4. Right Style Width


LookUpTable Information

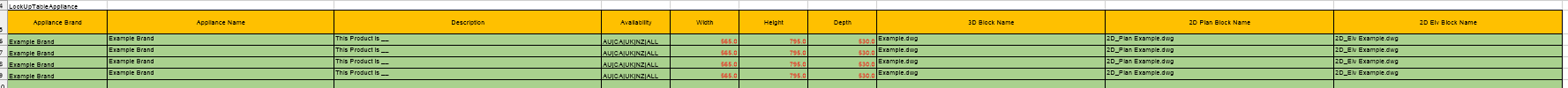

LookUpTableCustom contains the user inputs for a custom appliance option. The user can control and alter all the default parameters to be dynamic and generic for a custom size.

Dishwasher


Product Category: Appliances

Product Description

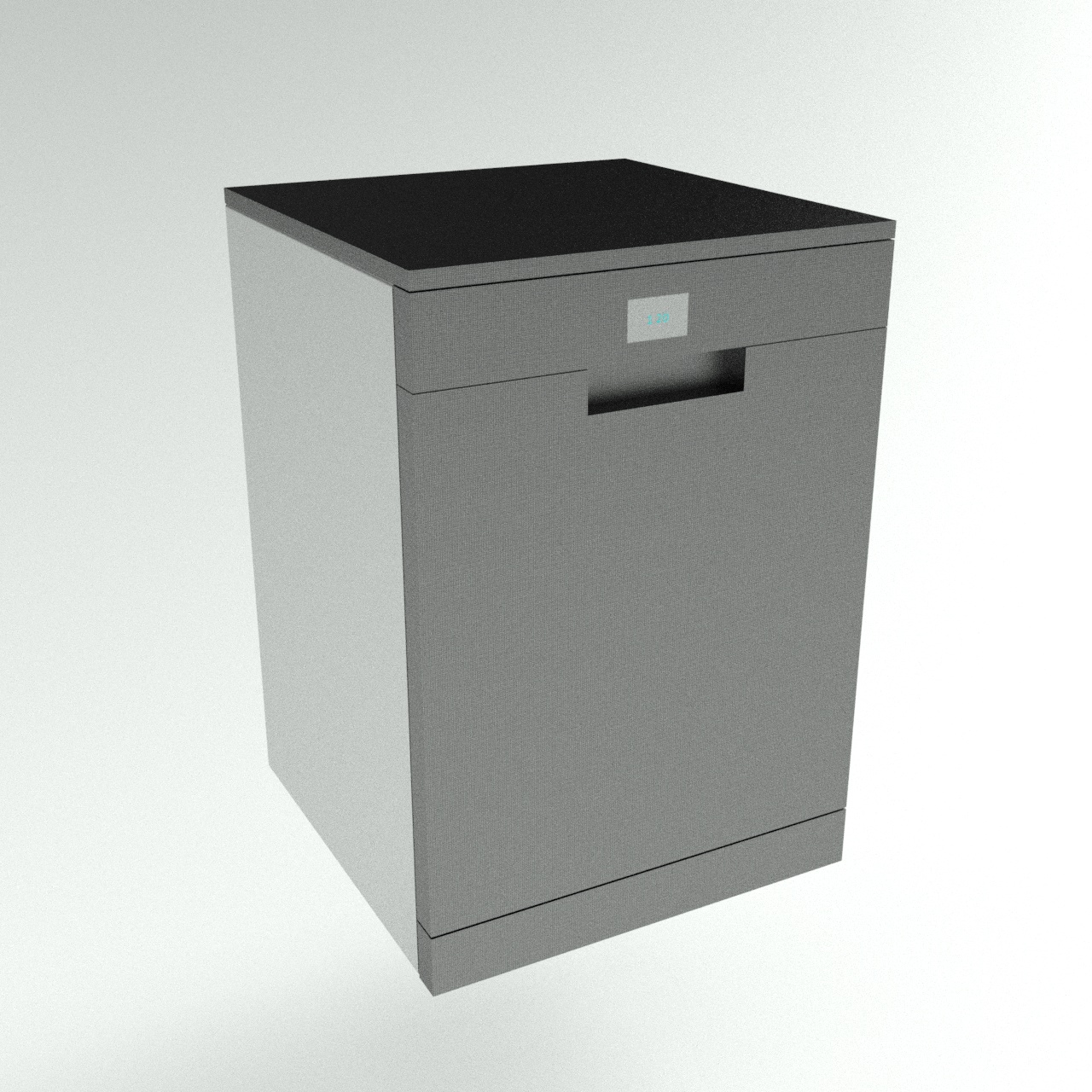

The Dishwasher product is meticulously designed for user creativity to achieve generic dishwasher styles while also offering the option to load a preset dishwasher appliance that is ready for instant selection and placement when needed.
This product contains a Semi Integrated and Fully Integrated option that seamlessly allows the user to achieve specification requirements and produce a parametrically driven cut part for the face panel. The Foundation Library contains a variety of Dishwasher options from four distinct brands:
  1. Fisher & Paykel
  2. JennAir
  3. Maytag
  4. Smeg
Further, when electing to use a custom brand, an additional branded dishwasher branded product becomes available for customization: the Westinghouse WSF6608XA freestanding dishwasher.
Basic Prompts/Options:
  1. Brand – Selection prompt for the user to choose between a “Custom” Product or a Brand selection.
  2. Appliance – This Dropdown prompt displays the list of options set in the LookUpTable.
  3. Appliance Finish - Select a Product Finish option based on specifications to increase visual / rendering quality.

Unique Product Features/Prompts
The “Custom” product option is a user designed Dishwasher that is constructed with parametric DRAWBLOCK parts that do not produce machining. Each of these parts are controlled by the prompts available when the Brand dropdown is set to “Custom.”

The Dishwasher Product contains two of the standard product prompt tabs that control subassembly options from the product level.
Face Options – Tab to control Subassembly Finished Faces parameters
Countertop Options – Tab to control Subassembly Countertop options

Prompts Available when Using “Custom” Brand Option:
  1. Kick Height
  2. Kick Setback
  3. Top Panel Thickness
  4. Control Panel Height
  5. Door Gap
  6. Handle Type
  7. Handle Length
  8. Handle Width
  9. Thickness Face
Finish Options Tab
  1. Door Finish
  2. Control Panel Finish

STANDARD SUBASSEMBLIES INCLUDED
  1. Countertop
  2. Finished Faces
  3. Kick Face

LookUpTable Information

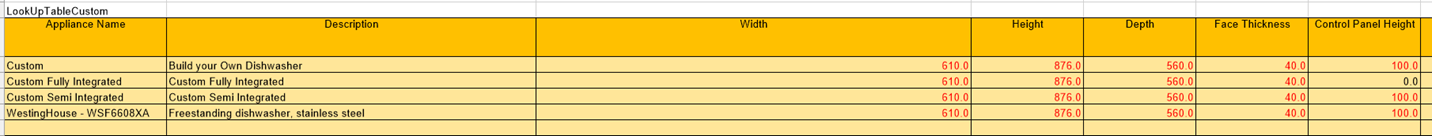

LookUpTableCustom contains the user inputs for a custom appliance option. The user can control and alter all the default parameters to be dynamic and generic for a custom size.
