How to Import Tool Files using Database Management

How to Import Tool Files using Database Management

NOTICE: The Import function of Database Management is a powerful tool that modifies data in the current configuration.  ALWAYS  back up your data before executing a data Import.

The articles in this section of the Knowledge Base involve importing and exporting from the Database Management window. For general information regarding the Database Management tool, or how to access it, see Database Management Utilities (Overview).

This simplified article provides a brief tutorial for importing Tool Files using the Database Management Utility.

All records associated with the select Tool File(s) are transferred by default. These records include HDrills, VDrills, Routers, Saws, Zones, and Custom Variables.

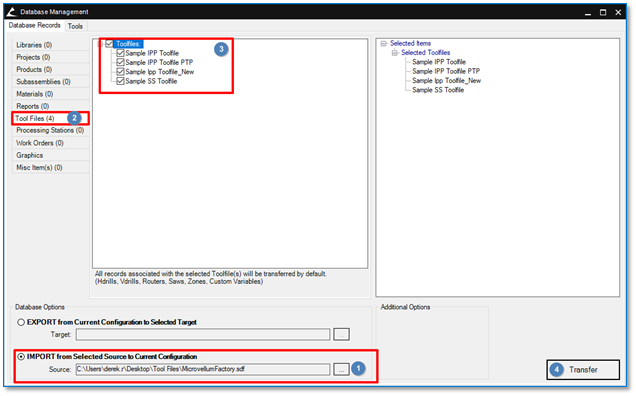

Fig. 01 – Database Management Utility – Import Tool Files

  1. Select IMPORT from Selected Source to Current Configuration > browse to the file location containing the MicrovellumFactory.sdf to be imported > select the MicrovellumFactory.sdf.
  2. Select the Tool Files tab.
  3. The middle panel is populated with data from the selected database. Select the Tool File(s) to be imported from this central panel.
    4. When pulling from an archival database, chances are not everything in the external database needs to be imported. The middle panel in the image above allows you to select only the items you wish to import. The items specified appear in the panel on the right. Items can be selected from multiple categories at once.
  4. Select Transfer.

Resolving Duplicates

When importing from a database that includes data duplicated from the Factory Database, like an archival database, the Resolve Duplicate Names window appears.

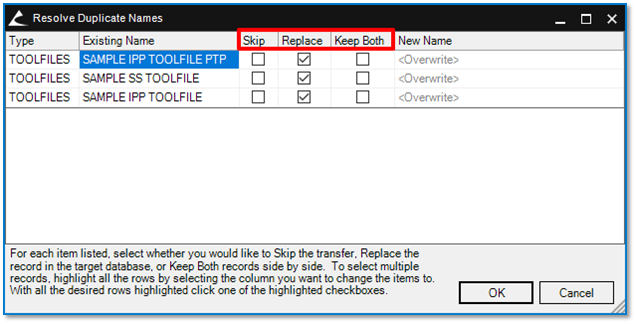

Fig. 02 – Resolve Duplicate Names

There are three options to resolve duplicates:

  1. Skip – Does not change the existing item, and an additional item is not added. The item is ignored.
  2. Replace – Replaces the item in the target location that has the duplicate name.
  3. Keep Both – Appends to the target location. A new name must be given to the item.

    4. Fig. 03 – New Name
