Additions

1. Added DTC Magic Pro and Magic Star Ultra drawer systems.

2. Magic Pro

1. Items added in hardware file

1. 300 and 600 lengths for all drawer heights.

2. Add 60kg option for all lengths and heights

3. Black Matte for all heights and lengths.

4. Reorganized folders. Separated by color for consistency in HW file.

2. 3D Drawings added

1. DTC Magic Pro Side C/F/K/M Height 300mm Left/Right

2. DTC Magic Pro Side C/F/K/M Height 600mm Left/Right

3. DTC Magic Pro Slide 300mm Left/Right

4. DTC Magic Pro Slide 600mm Left/Right
3. DTC Magic Pro subassembly

1. Populated the Runner Hole Position 2 table for the 60kg option.
2. Added the 300 and 600 to the Runner Hole Position 1/2 tables.
3. Magic Star Ultra
1. Added all available heights and lengths, sorted by color (black matte, grey matte, silk white), to hardware file.
2. Created all drawings for sides and slides for all heights and lengths.


1. Added option to miter the back edge of the Shoe Shelf.


1. Added new global variables for more control of FE Scribe Route.  "Added FE Scribe Tool" and "FE Scribe Route Offset" allowing user to control both Tool and Tool Compensation at a higher level.


1. Added the new global variable "Finished End Dimension Plan" to break out a plan option vs the elevation option. Applied End options will now also trigger the "Finished End 2D" dimension features.


Modifications/Resolutions General

1. Resolved issue with “Division Quantity” prompt not showing when using component inserts that contain divisions are selected. Added Top Division Qty to all relevant products, Frameless and Face Frame.


1. Resolved issue with all drawer systems when using Wood Spacers.


1. Modified the LeMans II Min Door Opening Width to match the specifications.


1. Updated the Harn Alunan T 270mm Right drawing to correctly represent in model.

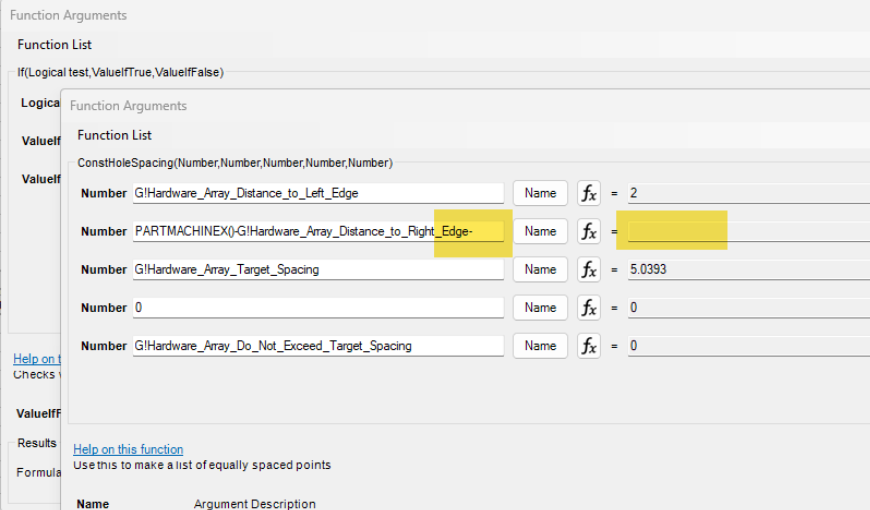

1. Updated the "Bottom Hardware Array" token in the Pigeon Holes and Divisions subassemblies.  The array now spans the full width of the part.


1. Resolved issue with the Shoe Shelf subassembly.  The hardware array is now on the correct edge and the 2D elevation is annotated correctly with ADJ or FIXED.


1. Resolved an issue with Grass ZBox back machining.


1. Resolved an issue with Grain Direction Indicator not showing up on Buyout doors.


1. Resolved issues with Fixed Shelves and Dividers subassembly drawing incorrectly in 2D elevation.


1. Resolved an issue in Blind Cabinets when Right Blind Corner was selected.  The machining for the filler is now applied correctly.


1. Resolved issue with Master Double Sided Cabinet 2D Elevations.  It no longer draws the rear elevation to the side of the front elevation.


1. Updated all Sink Cabinets to report out the same part name for the Sub Front.  These parts now have consistent naming for all sink products.


1. Resolved an issue with incorrect machine points on the Corner Filler top and bottom parts.  The parts were machined incorrectly if the "Filler Width Left/Right" were not equal.


1. Resolved issues with Hinges and Door Buffers being placed incorrectly if the Top Reveal was set to a negative number.  These hardware items should now position correctly in all door subassemblies.


1. Updated all Blum LegraBox drawer systems.  All standard systems include “Pure” in the name.  All colors were changed to match the Blum specs, Orion Grey, Silk White, Stainless Steel. “Free” Style systems, height C only, have been added with all colors.


1. Resolved issue with Double Top Drawer option having a static value and staying on in the Component Door Drawer FF subassembly.  This now functions properly from the product prompts.


1. Resolved an issue with Appliance Panel option in the Fridge product where it would crash during work order creation if Appliance Panel was on. *In the future, this product will receive additional updates to allow for Appliance Panels to draw and cut properly when used with the brands that are designated panel ready.


1. Resolved an issue with missing back drilling in the Hettich Aventech YOU drawer system.


1. Updated the control types of Corner Filler Type/Style to be visible in Blind Corner Cabinets, when "Use Corner Filler" is on.


1. Resolved an issue with Shelf Adj subassembly shelf pin holes where both hole qty per shelf was on along with continuous shelf holes causing duplicated, overlapping holes.


1. Updated Component Door, Component Door Drawer, Component Door FF, Component Door Drawer FF subassemblies to pass the correct material through to the Door Material prompt based on Product Type.  This was an issue with Vertical Designer products and Double Door products where they defaulted to the Tall Door material.


1. Resolved an issue inside the Wall Room Component that occurred when a Door subassembly was used. A static tool number “101” has been replaced with "=G!Default_Routing_Tool_CW" to prevent tool number errors. This correction cannot be applied with the library update tool. Shipping library has been corrected.


1. Master Diagonal Corner Vertical Designer Cabinet FF
2. Master Angle End Cabinet
3. Master Open Corner End Cabinet
4. Base Open End Cabinet
5. Tall Open End Cabinet
6. Upper Open End Cabinet
7. Pelmet

1. Access Panel
2. Applied Panel
3. Angled End Shelf Fixed
4. Horizontal Splitter
5. Corner Shadow Rail
6. Countertop With Miters
7. Cabinet Chamfer Top
8. Cabinet Chamfer Top And Bottom
9. Cabinet Notch Bottom
10. Cabinet Notch Top And Bottom
11. Staircase Flight
12. Staircase
