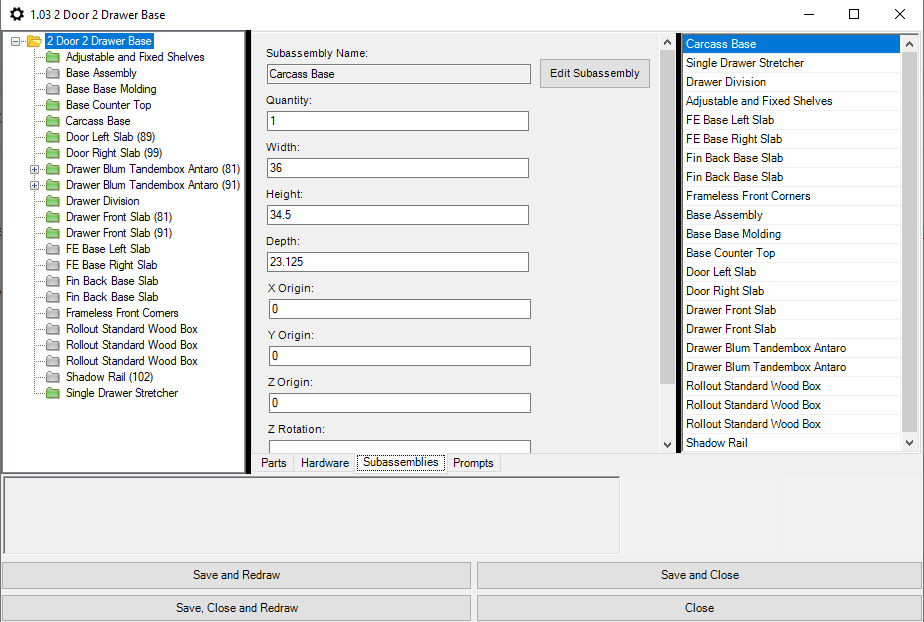

To edit the properties of a subassembly within the product, select the Product Description at the top of the Subassembly List, right-click and select show properties. This will display the product’s subassemblies in the Part List.

You will be allowed to edit the Subassembly Name, Quantity, Width, Height, Depth, the X, Y, and Z origins, the Z rotation, and Perfect Grain Info.
