Disassociated hinges

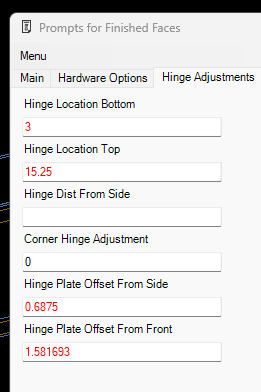

When drawing (3d) a base 2door 2 drawer cabinet, my hinges are showing red (disassociated).  Digging into the issue, it appears that the Hinge distance from side prompt is blank.




IN the part properties for the subassembly I have a #NAME? value.

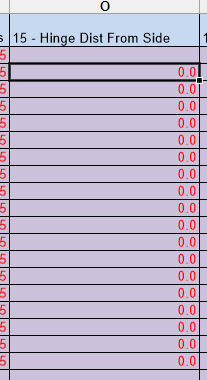

Digging deeper, it appears that the lookup table in the subassembly part properties does not have any values for this value showing all 0's.



What is missing (if anything) and how do I fix it?  Foundations Library 23.0210.
