The Closet/Wardrobe Expansion Overview

The Closet/Wardrobe Expansion Overview

About the Expansion

The Microvellum Closet/Wardrobe Expansion contains a wide collection of closet/wardrobe products, inserts, hardware, and customization options to complement the Foundation Library. This article will provide you with an overview of the Closet/Wardrobe Expansion and contains a listing of products, subassembly inserts, and options included.



Closet/Wardrobe Master Products

Master Closet


Description: This is a “Master” product capable of being saved back to the library numerous times in an unlimited number of different combinations.  This closet unit is equipped with one bay.

Main Options:

  1. Parametric Sizing Width/Height/Depth
  2. System 32 or regular hole patterns
  3. Overlay Tops & Bottoms can extend or reduce Left/Right
  4. Specify Back / No Back / Cleats
  5. Single or Double Partitions
  6. Face Options for each bay (No Door, Doors, Drawers, etc.)
  7. Access to All Construction Methods
  8. Access to Material Options
  9. Access to 2D Drawing Options
  10. Access to Hang Rail Hardware Options

Additional Info: Product has access to all 16+ Foundation Library Component Inserts and can be split into two openings by checking (ticking) the box on a center shelf (each with access to different component inserts). Can also be converted into a Hutch giving many different design options.

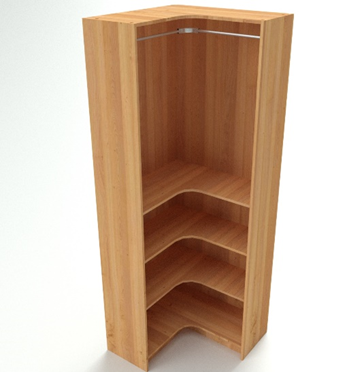

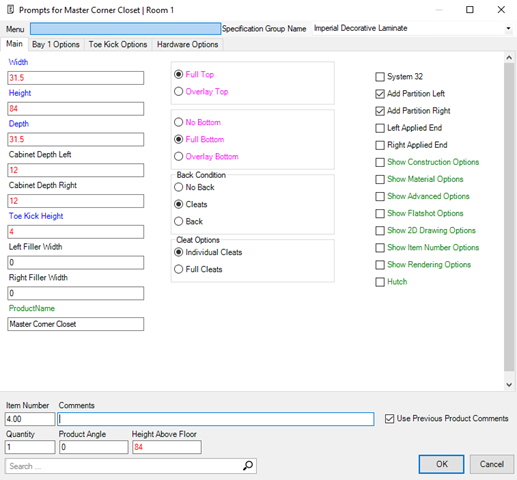

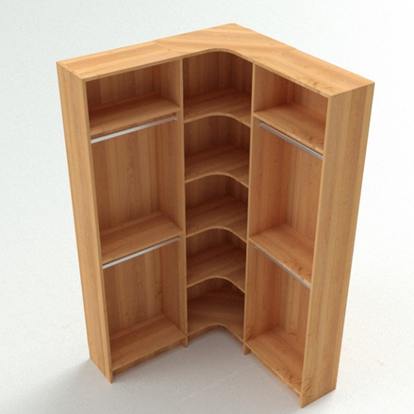

Master Corner Closet


Description: Single corner closet unit with only one bay. This is a “Master” product capable of being saved back to the Library numerous times in an unlimited number of different combinations.

Main Options:

  1. Parametric Sizing Width/Height/Depth
  2. System 32 or regular hole patterns
  3. Overlay Tops & Bottoms can extend or reduce Left/Right
  4. Specify Back / No Back / Cleats
  5. Single or Double Partitions
  6. Access to All Construction Methods
  7. Access to Material Options
  8. Access to 2D Drawing Options
  9. Access to Hang Rail Hardware Options

Additional Info: Product has access to all Foundation Library Corner Component Inserts and can be split into two openings by checking (ticking) the box on a center shelf (each with access to different component inserts).

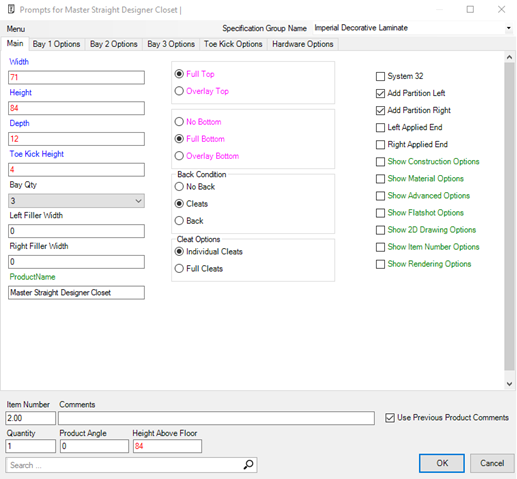

Master Straight Designer Closet


Description: Straight run of closet units up to ten (10) bays wide. This is a “Master” product capable of being saved back to the library numerous times in an unlimited number of different combinations.

Main Options:

  1. Parametric Sizing Width/Height/Depth
  2. Opening Bay Calculator to specify and calculate opening sizes for each unit
  3. Control Individual Bay Heights & Depths
  4. System 32 or regular hole patterns
  5. Overlay Tops & Bottoms can extend or reduce Left/Right
  6. Specify Back / No Back / Cleats (individual or full)
  7. Single or Double Partitions
  8. Face Options for each bay (No Door, Doors, Drawers, etc.)
  9. Access to All Construction Methods
  10. Access to Material Options
  11. Access to 2D Drawing Options
  12. Access to Hang Rail Hardware Options

Additional Info: Each bay has access to all 16+ Foundation Library Component Inserts and can be split into two openings by checking (ticking) the box on a center shelf (each with access to different component inserts). Each bay can also be converted into a Hutch giving many different design options.

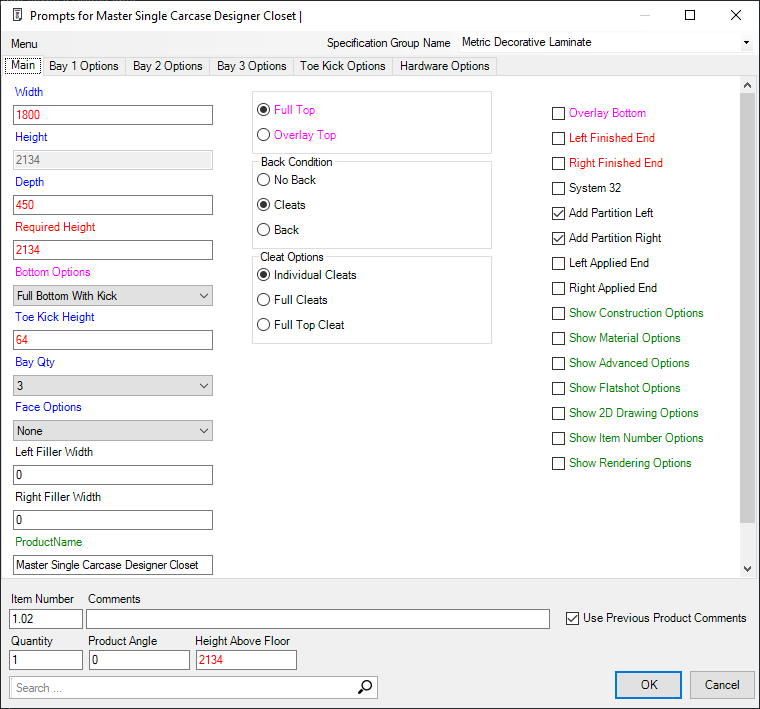

Master Single Carcase Designer Closet


Description: Straight run of closet units up to ten (10) bays wide within a single carcase This is a “Master” product capable of being saved back to the library numerous times in an unlimited number of different combinations.

Main Options:

  1. Parametric Sizing Width/Height/Depth
  2. Opening Bay Calculator to specify and calculate opening sizes for each unit
  3. System 32 or regular hole patterns
  4. Overlay Tops & Bottoms can extend or reduce Left/Right
  5. Specify Back / No Back / Cleats (individual or full)
  6. Options for Full Bottom With Kick / Full Bottom / No Bottom
  7. Face Options for Sliding Door / Folding Doors / None
  8. Face Options for each bay (No Door, Doors, Drawers, etc.)
  9. Access to All Construction Methods
  10. Access to Material Options
  11. Access to 2D Drawing Options
  12. Access to Hang Rail Hardware Options

Additional Info: Each bay has access to all 16+ Foundation Library Component Inserts and can be split into two openings by checking (ticking) the box on a center shelf (each with access to different component inserts). Each bay can also be converted into a Hutch giving many different design options.

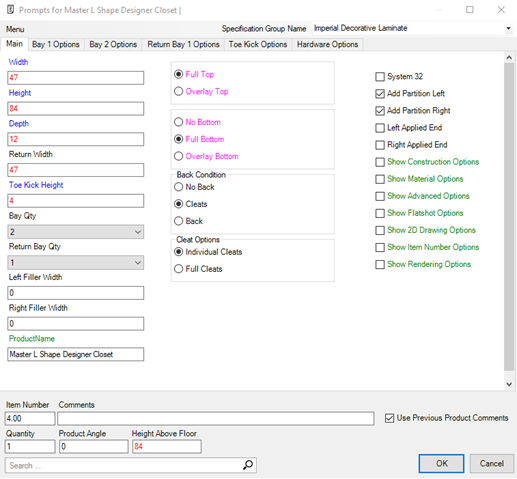

Master L Shape Designer Closet


Description: “L” shape run of closet units up to ten (10) bays wide with up to nine (9) return bays. This is a “Master” product capable of being saved back to the library numerous times in an unlimited number of different combinations.

Main Options:

  1. Parametric Sizing Width/Height/Depth
  2. Two Opening Bay Calculators to specify and calculate opening sizes for each unit along the front and return
  3. Control Individual Bay Heights & Depths
  4. System 32 or regular hole patterns
  5. Overlay Tops & Bottoms can extend or reduce Left/Right
  6. Specify Back / No Back / Cleats (individual or full)
  7. Single or Double Partitions
  8. Face Options for each bay (No Door, Doors, Drawers, etc.)
  9. Access to All Construction Methods
  10. Access to Material Options
  11. Access to 2D Drawing Options
  12. Access to Hang Rail Hardware Options

Additional Info: Each bay has access to all 16+ Foundation Library Component Inserts and can be split into two openings by checking (ticking) the box for a center shelf (each with access to different component inserts). Each bay can also be converted into a Hutch giving many different design options.

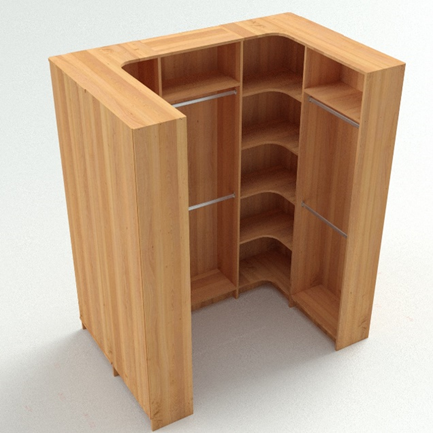

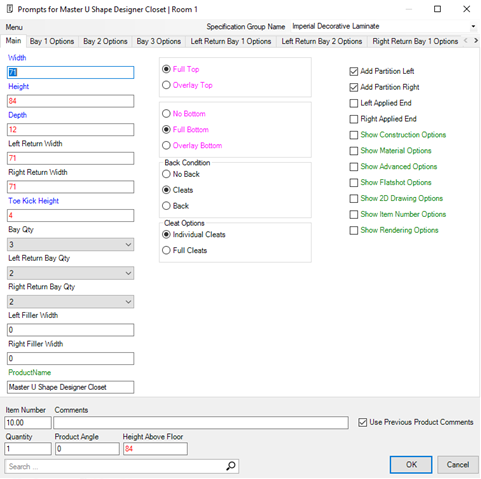

Master U Shape Designer Closet


Description: “U” shape run of closet units up to ten (10) bays wide with up to nine (9) return bays left/right. This is a “Master” product capable of being saved back to the library numerous times in an unlimited number of different combinations.

Main Options:

  1. Parametric Sizing Width/Height/Depth
  2. Three Opening Bay Calculators to specify and calculate opening sizes for each unit along the front and returns
  3. Control Individual Bay Heights & Depths
  4. System 32 or regular hole patterns
  5. Overlay Tops & Bottoms can extend or reduce Left/Right
  6. Specify Back / No Back / Cleats (individual or full)
  7. Single or Double Partitions
  8. Face Options for each bay (No Door, Doors, Drawers, etc.)
  9. Access to All Construction Methods
  10. Access to Material Options
  11. Access to 2D Drawing Options
  12. Access to Hang Rail Hardware Options

Additional Info: Each bay has access to all 16+ Foundation Library Component Inserts and can be split into two openings by checking (ticking) the box for a center shelf (each with access to different component inserts). Each bay can also be converted into a Hutch giving many different design options.

Closet/Wardrobe Master Doors & Frames

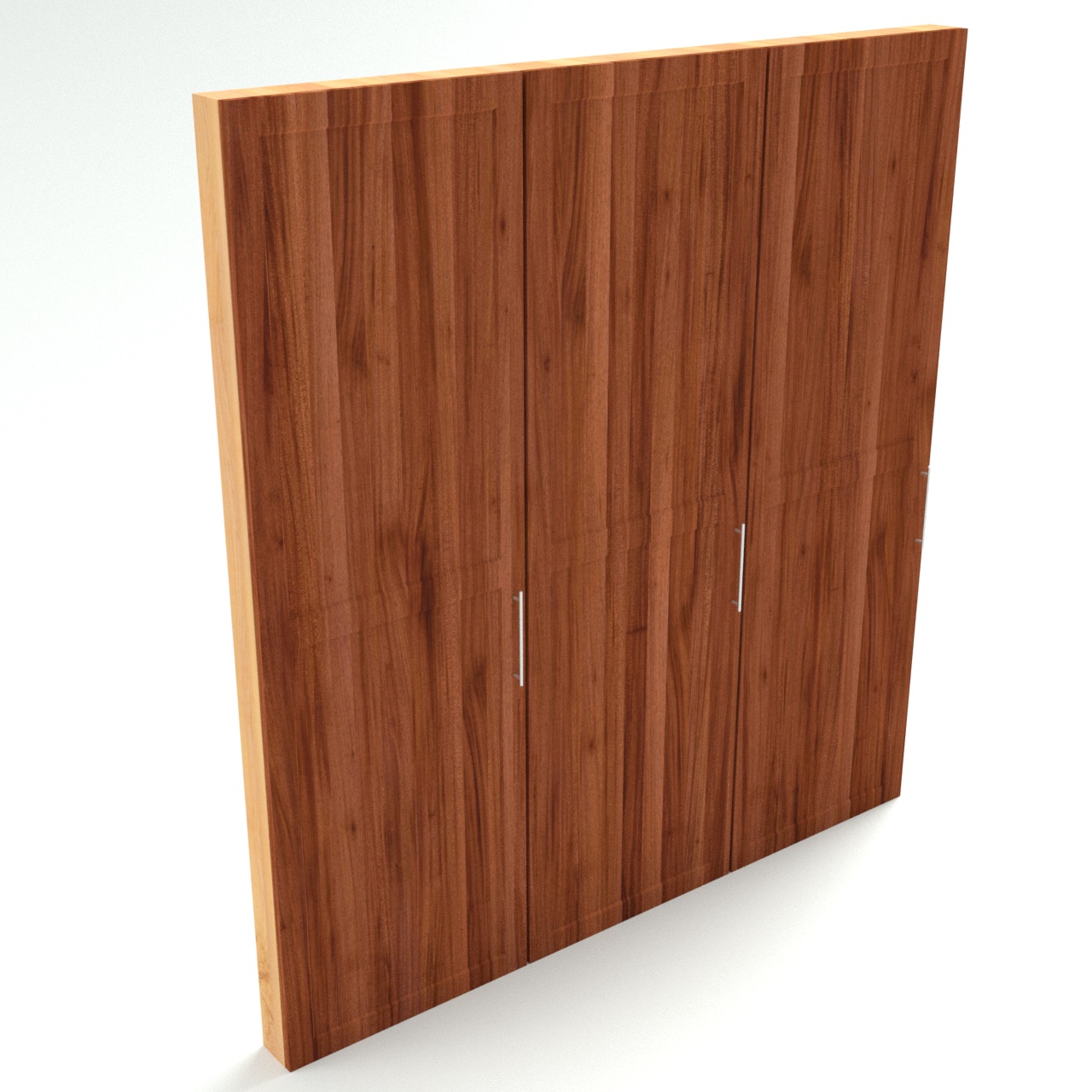

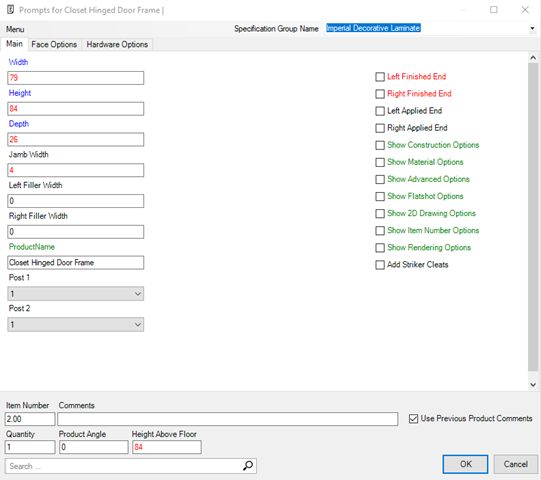

Closet Hinged Door Frame


Description:   Straight run of jamb openings with up to eight (8) doors wide. This is a “Master” product capable of being saved back to the library numerous times in different variations.

Main Options:

  1. Parametric Sizing Width/Height/Depth/Jamb Width
  2. Left/Right Fillers
  3. Options to specify single, double, or no posts between each door
  4. Striker Cleats (Separate Floor Plate)
  5. Door Options for each bay (Left/Right Swing, Overlay/Inset)
  6. Handle & Lock Options
  7. Access to All Construction Methods
  8. Access to Material Options
  9. Access to All Door Types & Styles
  10. Access to 2D Drawing Options

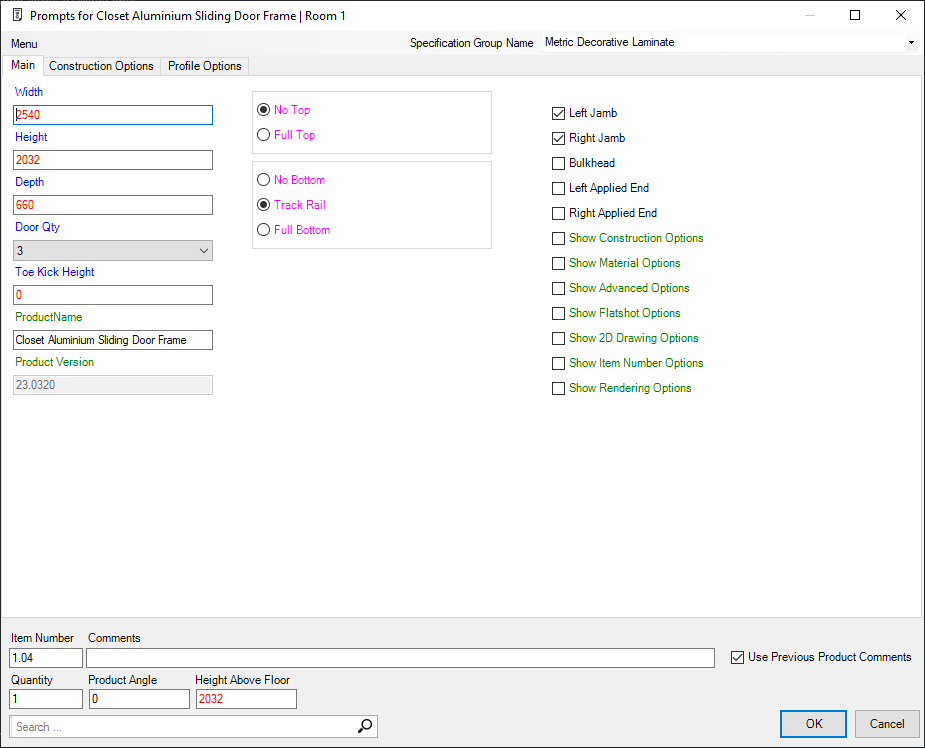

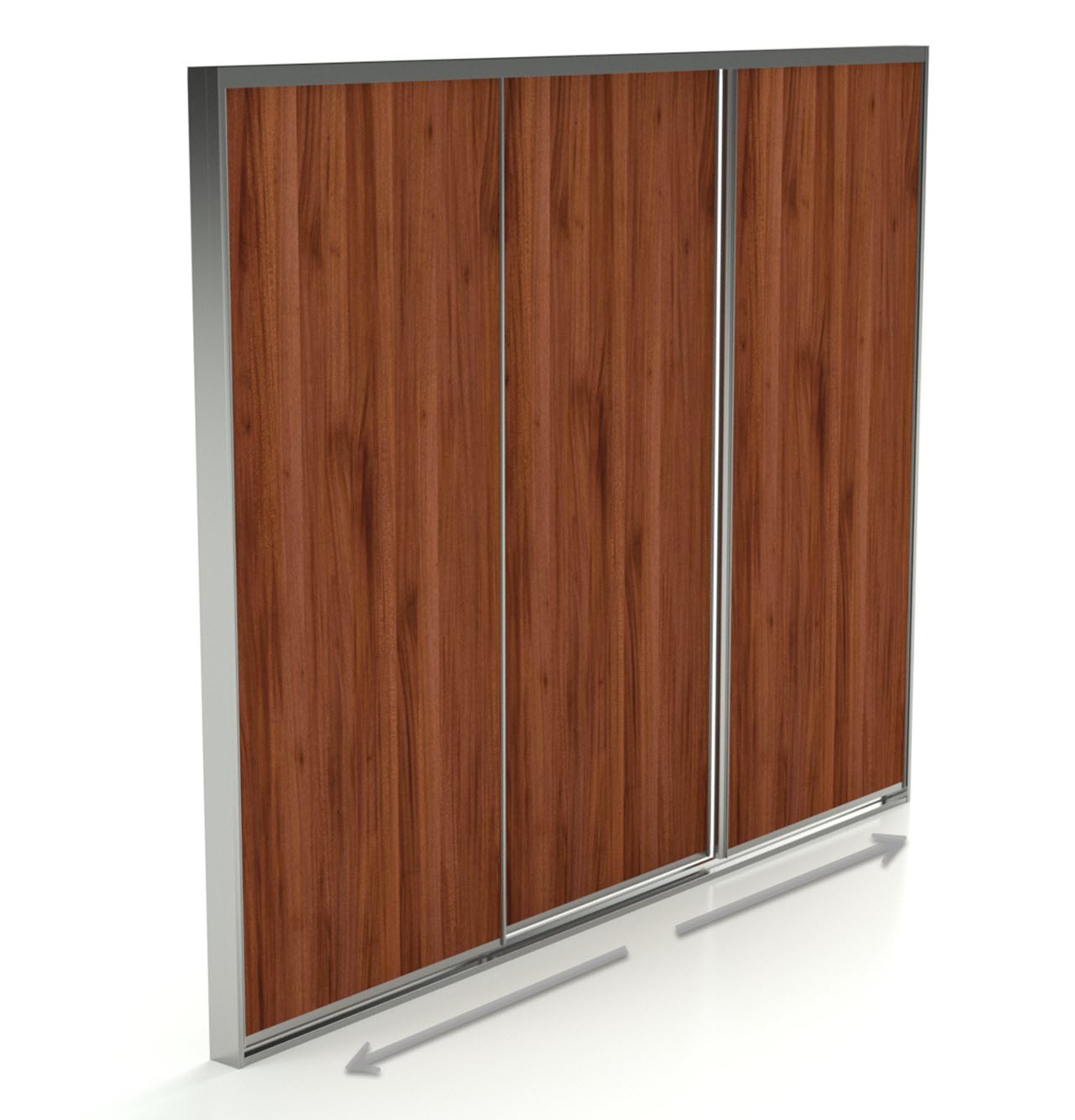

Closet Aluminium Sliding Door Frame

Description:   2, 3, or 4 Sliding Doors with extruded Aluminium track and frame (Bottom, Head and Wall Jambs). This is a “Master” product capable of being saved back to the library numerous times in different variations.

Main Options:

  1. Parametric Sizing Width/Height/Depth/Jamb Width
  2. Left/Right Applied Ends
  3. Options to specify No Bottom / Track Rail / Full Bottom
  4. Options to specify No Top / Full Top
  5. Tick Box options for Left/Right Jamb, Bulkhead, Rear/Left/Right Top Cleat
  6. Profile Combo-Box Options for Style, Bottom Track, Head Track, Left Wall Jamb, Right Wall Jamb, Finish

Closet/Wardrobe Subassembly Inserts

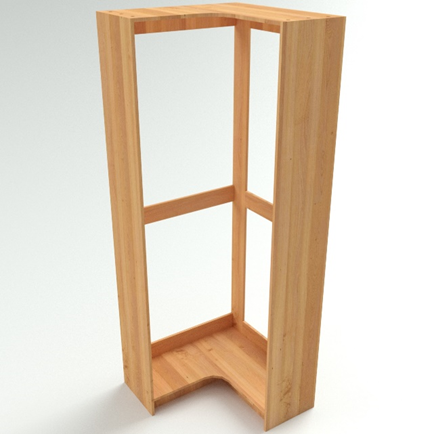

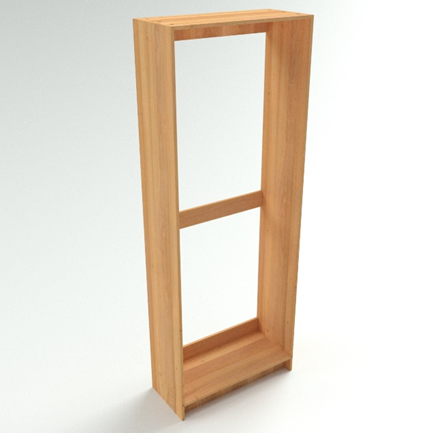

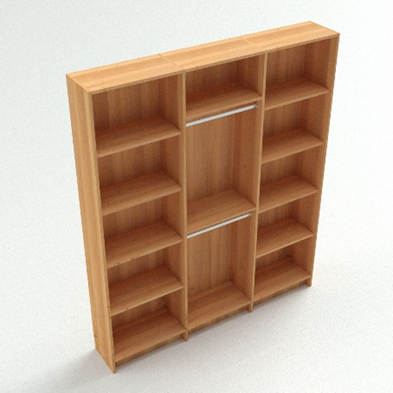

Closet Carcase, Corner Closet Carcase



Description: Closet Carcase Subassembly is designed to be added into each closet product’s bay opening.

Main Options:

  1. Parametric Sizing Width/Height/Depth
  2. Toe Kick Options
  3. System 32 Options
  4. Overlay Top & Bottom Options
  5. Specify Back / No Back / Cleats
  6. Cleat Options
  7. Access to All Construction Methods
  8. Access to Material Options

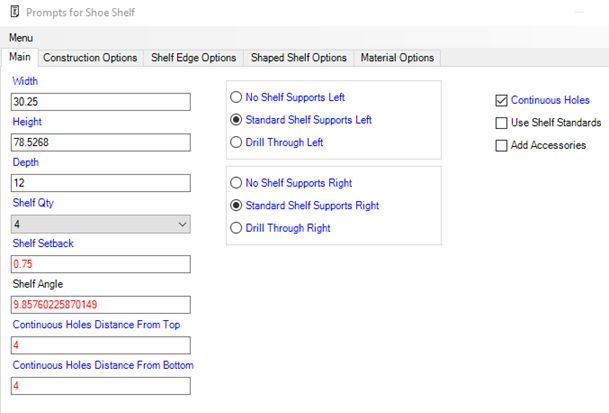

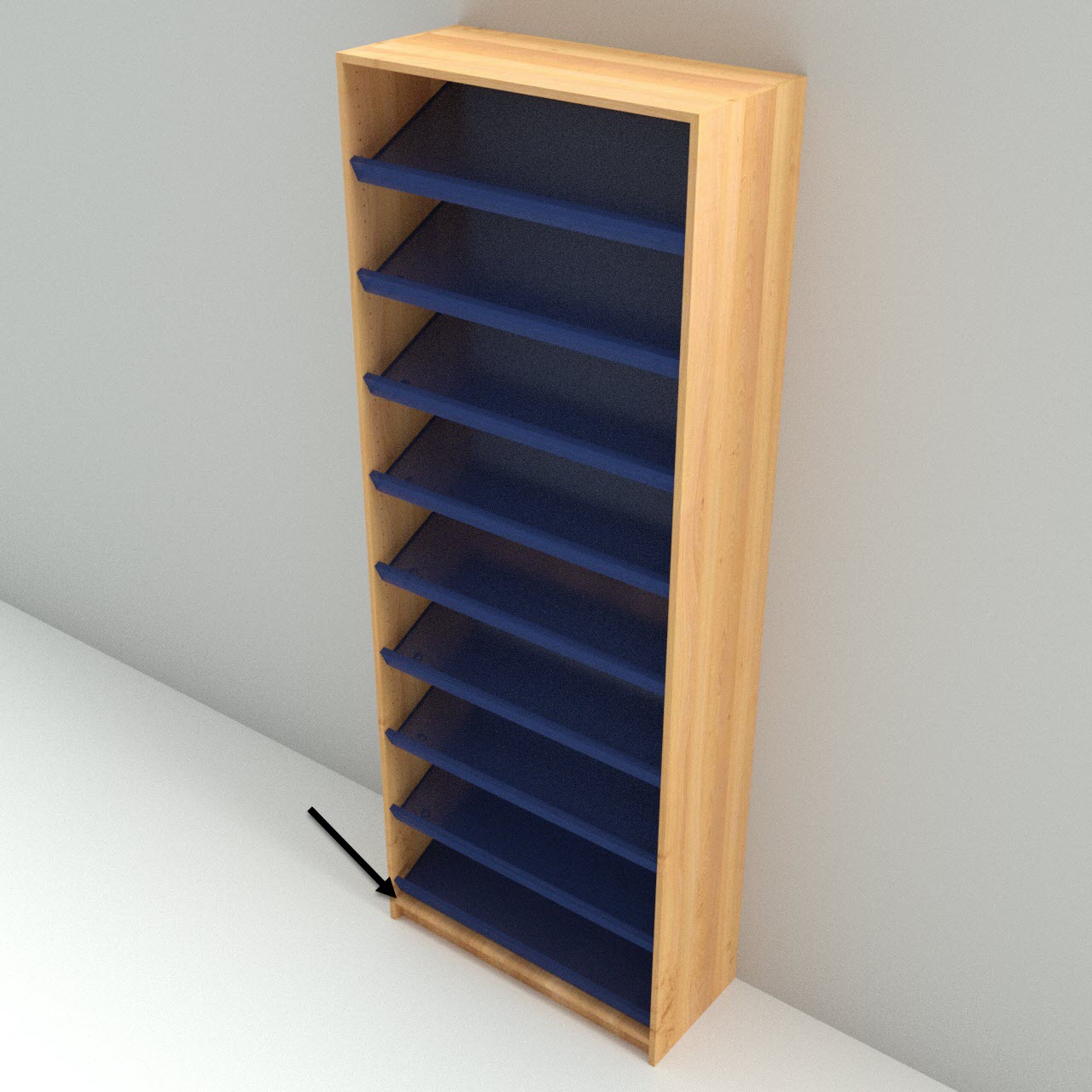

Shoe Shelf


Description:   Shoe Shelf Subassembly Internal Insert designed to be added into any product’s square opening.

Main Options:

  1. Parametric Sizing Width/Height/Depth
  2. Shelf Qty to specify number of shelves
  3. Shelf Height Calculator
  4. Shelf Setback variable to push shelves in from opening face
  5. Shelf Angle variable
  6. Continuous hole pattern or individual linebores per shelf
  7. Shelf Standards option
  8. Shelf edge options for Edgebanding or Lip Up / Lip Down
  9. Optional parametric shaped edge detail
  10. Shelf hole variables for locations & spacings
  11. Access to All Construction Methods
  12. Access to Material Options

Additional Info: The insertion point for this subassembly insert is the lower left-hand corner at the front. The width/height/depth are defining the available area that the parts are located.

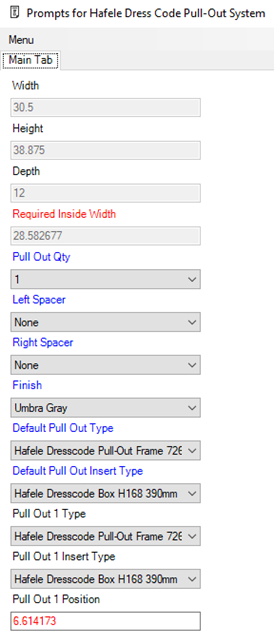

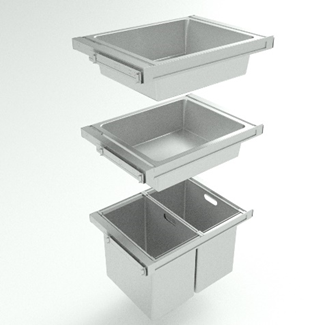

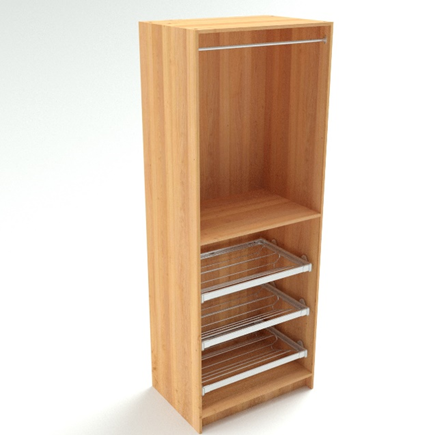

Hafele Dress Code Pull-Out System


Description: Hafele Dress Code Pull-Out System Subassembly Internal Insert designed to be added into any product’s square opening.

Main Options:

  1. Parametric Sizing Width/Height/Depth*
  2. Pull Out Qty up to ten (10)
  3. Nine pre-loaded system types with a LookUpTable ready to accept more
  4. Pull Out Position variables

Additional Info: The insertion point for this subassembly insert is the lower left-hand corner at the front. The width/height/depth are defining the available area that the shelves can be located.

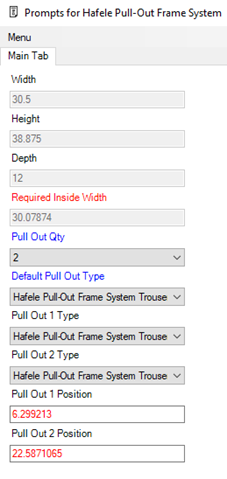

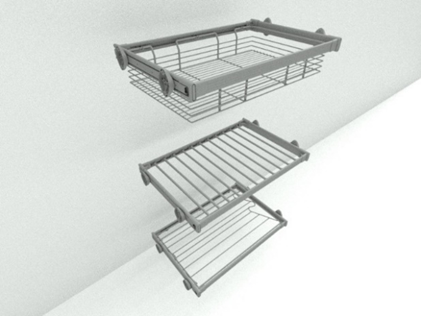

Hafele Pull-Out Frame System


Description: Hafele Pull-Out Frame System Subassembly Internal Insert designed to be added into any product’s square opening.

Main Options:

  1. Parametric Sizing Width/Height/Depth*
  2. Pull Out Qty up to ten (10)
  3. Nine pre-loaded system types with a LookUpTable ready to accept more
  4. Pull Out Position variables

Additional Info: The insertion point for this subassembly insert is the lower left-hand corner at the front. The width/height/depth are defining the available area that the systems can be located.

*Since the Widths are fixed values depending on the selection type, a special prompt called “Required Inside Width” can assist the user to verify the appropriate width is maintained. If the Width is not correct, a custom Warning Message is included that will trigger a message.

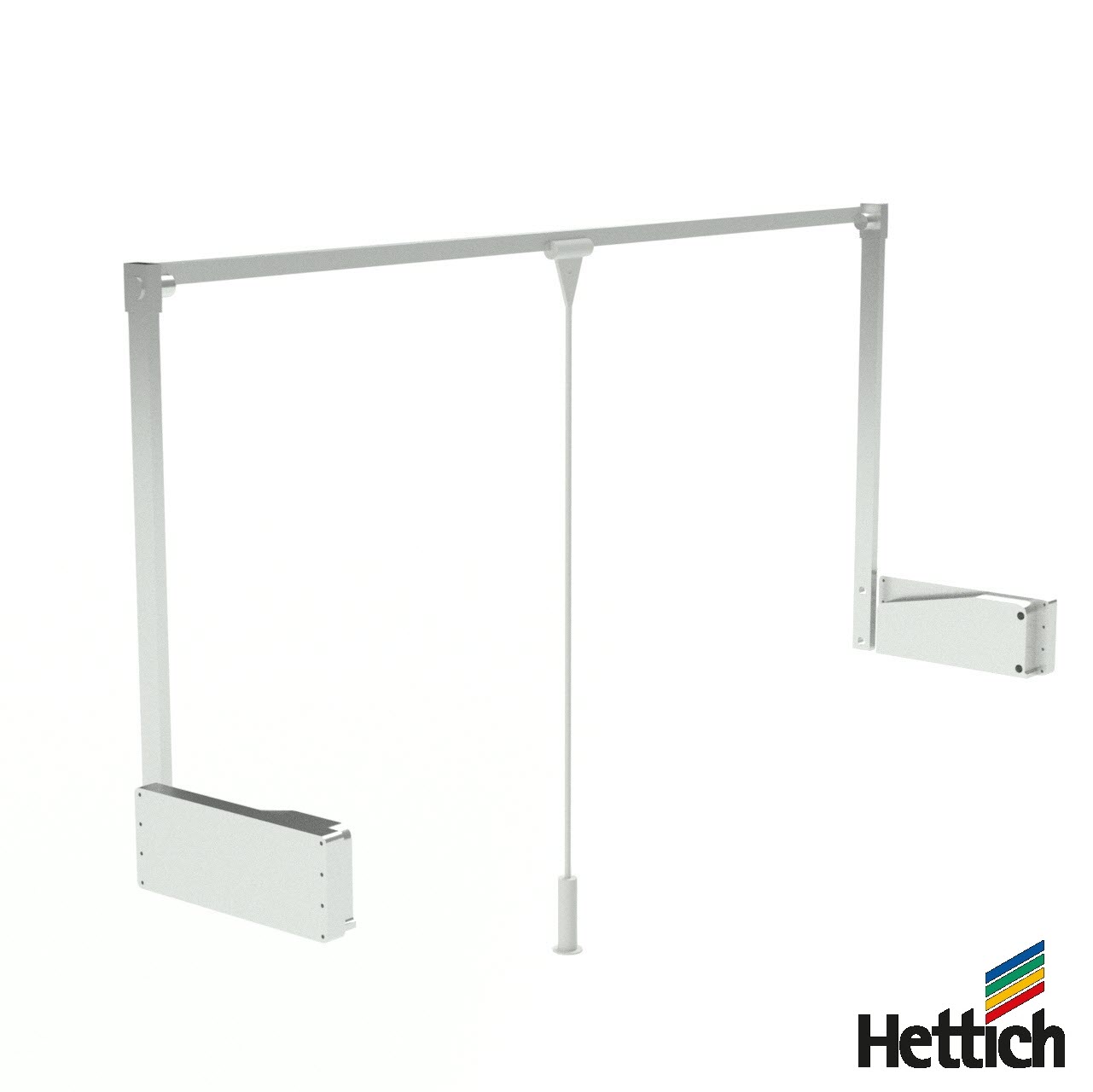

Hettich Duo Lift System

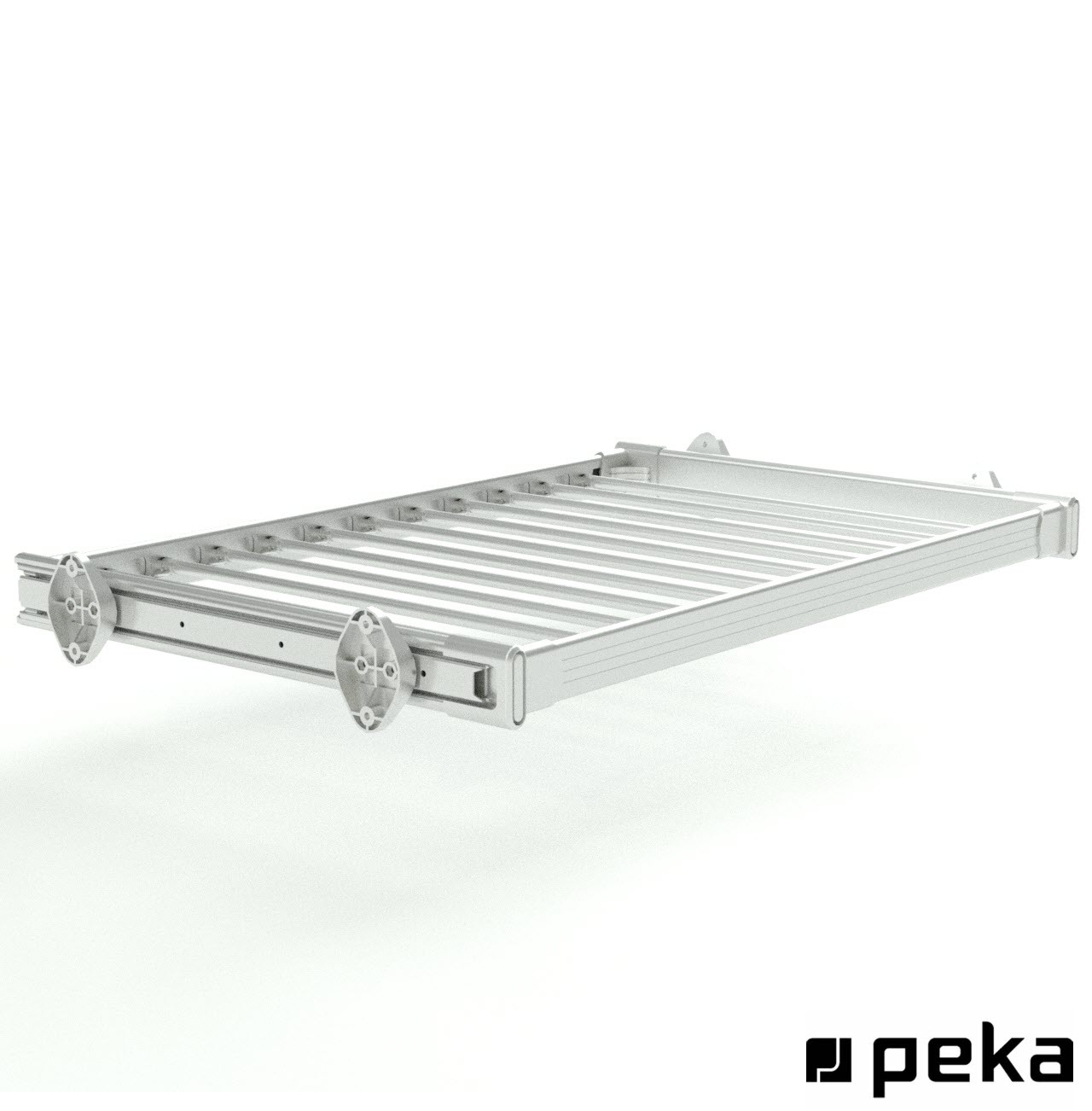

Peka Shoe Pullout

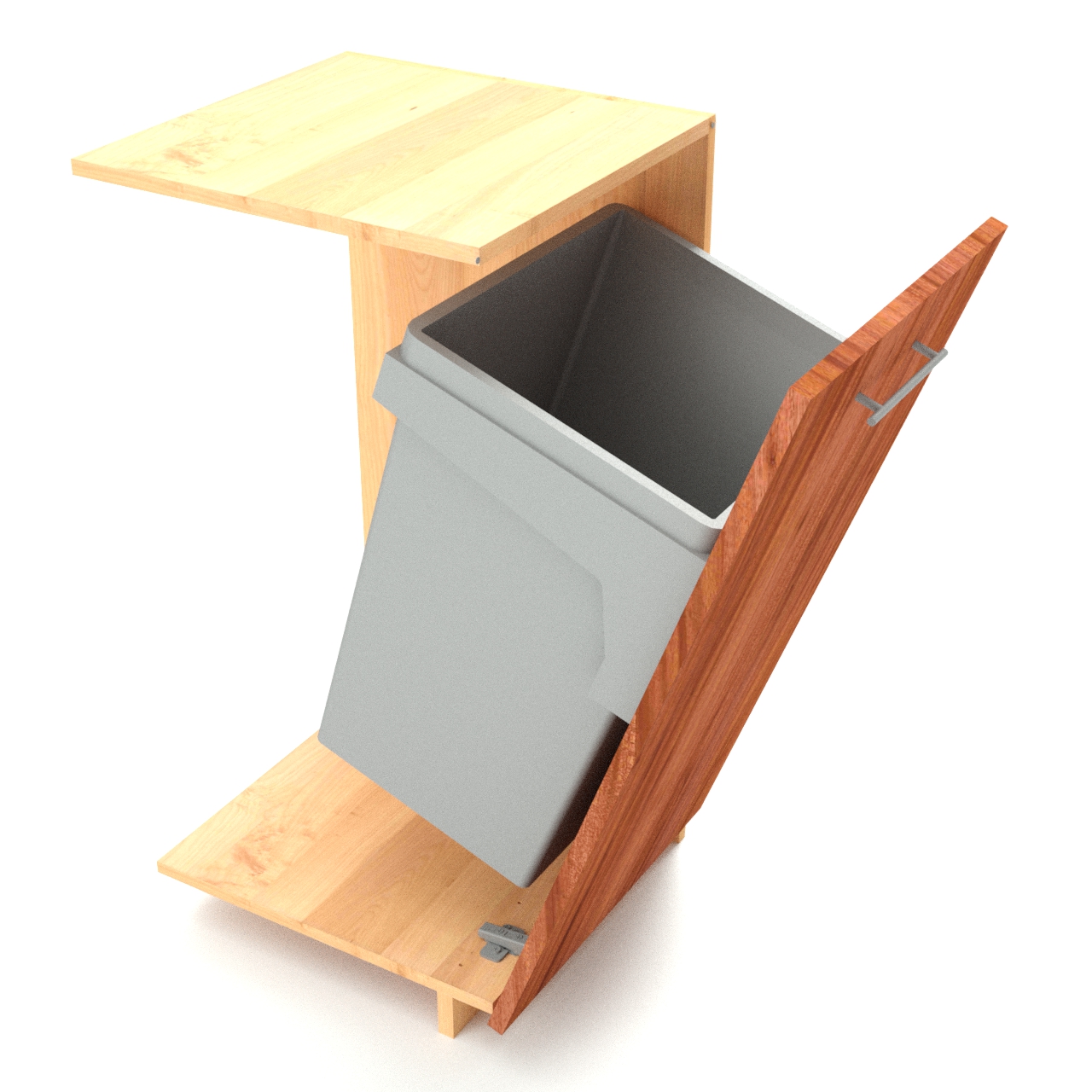

Fold Down Hamper With Door

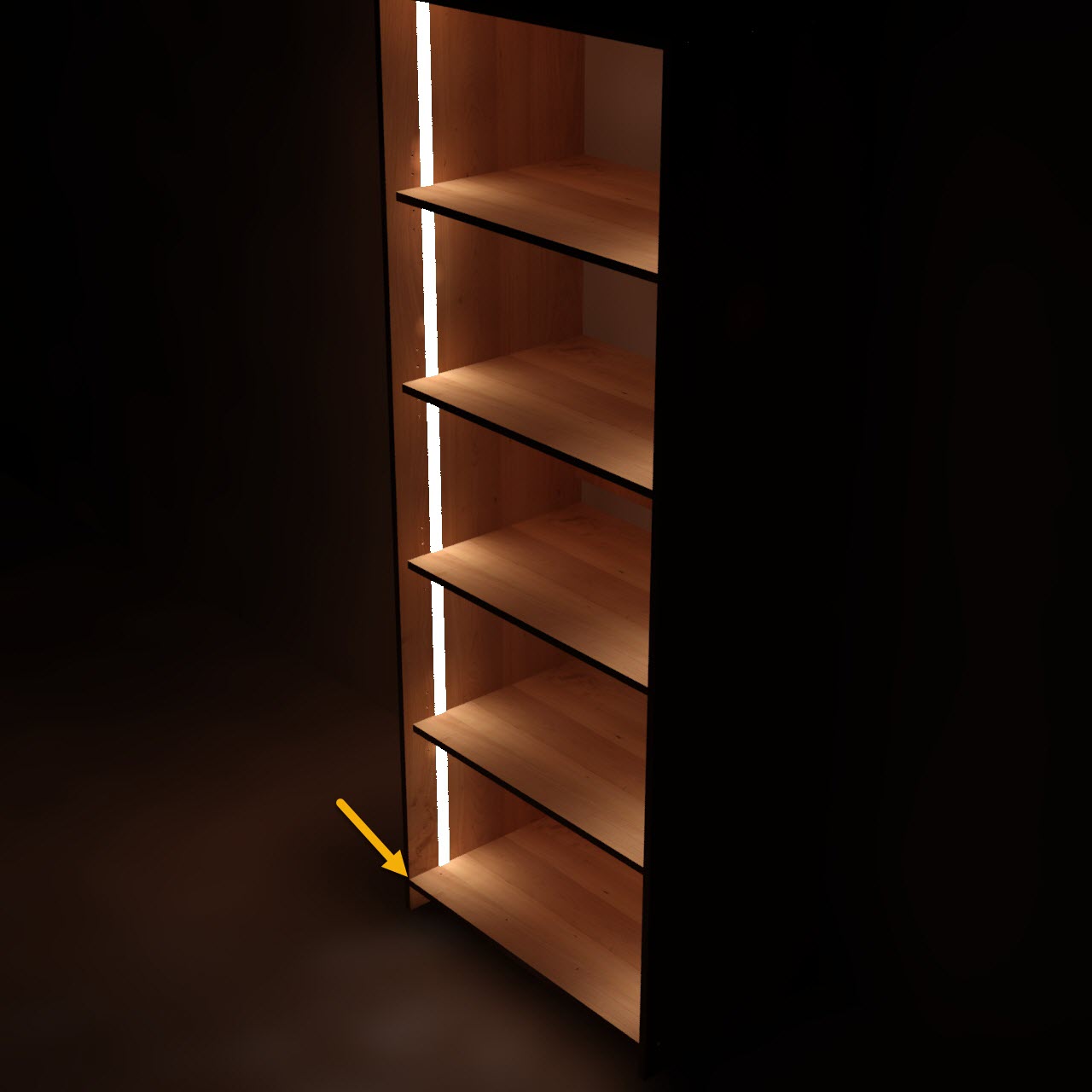

Strip Lighting Insert


Closet/Wardrobe Construction Options

Products in the Closet/Wardrobe Expansion have access to all Foundation Library Construction Methods including:

  1. Screw
  2. Dado
  3. Dado & Screw
  4. Cams
  5. Dado & Cam
  6. Dowel
  7. Dowel & Cam
  8. Dowel & Screws
  9. Invisible Fasteners
  10. Hardware Array

Closet/Wardrobe Product Options

Products in the Closet/Wardrobe Expansion have access to the following Foundation Library Options:

  1. Door & Drawer Front Options
  2. Adjustable and Fixed Shelf Settings
  3. Drawer Box Variables
  4. Adjustable Feet Options
  5. Hardware Options
  6. Material Options
  7. Inset and Overlay Options

System 32

An option for a 32mm Euro system style of line bore is included within products found in the Foundation Library Closet Expansion. This standardized system uses holes spaced in 32mm increments for mounting hinges, drawers, and all the necessary hardware needed to assemble a closet or cabinet.

When using System 32, several rules & variables need to be set up & followed. If any of the following items are not set up correctly, issues may occur within your closet products and components.

The line bore is the array of holes that come predrilled on each part. The following rules apply to all line bores:

  1. Holes are 5mm in diameter.
  2. Holes locate all hardware (horizontally and vertically).
  3. Holes are always 32mm apart center to center.
  4. Holes are always 9.5mm from center of hole to edge of part.
  5. Hole drilling determines part size.
  6. The centerline of the part lines up with the centers of the holes used.
  7. The Global variable “Front Shelf Hole to Edge” needs to be set to 37mm to match up with the hinge plate setback from the front edge.
  8. The Global variable “Cam Distance to Front Edge” needs to match the “Front Shelf Hole to Edge”.
  9. The Global variable “Cam Distance to Back Edge” needs to match the “Rear Shelf Hole to Edge”.
  10. The Global variable “Default Closet Toe Kick Height” needs to be in increments of 32mm.
  11. The Height of the closet is determined from the hole count and the hole spacing (32mm). Reference the prompt “Required Height” to match the Height of the product.
  12. The Height of drawer fronts are determined by the “Drawer Hole Count” prompts.
  13. The intended construction method to use is “Cams”.
