After Toolbox has been installed, there are options for how the Toolbox Palette is displayed. For information on the contents of the Toolbox Palette, see Understanding the Toolbox Palette. This article pertains to docking and display options for the Toolbox Palette as of build 20.1.0811.641.


The Toolbox Palette can be dragged and positioned by clicking in and dragging from the Microvellum header section.

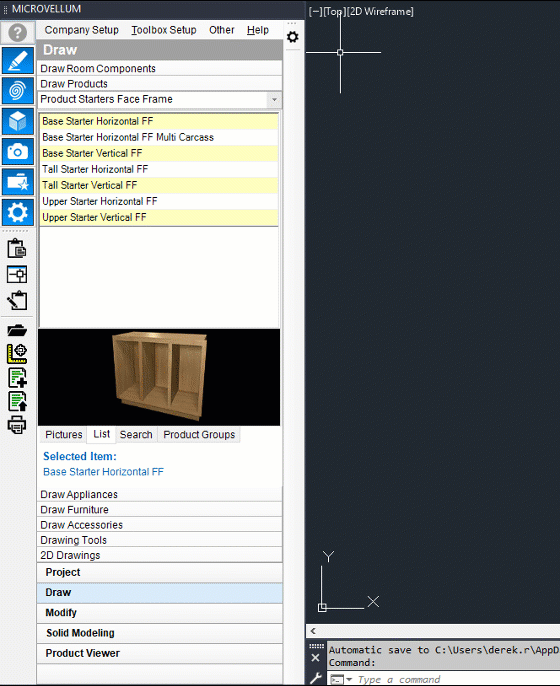

Fig. 01 – Dragging and Re-Docking the Toolbox Palette

Toolbox Palette Context Menu

When the Toolbox Palette is floating (not docked), right-click the Microvellum header to bring up the context menu.


Fig. 02 – Toolbox Palette Context Menu

  1. Move – An option for moving and resizing the Toolbox Palette. The palette can be moved by dragging from the Microvellum header bar, bypassing the context menu item.
  2. Size – An option for resizing the Toolbox Palette. The palette can be resized by hovering over the edge of the palette, bypassing the context menu item.
  3. Allow Docking – When this is checked, the Toolbox Palette can be docked by dragging it to the left or right of the main Drawing Window. Unchecked keeps the Toolbox Palette as a floating window.
  4. Anchor Left – Automatically docks the Toolbox Palette to the left of the main Drawing Window.
  5. Anchor Right – Automatically docks the Toolbox Palette to the right of the main Drawing Window.
  6. Anchor Left and Right will dock the Toolbox Palette in Hidden mode. To unhide temporarily, hover over the Microvellum header bar. To unhide permanently, select Close  at the top of the Microvellum header bar.
  7. Auto-Hide – Hides the Toolbox Palette when it is not in use. To unhide temporarily, hover over the Microvellum header bar.
  8. Auto-Hide only applies when the Palette is floating. To dock the Palette in hidden mode, use the Anchor Left, or Anchor Right commands. Hiding the Toolbox Palette is used to increase the space in the work area. The same effect can be had by moving the Toolbox Palette to a secondary monitor while you are working in the drawing area. Remember when the palette is moved to a secondary monitor, so that it can be retrieved when needed.

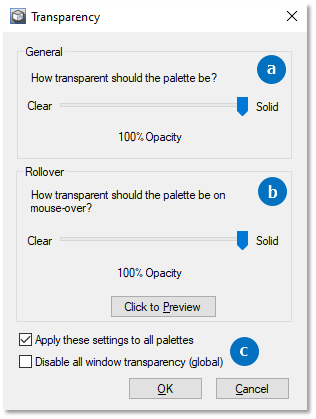

  9. Transparency – Opens the Transparency Window:

  10. Fig. 03 - Transparency Window

    1. Determines how transparent the palette will be when it IS NOT in use.
    2. Determines how transparent the palette will be when it IS in use. Hover over the palette to enact the Rollover setting.
    3. Apply settings to all palettes or disable all window transparency.

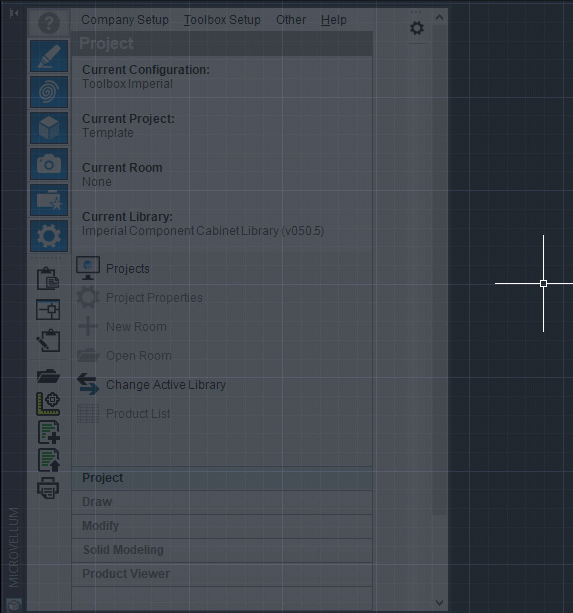

    4. Fig. 04 – Transparency Effect


Locking the Toolbox Palette

The Toolbox Palette can be locked in any position determined by the user. To do this, select the Customization button  in the bottom right of the window > Select Lock UI > Select the arrow next to the Lock UI icon  to open the fly-out menu.


Fig. 05 – Lock UI Fly-Out

To lock the Toolbox Palette, select Docked Windows (if the palette is docked), or Floating Windows (if the palette is floating). Lock UI is a function of AutoCAD.

When a palette is locked, it can only be moved when holding down CTRL.

Troubleshooting

  1. The Toolbox Palette is missing:
    1. Check secondary monitor(s).
    1. Type “MVTB7” into the command line.
  2. The Toolbox Palette has come undocked:
    1. Right-click the Microvellum header of the Toolbox Palette, ensure “Allow Docking” is checked. Drag the palette to the side of the Drawing Window to dock it.
  3. The Toolbox Palette Context Menu only says, “Allow Docking.”
    1. Undock the palette to access the full context menu (Figure 02).
  4. The Toolbox Palette is locked in place.
    1. To move temporarily, hold down CTRL and drag the palette. To unlock permanently, select the Lock UI icon and unselect either Floating Windows or Docked Windows, depending on whether the Toolbox palette is docked or not.
