EXPLODE Command

EXPLODE Command

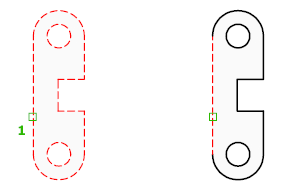

Breaks a compound object into its component objects.

Explodes a compound object when you want to modify its components separately. Objects that can be exploded include blocks, polylines, and regions, among others.


The color, linetype, and lineweight of any exploded object might change. Other results differ depending on the type of compound object you're exploding. See the following list of objects that can be exploded and the results for each.

To explode objects and change their properties at the same time, use XPLODE.
If you're using a script or an ObjectARX ® function, you can explode only one object at a time. (Not applicable to AutoCAD LT.)
Here are the results of EXPLODE for each of the following types of objects:
2D Polyline
Discards any associated width or tangent information. For wide polylines, the resulting lines and arcs are placed along the center of the polyline.

3D Polyline
Explodes into line segments. Any linetype assigned to the 3D polyline is applied to each resulting line segment.
3D Solid

Explodes planar faces into regions.

Nonplanar faces explode into surfaces. (Not applicable to AutoCAD LT.)
Annotative Objects
Explodes the current scale representation into its constituent parts which are no longer annotative. Other scale representations are removed.
Arc
If within a non-uniformly scaled block, explodes into elliptical arcs.
Array
Explodes an associative array into copies of the original objects.
Block

Removes one grouping level at a time. If a block contains a polyline or a nested block, exploding the block exposes the polyline or nested block object, which must then be exploded to expose its individual objects.

Blocks with equal X, Y, and Z scales explode into their component objects. Blocks with unequal X, Y, and Z scales (non-uniformly scaled blocks) might explode into unexpected objects.

When non-uniformly scaled blocks contain objects that cannot be exploded, they are collected into an anonymous block (named with a "*E" prefix) and referenced with the non-uniform scaling. If all the objects in such a block cannot be exploded, the selected block reference will not be exploded. Body, 3D Solid, and Region entities in a non-uniformly scaled block cannot be exploded. (Not available in AutoCAD LT.)

Exploding a block that contains attributes deletes the attribute values and redisplays the attribute definitions.

Blocks inserted with external references (xrefs) and their dependent blocks cannot be exploded.

Blocks inserted with MINSERT cannot be exploded. (MINSERT is not available in AutoCAD LT.)
Body
Explodes into a single-surface body (nonplanar surfaces), regions, or curves.
Circle
If within a non-uniformly scaled block, explodes into ellipses.
Leaders
Explodes into lines, splines, solids (arrow heads), block inserts (arrow head, annotation blocks), multiline text, or tolerance objects, depending on the leader.
Mesh Objects
Explodes each face into a separate 3D face object. Color and materials assignments are retained. (Not available in AutoCAD LT.)
Multiline Text
Explodes into text objects.
Multiline
Explodes into lines and arcs.
Polyface Mesh
Explodes one-vertex meshes into a point object. Two-vertex meshes explode into a line. Three-vertex meshes explode into 3D faces.
Region
Explodes into lines, arc, or splines.

Powered by AutoCAD®
