Foundation Library Catalog: Fixtures and Extruded Products

Foundation Library Catalog: Fixtures and Extruded Products

This document lists the full range of extruded products and fixtures available in Microvellum's Foundation Library. Extruded products are products that drawn or extruded along a 2D polyline path, allowing for the creation of products in a wide variety of shapes, with many extruded products automatically creating separate segments based on the angle/shape of the line itself. Products within this category of the Foundation Library vary, with options for extruding countertops, die walls, cabinets, a toe kick base, moldings, as well as parts that can be combined and customized to create or add onto a new product.


This document will reference “Standard Prompts”, referring to the set of prompts that are generally present in all products in the Microvellum Foundation Library catalog by default. These prompts will not be listed among the prompts of products, as they are considered default. Standard Prompts are the following:
  1. Width
  2. Height
  3. Depth
  4. Toe Kick Height
  5. Left/Right Filler Width
  6. Product Name
  7. Product Version
  8. Left/Right Finished End
  9. Left/Right Applied End
  10. Show Construction Options
  11. Show Material Options
  12. Show Advanced Options
  13. Show Flatshot Options
  14. Show 2D Drawing Options
  15. Show Item Number Options
  16. Show Rendering Options

Extruded Countertops

Extruded Master Countertop


Product Category: Extruded Products and Fixtures- Extruded Countertops

Product Description
The Extruded Master Countertop is the master level product from which all other extruded countertop products are derived- The product is shaped along the polyline path selected upon drawing, with each arc or corner in the polyline resulting in a second product segment being drawn.

Product Features/Prompts
Main Options Tab
  1. Offset From Polyline
  2. Left Join Type
  3. Right Join Type
  4. Countertop Front Edge Detail
  5. Countertop Left Edge Detail
  6. Countertop Right Edge Detail
  7. Countertop Back Edge Detail
Hardware Options
  1. Add Countertop Connectors
  2. Countertop Connector Quantity
  3. Countertop Connector Position From Rear
  4. Countertop Connector Position From Front
  5. Countertop Connector Type

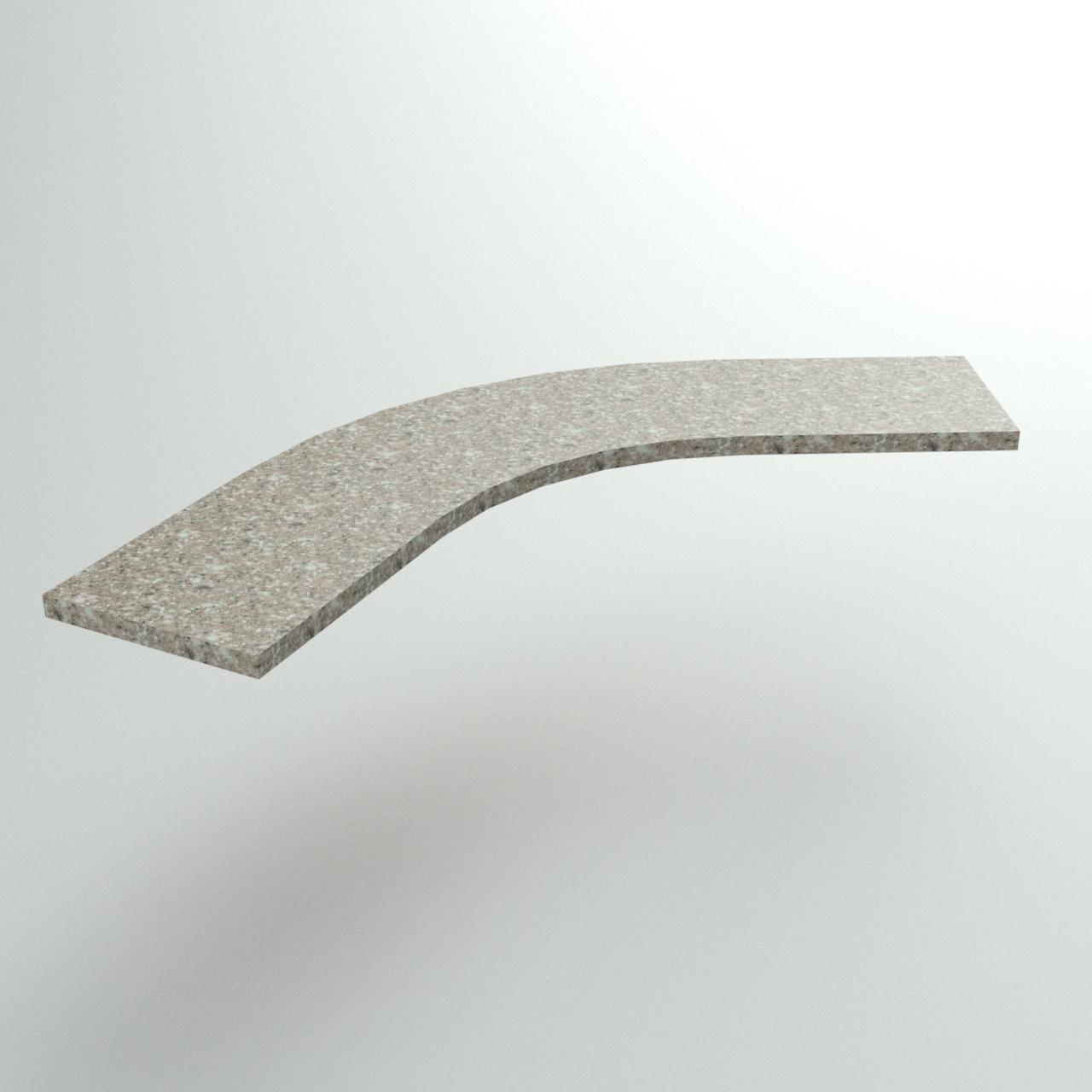

Countertop No Splash


Product Category: Extruded Products and Fixtures- Extruded Countertops

Product Description
The Countertop No Splash product derived from the Extruded Master Countertop product- the countertop comes with no backsplash as a default and has no set default edge detailing. This product possesses all the standard countertop prompts and modifications available to Foundation Library Extruded Countertop products.

Product Features/Prompts
Main Options
  1. Left Join Type
  2. Right Join Type
  3. Countertop Front Edge Detail
  4. Countertop Left Edge Detail
  5. Countertop Right Edge Detail
  6. Countertop Back Edge Detail (Back Splash by Default)
  7. Add Buildup
  8. Override Angles
  9. Is Buyout
  10. Position of Part (Left of Line/Right of Line)
Hardware Options
  1. Add Countertop Connectors
  2. Countertop Connector Quantity
  3. Countertop Connector Position From Rear
  4. Countertop Connector Position From Front
  5. Countertop Connector Type

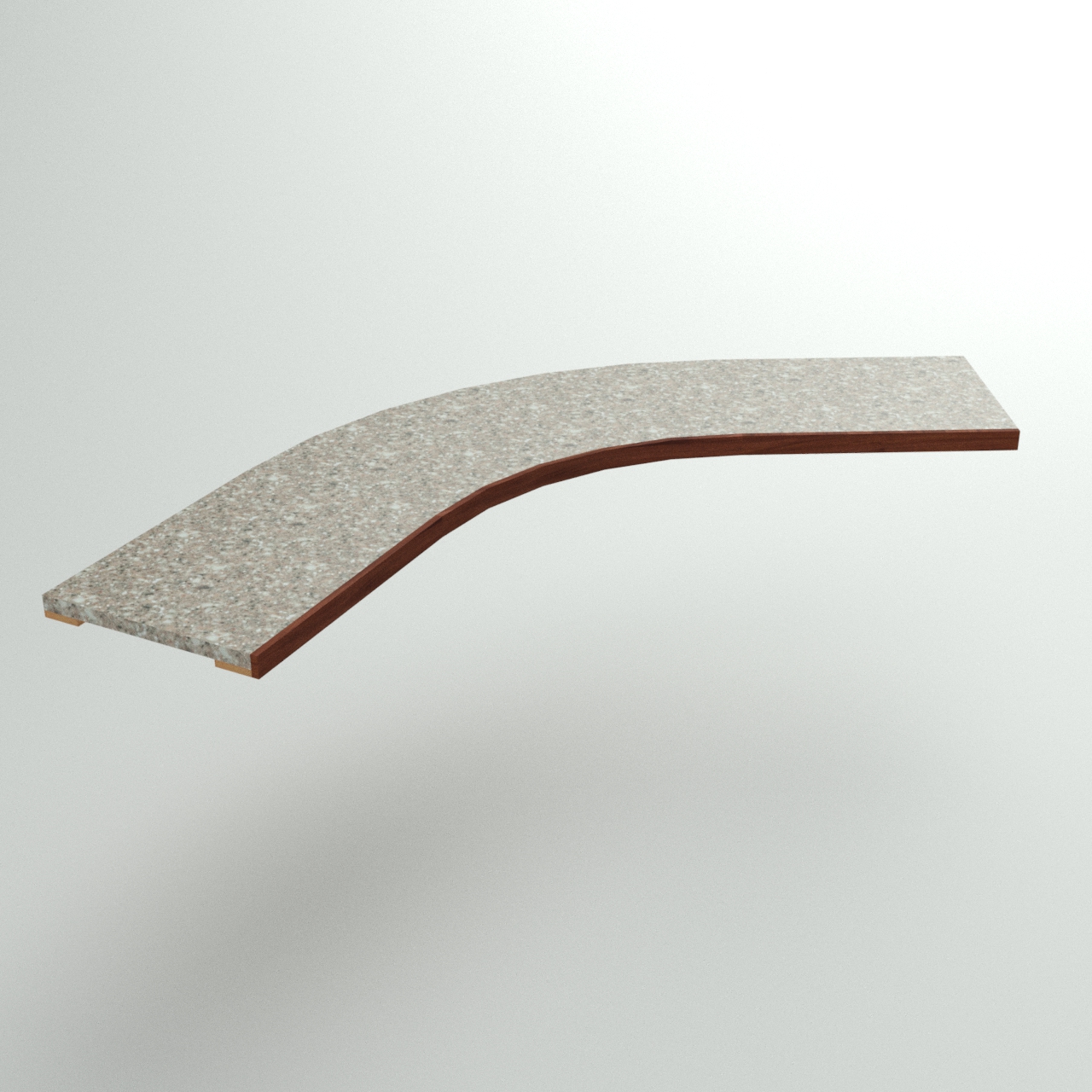

Countertop No Splash Wood Edge


Product Category: Extruded Products and Fixtures- Extruded Countertops

Product Description
The Countertop No Splash Wood Edge product derived from the Extruded Master Countertop product- the countertop comes with no backsplash as a default and has wooden front edge detailing as a standard. This product possesses all the standard countertop prompts and modifications available to Foundation Library Extruded Countertop products.

Product Features/Prompts
Main Options
  1. Left Join Type
  2. Right Join Type
  3. Countertop Front Edge Detail
  4. Countertop Left Edge Detail
  5. Countertop Right Edge Detail
  6. Countertop Back Edge Detail (Back Splash by Default)
  7. Add Buildup
  8. Override Angles
  9. Is Buyout
  10. Position of Part (Left of Line/Right of Line)
Hardware Options
  1. Add Countertop Connectors
  2. Countertop Connector Quantity
  3. Countertop Connector Position From Rear
  4. Countertop Connector Position From Front
  5. Countertop Connector Type

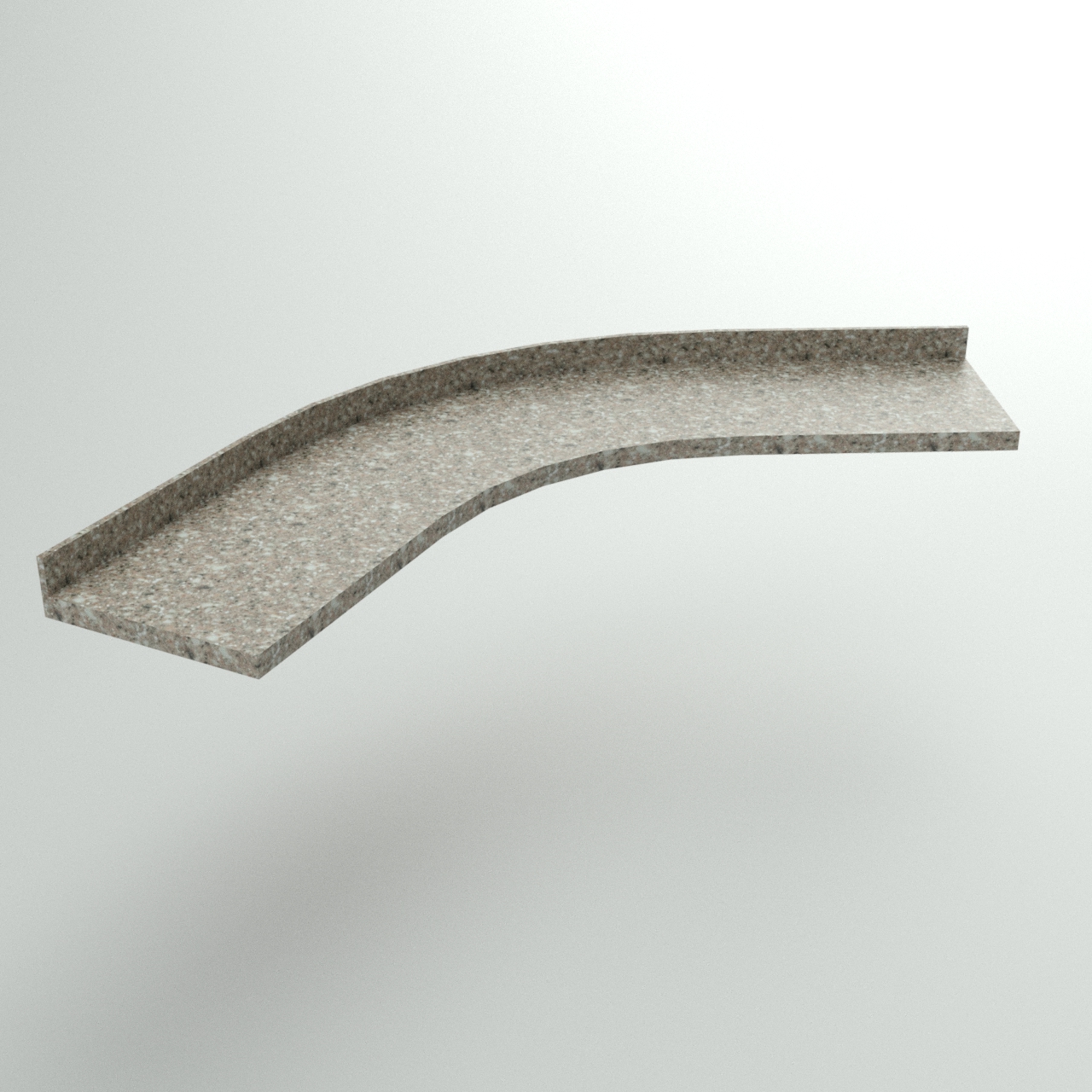

Countertop With Splash


Product Category: Extruded Products and Fixtures- Extruded Countertops

Product Description
The Countertop With Splash product derived from the Extruded Master Countertop product- the countertop comes with a backsplash as the countertop back edge detail by default. This product possesses all the standard countertop prompts and modifications available to Foundation Library Extruded Countertop products.

Product Features/Prompts
Main Options
  1. Left Join Type
  2. Right Join Type
  3. Countertop Front Edge Detail
  4. Countertop Left Edge Detail
  5. Countertop Right Edge Detail
  6. Countertop Back Edge Detail (Back Splash by Default)
  7. Add Buildup
  8. Override Angles
  9. Is Buyout
  10. Position of Part (Left of Line/Right of Line)
Hardware Options
  1. Add Countertop Connectors
  2. Countertop Connector Quantity
  3. Countertop Connector Position From Rear
  4. Countertop Connector Position From Front
  5. Countertop Connector Type

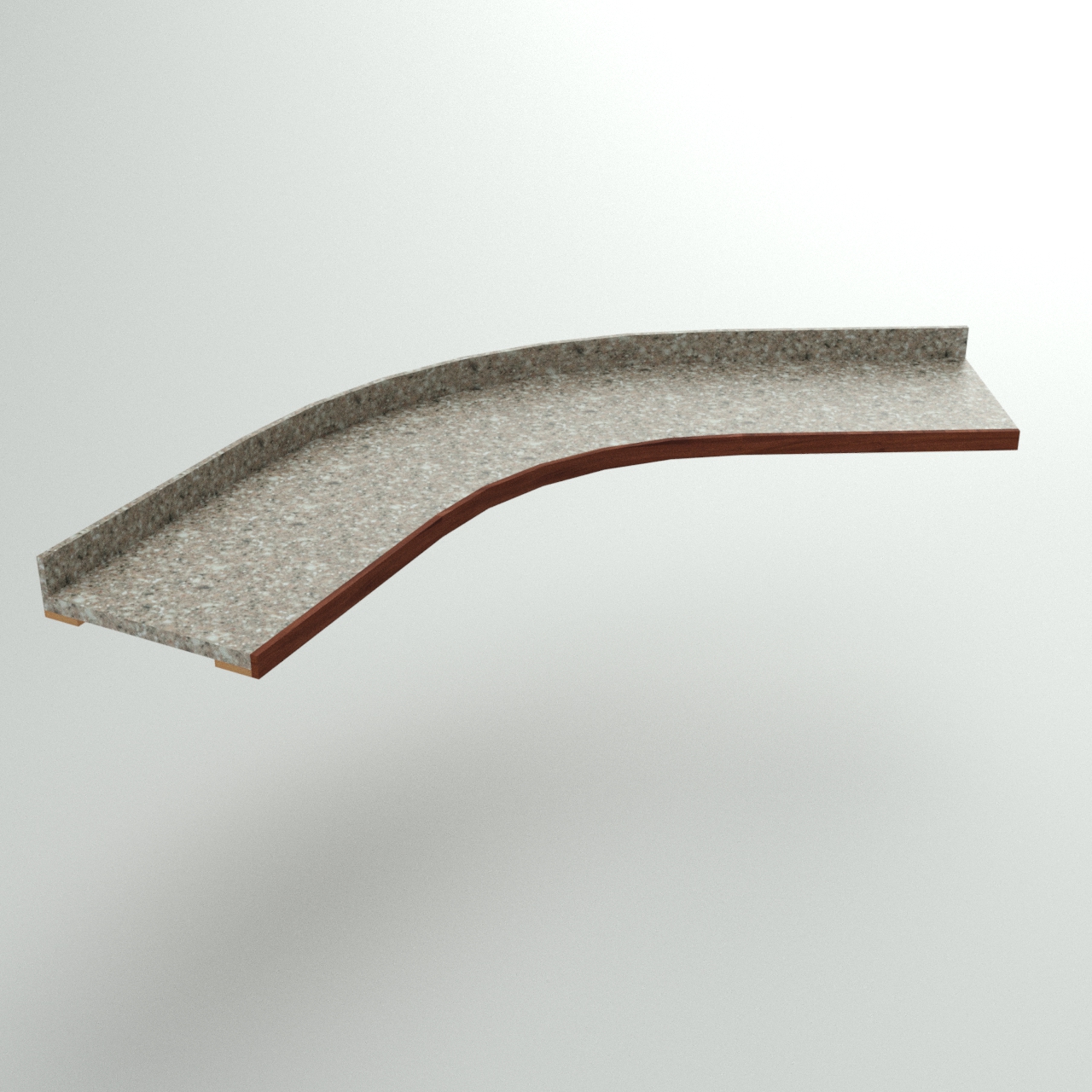

Countertop With Splash Wood Edge


Product Category: Extruded Products and Fixtures- Extruded Countertops

Product Description
The Countertop With Splash Wood Edge product derived from the Extruded Master Countertop product- the countertop comes with a backsplash as the countertop back edge detail by default and has wooden front edge detailing as a standard. This product possesses all the standard countertop prompts and modifications available to Foundation Library Extruded Countertop products.

Product Features/Prompts
Main Options
  1. Left Join Type
  2. Right Join Type
  3. Countertop Front Edge Detail
  4. Countertop Left Edge Detail
  5. Countertop Right Edge Detail
  6. Countertop Back Edge Detail (Back Splash by Default)
  7. Add Buildup
  8. Override Angles
  9. Is Buyout
  10. Position of Part (Left of Line/Right of Line)
Hardware Options
  1. Add Countertop Connectors
  2. Countertop Connector Quantity
  3. Countertop Connector Position From Rear
  4. Countertop Connector Position From Front
  5. Countertop Connector Type

Extruded Die Walls


Bar Die Wall


Product Category: Extruded Fixtures and Products- Extruded Die Walls

Product Description
The Bar Die Wall product derived from the Master Die Wall product- the product is a die wall with adjustable stud spacing, built-in wall segments, and external foot rails. The product contains standard prompt options, as well as Die Wall exclusive prompt options.

Product Features/Prompts
Main Tab
  1. Offset from Polyline
  2. Max Wall Length
  3. Wall Segment Qty
  4. Stud Max Spacing
  5. Stud Qty
  6. Foot Rail Offset
  7. Foot Rail Height Off Floor
  8. Add Foot Rail
  9. Override Angles
  10. Add Toe Kick
  11. Is Buyout
  12. Use Separate Floor Plate

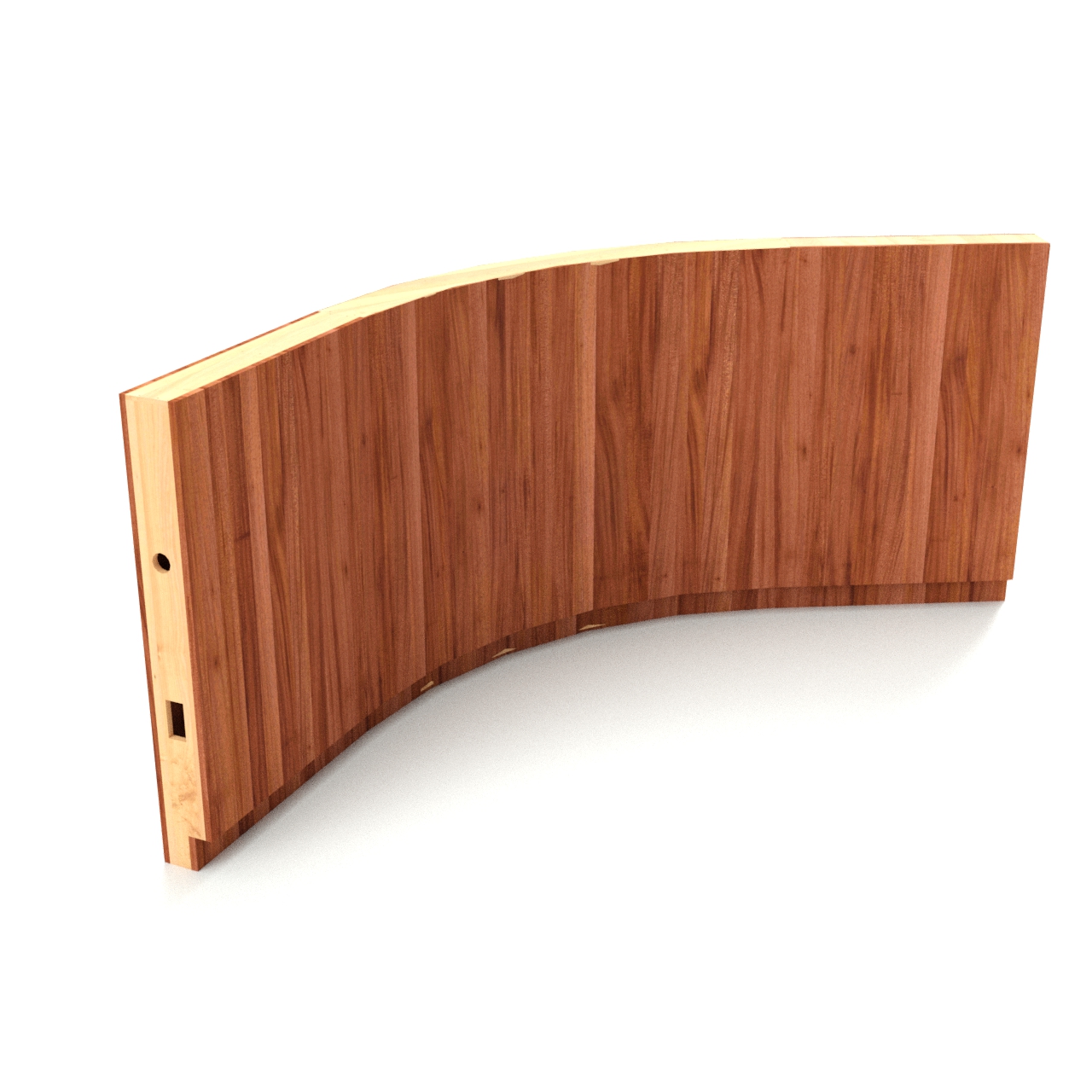

Die Wall w Skins


Product Category: Extruded Fixtures and Products- Extruded Die Walls

Product Description
The Die Wall w Skins product is derived from the Master Die Wall product- the product is a die wall with adjustable settings for layers of skins on the inside and outside of the wall, as well as an adjustable toe kick. The product contains standard prompt options, as well as Die Wall exclusive prompt options.

Product Features/Prompts
Main Tab
  1. Offset from Polyline
  2. Max Wall Length
  3. Wall Segment Qty
  4. Stud Max Spacing
  5. Stud Qty
  6. Left Angle
  7. Right Angle
  8. Toe Kick Inset
  9. Inside Skin Quantity
  10. Outside Skin Quantity
  11. Inside Skin Gap
  12. Outside Skin Gap
  13. Inside Stacked Skin Quantity
  14. Outside Stacked Skin Quantity
  15. Toe Kick Stack Skin Quantity
  16. Override Angles
  17. Add Toe Kick
  18. Is Buyout
  19. Use Separate Floor Plate

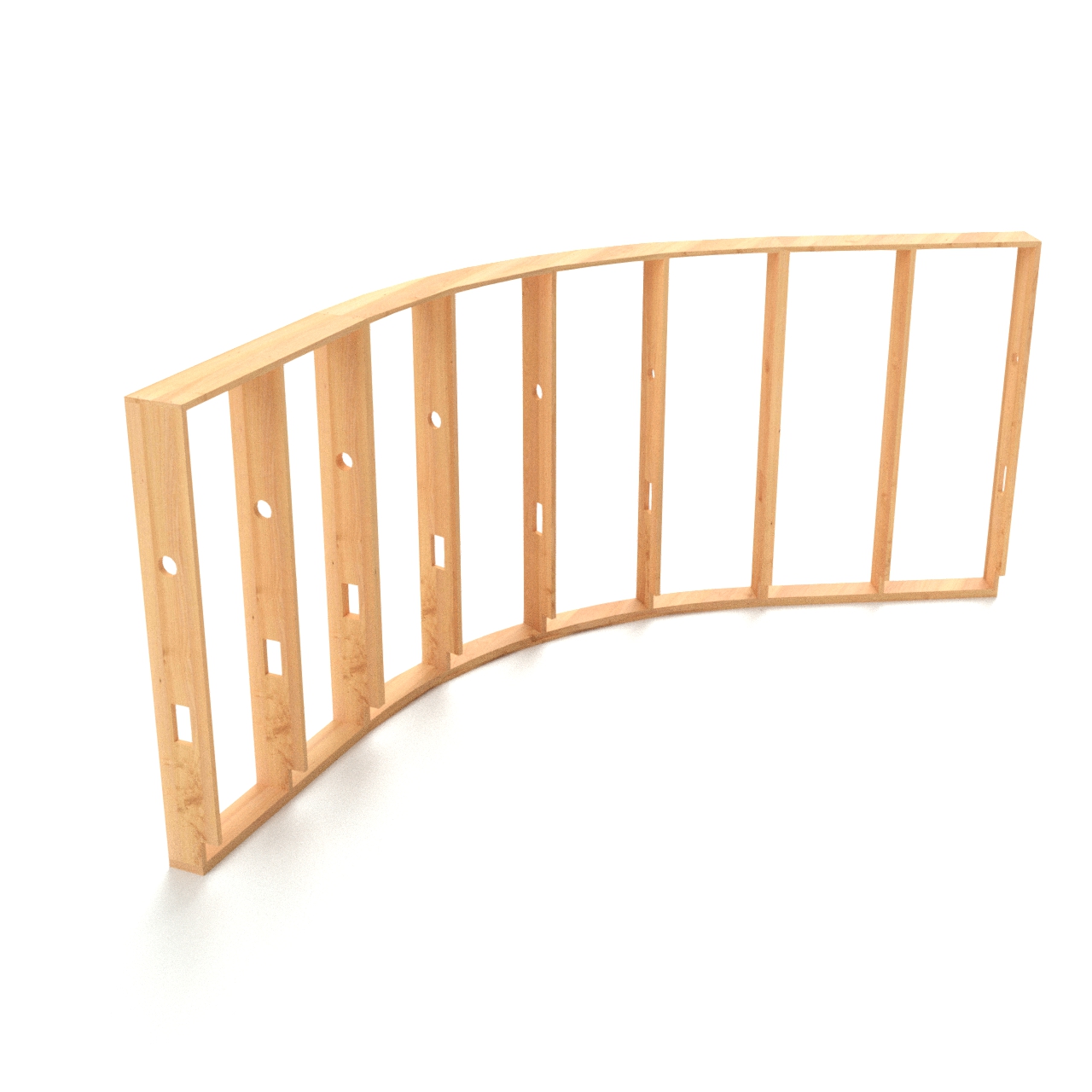

Die Wall w Studs Only


Product Category: Extruded Fixtures and Products- Extruded Die Walls

Product Description
The Die Wall With Studs Only product is derived from the Master Die Wall product- the product is a die wall with only adjustable studs and a toe kick, the product having no skins attached to it. The product contains standard prompt options, as well as Die Wall exclusive prompt options.

Product Features/Prompts
Main Tab
  1. Offset from Polyline
  2. Max Wall Length
  3. Wall Segment Qty
  4. Stud Max Spacing
  5. Stud Qty
  6. Left Angle
  7. Right Angle
  8. Toe Kick Inset
  9. Override Angles
  10. Add Toe Kick
  11. Is Buyout
  12. Use Separate Floor Plate

Master Die Wall


Product Category: Extruded Fixtures and Products- Extruded Die Walls

Product Description
The Master Die Wall is the product from all other extruded die wall products are derived, having the widest array of prompts and options, with every prompt from the full range of die wall products (skins, studs, segments, toe kick options, foot rails, etc.) being available in the master product. Outside of the various Die Wall prompt options, the product contains standard prompt options.

Product Features/Prompts
Main Tab
  1. Offset from Polyline
  2. Max Wall Length
  3. Wall Segment Qty
  4. Stud Max Spacing
  5. Stud Qty
  6. Left Angle
  7. Right Angle
  8. Toe Kick Inset
  9. Inside Skin Quantity
  10. Outside Skin Quantity
  11. Inside Skin Gap
  12. Outside Skin Gap
  13. Inside Stacked Skin Quantity
  14. Outside Stacked Skin Quantity
  15. Toe Kick Stack Skin Quantity
  16. Override Angles
  17. Add Toe Kick
  18. Is Buyout
  19. Use Separate Floor Plate

Extruded Fixtures

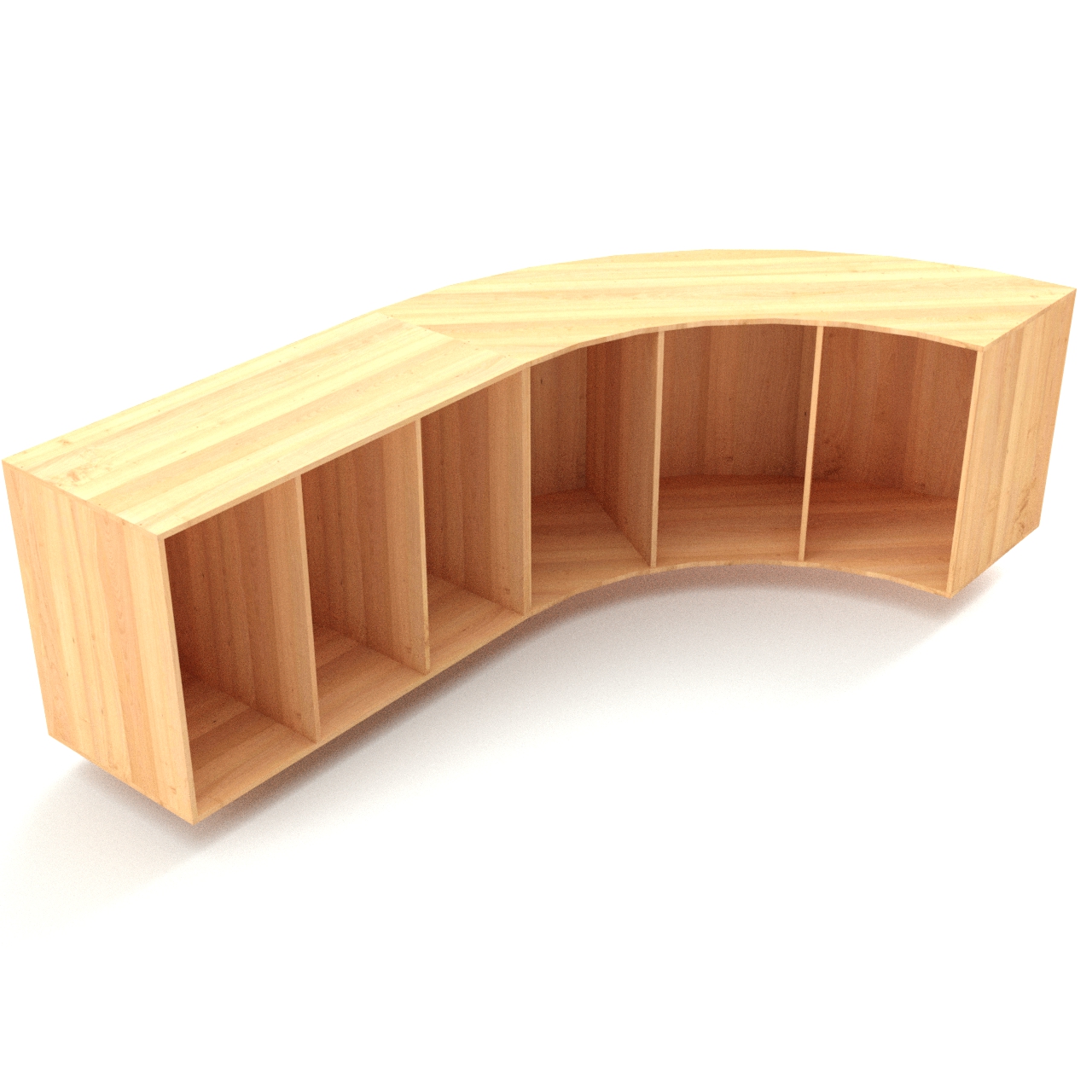

Extruded Master Cabinet


Product Category: Extruded Fixtures and Products- Extruded Fixtures

Product Description
The Extruded Master Cabinet product that the Extruded Base Cabinet is built from, able to be customized and modified to create different extruded cabinet products. This product can contain up to 5 different cabinet storage sections, uses standard prompts, as well as prompts specific to extruded cabinets (cabinet quantity, override angles, multiple cabinet options, etc.) By default, the cabinet quantity is set to 5, with a maximum width of 50.

Product Prompts/Features
Main Tab
  1. Max Cabinet Width
  2. Cabinet Quantity
  3. Add Elbow Join Left
  4. Add Elbow Join Right
  5. Override Angles
  6. Shadow Line Finger Pull
  7. Back Finished
  8. Top Finished
  9. Bottom Finished
  10. Add Countertop
Face Options
  1. Door Type
  2. Door Style
  3. Left Reveal
  4. Right Reveal
  5. Top Reveal
  6. Bottom Reveal
  7. Door Gap
  8. Door to Cabinet Gap
  9. Add Top Facia
Toe Kick Options
  1. Inset Toe Kick
  2. Amount To Extend Left Toe Kick
  3. Amount To Extend Right Toe Kick
Cabinet 1-5 Options
  1. Cabinet Face Options
  2. Cabinet Component Insert
  3. Cabinet Adjustable Shelf Quantity
  4. Cabinet Component Setback
  5. Cabinet Continuous Shelf Holes
  6. Cabinet Top Drawer
Counter Top Options
  1. Countertop Overhang Front
  2. Countertop Overhang Back
  3. Countertop Overhang Left
  4. Countertop Overhang Right
  5. Countertop Front Edge Detail
  6. Countertop Left Edge Detail
  7. Countertop Right Edge Detail
  8. Countertop Back Edge Detail
  9. Appliance Options
Hardware Options
  1. Handle Distance From Side
  2. Base Handle Distance From Top
  3. Tall Handle Distance From Bottom
  4. Upper Handle Distance From Bottom
  5. Handle Type
  6. No Handle
  7. Horizontal Handle
  8. Add Lock
  9. Add Wall Hanger

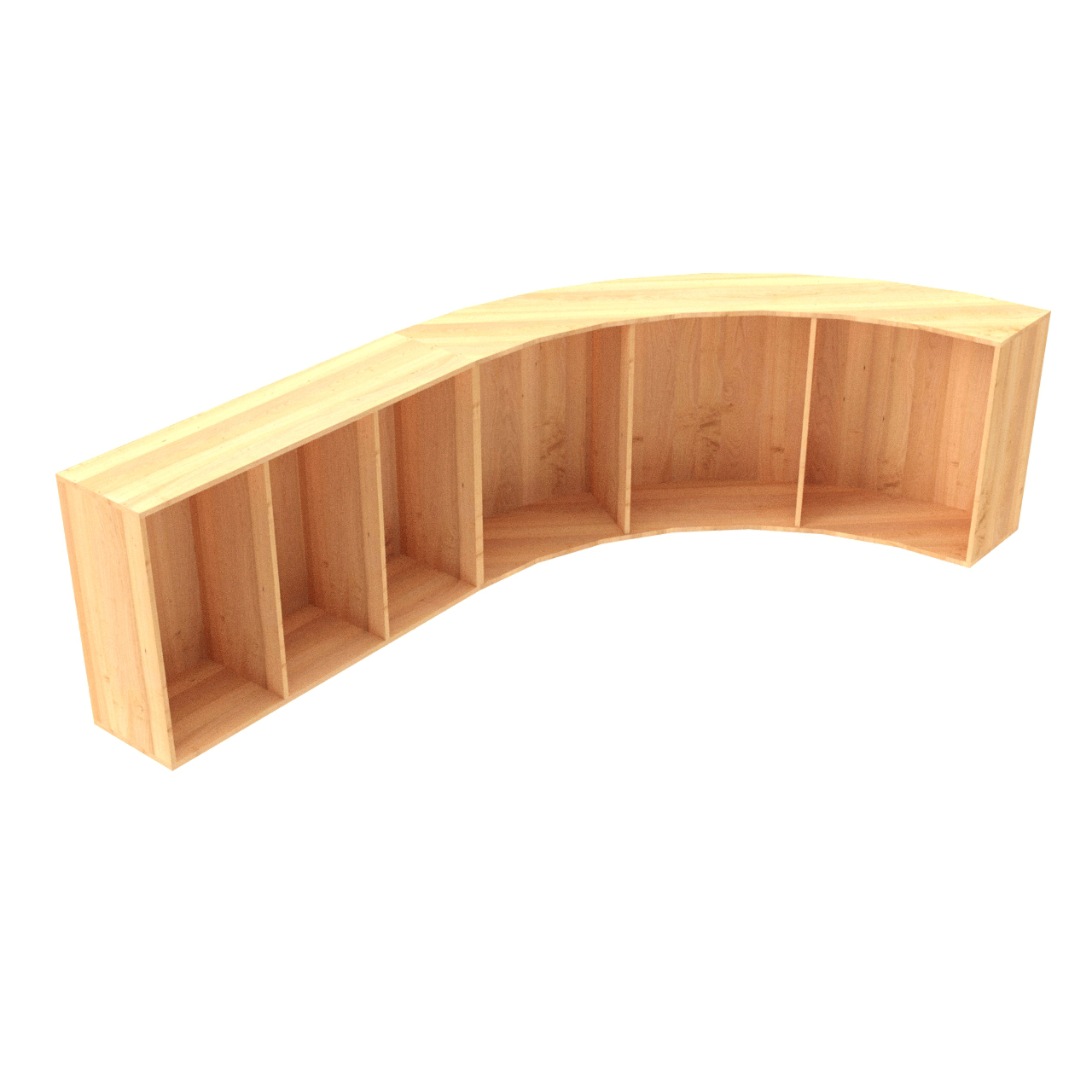

Extruded Base Cabinet


Product Category: Extruded Fixtures and Products- Extruded Fixtures

Product Description
The Extruded Base Cabinet product, derived from the Extruded Master Cabinet product- this product contains up to 5 customizable cabinet container spaces, as well as options for separation into multiple segments using elbow joins. The Extruded Base Cabinet contains both standard prompts for a cabinet as well as the set of prompts specific to extruded cabinets (max width, quantity of cabinets, etc.) By default, the cabinet quantity is set to 5, with a maximum width of 50.

Product Prompts/Features
Main Tab
  1. Max Cabinet Width
  2. Cabinet Quantity
  3. Add Elbow Join Left
  4. Add Elbow Join Right
  5. Override Angles
  6. Shadow Line Finger Pull
  7. Back Finished
  8. Top Finished
  9. Bottom Finished
  10. Add Countertop
Face Options
  1. Door Type
  2. Door Style
  3. Left Reveal
  4. Right Reveal
  5. Top Reveal
  6. Bottom Reveal
  7. Door Gap
  8. Door to Cabinet Gap
  9. Add Top Facia
Toe Kick Options
  1. Inset Toe Kick
  2. Amount To Extend Left Toe Kick
  3. Amount To Extend Right Toe Kick
Cabinet 1-5 Options
  1. Cabinet Face Options
  2. Cabinet Component Insert
  3. Cabinet Adjustable Shelf Quantity
  4. Cabinet Component Setback
  5. Cabinet Continuous Shelf Holes
  6. Cabinet Top Drawer
Counter Top Options
  1. Countertop Overhang Front
  2. Countertop Overhang Back
  3. Countertop Overhang Left
  4. Countertop Overhang Right
  5. Countertop Front Edge Detail
  6. Countertop Left Edge Detail
  7. Countertop Right Edge Detail
  8. Countertop Back Edge Detail
  9. Appliance Options
Hardware Options
  1. Handle Distance From Side
  2. Base Handle Distance From Top
  3. Tall Handle Distance From Bottom
  4. Upper Handle Distance From Bottom
  5. Handle Type
  6. No Handle
  7. Horizontal Handle
  8. Add Lock
  9. Add Wall Hanger

Extruded Upper Cabinet


Product Category: Extruded Fixtures and Products- Extruded Fixtures

Product Description
The Extruded Upper Cabinet product derived from the Extruded Master Cabinet- this product is an upper cabinet with up to 5 customizable cabinet segments, using both standard prompts and prompts exclusive to extruded cabinets, including the option to space and angle the cabinet product. By default, the cabinet quantity is set to 5, with a maximum width of 50.

Product Prompts/Features
Main Tab
  1. Max Cabinet Width
  2. Cabinet Quantity
  3. Add Elbow Join Left
  4. Add Elbow Join Right
  5. Override Angles
  6. Shadow Line Finger Pull
  7. Back Finished
  8. Top Finished
  9. Bottom Finished
  10. Add Countertop
Face Options
  1. Door Type
  2. Door Style
  3. Left Reveal
  4. Right Reveal
  5. Top Reveal
  6. Bottom Reveal
  7. Door Gap
  8. Door to Cabinet Gap
  9. Add Top Facia
Cabinet 1-5 Options
  1. Cabinet Face Options
  2. Cabinet Component Insert
  3. Cabinet Adjustable Shelf Quantity
  4. Cabinet Component Setback
Hardware Options
  1. Handle Distance From Side
  2. Base Handle Distance From Top
  3. Tall Handle Distance From Bottom
  4. Upper Handle Distance From Bottom
  5. Handle Type
  6. No Handle
  7. Horizontal Handle
  8. Add Lock
  9. Add Wall Hanger

Extruded Toe Kick Base


Product Category: Extruded Fixtures and Products- Extruded Fixtures

Product Description
The Extruded Toe Kick Base product is a toe kick base that is designed to conform to the shape of a given cabinet. The product has options for skin application (including adding multiple layers of skins) on the face and back of the product, as well as options for customizing the number of sleepers in the product (this is calculated by default based on the line the product was extruded along). As with most products, the Extruded Toe Kick Base utilizes standard prompt options, as well as options exclusive to extruded products such as setting of maximum wall length, segmenting of the product based on angle, and how much to offset (if at all) product position relative to the polyline path it was extruded along.

Product Prompts/Features
Main Tab
  1. Offset From Polyline
  2. Max Wall Length
  3. Wall Segment Quantity
  4. Sleeper Quantity
  5. Sleeper Max Spacing
  6. Left Angle
  7. Right Angle
  8. Kick Face Stacked Quantity
  9. Kick Back Stacked Quantity
  10. Add Bottom Rails
  11. Front Finished
  12. Back Finished
  13. Override Angles

Extruded Master Part


Product Category: Extruded Fixtures and Products- Extruded Fixtures

Product Description

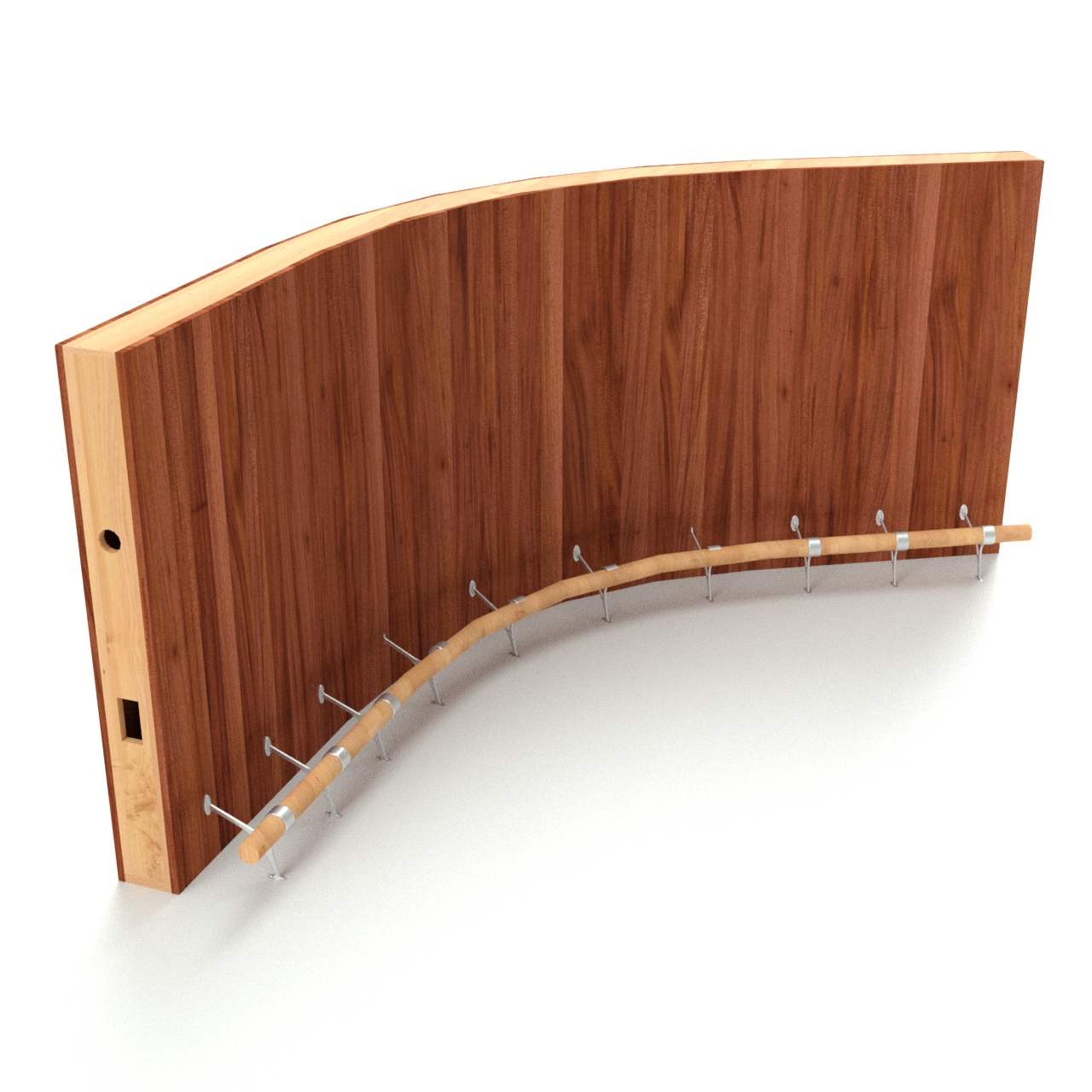

The Extruded Master Part product from which the Extruded Horizontal Part, Extruded Vertical Part, and Extruded Part Collection are derived- the product is comprised of a customizable horizontal curved part, which can be segmented into multiple individual parts, and used as a basis to create a new product, with the part available for customization to create new part products as well. The product uses standard prompts and has prompts which control its Z-axis height, the level of offset from the polyline it is extruded from, as well as prompts to add optional elbow joins.

Product Prompts/Features
Main Tab
  1. Z Height
  2. Offset From Polyline
  3. Add Elbow Join Left
  4. Add Elbow Join Right

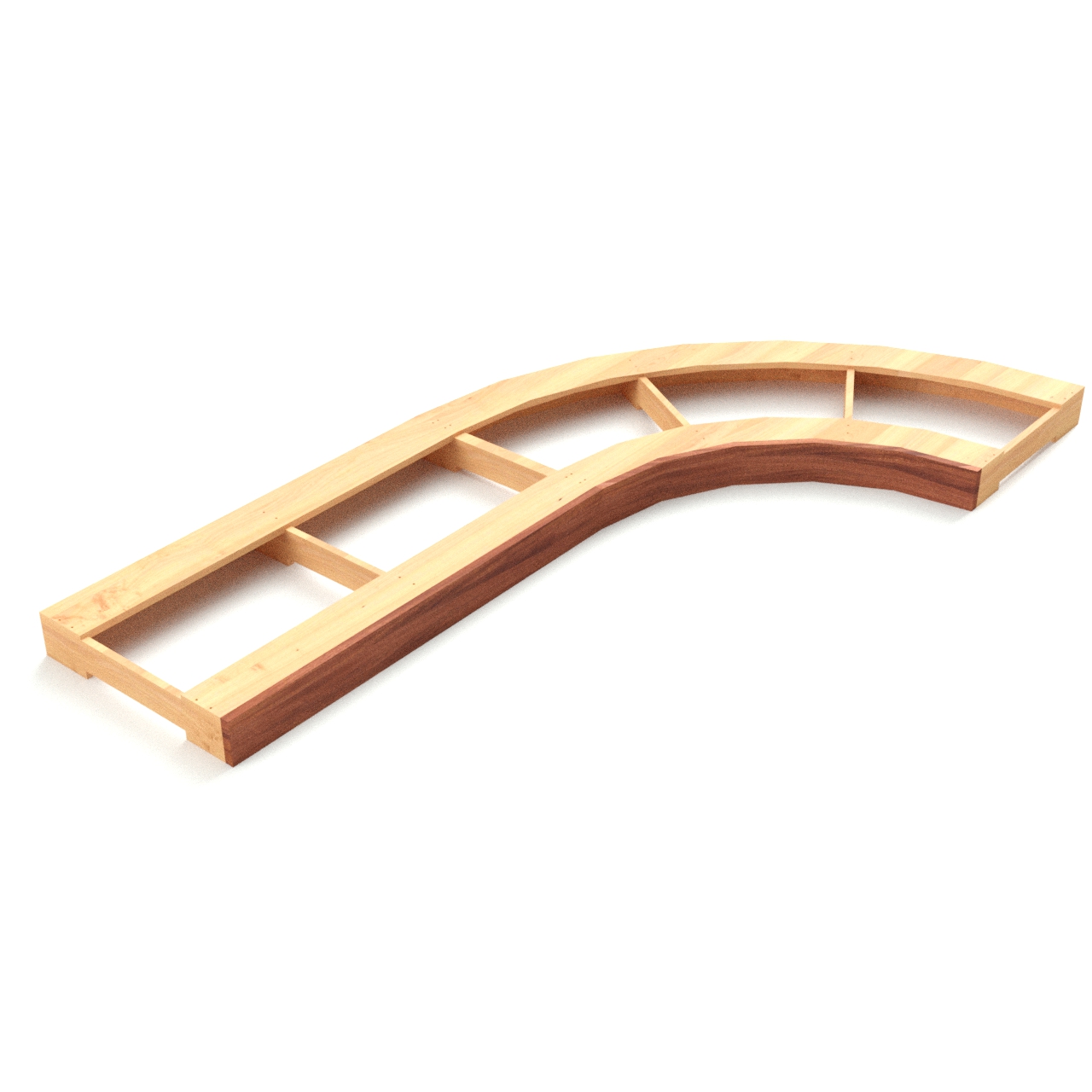

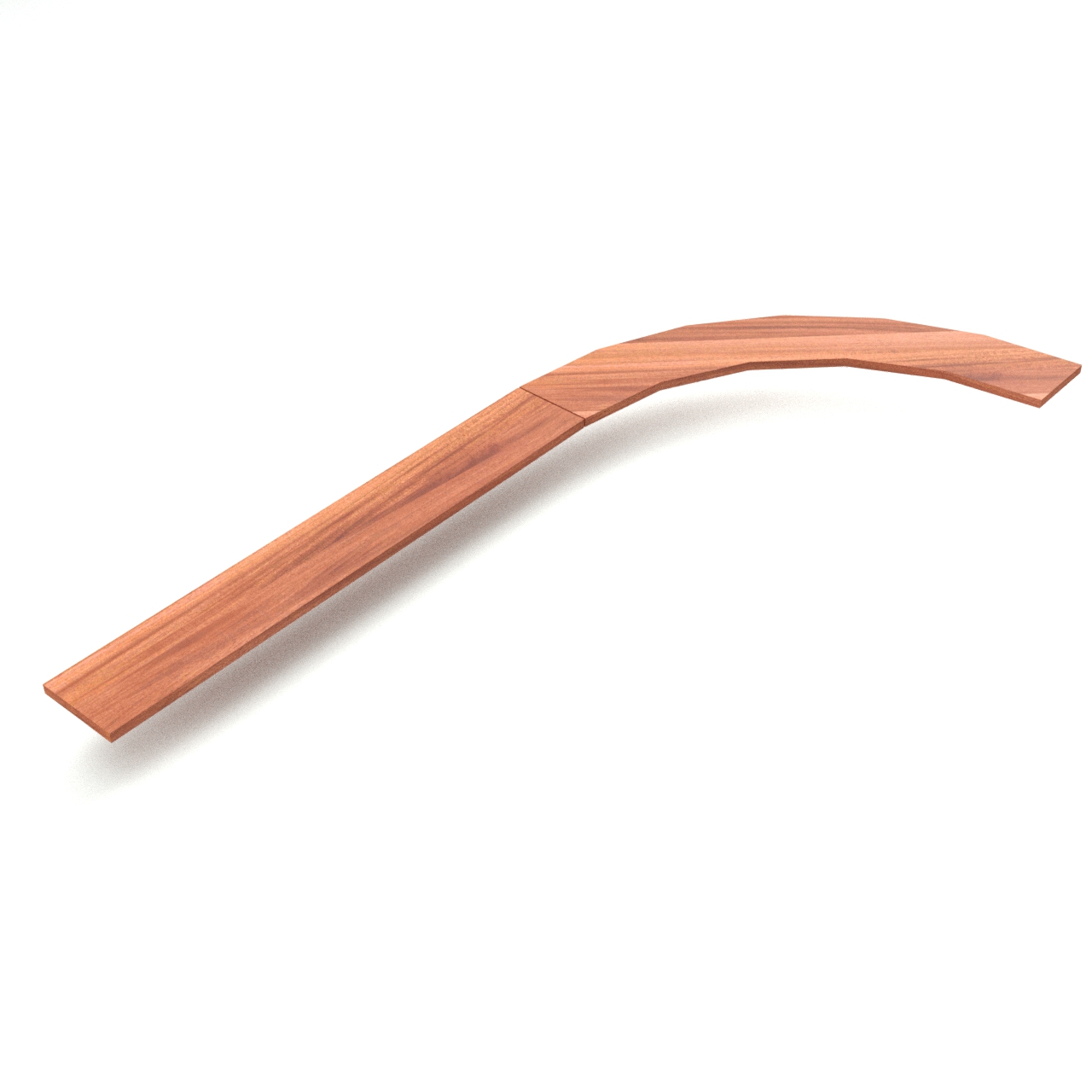

Extruded Part Horizontal


Product Category: Extruded Fixtures and Products- Extruded Fixtures

Product Description
The Extruded Part Horizontal product is a customizable horizontal curved part, which can be which can be segmented into multiple individual sections and used as a basis for the creation of other parts/products. The part uses standard prompts and has prompts which control its Z-axis height and the level of offset from the polyline it is extruded from.

Product Prompts/Features
Main Tab
  1. Z Height
  2. Offset From Polyline

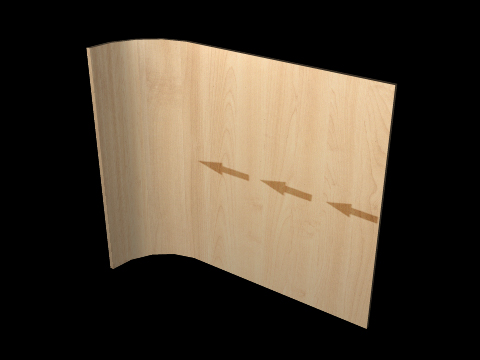

Extruded Part Vertical


Product Category: Extruded Fixtures and Products- Extruded Fixtures

Product Description
The Extruded Part Vertical product is an extruded part that rises vertically, with a default height of 1000. The product uses standard prompts as well as prompts which control its Z-axis height and the level of offset from the polyline it is extruded from.

Product Prompts/Features
Main Tab
  1. Z Height
  2. Offset From Polyline

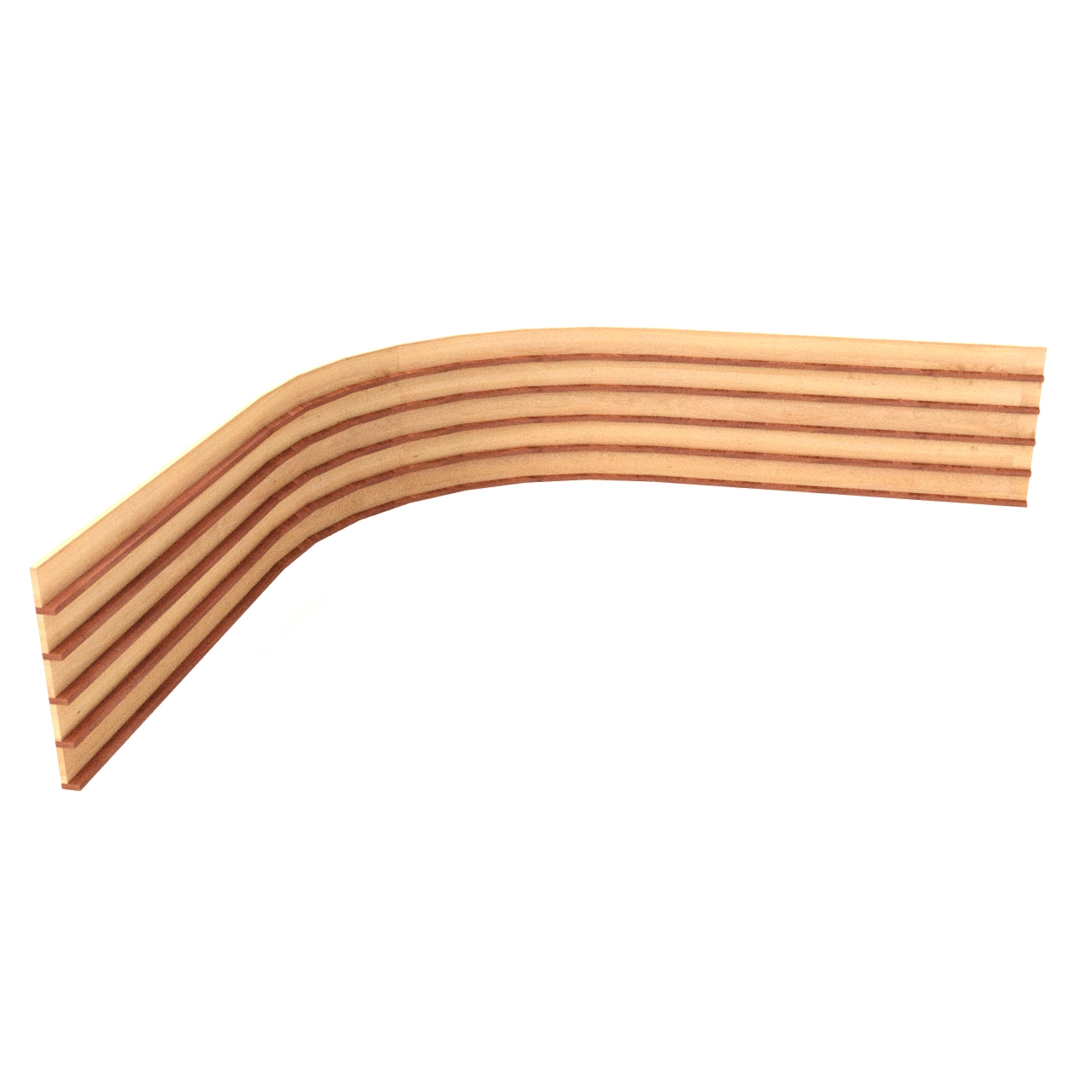

Extruded Part Collection


Product Category: Extruded Fixtures and Products- Extruded Fixtures

Product Description
The Extruded Part collection is a product comprised of multiple parts that can be modified to fit certain lengths. By default, the product contains 10 of these parts in vertical orientation. Parts can be customized on a part-by-part level, with a selection of orientation, positioning, as well as material for the part and the edges. The product features standard prompts as well as prompts specific to extruded parts, as well as options available for each of its respective parts within the collection.

Product Prompts/Features
Main Tab
  1. Z Height
  2. Offset From Polyline
  3. Part Gap
  4. Part Quantity
Part 1-10 Options
  1. Part Width
  2. Part Orientation
  3. Part Offset From Polyline
  4. Thickness
  5. Part Height Above Floor
  6. Part Material
  7. Part Length 1 Edge
  8. Part Length 2 Edge
  9. Part Width 1 Edge
  10. Part Width 2 Edge

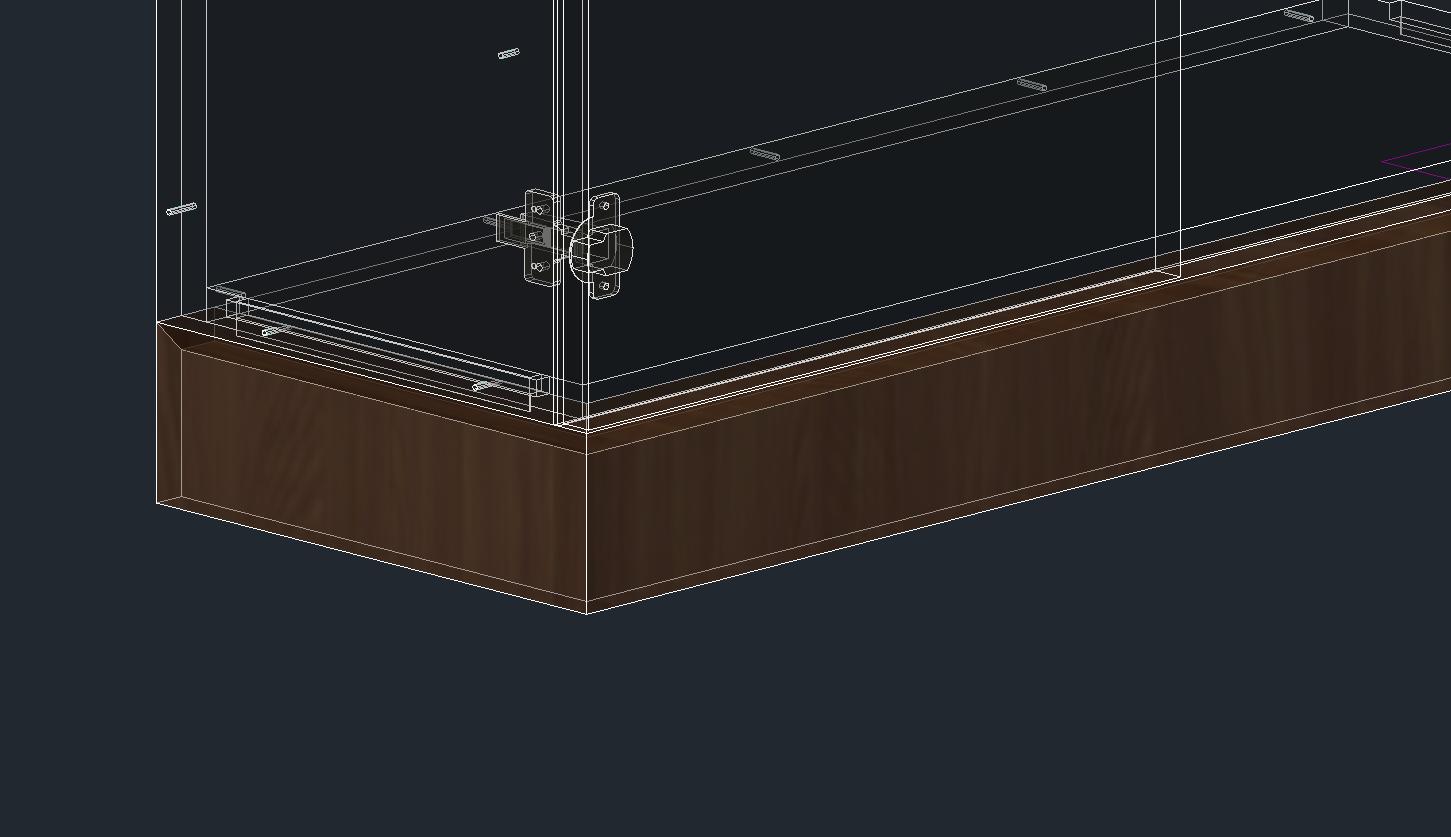

Extruded Moldings

Extruded Base


Product Category: Fixtures and Extruded Products- Extruded Moldings

Product Description
The Extruded Base molding product is an extruded baseboard molding able to be created to conform to the shape of a wall component or to act as a floor scribe for the bottom of a cabinet.  The product uses standard prompts as well as prompts to control the scribe/floor scribe of the molding, as well as offering a wide selection of base molding shapes/patterns.

Product Features/Prompts
Main Tab
  1. Scribe
  2. Floor Scribe
  3. Base Selection
  4. Finish Top Edge
  5. Add Decorative Cutout
Material Options
  1. Base Grain Direction
  2. Base Max Length
  3. Base Material
  4. Part 2 Material
  5. Edit Material

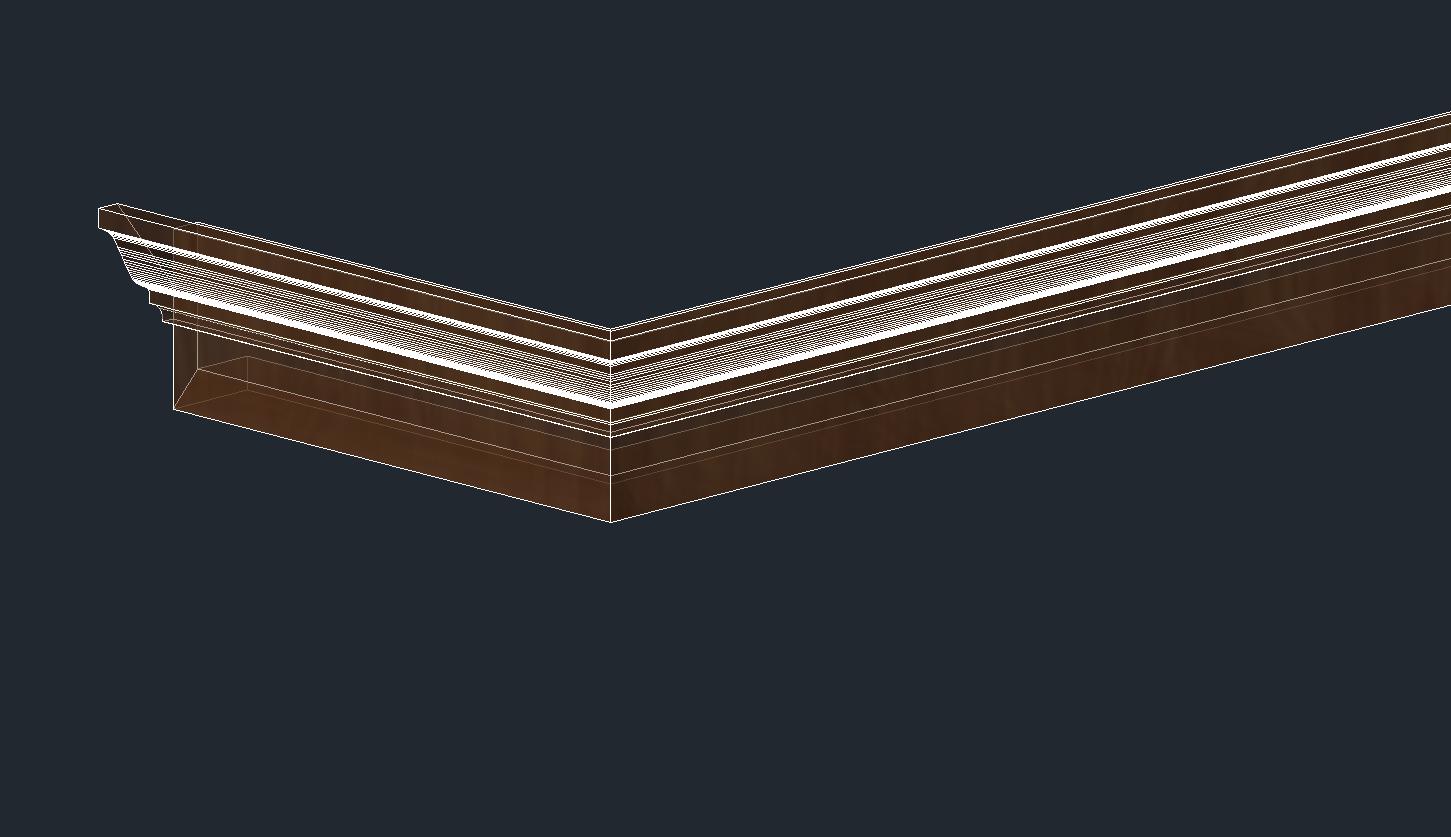

Extruded Crown


Product Category: Fixtures and Extruded Products- Extruded Moldings

Product Description
The Extruded Crown product is an extruded molding product capable of being added to a room to add crown molding to the top of walls, appliances, or cabinetry. The Extruded Crown product uses standard prompts as well as prompts allowing one to control the amount of overhang, crown size, flat crown dimensions and specifications, and valance length.

Product Features/Prompts
Main Tab
  1. Cabinet Height Above Floor
  2. Scribe
  3. Top Scribe
  4. Cabinet Overhang
  5. Valance Height
  6. Crown Selection
  7. Crown Depth
  8. Crown Height
  9. Flat Crown Part Width
  10. Flat Crown Mount Edge Width
  11. Flat Crown Chamfer Dim
  12. Flat Crown Bevel Angle Left
  13. Flat Crown Bevel Angle Right
  14. Crown From Valance Bottom
  15. Crown Max Length
  16. Mount Strip Total Length
  17. Vertical Mount Strip Total Length
  18. Valance Total Length
  19. Crown Total Length
  20. Flat Crown Total Length
  21. Mount Strip Joint Location
  22. Vertical Mount Strip Joint Location
  23. Valance Joint Location
  24. Flat Crown Joint Location
  25. Add Crown Molding
  26. Finish Top Edge
  27. Full Bottom
  28. Miter Valance to Mount Strip
  29. Add Vertical Mount Strip
Material Options
  1. Edit Material

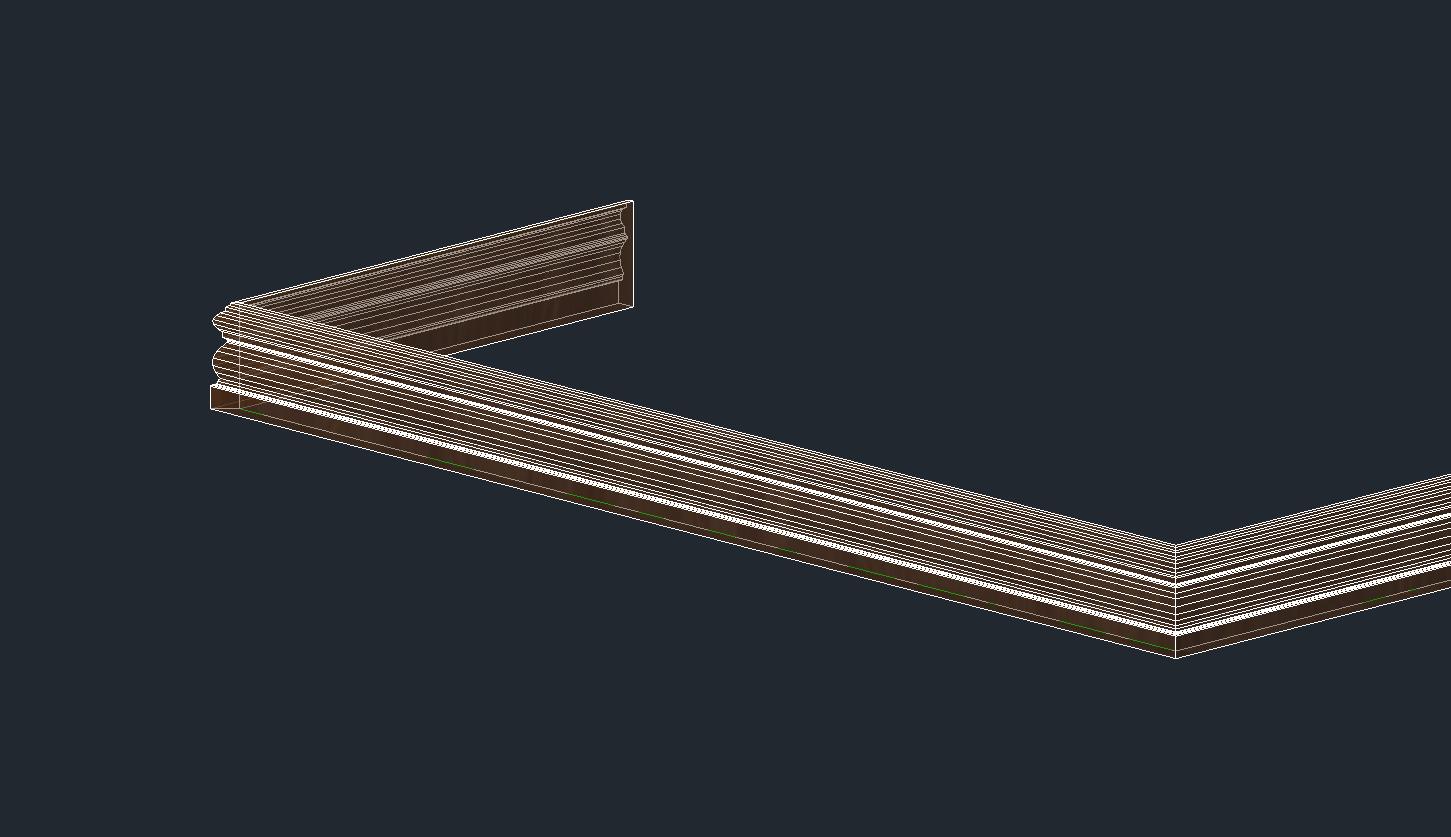

Extruded Valance


Product Category: Fixtures and Extruded Products- Extruded Moldings

Product Description
The Extruded Valance an extruded molding product capable of being added to a room to as valance molding, able to be placed on wall components and at the bottom of certain other room components, appliances, or certain cabinets. The Extruded Valance product uses standard prompts as well as prompts allowing one to control the scribe of the molding, location and height, as well as the locations of the strip joint.

Product Features/Prompts
Main Tab
  1. Cabinet Height Above Floor
  2. Scribe
  3. Cabinet Overhang
  4. Valance Height
  5. Mount Strip Total Length
  6. Valance Total Length
  7. Mount Strip Joint Location
  8. Valance Joint Location
  9. Finish Top Edge
  10. Finish Bottom Edge
  11. Miter Valance to Mount Strip


    • Related Articles

    • Foundation Library Catalog: Countertops

      This document lists all products in the Countertop category of Microvellum's Foundation Library. Countertop products are products designed to be placed atop counters or placed along wall components to act as surfaces, coming in a variety of shapes to ...

    • Foundation Library Catalog: Appliances

      This document lists the full range of appliance products within the Microvellum Foundation Library. Appliances are non-cabinet products such as refrigerators, dryers, microwaves, intended to be placed into Microvellum project rooms for visualization ...

    • Solid Modeling Tools - Extruded Products

      Solid Modeling Tools - Extruded Products The Solid Modeling Tools interface allows you to work with the product builders to create custom products. Using these tools, you can work within the drawing to create 3D solids of parts and then save them ...

    • Drawing Extruded Moldings for Manufacturing

      The following article highlights the Extruded Molding Products for Manufacturing in the Foundation Library. The video below demonstrates adding the Extruded Products to Upper Cabinets. Extruded Molding Products are intended for use in manufacturing ...

    • Foundation Hardware Highlight: Richelieu

      Microvellum’s Foundation Library is built on the premise of providing our users with the best quality hardware for their construction projects, be they commercial, residential, or anything otherwise. As such, Toolbox has hardware from multiple brands ...

    • Recent Articles

    • Toolbox Release Notes | Build 24.1.1206.641

      The following release notes apply to Toolbox build 24.1.1206.641 MV Server Nesting Fix There was a reported issue occurring when users attempted to remotely process work orders using a nesting station on MV Server. When attempting to process the work ...

    • Microvellum Foundation Library Release Notes | Build 24.1127

      The following release notes apply to Microvellum Foundation Library build 24.1127. Additions Added a new Soffit product to the Upper Cabinet Accessories category. Added the Top Filler (Ceiling Scribe) option to Upper and Tall cabinets. (Corner ...

    • Toolbox Release Notes | Build 24.1.1125.641

      The following release notes apply to Toolbox build 24.1.1125.641. IRIB Setmill Location Fix Fig. 1: Setmill being moved to the start of the route (top) rather than at the center of a straight line, as intended (bottom). There was an issue reportedly ...

    • Toolbox Release Notes | Build 24.1.1105.641

      The following release notes apply to Toolbox build 24.1.1105.641 Nesting Fix Fig. 1: The fatal error that would occur during processing. There was reportedly an issue that occurred when clients attempted to process a work order using the nesting ...

    • Microvellum Foundation Library Release Notes | Build 24.1025

      The following release notes apply to Microvellum Foundation Library build 24.1025. Additions Added new global variable “Remove Stop Dado On Bottom Edge” for wood drawer boxes. Check this option to run the dado through at the bottom of the sub front ...
