Master Bathroom Partition Overview

Master Bathroom Partition Overview

The Master Bathroom Partition

The Master Bathroom Partition product is an array design for toilet and shower bay applications. This includes the proper interior width and depth set for the partition spacing and their function. Each bay has the ability to become a toilet opening or a shower opening, factoring in required options such as splash panels and shower seats. Hardware for partition legs, hooks, hinges and door locks are available and customizable within this product.

There exist two calculators within this product, the first calculator (Internal Opening Calculator) is used for the interior width required of each bay opening. The second calculator (Front Opening Calculator) is used to find the required opening width for the bay doors. Width alterations in the Front Opening Calculator will control both the Door width and the Fascia widths.

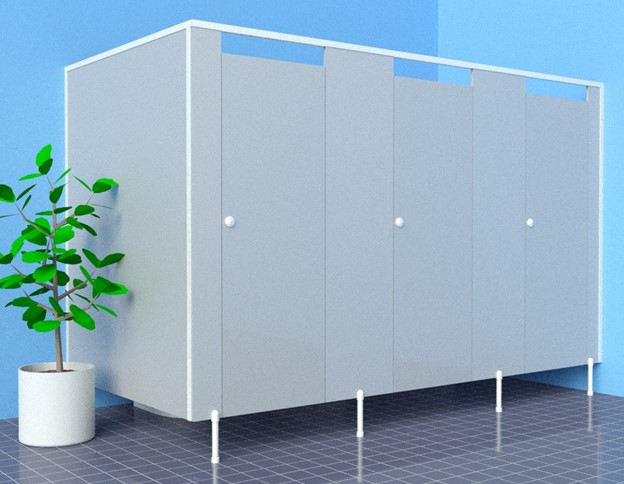

Figure 1: Master Bathroom Partition with 3 Bays, Left & Right Finished Ends.

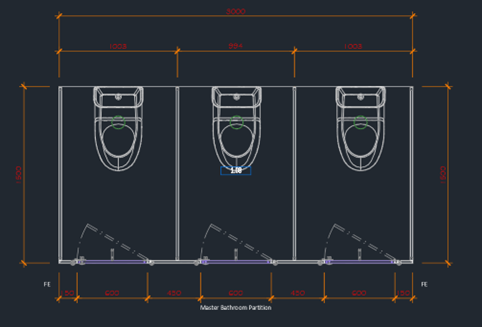

Figure 2: 3 Bay Master Bathroom Partition, Accessory Toilet product.

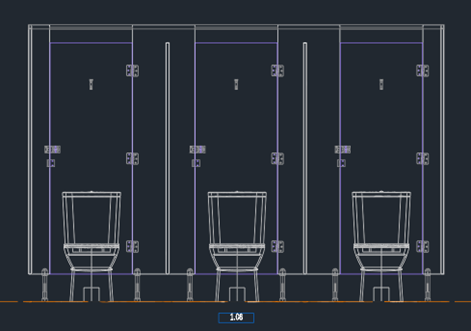

Figure 3: 3 Bay Master Bathroom Partition, Accessory Toilet product.

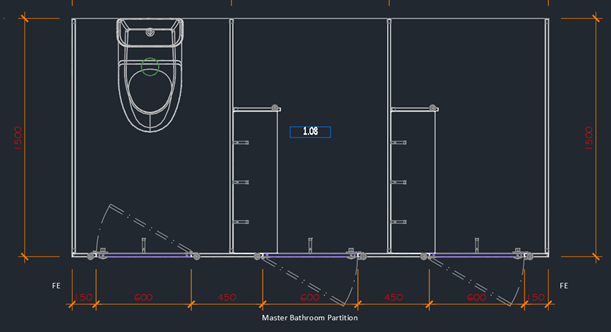

Figure 4: 3 Bay Master Bathroom Partition, Accessory Toilet product.

Main Options:

  1. Floor Clearance
  2. Opening Qty.
  3. Option for Left/Right Finished End
  4. Access to All Construction Methods
  5. Access to Material Options
  6. Access to 2D Drawing Options
  7. Access to Flatshot Options
  8. Access to Item Number Options
  9. Access to Rendering Options

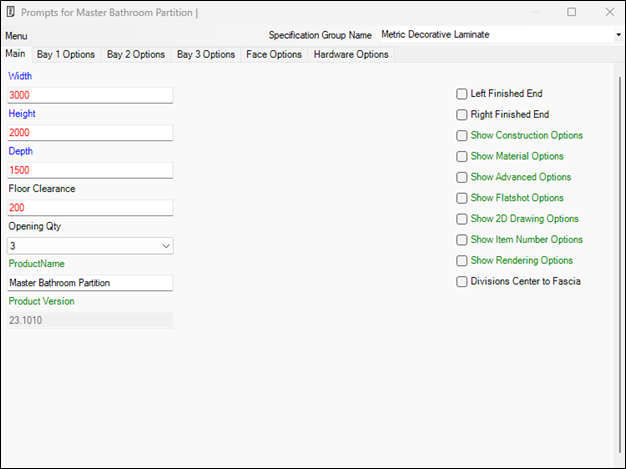

Figure 5: Master Bathroom Partition Product Prompts

Bay Options: Toilet

Figure 6: Bay 1 Prompt options.
  1. Each Toilet Opening can include a shower division, dividing the opening with a privacy panel (Panel Direction can be changed from either right- or left-hand side of the opening), as well as the ability to change the door swing direction and its opening direction.

Bay Options: Shower

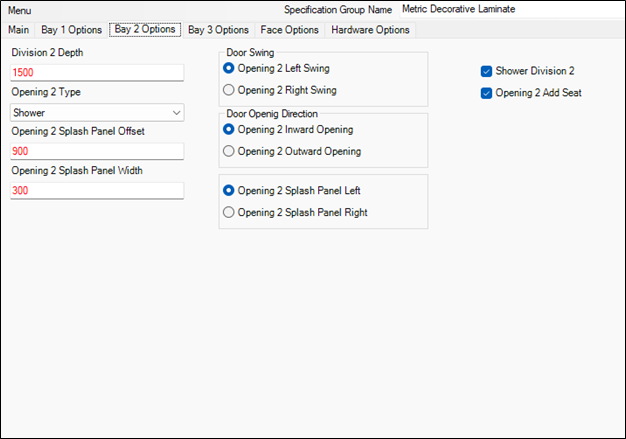

Figure 7: Bay 2 Shower Prompt options.
  1. Each Shower Opening can include a shower division, dividing the opening with a privacy panel (Panel Direction can be changed from either right- or left-hand side of the opening), a shower seat, as well as the ability to change the door swing direction and its opening direction.

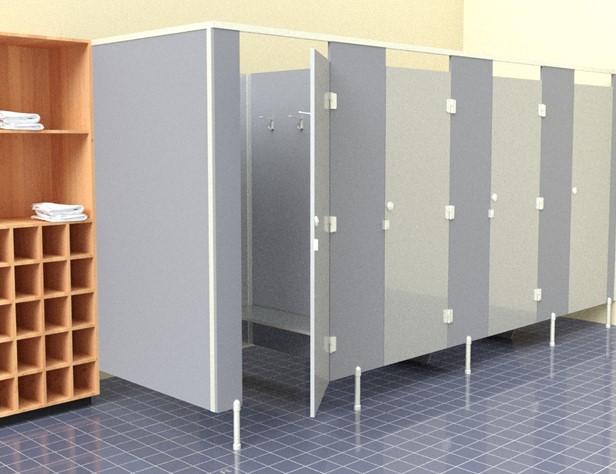

Figure 8: Bathroom Partition with Bay 1 shower. Splash panel, seat, coat hook added.

Construction Options:

  1. Add Head Channel – will include head channel hardware.
  2. Rebated Door – select to have rebate on both sides of the door.
  3. Floor Mount Fascia
  4. Floor Mount Divisions
  5. Left/Right End Shower Fascia - End fascia will extend to floor.
  6. Left/Right End Shower Division - End division will extend to floor.
  7. Use Compact tool – select to use compact tool for border routes.

Additional Options:

  1. Add Above Door Infill (Found under: Face Options)
  2. Add Door Stopper To Fascia (Found under: Hardware Options)
  3. Add a Double Door Stopper (Found under: Hardware Options)
  4. Add Center Foot, align fascia foot hardware in center (Found under: Hardware Options)

Privacy Panel

The Privacy Panel Product is a positional use product that can be placed at a singular point to divide 2 openings, placed in space or on a wall.

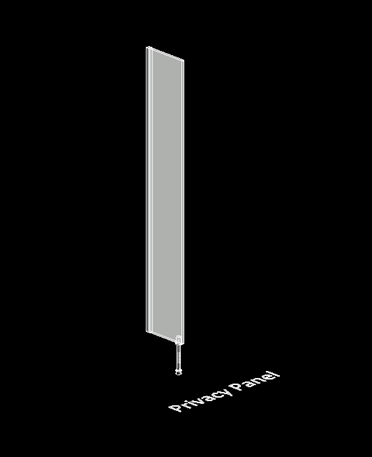

Figure 9: Privacy Panel.

Main Options:

  1. Top/Bottom Radius
  2. Scribe Amount
  3. Corner Radius
  4. Foot Alignment, Left/Right
  5. Option for Floor Mount
  6. Access to All Construction Methods
  7. Access to Material Options
  8. Access to 2D Drawing Options
  9. Access to Flatshot Options
  10. Access to Item Number Option
  11. Access to Rendering Options

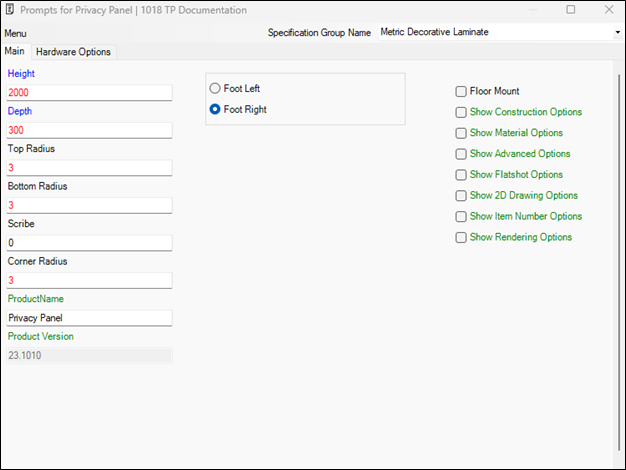

Figure 10: Privacy Panel Product Prompts options.
