Microvellum Data Dictionary

Microvellum Data Dictionary Introduction

This manual is a guide to the Microvellum Factory and Work Order Databases. This manual has four sections. The first section includes this introduction, and the remainder is General Information about this manual. The second section contains general/common report table definitions and their relationships. The third section contains the table metadata for all tables in both the Microvellum Factory and Work Order Databases. The fouth section contains the descriptive definitions of all Microvellum Type Definitions.

Use the links in the Table of Contents to navigate this article more efficiently.

There are several conventions used in this manual. The names of attributes (i.e., columns within tables) and table names appear in Camel Case format where the first letter of each word is capitalized (e.g., ActivityStations, LinkIDCategory). Some attribute descriptions give reference to a Microvellum Type Definitions defined in Section 4 of this manual. An example of this can be found with the UnitType column found in the ActivityStations table. The Description for UnitType is ‘See Process Unit Types’ which can be found in section 4 of this manual.

There are two types of values allowed within the Microvellum Type definitions. The first and most common are simple integer type values (i.e., 0,1, 2, 3, 4). These values are generally consecutive and usually start with 0 (zero). In some cases, consecutive numbers may be missing. The second type of value which is signified with (Bit Flags) in the definition name (e.g., Business Types (Bit Flags)) can either be the single value indicated by its type definitions or a combination of values added together to represent the value made up of multiple values.

An example of Bit Flags usage: Color Types (Bit Flags) {Black = 1, Red = 2, Blue = 4}. If the value stored in the database is a 5, the Type Definition value is Black and Blue.

Microvellum Data Dictionary General Information

All tables within Microvellum Databases contain an ID field. This field is a global unique identifier (GUID) which serves as the Primary Key (PK) column for each table. The ID column should not be used as a primary key to foreign key relationship . Instead, all tables in both the Factory and Work Order Databases contain a LinkID column which acts as the table’s Primary Link Key. All Foreign Link Key columns are named LinkID[Parent Table Name]. An example of this would be the Categories table has a column LinkID (Primary Link Key). The Products table has a column LinkIDCategory (Foreign Link Key). These two columns serve as the Categories and Products table relation.

Important Note: This manual does not contain information about some tables and columns that can be found in both the Factory and Work Order databases. These missing tables and columns are no longer supported by current versions of Microvellum Software and are only available for backward compatibility of older versions of the software.

At times, tables and/or columns will be depreciated and no longer be needed for the software to operate. Again, for backward compatibility, these tables and/or columns will not be removed from the databases but will no longer be documented in this manual.

All table relations, data types, and sizes are subject to change without notice.

Microvellum Common Report Relationships

This section of the manual provides several common example relationships, many of which are used in the stock Reports provided with the software. There are numerous other stock reports that ship with the software and are not represented in this manual. These relationship examples are meant for illustration purposes only and are subject to change without notice.

Important Note: Many reports contain additional tables that may not be represented in the relationships below. These additional tables are added to the reports to facilitate the need for additional data during report customization.

Specification Groups

This demonstrates the relationships between library and project specification groups and the components that make up a specification group.

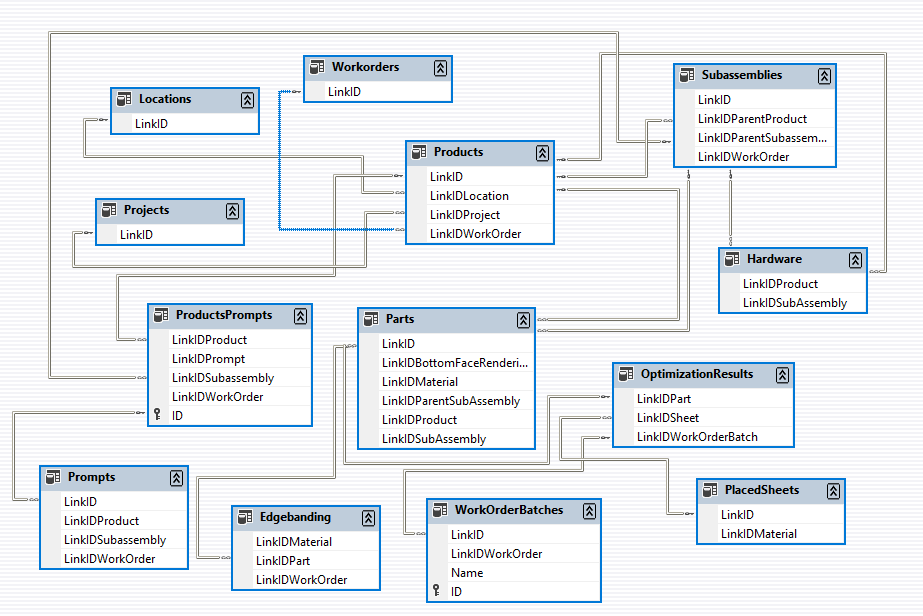

Work Order Entities

This relation outlines the relationships between common Work Order Entities.

Master Cut Report by Work Order

NOTE: this report does not use data from batch processing

This report groups part data by: 1) Materials.

This report uses data from the following Work Order Tables: Projects, Products, Subassemblies and Parts. The relationships are as follows:

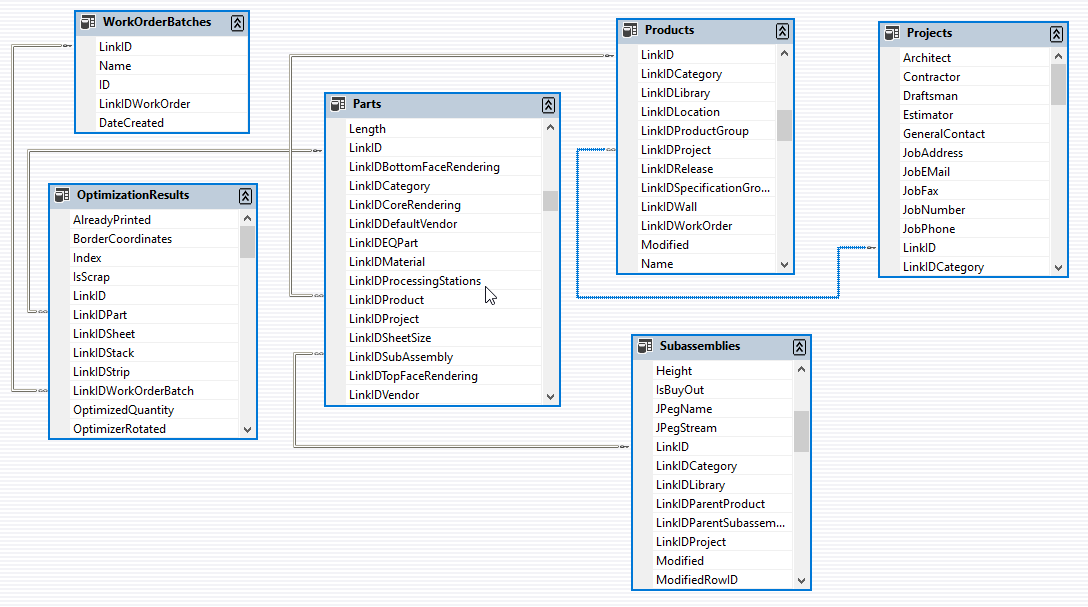

Master Cut Report by Batch

NOTE: this report uses data from batch processing

This report groups part data by: 1) Batch and 2) Materials.

This report is the same as the Master Cut Report by Work Order except for the addition of the Work Order Batches and OptimizationResults tables. The addition of these two tables allows new relationships between the Parts, OptimizationResults and a WorkOrderBatches tables.

Nesting Optimization Report

NOTE: this report uses data from batch processing

This report is displays each nest layout with the parts being cut.

This report uses data from the following Work Order Tables: WorkOrderBatches, Projects, Products, Parts, OptimizationResults, PlacedSheets, Sheets and MaterialStorageLocations. The relationships are as follows:

Parts by Processing Station

NOTE: this report uses data from batch processing

This report groups part data by: 1) Batch and 2) Processing Stations. Parts not processed will show up a the end of the report.

This report uses data from the following Work Order Tables: WorkOrderBatches, Projects, Products, Parts, ProcessingStations and PartsProcessingStations. The relationships are as follows:

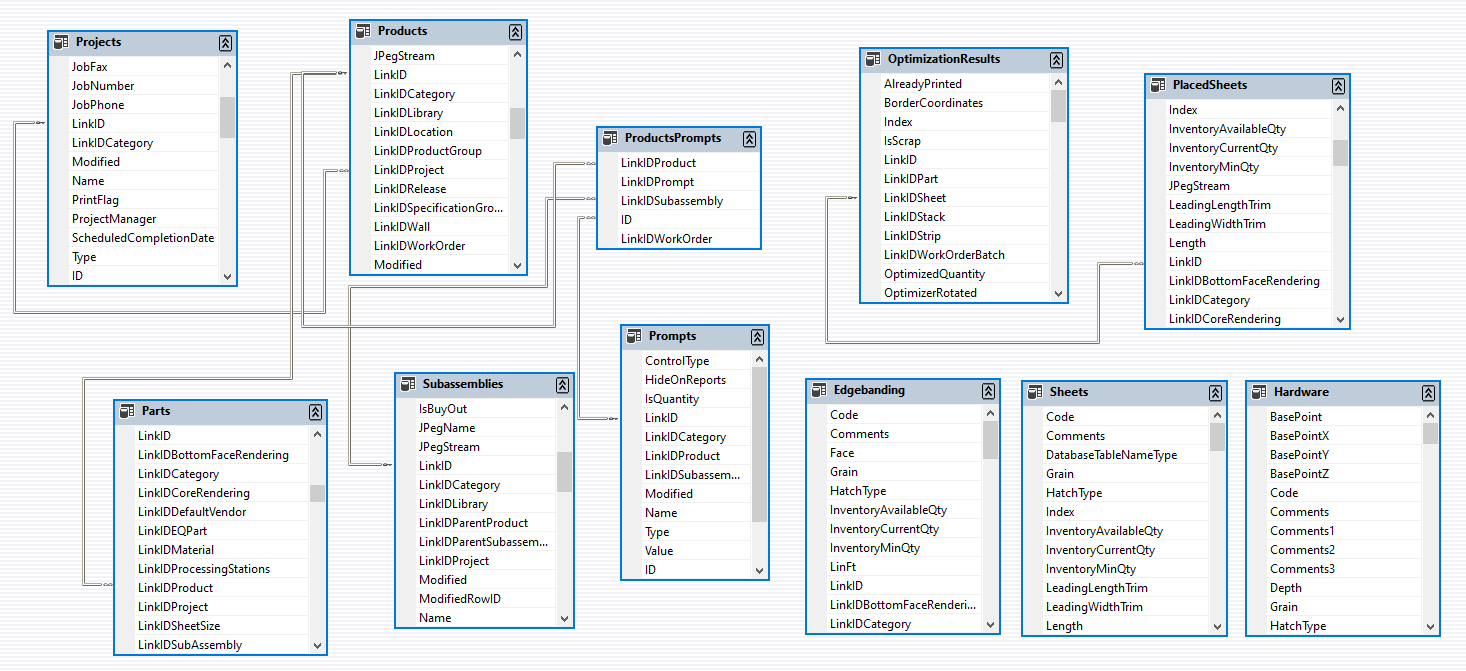

Product Detail Report

NOTE: this report does not use data from batch processing

This report groups data by: 1) Product. It displays a hardware list, subassembly list, and part list for each Product.

This report uses data from the following Work Order Tables: Projects, Products, Subassemblies, Parts, Hardware, Prompts and ProductPrompts. The relationships are as follows:

Product Detail with Image Report

NOTE: this report does not use data from batch processing

This report groups data by: 1) Product. It displays an isometric image, hardware list, subassembly list, and part list for each Product.

This report uses data from the following Work Order Tables: Projects, Products, Subassemblies, Parts, Hardware, Prompts, ProductPrompts and FaceFrameImages. The relationships are as follows:

Work Order Summary Report

NOTE: This report uses data from batch processing

This report groups data by: 1) Room. The second section of the report displays batch sheet summaries along with solid stock, buyout, edgebanding and hardware totals.

This report uses data from the following Work Order Tables: Projects, Products, Subassemblies, Parts, Hardware, Edgebanding, Sheets, PlacedSheets, Prompts, ProductPrompts and OptimizationResults. The relationships are as follows:

Microvellum Factory Database Tables

ActivityStations

Column	Datatype	Size	Nullable	Description
Comments	NVarChar	255	Y	User supplied comments for item
ID	UniqueIdentifier	16	N	PK - Unique ID Auto Generated
LaborRate	Float	8	Y	Labor rate for the Activity Station
LinkID	NVarChar	255	Y	Microvellum Primary Link Key
LinkIDCategory	NVarChar	255	Y	Microvellum Foreign Link Key
LinkIDParentStation	NVarChar	255	Y	Microvellum Foreign Link Key
LinkIDProcessingStation	NVarChar	255	Y	Microvellum Foreign Link Key
Modified	Bit	1	Y	True if the item has been modified
Name	NVarChar	255	Y	User supplied Name for the item
NumberOfEmployeesRequired	Int	4	Y	Number of Employees Required
StationNumber	Float	8	Y	Station Number
UnitsPerMinuteFactoryTime	Float	8	Y	Units per minute of Factory time
UnitType	Int	4	Y	See Process Unit Types

Attachment

Column	Datatype	Size	Nullable	Description
Attachment	VarBinaryMax	-1	Y	Attachment Item
DateCreated	DateTime	8	Y	Date when the attachment was created
ID	UniqueIdentifier	16	N	PK - Unique ID Auto Generated
LinkID	NVarChar	255	Y	Microvellum Primary Link Key
LinkIDCategory	NVarChar	255	Y	Microvellum Foreign Link Key
LinkIDCreator	NVarChar	255	Y	Microvellum Foreign Link Key
LinkIDParent	NVarChar	255	Y	Microvellum Foreign Link Key
Modified	Bit	1	Y	True if the item has been modified
Name	NVarChar	255	Y	User supplied Name for the item
Notes	NVarChar	255	Y	User supplied notes for the Attachment
Size	Float	8	Y	Attachment Size

AutoCADDrawings

Column	Datatype	Size	Nullable	Description
Drawing	VarBinaryMax	-1	Y	Drawing
ID	UniqueIdentifier	16	N	PK - Unique ID Auto Generated
JPegName	NVarChar	255	Y	Picture Name
JPegStream	VarBinaryMax	-1	Y	Picture BLOB Item
LinkID	NVarChar	255	Y	Microvellum Primary Link Key
LinkIDCategory	NVarChar	255	Y	Microvellum Foreign Link Key
Modified	Bit	1	Y	True if the item has been modified
Name	NVarChar	255	Y	User supplied Name for the item
TiffName	NVarChar	255	Y	Picture Name
TiffStream	VarBinaryMax	-1	Y	Picture BLOB Item
Type	Int	4	Y	See Drawing Types
WMFName	NVarChar	255	Y	Picture Name
WMFStream	VarBinaryMax	-1	Y	Picture BLOB Item

CommonCommandsGrids

Column	Datatype	Size	Nullable	Description
ID	UniqueIdentifier	16	N	PK - Unique ID Auto Generated
LinkID	NVarChar	255	Y	Microvellum Primary Link Key
LinkIDCategory	NVarChar	255	Y	Microvellum Foreign Link Key
Modified	Bit	1	Y	True if the item has been modified
Name	NVarChar	255	Y	User supplied Name for the item
WorkBook	VarBinaryMax	-1	Y	Work Book BLOB Item

Contacts

Column	Datatype	Size	Nullable	Description
Age	Int	4	Y	Age
Anniversary	DateTime	8	Y	Anniversary
Birthday	DateTime	8	Y	Birthday
CellPhone	NVarChar	255	Y	Cell Phone Number
City	NVarChar	255	Y	City
Comments	NVarChar	255	Y	User supplied comments for item
Country	NVarChar	255	Y	Country
DateFirstContact	DateTime	8	Y	Date First Contact
Department	NVarChar	255	Y	Department
EmailDefault	NVarChar	255	Y	Default email address
FaxDefault	NVarChar	255	Y	Default Fax Number
FirstName	NVarChar	255	Y	First Name
HomePhone	NVarChar	255	Y	Home Phone Number
ID	UniqueIdentifier	16	N	PK - Unique ID Auto Generated
JPegName	NVarChar	255	Y	Picture Name
JPegStream	VarBinaryMax	-1	Y	Picture BLOB Item
LastName	NVarChar	255	Y	Last Name
LinkID	NVarChar	255	Y	Microvellum Primary Link Key
LinkIDCategory	NVarChar	255	Y	Microvellum Foreign Link Key
LinkIDCompany	NVarChar	255	Y	Microvellum Foreign Link Key
MailCity	NVarChar	255	Y	Mail City
MailCountry	NVarChar	255	Y	Mail Country
MailPOBox	NVarChar	255	Y	Mail PO Box
MailState	NVarChar	255	Y	Mail State
MailStreet	NVarChar	255	Y	Mail Street
MailZipCode	NVarChar	255	Y	Mail Zip Code
ManagerName	NVarChar	255	Y	Manager Name
MiddleName	NVarChar	255	Y	Middle Name
Modified	Bit	1	Y	True if the item has been modified
NameNickname	NVarChar	255	Y	Nickname
NamePartner	NVarChar	255	Y	Partner's Name
NameSuffix	NVarChar	255	Y	Suffix
Office	NVarChar	255	Y	Office
OtherAddressStreet	NVarChar	255	Y	Other Address Street
PhoneDefault	NVarChar	255	Y	Default Phone
POBox	NVarChar	255	Y	PO Box
Profession	NVarChar	255	Y	Profession
RestrictAccess	NVarChar	255	Y	Restrict Access
Salutation	NVarChar	255	Y	Salutation
State	NVarChar	255	Y	State
Street	NVarChar	255	Y	Street
TiffName	NVarChar	255	Y	Picture Name
TiffStream	VarBinaryMax	-1	Y	Picture BLOB Item
Title	NVarChar	255	Y	Title
Type	Int	4	Y	See Company/Contact Types
WebSiteDefault	NVarChar	255	Y	Web Site Address
WMFName	NVarChar	255	Y	Picture Name
WMFStream	VarBinaryMax	-1	Y	Picture BLOB Item
ZipCode	NVarChar	255	Y	Zip Code

CutPartsFiles

Column	Datatype	Size	Nullable	Description
ID	UniqueIdentifier	16	N	PK - Unique ID Auto Generated
LinkID	NVarChar	255	Y	Microvellum Primary Link Key
LinkIDCategory	NVarChar	255	Y	Microvellum Foreign Link Key
LinkIDLibrary	NVarChar	255	Y	Microvellum Foreign Link Key
LinkIDProject	NVarChar	255	Y	Microvellum Foreign Link Key
Modified	Bit	1	Y	True if the item has been modified
Name	NVarChar	255	Y	User supplied Name for the item
Type	Int	4	Y	See Product Use Types
WorkBook	VarBinaryMax	-1	Y	Workbook BLOB Item

DoorLayers

Column	Datatype	Size	Nullable	Description
ID	UniqueIdentifier	16	N	PK - Unique ID Auto Generated
LinkID	NVarChar	255	Y	Microvellum Primary Link Key
LinkIDCategory	NVarChar	255	Y	Microvellum Foreign Link Key
LinkIDLibrary	NVarChar	255	Y	Microvellum Foreign Link Key
Modified	Bit	1	Y	True if the item has been modified
Name	NVarChar	255	Y	User supplied Name for the item

DoorWizardFiles

Column	Datatype	Size	Nullable	Description
ID	UniqueIdentifier	16	N	PK - Unique ID Auto Generated
LinkID	NVarChar	255	Y	Microvellum Primary Link Key
LinkIDCategory	NVarChar	255	Y	Microvellum Foreign Link Key
LinkIDLibrary	NVarChar	255	Y	Microvellum Foreign Link Key
LinkIDProject	NVarChar	255	Y	Microvellum Foreign Link Key
Modified	Bit	1	Y	True if the item has been modified
Name	NVarChar	255	Y	User supplied Name for the item
Type	Int	4	Y	See Product Use Types
WorkBook	VarBinaryMax	-1	Y	Work Book BLOB Item

EdgebandFiles

Column	Datatype	Size	Nullable	Description
ID	UniqueIdentifier	16	N	PK - Unique ID Auto Generated
LinkID	NVarChar	255	Y	Microvellum Primary Link Key
LinkIDCategory	NVarChar	255	Y	Microvellum Foreign Link Key
LinkIDLibrary	NVarChar	255	Y	Microvellum Foreign Link Key
LinkIDProject	NVarChar	255	Y	Microvellum Foreign Link Key
Modified	Bit	1	Y	True if the item has been modified
Name	NVarChar	255	Y	User supplied Name for the item
Type	Int	4	Y	See Product Use Types
WorkBook	VarBinaryMax	-1	Y	Workbook BLOB Item

EmployeeLogin

Column	Datatype	Size	Nullable	Description
AllowLogin	Bit	1	Y	Allow employee login
AllowSecurityByPass	Bit	1	Y	Allow Security By Pass
ID	UniqueIdentifier	16	N	PK - Unique ID Auto Generated
LinkID	NVarChar	255	Y	Microvellum Primary Link Key
LinkIDCategory	NVarChar	255	Y	Microvellum Foreign Link Key
Modified	Bit	1	Y	True if the item has been modified
Name	NVarChar	255	Y	User supplied Name for the item

Employees

Column	Datatype	Size	Nullable	Description
Age	Int	4	Y	Age
Anniversary	DateTime	8	Y	Anniversary
Birthday	DateTime	8	Y	Birthday
CellPhone	NVarChar	255	Y	Cell Phone Number
City	NVarChar	255	Y	City
Comments	NVarChar	255	Y	User supplied comments for item
Country	NVarChar	255	Y	Country
DateFirstContact	DateTime	8	Y	Date First Contact
Department	NVarChar	255	Y	Department
Department1Efficiency	Float	8	Y	Department 1 Efficiency
Department1HoursAllocation	Float	8	Y	Department 1 Hours Allocation
Department2Efficiency	Float	8	Y	Department 2 Efficiency
Department2HoursAllocation	Float	8	Y	Department 2 Hours Allocation
Department3Efficiency	Float	8	Y	Department 3 Efficiency
Department3HoursAllocation	Float	8	Y	Department 3 Hours Allocation
EmailDefault	NVarChar	255	Y	Email Default
FaxDefault	NVarChar	255	Y	Fax Default
FirstName	NVarChar	255	Y	First Name
HomePhone	NVarChar	255	Y	Home Phone
ID	UniqueIdentifier	16	N	PK - Unique ID Auto Generated
JPegName	NVarChar	255	Y	Picture Name
JPegStream	VarBinaryMax	-1	Y	Picture BLOB Item
LastName	NVarChar	255	Y	Last Name
LinkID	NVarChar	255	Y	Microvellum Primary Link Key
LinkIDActivityStation	NVarChar	255	Y	Microvellum Foreign Link Key
LinkIDCategory	NVarChar	255	Y	Microvellum Foreign Link Key
LinkIDCompany	NVarChar	255	Y	Microvellum Foreign Link Key
LinkIDPrimaryDepartment	NVarChar	255	Y	Microvellum Foreign Link Key
LinkIDSecondaryDepartment	NVarChar	255	Y	Microvellum Foreign Link Key
LinkIDSecondaryShift	NVarChar	255	Y	Microvellum Foreign Link Key
LinkIDShift	NVarChar	255	Y	Microvellum Foreign Link Key
LinkIDTertiaryDepartment	NVarChar	255	Y	Microvellum Foreign Link Key
LinkIDTertiaryShift	NVarChar	255	Y	Microvellum Foreign Link Key
MailCity	NVarChar	255	Y	Mail City
MailCountry	NVarChar	255	Y	Mail Country
MailPOBox	NVarChar	255	Y	Mail PO Box
MailState	NVarChar	255	Y	Mail State
MailStreet	NVarChar	255	Y	Mail Street
MailZipCode	NVarChar	255	Y	Mail Zip Code
ManagerName	NVarChar	255	Y	Manager Name
MiddleName	NVarChar	255	Y	Middle Name
Modified	Bit	1	Y	True if the item has been modified
NameNickname	NVarChar	255	Y	Name Nickname
NamePartner	NVarChar	255	Y	Name Partner
NameSuffix	NVarChar	255	Y	Name Suffix
Office	NVarChar	255	Y	Office
OtherAddressStreet	NVarChar	255	Y	Other Address Street
PhoneDefault	NVarChar	255	Y	Phone Default
POBox	NVarChar	255	Y	POBox
Profession	NVarChar	255	Y	Profession
RestrictAccess	NVarChar	255	Y	Restrict Access
Salutation	NVarChar	255	Y	Salutation
State	NVarChar	255	Y	State
Street	NVarChar	255	Y	Street
TiffName	NVarChar	255	Y	Picture Name
TiffStream	VarBinaryMax	-1	Y	Picture BLOB Item
Title	NVarChar	255	Y	Title
Type	Int	4	Y	See Company/Contact Types
WebSiteDefault	NVarChar	255	Y	Default Web Site Address
WMFName	NVarChar	255	Y	Picture Name
WMFStream	VarBinaryMax	-1	Y	Picture BLOB Item
ZipCode	NVarChar	255	Y	Zip Code

EmployeeSecure

Column	Datatype	Size	Nullable	Description
AllowAccessLibraryDesigner	Bit	1	Y	Allow Access Library Designer
AllowAccesstoDatabaseExplorer	Bit	1	Y	Allow Access to Database Explorer
AllowAccesstoDatabaseUtilities	Bit	1	Y	Allow Access to Database Utilities
AllowAccesstoTransferTables	Bit	1	Y	Allow Access to Transfer Tables
AllowAddProjectComponentFromTemplate	Bit	1	Y	Allow Add Project Component from Template
AllowAssignComponentToProjectSpecGroup	Bit	1	Y	Allow Assign Component to Project Spec Group
AllowAssignComponentToTemplateSpecGroup	Bit	1	Y	Allow Assign Component to Template Spec Group
AllowCompanyManagement	Bit	1	Y	Allow Company Management
AllowCopyProjectComponent	Bit	1	Y	Allow Copy Project Component
AllowCopyProjectSpecGroup	Bit	1	Y	Allow Copy Project Spec Group
AllowCopyTemplateComponent	Bit	1	Y	Allow Copy Template Component
AllowCopyTemplateSpecGroup	Bit	1	Y	Allow Copy Template Spec Group
AllowDBUExport	Bit	1	Y	Allow DBU Export
AllowDBUExportAndDelete	Bit	1	Y	Allow DBU Export and Delete
AllowDBUImport	Bit	1	Y	Allow DBU Import
AllowDBUImportAndOverwrite	Bit	1	Y	Allow DBU Import and Overwrite
AllowDeleteProjectComponent	Bit	1	Y	Allow Delete Project Component
AllowDeleteProjectSpecificationGroup	Bit	1	Y	Allow Delete Project Specification Group
AllowDeleteTemplateComponent	Bit	1	Y	Allow Delete Template Component
AllowDeleteTemplateSpecificationGroup	Bit	1	Y	Allow Delete Template Specification Group
AllowEditTimeClock	Bit	1	Y	Allow Edit Time Clock
AllowEstimating	Bit	1	Y	Allow Estimating
AllowEventLogArchive	Bit	1	Y	Allow Event Log Archive
AllowEventLogDelete	Bit	1	Y	Allow Event Log Delete
AllowImportData	Bit	1	Y	Allow Import Data
AllowImportProjectSpecGroup	Bit	1	Y	Allow Import Project Spec Group
AllowOptionsData	Bit	1	Y	Allow Options Data
AllowOptionsGeneral	Bit	1	Y	Allow Options General
AllowOptionsMachining	Bit	1	Y	Allow Options Machining
AllowProcessingStationManagement	Bit	1	Y	Allow Processing Station Management
AllowProduction	Bit	1	Y	Allow Production
AllowProjectCutPartWizard	Bit	1	Y	Allow Project Cut Part Wizard
AllowProjectDelete	Int	4	Y	Allow Project Delete
AllowProjectDoorWizard	Bit	1	Y	Allow Project Door Wizard
AllowProjectEdgeBandWizard	Bit	1	Y	Allow Project Edge Band Wizard
AllowProjectGlobals	Bit	1	Y	Allow Project Globals
AllowProjectHardwareWizard	Bit	1	Y	Allow Project Hardware Wizard
AllowProjectMaterials	Bit	1	Y	Allow Project Materials
AllowProjectWizard	Bit	1	Y	Allow Project Wizard
AllowProjectWorkBookDesigner	Bit	1	Y	Allow Project Workbook Designer
AllowPurchasing	Bit	1	Y	Allow Purchasing
AllowRenameProjectomponent	Bit	1	Y	Allow Rename Project Component
AllowRenameProjectSpecGroup	Bit	1	Y	Allow Rename Project Spec Group
AllowRenameTemplateComponent	Bit	1	Y	Allow Rename Template Component
AllowRenameTemplateSpecGroup	Bit	1	Y	Allow Rename Template Spec Group
AllowReportDesigner	Bit	1	Y	Allow Report Designer
AllowRevertProjectComponent	Bit	1	Y	Allow Revert Project Component
AllowSaveProductstoLibrary	Bit	1	Y	Allow Save Products to Library
AllowSaveProjectComponentToTemplate	Bit	1	Y	Allow Save Project Component To Template
AllowSaveProjectSpecificationGroupToTemplate	Bit	1	Y	Allow Save Project Specification Group To Template
AllowSaveSpecificationGroupstoTemplate	Bit	1	Y	Allow Save Specification Groups to Template
AllowSaveSubassembliestoLibrary	Bit	1	Y	Allow Save Subassemblies to Library
AllowScheduling	Bit	1	Y	Allow Scheduling
AllowSetup	Bit	1	Y	Allow Setup
AllowTemplateCutPartWizard	Bit	1	Y	Allow Template Cut Part Wizard
AllowTemplateDoorWizard	Bit	1	Y	Allow Template Door Wizard
AllowTemplateEdgeBandWizard	Bit	1	Y	Allow Template Edge Band Wizard
AllowTemplateGlobals	Bit	1	Y	Allow Template Globals
AllowTemplateHardwareWizard	Bit	1	Y	Allow Template Hardware Wizard
AllowTemplateMaterials	Bit	1	Y	Allow Template Materials
AllowTemplateProjectWizard	Bit	1	Y	Allow Template Project Wizard
AllowTemplateWorkBookDesigner	Bit	1	Y	Allow Template Workbook Designer
AllowToolFileManagement	Bit	1	Y	Allow Tool File Management
AllowUpdates	Bit	1	Y	Allow Updates
AllowWorkOrderModify	Bit	1	Y	Allow Work Order Modify
EmployeePassword	NVarChar	255	Y	Employee Password
HourlyPay	Float	8	Y	Hourly Pay
ID	UniqueIdentifier	16	N	PK - Unique ID Auto Generated
LinkID	NVarChar	255	Y	Microvellum Primary Link Key
LinkIDCategory	NVarChar	255	Y	Microvellum Foreign Link Key
LinkIDEmployee	NVarChar	255	Y	Microvellum Foreign Link Key
MmAlertSettings	Int	4	Y	MM Alert Settings
Modified	Bit	1	Y	True if the item has been modified
Name	NVarChar	255	Y	User supplied Name for the item
SoftwareSecurityType	Int	4	Y	See Software Security Types
SSNumber	NVarChar	255	Y	SS Number
WebSupportRolls	Int	4	Y	Web Support Rolls

EventLogs

Column	Datatype	Size	Nullable	Description
AlertType	Int	4	Y	See Event Log Alert Types
Archived	Bit	1	Y	Archived
DateTime	DateTime	8	Y	Date Time
Description	NVarChar	255	Y	Description
EventType	Int	4	Y	See Event Log Types
ID	UniqueIdentifier	16	N	PK - Unique ID Auto Generated
InnerMessage	NVarCharMax	-1	Y	Secondary error message
LinkID	NVarChar	255	Y	Microvellum Primary Link Key
LinkIDGrandParent	NVarChar	255	Y	Microvellum Foreign Link Key
LinkIDParent	NVarChar	255	Y	Microvellum Foreign Link Key
MachineName	NVarChar	255	Y	Machine Name
Message	NVarCharMax	-1	Y	Message
SeverityLevel	Int	4	Y	See Event Log Severity Levels
Source	Int	4	Y	See Event Log Sources
StackTrace	NVarCharMax	-1	Y	Error stack trace
User	NVarChar	255	Y	Username

Factory

Column	Datatype	Size	Nullable	Description
ID	UniqueIdentifier	16	N	PK - Unique ID Auto Generated
LinkID	NVarChar	255	Y	Microvellum Primary Link Key
LinkIDCategory	NVarChar	255	Y	Microvellum Foreign Link Key
LinkIDLibrary	NVarChar	255	Y	Microvellum Foreign Link Key
LinkIDProject	NVarChar	255	Y	Microvellum Foreign Link Key
Modified	Bit	1	Y	True if the item has been modified
Name	NVarChar	255	Y	User supplied Name for the item
Type	Int	4	Y	See Product Use Types
WorkBook	VarBinaryMax	-1	Y	Workbook BLOB Item

GeneralContacts

Column	Datatype	Size	Nullable	Description
CellPhone	NVarChar	255	Y	Cell Phone
City	NVarChar	255	Y	City
Comments	NVarChar	255	Y	User supplied comments for item
Country	NVarChar	255	Y	Country
EmailDefault	NVarChar	255	Y	Email Default
FaxDefault	NVarChar	255	Y	Fax Default
ID	UniqueIdentifier	16	N	PK - Unique ID Auto Generated
LinkID	NVarChar	255	Y	Microvellum Primary Link Key
LinkIDCategory	NVarChar	255	Y	Microvellum Foreign Link Key
LinkIDPrimaryContact	NVarChar	255	Y	Microvellum Foreign Link Key
MailCity	NVarChar	255	Y	Mail City
MailCountry	NVarChar	255	Y	Mail Country
MailPOBox	NVarChar	255	Y	Mail PO Box
MailState	NVarChar	255	Y	Mail State
MailStreet	NVarChar	255	Y	Mail Street
MailZipCode	NVarChar	255	Y	Mail Zip Code
Modified	Bit	1	Y	True if the item has been modified
Name	NVarChar	255	Y	User supplied Name for the item
OrderPrefix	NVarChar	255	Y	Order Prefix
PhoneDefault	NVarChar	255	Y	Phone Default
POBox	NVarChar	255	Y	POBox
State	NVarChar	255	Y	State
Street	NVarChar	255	Y	Street
Type	Int	4	Y	See Company/Contact Types
WebSiteDefault	NVarChar	255	Y	Web Site Default
ZipCode	NVarChar	255	Y	Zip Code

GlobalFiles

Column	Datatype	Size	Nullable	Description
ID	UniqueIdentifier	16	N	PK - Unique ID Auto Generated
LinkID	NVarChar	255	Y	Microvellum Primary Link Key
LinkIDCategory	NVarChar	255	Y	Microvellum Foreign Link Key
LinkIDLibrary	NVarChar	255	Y	Microvellum Foreign Link Key
LinkIDProject	NVarChar	255	Y	Microvellum Foreign Link Key
Modified	Bit	1	Y	True if the item has been modified
Name	NVarChar	255	Y	User supplied Name for the item
Type	Int	4	Y	See Product Use Types
WorkBook	VarBinaryMax	-1	Y	Work Book BLOB Item

GlobalImages

Column	Datatype	Size	Nullable	Description
ID	UniqueIdentifier	16	N	PK - Unique ID Auto Generated
JPegName	NVarChar	255	Y	Picture Name
JPegStream	VarBinaryMax	-1	Y	Picture BLOB Item
LinkID	NVarChar	255	Y	Microvellum Primary Link Key
LinkIDCategory	NVarChar	255	Y	Microvellum Foreign Link Key
Modified	Bit	1	Y	True if the item has been modified
Name	NVarChar	255	Y	User supplied Name for the item
TiffName	NVarChar	255	Y	Picture Name
TiffStream	VarBinaryMax	-1	Y	Picture BLOB Item
WMFName	NVarChar	255	Y	Picture Name
WMFStream	VarBinaryMax	-1	Y	Picture BLOB Item

HardwareFiles

Column	Datatype	Size	Nullable	Description
ID	UniqueIdentifier	16	N	PK - Unique ID Auto Generated
LinkID	NVarChar	255	Y	Microvellum Primary Link Key
LinkIDCategory	NVarChar	255	Y	Microvellum Foreign Link Key
LinkIDLibrary	NVarChar	255	Y	Microvellum Foreign Link Key
LinkIDProject	NVarChar	255	Y	Microvellum Foreign Link Key
Modified	Bit	1	Y	True if the item has been modified
Name	NVarChar	255	Y	User supplied Name for the item
Type	Int	4	Y	See Product Use Types
WorkBook	VarBinaryMax	-1	Y	Work Book BLOB Item

JoinProducts

Column	Datatype	Size	Nullable	Description
ID	UniqueIdentifier	16	N	PK - Unique ID Auto Generated
LinkID	NVarChar	255	Y	Microvellum Primary Link Key
LinkIDCategory	NVarChar	255	Y	Microvellum Foreign Link Key
LinkIDLibrary	NVarChar	255	Y	Microvellum Foreign Link Key
Modified	Bit	1	Y	True if the item has been modified
Name	NVarChar	255	Y	User supplied Name for the item
ProductStarterName	NVarChar	255	Y	Product Starter Name
SubassemblyName	NVarChar	255	Y	Subassembly Name

LabelSettings

Column	Datatype	Size	Nullable	Description
AllowRotation	Bit	1	Y	Allow Rotation
CenterDeviation	Float	8	Y	Center Deviation
ID	UniqueIdentifier	16	N	PK - Unique ID Auto Generated
LabelPrinterHeadOrientation	Int	4	Y	Label Printer Head Orientation
LinkID	NVarChar	255	Y	Microvellum Primary Link Key
LinkIDCategory	NVarChar	255	Y	Microvellum Foreign Link Key
MarginBorder	Float	8	Y	Margin Border
MarginMachining	Float	8	Y	Margin Machining
Modified	Bit	1	Y	True if the item has been modified
Name	NVarChar	255	Y	User supplied Name for the item
PlacementType	Int	4	Y	See Label Placement Types
ShowLocationsInNest	Bit	1	Y	Show Locations In Nest

Layers

Column	Datatype	Size	Nullable	Description
ID	UniqueIdentifier	16	N	PK - Unique ID Auto Generated
LinkID	NVarChar	255	Y	Microvellum Primary Link Key
LinkIDCategory	NVarChar	255	Y	Microvellum Foreign Link Key
Modified	Bit	1	Y	True if the item has been modified
Name	NVarChar	255	Y	User supplied Name for the item
PartName	NVarChar	255	Y	Part Name
RenderLayerType	Int	4	Y	See Render Layer Types
SavedGroupName	NVarChar	255	Y	Saved Group Name
SavedRenderMaterialName	NVarChar	255	Y	Saved Render Material Name

Libraries

Column	Datatype	Size	Nullable	Description
ID	UniqueIdentifier	16	N	PK - Unique ID Auto Generated
LinkID	NVarChar	255	Y	Microvellum Primary Link Key
LinkIDCategory	NVarChar	255	Y	Microvellum Foreign Link Key
LinkIDTemplate	NVarChar	255	Y	Microvellum Foreign Link Key
Modified	Bit	1	Y	True if the item has been modified
Name	NVarChar	255	Y	User supplied Name for the item
Type	Int	4	Y	See Product Use Types

Locations

Column	Datatype	Size	Nullable	Description
CategoryLevel	Int	4	Y	Category Level
DesignFileSyncDate	DateTime	8	Y	Design File Sync Date
DrawingName	NVarChar	255	Y	Drawing Name
ID	UniqueIdentifier	16	N	PK - Unique ID Auto Generated
JPegName	NVarChar	255	Y	Picture Name
JPegStream	VarBinaryMax	-1	Y	Picture BLOB Item
LinkID	NVarChar	255	Y	Microvellum Primary Link Key
LinkIDCategory	NVarChar	255	Y	Microvellum Foreign Link Key
LinkIDLocation	NVarChar	255	Y	Microvellum Foreign Link Key
LinkIDLocationCopy	NVarChar	255	Y	Microvellum Foreign Link Key
LinkIDProject	NVarChar	255	Y	Microvellum Foreign Link Key
Modified	Bit	1	Y	True if the item has been modified
Name	NVarChar	255	Y	User supplied Name for the item
PrintFlag	Bit	1	Y	Print Flag
TiffName	NVarChar	255	Y	Picture Name
TiffStream	VarBinaryMax	-1	Y	Picture BLOB Item
WMFName	NVarChar	255	Y	Picture Name
WMFStream	VarBinaryMax	-1	Y	Picture BLOB Item

MachiningTokenImages

Column	Datatype	Size	Nullable	Description
ID	UniqueIdentifier	16	N	PK - Unique ID Auto Generated
JPegName	NVarChar	255	Y	Picture Name
JPegStream	VarBinaryMax	-1	Y	Picture BLOB Item
LinkID	NVarChar	255	Y	Microvellum Primary Link Key
LinkIDCategory	NVarChar	255	Y	Microvellum Foreign Link Key
Modified	Bit	1	Y	True if the item has been modified
Name	NVarChar	255	Y	User supplied Name for the item
TiffName	NVarChar	255	Y	Picture Name
TiffStream	VarBinaryMax	-1	Y	Picture BLOB Item
WMFName	NVarChar	255	Y	Picture Name
WMFStream	VarBinaryMax	-1	Y	Picture BLOB Item

Macros

Column	Datatype	Size	Nullable	Description
ID	UniqueIdentifier	16	N	PK - Unique ID Auto Generated
LinkID	NVarChar	255	Y	Microvellum Primary Link Key
LinkIDCategory	NVarChar	255	Y	Microvellum Foreign Link Key
Modified	Bit	1	Y	True if the item has been modified
Name	NVarChar	255	Y	User supplied Name for the item
WorkBook	VarBinaryMax	-1	Y	Workbook BLOB Item

MaterialRendering

Column	Datatype	Size	Nullable	Description
ID	UniqueIdentifier	16	N	PK - Unique ID Auto Generated
LinkID	NVarChar	255	Y	Microvellum Primary Link Key
LinkIDCategory	NVarChar	255	Y	Microvellum Foreign Link Key
Modified	Bit	1	Y	True if the item has been modified
Name	NVarChar	255	Y	User supplied Name for the item
PictureName	NVarChar	255	Y	Picture Name
RGBNumber	NVarChar	255	Y	RGB Number

Materials

Column	Datatype	Size	Nullable	Description
AssociativeDrawingName	NVarChar	255	Y	Associative Drawing Name
AssociativeDrawingNameFormula	NVarChar	255	Y	Associative Drawing Name Formula
Cloneable	Bit	1	Y	Cloneable
Code	NVarChar	255	Y	Code
CodeFormula	VarCharMax	-1	Y	Code Formula
Comments	NVarChar	255	Y	User supplied comments for item
CustomSizeAdjustment	Float	8	Y	Custom Size Adjustment
CustomSizeAdjustmentFormula	VarCharMax	-1	Y	Custom Size Adjustment Formula
ElvBlockFileName	NVarChar	255	Y	Elv Block File Name
ElvBlockFileNameFormula	NVarChar	255	Y	Elv Block File Name Formula
FormulaMaterialAlias	NVarChar	255	Y	Formula Material Alias
Grain	Int	4	Y	See Grain Direction Types
GrainFormula	VarCharMax	-1	Y	Grain Formula
HandlingCode	NVarChar	255	Y	Handling Code
HandlingCodeFormula	VarCharMax	-1	Y	Handling Code Formula
HatchName	NVarChar	255	Y	Hatch Name
HatchType	Int	4	Y	See Hatch Types
ID	UniqueIdentifier	16	N	PK - Unique ID Auto Generated
InventoryAvailableQty	Float	8	Y	Inventory Available Qty
InventoryCurrentQty	Float	8	Y	Inventory Current Qty
InventoryMinQty	Float	8	Y	Inventory Min Qty
InventoryValue	Float	8	Y	Inventory Value
IsFormulaMaterial	Bit	1	Y	Is Formula Material
LinkID	NVarChar	255	Y	Microvellum Primary Link Key
LinkIDBottomFaceRendering	NVarChar	255	Y	Microvellum Foreign Link Key
LinkIDCategory	NVarChar	255	Y	Microvellum Foreign Link Key
LinkIDCoreRendering	NVarChar	255	Y	Microvellum Foreign Link Key
LinkIDDefaultVendor	NVarChar	255	Y	Microvellum Foreign Link Key
LinkIDMaterialStorageLocation	NVarChar	255	Y	Microvellum Foreign Link Key
LinkIDProject	NVarChar	255	Y	Microvellum Foreign Link Key
LinkIDSheetSize	NVarChar	255	Y	Microvellum Foreign Link Key
LinkIDTopFaceRendering	NVarChar	255	Y	Microvellum Foreign Link Key
MarkUp	Float	8	Y	Mark Up
MarkUpFormula	VarCharMax	-1	Y	Mark Up Formula
MaterialCommentsFormula	VarCharMax	-1	Y	Material Comments Formula
MaterialEstimateCost	Float	8	Y	Material Estimate Cost
MaterialEstimateCostFormula	VarCharMax	-1	Y	Material Estimate Cost Formula
MaterialFlipSetting	Int	4	Y	Material Flip Setting
MaterialLaborValue	Float	8	Y	Material Labor Value
MaterialLaborValueFormula	VarCharMax	-1	Y	Material Labor Value Formula
MaterialXData1	VarCharMax	-1	Y	Material XData1
MaterialXData1Formula	VarCharMax	-1	Y	Material XData1 Formula
MaterialXData2	VarCharMax	-1	Y	Material XData2
MaterialXData2Formula	VarCharMax	-1	Y	Material XData2 Formula
MaterialXData3	VarCharMax	-1	Y	Material XData3
MaterialXData3Formula	VarCharMax	-1	Y	Material XData3 Formula
Modified	Bit	1	Y	True if the item has been modified
Name	NVarChar	255	Y	User supplied Name for the item
NameFormula	VarCharMax	-1	Y	Name Formula
NonassociativeDrawingName	NVarChar	255	Y	Non associative Drawing Name
NonassociativeDrawingNameFormula	NVarChar	255	Y	Non associative Drawing Name Formula
Quantity	Float	8	Y	Quantity
Region	Int	4	Y	See Material Regions
SkipSpreadsheetSync	Bit	1	Y	Skip Spreadsheet Sync
StandardPrice	Float	8	Y	Standard Price
Thickness	Float	8	Y	Thickness
ThicknessFormula	VarCharMax	-1	Y	Thickness Formula
Type	Int	4	Y	See Material Types
UnitType	Int	4	Y	See Material Price Unit Types
WasteFactor	Float	8	Y	Waste Factor
WasteFactorFormula	VarCharMax	-1	Y	Waste Factor Formula

MaterialStorageLocations

Column	Datatype	Size	Nullable	Description
Comments	NVarChar	255	Y	User supplied comments for item
ID	UniqueIdentifier	16	N	PK - Unique ID Auto Generated
LinkID	NVarChar	255	Y	Microvellum Primary Link Key
LinkIDCategory	NVarChar	255	Y	Microvellum Foreign Link Key
Modified	Bit	1	Y	True if the item has been modified
Name	NVarChar	255	Y	User supplied Name for the item
PrintFlag	Bit	1	Y	Print Flag
ScanCode	NVarChar	255	Y	Scan Code

MicrovellumSystem

Column	Datatype	Size	Nullable	Description
ApplicationVersion	NVarChar	255	Y	Application Version
BundleSeed	Int	4	Y	Bundle Seed
DefaultMaterialFlipValue	Int	4	Y	Default Material Flip Value
ID	UniqueIdentifier	16	N	PK - Unique ID Auto Generated
LinkID	NVarChar	255	Y	Microvellum Primary Link Key
Modified	Bit	1	Y	True if the item has been modified
Name	NVarChar	255	Y	User supplied Name for the item
ServerQueueLocation	NVarChar	255	Y	Server Queue Location
StorageGroupSeed	Int	4	Y	Storage Group Seed

NestingOptimizerSettings

Column	Datatype	Size	Nullable	Description
AlwaysDoSecondPass	Bit	1	Y	Always Do Second Pass
BorderSequence	Int	4	Y	See Nest Border Sequences
CompositeNestType	Int	4	Y	See Nest Drawing Groupings
DistanceBetweenParts	Float	8	Y	Distance Between Parts
DontRouteSecondPass	Bit	1	Y	Don’t Route Second Pass
ID	UniqueIdentifier	16	N	PK - Unique ID Auto Generated
IrregularPartThreshold	Float	8	Y	Irregular Part Threshold
LastFileName	NVarChar	255	Y	Last File Name
LastNestFileName	NVarChar	255	Y	Last Nest File Name
LinkID	NVarChar	255	Y	Microvellum Primary Link Key
LinkIDCategory	NVarChar	255	Y	Microvellum Foreign Link Key
MaxQTYPerSheet	Int	4	Y	Max QTY Per Sheet
Modified	Bit	1	Y	True if the item has been modified
Name	NVarChar	255	Y	User supplied Name for the item
NestBorderRoutingOptimizationType	Int	4	Y	See Nest Border Routing Optimization Types
NestFromLeft	Bit	1	Y	Nest from Left
NestFromTop	Bit	1	Y	Nest from Top
NestOptimizationStrategy	Int	4	Y	See Nest Optimization Strategy
NestPartGroupingType	Int	4	Y	See Nest Part Grouping Types
NestRampLength	Float	8	Y	Nest Ramp Length
NestRampOffset	Float	8	Y	Nest Ramp Offset
NestSetMillLocation	Int	4	Y	See Nest Set Mill Locations
NestTextFormat	Int	4	Y	See Nest Text Format Types
NoRotateDia	Float	8	Y	No Rotate Día
NoRotateQty	Int	4	Y	No Rotate Qty
RestrictPlacementByDrillReach	Bit	1	Y	Restrict Placement by Drill Reach
RunFace6NestFirst	Bit	1	Y	Run Face6 Nest First
SmallPartArea	Float	8	Y	Small Part Area
SmallPartDimension	Float	8	Y	Small Part Dimension
SmallPartHandlingType	Int	4	Y	See Small Part Handling Types
SmallPartsBuffer	Int	4	Y	Small Parts Buffer
StayDownComplexity	Int	4	Y	Stay Down Complexity
TabAllowRemain	Bit	1	Y	Tab Allow Remain
TabHeight	Float	8	Y	Tab Height
TabLength1	Float	8	Y	Tab Length1
TabLength2	Float	8	Y	Tab Length2
TabPlaceQuantity	Int	4	Y	Tab Place Quantity
TabSheetTrim	Float	8	Y	Tab Sheet Trim
TabTool	NVarChar	255	Y	Tab Tool
ThicknessLeftForFirstPass	Float	8	Y	Thickness Left For First Pass

ParentStations

Column	Datatype	Size	Nullable	Description
ID	UniqueIdentifier	16	N	PK - Unique ID Auto Generated
LinkID	NVarChar	255	Y	Microvellum Primary Link Key
LinkIDCategory	NVarChar	255	Y	Microvellum Foreign Link Key
Modified	Bit	1	Y	True if the item has been modified
Name	NVarChar	255	Y	User supplied Name for the item

PartSettings

Column	Datatype	Size	Nullable	Description
BorderRampLength	Float	8	Y	Border Ramp Length
BorderRampOffset	Float	8	Y	Border Ramp Offset
ID	UniqueIdentifier	16	N	PK - Unique ID Auto Generated
LinkID	NVarChar	255	Y	Microvellum Primary Link Key
LinkIDCategory	NVarChar	255	Y	Microvellum Foreign Link Key
Modified	Bit	1	Y	True if the item has been modified
Name	NVarChar	255	Y	User supplied Name for the item
RotationType	Int	4	Y	See Single Part Rotation Types

ProcessingStationAssociates

Column	Datatype	Size	Nullable	Description
ID	UniqueIdentifier	16	N	PK - Unique ID Auto Generated
Index	Int	4	Y	Index
LinkID	NVarChar	255	Y	Microvellum Primary Link Key
LinkIDChild	NVarChar	255	Y	Microvellum Foreign Link Key
LinkIDParent	NVarChar	255	Y	Microvellum Foreign Link Key
Type	Int	4	Y	See Processing Station Association Types

ProcessingStations

Column	Datatype	Size	Nullable	Description
ApplyPartsAll	Bit	1	Y	Apply Parts All
ApplyPartsContainsFace6Machining	Bit	1	Y	Apply Parts Contains Face6 Machining
ApplyPartsContainsFaceMachining	Bit	1	Y	Apply Parts Contains Face Machining
ApplyPartsContainsHboreMachining	Bit	1	Y	Apply Parts Contains Hbore Machining
ApplyPartsWithAnyMachining	Bit	1	Y	Apply Parts with Any Machining
ApplyPartsWithFace6Machining	Bit	1	Y	Apply Parts with Face6 Machining
ApplyPartsWithHBoreMachining	Bit	1	Y	Apply Parts with HBore Machining
ApplyPartsWithNoMachining	Bit	1	Y	Apply Parts with No Machining
CreateSubFolders	Bit	1	Y	Create Sub Folders
FolderDestination	NVarChar	255	Y	Folder Destination
ID	UniqueIdentifier	16	N	PK - Unique ID Auto Generated
LabelImageDestination	NVarChar	255	Y	Label Image Destination
LabelImageSize	Int	4	Y	Label Image Size
LabelImageType	Int	4	Y	See Part Picture Types
LabelImageZoom	Float	8	Y	Label Image Zoom
LinkID	NVarChar	255	Y	Microvellum Primary Link Key
LinkIDBundleItemSetting	NVarChar	255	Y	Microvellum Foreign Link Key
LinkIDCategory	NVarChar	255	Y	Microvellum Foreign Link Key
LinkIDLabelSettings	NVarChar	255	Y	Microvellum Foreign Link Key
LinkIDNestOptimizationSetting	NVarChar	255	Y	Microvellum Foreign Link Key
LinkIDPartSetting	NVarChar	255	Y	Microvellum Foreign Link Key
LinkIDSawOptimizationSetting	NVarChar	255	Y	Microvellum Foreign Link Key
LinkIDScrapOptimizationSetting	NVarChar	255	Y	Microvellum Foreign Link Key
LinkIDToolFile	NVarChar	255	Y	Microvellum Foreign Link Key
Modified	Bit	1	Y	True if the item has been modified
Name	NVarChar	255	Y	User supplied Name for the item
PartPictureSize	Int	4	Y	Part Picture Size
PartPictureType	Int	4	Y	See Part Picture Types
PartPictureZoom	Float	8	Y	Part Picture Zoom
PartSizeAdjustmentMode	Int	4	Y	Part Size Adjustment Mode
ScrapDimAndLogic	Bit	1	Y	Scrap Dim and Logic
ScrapMinArea	Float	8	Y	Scrap Min Area
ScrapMinDim	Float	8	Y	Scrap Min Dim
ScrapOverrideTrims	Bit	1	Y	Scrap Override Trims
ScrapSave	Bit	1	Y	Scrap Save
ScrapTrimLeadingLength	Float	8	Y	Scrap Trim Leading Length
ScrapTrimLeadingWidth	Float	8	Y	Scrap Trim Leading Width
ScrapTrimTrailingLength	Float	8	Y	Scrap Trim Trailing Length
ScrapTrimTrailingWidth	Float	8	Y	Scrap Trim Trailing Width
ScrapUse	Bit	1	Y	Scrap Use
Type	Int	4	Y	See Processing Station Types
Units	Int	4	Y	See Processing Station Units
UseLegacyWMFImageType	Bit	1	Y	Use Legacy WMF Image Type
WMFFolderDestination	NVarChar	255	Y	WMF Folder Destination

ProductGroups

Column	Datatype	Size	Nullable	Description
ID	UniqueIdentifier	16	N	PK - Unique ID Auto Generated
JPegName	NVarChar	255	Y	Picture Name
JPegStream	VarBinaryMax	-1	Y	Picture BLOB Item
LinkID	NVarChar	255	Y	Microvellum Primary Link Key
LinkIDCategory	NVarChar	255	Y	Microvellum Foreign Link Key
Modified	Bit	1	Y	True if the item has been modified
Name	NVarChar	255	Y	User supplied Name for the item
TiffName	NVarChar	255	Y	Picture Name
TiffStream	VarBinaryMax	-1	Y	Picture BLOB Item
WMFName	NVarChar	255	Y	Picture Name
WMFStream	VarBinaryMax	-1	Y	Picture BLOB Item
X	Float	8	Y	X
Y	Float	8	Y	Y
Z	Float	8	Y	Z

ProductMap

Column	Datatype	Size	Nullable	Description
Depth	Float	8	Y	Depth
Height	Float	8	Y	Height
ID	UniqueIdentifier	16	N	PK - Unique ID Auto Generated
LinkID	NVarChar	255	Y	Microvellum Primary Link Key
LinkIDCategory	NVarChar	255	Y	Microvellum Foreign Link Key
LinkIDLibrary	NVarChar	255	Y	Microvellum Foreign Link Key
LinkIDProduct	NVarChar	255	Y	Microvellum Foreign Link Key
Modified	Bit	1	Y	True if the item has been modified
Name	NVarChar	255	Y	User supplied Name for the item
Width	Float	8	Y	Width

ProductPromptImages

Column	Datatype	Size	Nullable	Description
ID	UniqueIdentifier	16	N	PK - Unique ID Auto Generated
JPegName	NVarChar	255	Y	Picture Name
JPegStream	VarBinaryMax	-1	Y	Picture BLOB Item
LinkID	NVarChar	255	Y	Microvellum Primary Link Key
LinkIDCategory	NVarChar	255	Y	Microvellum Foreign Link Key
Modified	Bit	1	Y	True if the item has been modified
Name	NVarChar	255	Y	User supplied Name for the item
TiffName	NVarChar	255	Y	Picture Name
TiffStream	VarBinaryMax	-1	Y	Picture BLOB Item
Type	Int	4	Y	See Category Types
WMFName	NVarChar	255	Y	Picture Name
WMFStream	VarBinaryMax	-1	Y	Picture BLOB Item

Products

Column	Datatype	Size	Nullable	Description
ActivityPath	NVarChar	255	Y	Activity Path
ActivityPathShort	NVarChar	255	Y	Activity Path Short
AncorType	Int	4	Y	See End Types
Angle	Float	8	Y	Angle
Comments	NVarChar	255	Y	User supplied comments for item
Comments1	NVarChar	255	Y	User supplied comments for item
Comments2	NVarChar	255	Y	User supplied comments for item
Comments3	NVarChar	255	Y	User supplied comments for item
CopiedLinkIDList	NVarChar	255	Y	Copied Link ID List
DateShipped	DateTime	8	Y	Date Shipped
Depth	Float	8	Y	Depth
DrawIndex	Int	4	Y	Draw Index
Extruded	Bit	1	Y	Extruded
Height	Float	8	Y	Height
ID	UniqueIdentifier	16	N	PK - Unique ID Auto Generated
IsBuyOut	Bit	1	Y	Is Buy Out
ItemNumber	NVarChar	255	Y	Item Number
JPegName	NVarChar	255	Y	Picture Name
JPegStream	VarBinaryMax	-1	Y	Picture BLOB Item
LinkID	NVarChar	255	Y	Microvellum Primary Link Key
LinkIDCategory	NVarChar	255	Y	Microvellum Foreign Link Key
LinkIDLibrary	NVarChar	255	Y	Microvellum Foreign Link Key
LinkIDLocation	NVarChar	255	Y	Microvellum Foreign Link Key
LinkIDProductGroup	NVarChar	255	Y	Microvellum Foreign Link Key
LinkIDProject	NVarChar	255	Y	Microvellum Foreign Link Key
LinkIDRelease	NVarChar	255	Y	Microvellum Foreign Link Key
LinkIDSpecificationGroup	NVarChar	255	Y	Microvellum Foreign Link Key
LinkIDWall	NVarChar	255	Y	Microvellum Foreign Link Key
LinkIDWorkOrder	NVarChar	255	Y	Microvellum Foreign Link Key
Modified	Bit	1	Y	True if the item has been modified
Name	NVarChar	255	Y	User supplied Name for the item
PerfectGrainChar	NVarChar	255	Y	Perfect Grain Char
PrintFlag	Bit	1	Y	Print Flag
PrintFlags	NVarChar	255	Y	Print Flags
ProductSpecGroupName	NVarChar	255	Y	Product Spec Group Name
Quantity	Int	4	Y	Quantity
QuantityShipped	Int	4	Y	Quantity Shipped
QuoteName	NVarChar	255	Y	Quote Name
RoomComponentType	Int	4	Y	See Kitchen Object Types
RoomName	NVarChar	255	Y	Room Name
Row_ID	Int	4	Y	Row ID
ScanCode	NVarChar	255	Y	Scan Code
ShippingTicketName	NVarChar	255	Y	Shipping Ticket Name
TiffName	NVarChar	255	Y	Picture Name
TiffStream	VarBinaryMax	-1	Y	Picture BLOB Item
Type	Int	4	Y	See Product Use Types
UITreeFilter	Int	4	Y	UI Element Item
Width	Float	8	Y	Width
WMFName	NVarChar	255	Y	Picture Name
WMFStream	VarBinaryMax	-1	Y	Picture BLOB Item
WorkBook	VarBinaryMax	-1	Y	Workbook BLOB Item
WorkOrderName	NVarChar	255	Y	Work Order Name
X	Float	8	Y	X
Y	Float	8	Y	Y
Z	Float	8	Y	Z

ProjectProperties

Column	Datatype	Size	Nullable	Description
GlobalVariableName	NVarChar	255	Y	Global Variable Name
ID	UniqueIdentifier	16	N	PK - Unique ID Auto Generated
LinkID	NVarChar	255	Y	Microvellum Primary Link Key
LinkIDCategory	NVarChar	255	Y	Microvellum Foreign Link Key
LinkIDLocation	NVarChar	255	Y	Microvellum Foreign Link Key
LinkIDProject	NVarChar	255	Y	Microvellum Foreign Link Key
Modified	Bit	1	Y	True if the item has been modified
Name	NVarChar	255	Y	User supplied Name for the item
ProjectVariableName	NVarChar	255	Y	Project Variable Name
ProjectWizardVariableName	NVarChar	255	Y	Project Wizard Variable Name
PropertyName	NVarChar	255	Y	Property Name
PropertyValue	NVarChar	255	Y	Property Value
SpecificationGroupName	NVarChar	255	Y	Specification Group Name
TitleBlockAttributeName	NVarChar	255	Y	Title Block Attribute Name
TitleBlockName	NVarChar	255	Y	Title Block Name

Projects

Column	Datatype	Size	Nullable	Description
Architect	NVarChar	255	Y	Architect
Contractor	NVarChar	255	Y	Contractor
DateCreated	DateTime	8	Y	Date when the project was created
DateLastOpened	DateTime	8	Y	Date Last Opened
Draftsman	NVarChar	255	Y	Draftsman
Estimator	NVarChar	255	Y	Estimator
GeneralContact	NVarChar	255	Y	General Contact
ID	UniqueIdentifier	16	N	PK - Unique ID Auto Generated
IsInactive	Bit	1	Y	Is Inactive
JobAddress	NVarChar	255	Y	Job Address
JobDescription	NVarChar	255	Y	Job Description
JobEMail	NVarChar	255	Y	Job E Mail
JobFax	NVarChar	255	Y	Job Fax
JobNumber	NVarChar	255	Y	Job Number
JobPhone	NVarChar	255	Y	Job Phone
LinkID	NVarChar	255	Y	Microvellum Primary Link Key
LinkIDCategory	NVarChar	255	Y	Microvellum Foreign Link Key
LinkIDCustomerCompany	NVarChar	255	Y	Microvellum Foreign Link Key
LocationCoordinates	NVarChar	255	Y	Location Coordinates
Modified	Bit	1	Y	True if the item has been modified
Name	NVarChar	255	Y	User supplied Name for the item
PrintFlag	Bit	1	Y	Print Flag
ProjectBudget	Float	8	Y	Project Budget
ProjectManager	NVarChar	255	Y	Project Manager
ProjectNumber	Int	4	Y	Project Number
ScheduledCompletionDate	DateTime	8	Y	Scheduled Completion Date
ScheduledStartDate	DateTime	8	Y	Scheduled Start Date
TotalProjectCost	Float	8	Y	Total Project Cost
Type	Int	4	Y	See Product Use Types

ProjectWizardFiles

Column	Datatype	Size	Nullable	Description
ID	UniqueIdentifier	16	N	PK - Unique ID Auto Generated
LinkID	NVarChar	255	Y	Microvellum Primary Link Key
LinkIDCategory	NVarChar	255	Y	Microvellum Foreign Link Key
LinkIDLibrary	NVarChar	255	Y	Microvellum Foreign Link Key
LinkIDProject	NVarChar	255	Y	Microvellum Foreign Link Key
Modified	Bit	1	Y	True if the item has been modified
Name	NVarChar	255	Y	User supplied Name for the item
Type	Int	4	Y	See Product Use Types
WorkBook	VarBinaryMax	-1	Y	Workbook BLOB Item

PromptMap

Column	Datatype	Size	Nullable	Description
ID	UniqueIdentifier	16	N	PK - Unique ID Auto Generated
LinkID	NVarChar	255	Y	Microvellum Primary Link Key
LinkIDCategory	NVarChar	255	Y	Microvellum Foreign Link Key
LinkIDLibrary	NVarChar	255	Y	Microvellum Foreign Link Key
LinkIDProduct	NVarChar	255	Y	Microvellum Foreign Link Key
MappingName	NVarChar	255	Y	Mapping Name
Modified	Bit	1	Y	True if the item has been modified
Name	NVarChar	255	Y	User supplied Name for the item

ReportDatasets

Column	Datatype	Size	Nullable	Description
ID	UniqueIdentifier	16	N	PK - Unique ID Auto Generated
IncludedColumns	NVarCharMax	-1	Y	Included Columns
LinkID	NVarChar	255	Y	Microvellum Primary Link Key
LinkIDCategory	NVarChar	255	Y	Microvellum Foreign Link Key
LinkIDReport	NVarChar	255	Y	Microvellum Foreign Link Key
Modified	Bit	1	Y	True if the item has been modified
Name	NVarChar	255	Y	User supplied Name for the item
SqlString	NVarChar	255	Y	Sql String
Type	Int	4	Y	See Data Source Types

ReportGroupItems

Column	Datatype	Size	Nullable	Description
ID	UniqueIdentifier	16	N	PK - Unique ID Auto Generated
LinkID	NVarChar	255	Y	Microvellum Primary Link Key
LinkIDCategory	NVarChar	255	Y	Microvellum Foreign Link Key
LinkIDProcessingStation	NVarChar	255	Y	Microvellum Foreign Link Key
LinkIDReport	NVarChar	255	Y	Microvellum Foreign Link Key
LinkIDReportGroup	NVarChar	255	Y	Microvellum Foreign Link Key
Modified	Bit	1	Y	True if the item has been modified
Name	NVarChar	255	Y	User supplied Name for the item
OutputPath	NVarChar	255	Y	Output Path
OutputType	Int	4	Y	Output Type

ReportGroups

Column	Datatype	Size	Nullable	Description
CreateReportDirectory	Bit	1	Y	Create Report Directory
ID	UniqueIdentifier	16	N	PK - Unique ID Auto Generated
LinkID	NVarChar	255	Y	Microvellum Primary Link Key
LinkIDCategory	NVarChar	255	Y	Microvellum Foreign Link Key
Modified	Bit	1	Y	True if the item has been modified
Name	NVarChar	255	Y	User supplied Name for the item
OutputNameFormat	NVarChar	255	Y	Output Name Format
OutputPath	NVarChar	255	Y	Output Path
RunGroupOnBatchComplete	Bit	1	Y	Run Group on Batch Complete
RunGroupOnWOComplete	Bit	1	Y	Run Group on WO Complete

ReportTemplates

Column	Datatype	Size	Nullable	Description
BusinessObjectTypes	Int	4	Y	See Business Types
Comments	NVarChar	255	Y	User supplied comments for item
DatabaseFileName	NVarChar	255	Y	Database File Name
GlobalVariables	NVarCharMax	-1	Y	Global Variables
HideInReportList	Bit	1	Y	Hide In Report List
ID	UniqueIdentifier	16	N	PK - Unique ID Auto Generated
IsBatchReport	Bit	1	Y	Is Batch Report
LinkID	NVarChar	255	Y	Microvellum Primary Link Key
LinkIDCategory	NVarChar	255	Y	Microvellum Foreign Link Key
Modified	Bit	1	Y	True if the item has been modified
ModifiedVersion	NVarChar	255	Y	Modified Version
Name	NVarChar	255	Y	User supplied Name for the item
ProductVariables	NVarCharMax	-1	Y	Product Variables
ReportCategoryType	Int	4	Y	See Report Category Types
ReportFile	VarBinaryMax	-1	Y	Report File
SqlString	NVarChar	255	Y	Sql String

SavedViews

Column	Datatype	Size	Nullable	Description
ColumnOrder	NVarCharMax	-1	Y	Column Order
ColumnWidths	NVarCharMax	-1	Y	Column Widths
DecimalPlaces	Int	4	Y	Decimal Places
ExportGroupRows	Bit	1	Y	Export Group Rows
Filters	NVarCharMax	-1	Y	Filters
FontSize	Float	8	Y	Font Size
FrozenColumns	Int	4	Y	Frozen Columns
GridType	Int	4	Y	See Saved View Grid Types
Groups	NVarCharMax	-1	Y	Groups
HiddenColumns	NVarCharMax	-1	Y	Hidden Columns
ID	UniqueIdentifier	16	N	PK - Unique ID Auto Generated
LinkID	NVarChar	255	Y	Microvellum Primary Link Key
LinkIDCategory	NVarChar	255	Y	Microvellum Foreign Link Key
Modified	Bit	1	Y	True if the item has been modified
Name	NVarChar	255	Y	User supplied Name for the item
SettingsType	Int	4	Y	See Saved View Types
SortAscending	Bit	1	Y	Sort Ascending
SortColumn	Int	4	Y	Sort Column
WordWrap	Bit	1	Y	Word Wrap

SawingOptimizerSettings

Column	Datatype	Size	Nullable	Description
AuxPath1	NVarChar	255	Y	Aux Path1
ConnectionName	NVarChar	255	Y	Connection Name
CPOUTAlgorithm	Int	4	Y	CPOUT Algorithm
CPOUTCode	Int	4	Y	CPOUT Code
CreateSawOFFRecords	Bit	1	Y	Create Saw OFF Records
DecimalPlaces	Int	4	Y	Decimal Places
DestinationPath	NVarChar	255	Y	Destination Path
EdgebandPremill	Float	8	Y	Edge band Premill
GrippersWidth	Float	8	Y	Grippers Width
ID	UniqueIdentifier	16	N	PK - Unique ID Auto Generated
LinkID	NVarChar	255	Y	Microvellum Primary Link Key
LinkIDCategory	NVarChar	255	Y	Microvellum Foreign Link Key
MaxFileNumberRange	Int	4	Y	Max File Number Range
MaxPartRecords	Int	4	Y	Max Part Records
MinFileNumberRange	Int	4	Y	Min File Number Range
Modified	Bit	1	Y	True if the item has been modified
Name	NVarChar	255	Y	User supplied Name for the item
NumberOfPhases	Int	4	Y	Number Of Phases
OversizeAmount	Float	8	Y	Oversize Amount
PerfectGrainTrim	Float	8	Y	Perfect Grain Trim
PrefectGrainType	Int	4	Y	See Saw Perfect Grain Types
ReCutTrailingTrim	Float	8	Y	Recut Trailing Trim
RoundingType	Int	4	Y	See Rounding Types
SawAxisType	Int	4	Y	See Saw Axis Types
SawBladeWidth	Float	8	Y	Saw Blade Width
SawCutPreference	Int	4	Y	See Saw Cut Preferences
SawLinkType	Int	4	Y	See Saw Link Types
SawUnitsType	Int	4	Y	See Machine Saw Units
SheetOrigin	Int	4	Y	See Machine Origin Types
SheetOriginRelative	Bit	1	Y	Sheet Origin Relative
ShowPartIndexNumber	Bit	1	Y	Show Part Index Number
SimpleCPOUT	Bit	1	Y	Simple CPOUT
StackHeight	Float	8	Y	Stack Height
StackQty	Int	4	Y	Stack Qty
UseAlphanumericExtensions	Bit	1	Y	Use Alphanumeric Extensions
YieldStrategyLevel	Int	4	Y	Yield Strategy Level

ScrapOptimizerSettings

Column	Datatype	Size	Nullable	Description
AutoCommitUsage	Bit	1	Y	Auto Commit Usage
Destroy	Bit	1	Y	Destroy
DestroyMaxDim1	Float	8	Y	Destroy Max Dim1
DestroyMaxDim2	Float	8	Y	Destroy Max Dim2
DestroyReduceToolDrops	Bit	1	Y	Destroy Reduce Tool Drops
DestroySequence	Int	4	Y	Destroy Sequence
DestroySheetTrim	Float	8	Y	Destroy Sheet Trim
DestroyTool	NVarChar	255	Y	Destroy Tool
DestroyType	Int	4	Y	See Microvellum Destroy Types
DimAndLogic	Bit	1	Y	Dim and Logic
ID	UniqueIdentifier	16	N	PK - Unique ID Auto Generated
LinkID	NVarChar	255	Y	Microvellum Primary Link Key
LinkIDCategory	NVarChar	255	Y	Microvellum Foreign Link Key
MinArea	Float	8	Y	Min Area
MinDim	Float	8	Y	Min Dim
Modified	Bit	1	Y	True if the item has been modified
Name	NVarChar	255	Y	User supplied Name for the item
OverrideTrims	Bit	1	Y	Override Trims
PromptToCommit	Bit	1	Y	Prompt to Commit
Save	Bit	1	Y	Save
SaveType	Int	4	Y	See Microvellum Scrap Save Types
TrimLeadingLength	Float	8	Y	Trim Leading Length
TrimLeadingWidth	Float	8	Y	Trim Leading Width
TrimTrailingLength	Float	8	Y	Trim Trailing Length
TrimTrailingWidth	Float	8	Y	Trim Trailing Width
Use	Bit	1	Y	Use

ScrapOptimizerSizes

Column	Datatype	Size	Nullable	Description
ID	UniqueIdentifier	16	N	PK - Unique ID Auto Generated
LinkID	NVarChar	255	Y	Microvellum Primary Link Key
LinkIDCategory	NVarChar	255	Y	Microvellum Foreign Link Key
LinkIDParent	NVarChar	255	Y	Microvellum Foreign Link Key
MaxX	Float	8	Y	Max X
MaxY	Float	8	Y	Max Y
MinX	Float	8	Y	Min X
MinY	Float	8	Y	Min Y
Modified	Bit	1	Y	True if the item has been modified
Name	NVarChar	255	Y	User supplied Name for the item
Priority	Int	4	Y	Priority

Sheets

Column	Datatype	Size	Nullable	Description
Code	NVarChar	255	Y	Code
CodeFormula	VarCharMax	-1	Y	Code Formula
Comments	NVarChar	255	Y	User supplied comments for item
Grain	Int	4	Y	See Grain Direction Types
GrainFormula	VarCharMax	-1	Y	Grain Formula
HandlingCode	NVarChar	255	Y	Handling Code
HandlingCodeFormula	VarCharMax	-1	Y	Handling Code Formula
HatchType	Int	4	Y	See Hatch Types
ID	UniqueIdentifier	16	N	PK - Unique ID Auto Generated
Index	Int	4	Y	Index
InventoryAvailableQty	Float	8	Y	Inventory Available Qty
InventoryCurrentQty	Float	8	Y	Inventory Current Qty
InventoryMinQty	Float	8	Y	Inventory Min Qty
IsFormulaMaterial	Bit	1	Y	Is Formula Material
LeadingLengthTrim	Float	8	Y	Leading Length Trim
LeadingLengthTrimFormula	VarCharMax	-1	Y	Leading Length Trim Formula
LeadingWidthTrim	Float	8	Y	Leading Width Trim
LeadingWidthTrimFormula	VarCharMax	-1	Y	Leading Width Trim Formula
Length	Float	8	Y	Length
LengthFormula	VarCharMax	-1	Y	Length Formula
LinkID	NVarChar	255	Y	Microvellum Primary Link Key
LinkIDBottomFaceRendering	NVarChar	255	Y	Microvellum Foreign Link Key
LinkIDCategory	NVarChar	255	Y	Microvellum Foreign Link Key
LinkIDCoreRendering	NVarChar	255	Y	Microvellum Foreign Link Key
LinkIDDefaultVendor	NVarChar	255	Y	Microvellum Foreign Link Key
LinkIDMaterial	NVarChar	255	Y	Microvellum Foreign Link Key
LinkIDMaterialStorageLocation	NVarChar	255	Y	Microvellum Foreign Link Key
LinkIDProcessingStation	NVarChar	255	Y	Microvellum Foreign Link Key
LinkIDSheetSize	NVarChar	255	Y	Microvellum Foreign Link Key
LinkIDStack	NVarChar	255	Y	Microvellum Foreign Link Key
LinkIDSubType	NVarChar	255	Y	Microvellum Foreign Link Key
LinkIDTopFaceRendering	NVarChar	255	Y	Microvellum Foreign Link Key
LinkIDWorkOrder	NVarChar	255	Y	Microvellum Foreign Link Key
LinkIDWorkOrderBatch	NVarChar	255	Y	Microvellum Foreign Link Key
MarkUp	Float	8	Y	Mark Up
MarkUpFormula	VarCharMax	-1	Y	Mark Up Formula
MaterialCommentsFormula	VarCharMax	-1	Y	Material Comments Formula
MaterialCost	Float	8	Y	Material Cost
MaterialCostFormula	VarCharMax	-1	Y	Material Cost Formula
MaterialEstimateCost	Float	8	Y	Material Estimate Cost
MaterialFlipSetting	Int	4	Y	See Material Flip Settings
MaterialLaborValue	Float	8	Y	Material Labor Value
MaterialLaborValueFormula	VarCharMax	-1	Y	Material Labor Value Formula
MaterialXData1	VarCharMax	-1	Y	Material XData1
MaterialXData1Formula	VarCharMax	-1	Y	Material XData1 Formula
MaterialXData2	VarCharMax	-1	Y	Material XData2
MaterialXData2Formula	VarCharMax	-1	Y	Material XData2 Formula
MaterialXData3	VarCharMax	-1	Y	Material XData3
MaterialXData3Formula	VarCharMax	-1	Y	Material XData3 Formula
Modified	Bit	1	Y	True if the item has been modified
Name	NVarChar	255	Y	User supplied Name for the item
NumplacedParts	Int	4	Y	Number of placed Parts
NumStrips	Int	4	Y	Number Strips
OptimizationPriority	Int	4	Y	Optimization Priority
OptimizationPriorityFormula	VarCharMax	-1	Y	Optimization Priority Formula
Pattern	Int	4	Y	Pattern
Picture	VarBinaryMax	-1	Y	Picture
PrintFlag	Bit	1	Y	Print Flag
QtyFormula	VarCharMax	-1	Y	Qty Formula
Quantity	Float	8	Y	Quantity
Region	Int	4	Y	See Material Regions
ScrapType	Int	4	Y	See Scrap Types
SkipSpreadsheetSync	Bit	1	Y	Skip Spreadsheet Sync
SpredsheetColumn	Int	4	Y	Spreadsheet Column
Thickness	Float	8	Y	Thickness
TrailingLengthTrim	Float	8	Y	Trailing Length Trim
TrailingLengthTrimFormula	VarCharMax	-1	Y	Trailing Length Trim Formula
TrailingWidthTrim	Float	8	Y	Trailing Width Trim
TrailingWidthTrimFormula	VarCharMax	-1	Y	Trailing Width Trim Formula
Type	Int	4	Y	See Material Types
UnitType	Int	4	Y	See Material Price Unit Types
WasteFactor	Float	8	Y	Waste Factor
WasteFactorFormula	VarCharMax	-1	Y	Waste Factor Formula
Width	Float	8	Y	Width
WidthFormula	VarCharMax	-1	Y	Width Formula

SheetSets

Column	Datatype	Size	Nullable	Description
ID	UniqueIdentifier	16	N	PK - Unique ID Auto Generated
LinkID	NVarChar	255	Y	Microvellum Primary Link Key
LinkIDCategory	NVarChar	255	Y	Microvellum Foreign Link Key
LinkIDProject	NVarChar	255	Y	Microvellum Foreign Link Key
ModelSpaceFileName	NVarChar	255	Y	Model Space File Name
Modified	Bit	1	Y	True if the item has been modified
Name	NVarChar	255	Y	User supplied Name for the item
PaperSpaceFileName	NVarChar	255	Y	Paper Space File Name

SpecificationGroups

Column	Datatype	Size	Nullable	Description
CategoryLevel	Int	4	Y	Category Level
ID	UniqueIdentifier	16	N	PK - Unique ID Auto Generated
LinkID	NVarChar	255	Y	Microvellum Primary Link Key
LinkIDCategory	NVarChar	255	Y	Microvellum Foreign Link Key
LinkIDCutPartsFileName	NVarChar	255	Y	Microvellum Foreign Link Key
LinkIDDoorWizardFileName	NVarChar	255	Y	Microvellum Foreign Link Key
LinkIDEdgeBandFileName	NVarChar	255	Y	Microvellum Foreign Link Key
LinkIDFactoryFileName	NVarChar	255	Y	Microvellum Foreign Link Key
LinkIDGlobalFileName	NVarChar	255	Y	Microvellum Foreign Link Key
LinkIDHardwareFileName	NVarChar	255	Y	Microvellum Foreign Link Key
LinkIDLibrary	NVarChar	255	Y	Microvellum Foreign Link Key
LinkIDProject	NVarChar	255	Y	Microvellum Foreign Link Key
LinkIDProjectWizardFileName	NVarChar	255	Y	Microvellum Foreign Link Key
Modified	Bit	1	Y	True if the item has been modified
Name	NVarChar	255	Y	User supplied Name for the item
PrintFlag	Bit	1	Y	Print Flag
Type	Int	4	Y	See Product Use Types

Subassemblies

Column	Datatype	Size	Nullable	Description
ActivityPath	NVarChar	255	Y	Activity Path
ActivityPathShort	NVarChar	255	Y	Activity Path Short
Angle	Float	8	Y	Angle
BayPosition	Float	8	Y	Bay Position
Comments	NVarChar	255	Y	User supplied comments for item
Comments1	NVarChar	255	Y	User supplied comments for item
Comments2	NVarChar	255	Y	User supplied comments for item
Comments3	NVarChar	255	Y	User supplied comments for item
ContainsSubassemblies	Bit	1	Y	Contains Subassemblies
Depth	Float	8	Y	Depth
DrawIndex	Int	4	Y	Draw Index
Height	Float	8	Y	Height
ID	UniqueIdentifier	16	N	PK - Unique ID Auto Generated
IsBuyOut	Bit	1	Y	Is Buy Out
JPegName	NVarChar	255	Y	Picture Name
JPegStream	VarBinaryMax	-1	Y	Picture BLOB Item
LinkID	NVarChar	255	Y	Microvellum Primary Link Key
LinkIDCategory	NVarChar	255	Y	Microvellum Foreign Link Key
LinkIDLibrary	NVarChar	255	Y	Microvellum Foreign Link Key
LinkIDParentProduct	NVarChar	255	Y	Microvellum Foreign Link Key
LinkIDParentSubassembly	NVarChar	255	Y	Microvellum Foreign Link Key
LinkIDProject	NVarChar	255	Y	Microvellum Foreign Link Key
LinkIDWorkOrder	NVarChar	255	Y	Microvellum Foreign Link Key
Modified	Bit	1	Y	True if the item has been modified
ModifiedRowID	Int	4	Y	Modified Row ID
Name	NVarChar	255	Y	User supplied Name for the item
PerfectGrainCaption	NVarChar	255	Y	Perfect Grain Caption
Quantity	Int	4	Y	Quantity
ScanCode	NVarChar	255	Y	Scan Code
TiffName	NVarChar	255	Y	Picture Name
TiffStream	VarBinaryMax	-1	Y	Picture BLOB Item
Type	Int	4	Y	See Product Use Types
Width	Float	8	Y	Width
WMFName	NVarChar	255	Y	Picture Name
WMFStream	VarBinaryMax	-1	Y	Picture BLOB Item
WorkBook	VarBinaryMax	-1	Y	Workbook BLOB Item
X	Float	8	Y	X
Y	Float	8	Y	Y
Z	Float	8	Y	Z

ToolFiles

Column	Datatype	Size	Nullable	Description
ID	UniqueIdentifier	16	N	PK - Unique ID Auto Generated
LinkID	NVarChar	255	Y	Microvellum Primary Link Key
LinkIDCategory	NVarChar	255	Y	Microvellum Foreign Link Key
LinkIDFactory	NVarChar	255	Y	Microvellum Foreign Link Key
Modified	Bit	1	Y	True if the item has been modified
Name	NVarChar	255	Y	User supplied Name for the item
WorkBook	VarBinaryMax	-1	Y	Workbook BLOB Item

UserDefinedTokens

Column	Datatype	Size	Nullable	Description
ID	UniqueIdentifier	16	N	PK - Unique ID Auto Generated
LinkID	NVarChar	255	Y	Microvellum Primary Link Key
LinkIDCategory	NVarChar	255	Y	Microvellum Foreign Link Key
Modified	Bit	1	Y	True if the item has been modified
Name	NVarChar	255	Y	User supplied Name for the item
Type	Int	4	Y	See Token Types
UserDefinedByteArray	VarBinaryMax	-1	Y	User Defined Byte Array

Workorders

Column	Datatype	Size	Nullable	Description
Active	Bit	1	Y	Active
ActualCompletionDate	DateTime	8	Y	Actual Completion Date
Comments	NVarChar	255	Y	User supplied comments for item
DateCreated	DateTime	8	Y	Date when the work order was created
Estimate	Bit	1	Y	Estimate
ID	UniqueIdentifier	16	N	PK - Unique ID Auto Generated
LinkID	NVarChar	255	Y	Microvellum Primary Link Key
LinkIDCategory	NVarChar	255	Y	Microvellum Foreign Link Key
Modified	Bit	1	Y	True if the item has been modified
Name	NVarChar	255	Y	User supplied Name for the item
Number	NVarChar	255	Y	Number
ScanCode	NVarChar	255	Y	Scan Code
ScheduledCompletionDate	DateTime	8	Y	Scheduled Completion Date
ScheduledStartDate	DateTime	8	Y	Scheduled Start Date
ShippingTime	Int	4	Y	Shipping Time
Status	Int	4	Y	See Work Order Status Types
WorkOrderNumber	Int	4	Y	Work Order Number

Microvellum Work Order Database Tables

DrillsHorizontal

Column	Datatype	Size	Nullable	Description
ActualToolName	NVarChar	255	Y	Actual Tool Name
BinaryToolValue	Int	4	Y	Binary Tool Value
Diameter	Float	8	Y	Diameter
DiameterOffset	Float	8	Y	Diameter Offset
DrillBitType	Int	4	Y	See Drill Bit Types
EntrySpeed	Float	8	Y	Entry Speed
Face	Int	4	Y	See Panel Faces
Face1Offset	NVarChar	255	Y	Face1 Offset
Face1ToolName	NVarChar	255	Y	Face1 Tool Name
Face2Offset	NVarChar	255	Y	Face2 Offset
Face2ToolName	NVarChar	255	Y	Face2 Tool Name
Face3Offset	NVarChar	255	Y	Face3 Offset
Face3ToolName	NVarChar	255	Y	Face3 Tool Name
Face4Offset	NVarChar	255	Y	Face4 Offset
Face4ToolName	NVarChar	255	Y	Face4 Tool Name
FeedSpeed	Float	8	Y	Feed Speed
HDrillActualToolDiameter	Float	8	Y	H Drill Actual Tool Diameter
HeightOffset	Float	8	Y	Height Offset
ID	UniqueIdentifier	16	N	PK - Unique ID Auto Generated
IsAssociative	Bit	1	Y	Is Associative
LinkID	NVarChar	255	Y	Microvellum Primary Link Key
LinkIDCategory	NVarChar	255	Y	Microvellum Foreign Link Key
LinkIDPart	NVarChar	255	Y	Microvellum Foreign Link Key
LinkIDWorkOrder	NVarChar	255	Y	Microvellum Foreign Link Key
MachineUse	Int	4	Y	See Machine Use Types
MacroString	NVarChar	255	Y	Macro String
MaxX	Float	8	Y	Max X
MaxY	Float	8	Y	Max Y
MinX	Float	8	Y	Min X
MinY	Float	8	Y	Min Y
Modified	Bit	1	Y	True if the item has been modified
Name	NVarChar	255	Y	Name
NoDowel	Bit	1	Y	No Dowel
PeckingNumber	Int	4	Y	Pecking Number
ReferenceFace	Int	4	Y	See Panel Faces
Rotation	Float	8	Y	Rotation
RotationSpeed	Float	8	Y	Rotation Speed
Sequence	Int	4	Y	Sequence
ToolNumber	NVarChar	255	Y	Tool Number
ToolPriorityNumber	Int	4	Y	Tool Priority Number
ToolType	Int	4	Y	See Tool Types
X	Float	8	Y	X
Y	Float	8	Y	Y
Z	Float	8	Y	Z

DrillsVertical

Column	Datatype	Size	Nullable	Description
ActualToolName	NVarChar	255	Y	Actual Tool Name
AggregateIndexX	Int	4	Y	Aggregate Index X
AggregateIndexY	Int	4	Y	Aggregate Index Y
AggregateToolDrillQtyX	Int	4	Y	Aggregate Tool Drill Qty X
AggregateToolDrillQtyY	Int	4	Y	Aggregate Tool Drill Qty Y
AggregateToolSpacingX	Float	8	Y	Aggregate Tool Spacing X
AggregateToolSpacingY	Float	8	Y	Aggregate Tool Spacing Y
AllowAggregateToolOverlap	Bit	1	Y	Allow Aggregate Tool Overlap
BinaryToolValue	Int	4	Y	Binary Tool Value
Diameter	Float	8	Y	Diameter
DiameterOffset	Float	8	Y	Diameter Offset
DrillBitType	Int	4	Y	See Drill Bit Types
EntrySpeed	Float	8	Y	Entry Speed
Face	Int	4	Y	See Panel Faces
FeedSpeed	Float	8	Y	Feed Speed
HeightOffset	Float	8	Y	Height Offset
ID	UniqueIdentifier	16	N	PK - Unique ID Auto Generated
IsAggregateTool	Bit	1	Y	Is Aggregate Tool
IsAssociative	Bit	1	Y	Is Associative
LinkID	NVarChar	255	Y	Microvellum Primary Link Key
LinkIDCategory	NVarChar	255	Y	Microvellum Foreign Link Key
LinkIDParentDrill	NVarChar	255	Y	Microvellum Foreign Link Key
LinkIDPart	NVarChar	255	Y	Microvellum Foreign Link Key
LinkIDWorkOrder	NVarChar	255	Y	Microvellum Foreign Link Key
MachineUse	Int	4	Y	See Machine Use Types
MacroString	NVarChar	255	Y	Macro String
MaximumAggregateRedrills	Int	4	Y	Maximum Aggregate Redrills
MaxX	Float	8	Y	Max X
MaxY	Float	8	Y	Max Y
MinX	Float	8	Y	Min X
MinY	Float	8	Y	Min Y
Modified	Bit	1	Y	True if the item has been modified
Name	NVarChar	255	Y	Name
PeckingNumber	Int	4	Y	Pecking Number
Rotation	Float	8	Y	Rotation
RotationSpeed	Float	8	Y	Rotation Speed
Sequence	Int	4	Y	Sequence
ToolNumber	NVarChar	255	Y	Tool Number
ToolPriorityNumber	Int	4	Y	Tool Priority Number
ToolType	Int	4	Y	See Tool Types
UseRouter	Bit	1	Y	Use Router
VDrillActualToolDiameter	Float	8	Y	V Drill Actual Tool Diameter
X	Float	8	Y	X
XOffset	Float	8	Y	X Offset
Y	Float	8	Y	Y
YOffset	Float	8	Y	Y Offset
Z	Float	8	Y	Z

Edgebanding

Column	Datatype	Size	Nullable	Description
Code	NVarChar	255	Y	Code
CodeFormula	VarCharMax	-1	Y	Code Formula
Comments	NVarChar	255	Y	Comments
CustomSizeAdjustment	Float	8	Y	Custom Size Adjustment
EBTokenFromRoute	Bit	1	Y	EB Token from Route
EBTokenRouteVectors	VarCharMax	-1	Y	EB Token Route Vectors
Face	Int	4	Y	See Panel Faces
Grain	Int	4	Y	See Grain Direction Types
GrainFormula	VarCharMax	-1	Y	Grain Formula
HandlingCode	NVarChar	255	Y	Handling Code
HandlingCodeFormula	VarCharMax	-1	Y	Handling Code Formula
HatchType	Int	4	Y	See Hatch Types
ID	UniqueIdentifier	16	N	PK - Unique ID Auto Generated
InventoryAvailableQty	Float	8	Y	Inventory Available Qty
InventoryCurrentQty	Float	8	Y	Inventory Current Qty
InventoryMinQty	Float	8	Y	Inventory Min Qty
IsFormulaMaterial	Bit	1	Y	Is Formula Material
LinFt	Float	8	Y	Lin Ft
LinkID	NVarChar	255	Y	Microvellum Primary Link Key
LinkIDBottomFaceRendering	NVarChar	255	Y	Microvellum Foreign Link Key
LinkIDCategory	NVarChar	255	Y	Microvellum Foreign Link Key
LinkIDCoreRendering	NVarChar	255	Y	Microvellum Foreign Link Key
LinkIDDefaultVendor	NVarChar	255	Y	Microvellum Foreign Link Key
LinkIDMaterial	NVarChar	255	Y	Microvellum Foreign Link Key
LinkIDPart	NVarChar	255	Y	Microvellum Foreign Link Key
LinkIDProduct	NVarChar	255	Y	Microvellum Foreign Link Key
LinkIDProject	NVarChar	255	Y	Microvellum Foreign Link Key
LinkIDSheetSize	NVarChar	255	Y	Microvellum Foreign Link Key
LinkIDSubAssembly	NVarChar	255	Y	Microvellum Foreign Link Key
LinkIDTopFaceRendering	NVarChar	255	Y	Microvellum Foreign Link Key
LinkIDWorkOrder	NVarChar	255	Y	Microvellum Foreign Link Key
MarkUp	Float	8	Y	Mark Up
MarkUpFormula	VarCharMax	-1	Y	Mark Up Formula
MaterialCommentsFormula	VarCharMax	-1	Y	Material Comments Formula
MaterialFlipSetting	Int	4	Y	Material Flip Setting
MaterialLaborValue	Float	8	Y	Material Labor Value
MaterialLaborValueFormula	VarCharMax	-1	Y	Material Labor Value Formula
MaterialXData1	VarCharMax	-1	Y	Material XData1
MaterialXData1Formula	VarCharMax	-1	Y	Material XData1 Formula
MaterialXData2	VarCharMax	-1	Y	Material XData2
MaterialXData2Formula	VarCharMax	-1	Y	Material XData2 Formula
MaterialXData3	VarCharMax	-1	Y	Material XData3
MaterialXData3Formula	VarCharMax	-1	Y	Material XData3 Formula
Modified	Bit	1	Y	Modified
Name	NVarChar	255	Y	Name of the item
Quantity	Float	8	Y	Quantity
Region	Int	4	Y	See Material Regions
SkipSpreadsheetSync	Bit	1	Y	Skip Spreadsheet Sync
SqFt	Float	8	Y	Sq Ft
Thickness	Float	8	Y	Thickness
Type	Int	4	Y	See Material Types
UnitType	Int	4	Y	See Material Price Unit Types
VendorCost	Float	8	Y	Vendor Cost
WasteFactor	Float	8	Y	Waste Factor
WasteFactorFormula	VarCharMax	-1	Y	Waste Factor Formula

ErrorMessages

Column	Datatype	Size	Nullable	Description
ID	UniqueIdentifier	16	N	PK - Unique ID Auto Generated
LinkID	NVarChar	255	Y	Microvellum Primary Link Key
LinkIDCategory	NVarChar	255	Y	Microvellum Foreign Link Key
LinkIDGCodeResult	NVarChar	255	Y	Microvellum Foreign Link Key
LinkIDProcessingStation	NVarChar	255	Y	Microvellum Foreign Link Key
LinkIDWorkOrder	NVarChar	255	Y	Microvellum Foreign Link Key
LinkIDWorkOrderBatch	NVarChar	255	Y	Microvellum Foreign Link Key
Modified	Bit	1	Y	True if the item has been modified
Name	NVarChar	255	Y	Name
Title	NVarChar	255	Y	Title
Type	Int	4	Y	See Error Message Types

FaceFrameImages

Column	Datatype	Size	Nullable	Description
ID	UniqueIdentifier	16	N	PK - Unique ID Auto Generated
JPegName	NVarChar	255	Y	Picture Name
JPegStream	VarBinaryMax	-1	Y	Picture BLOB Item
LinkID	NVarChar	255	Y	Microvellum Primary Link Key
LinkIDCategory	NVarChar	255	Y	Microvellum Foreign Link Key
LinkIDProduct	NVarChar	255	Y	Microvellum Foreign Link Key
LinkIDWorkOrder	NVarChar	255	Y	Microvellum Foreign Link Key
Modified	Bit	1	Y	True if the item has been modified
Name	NVarChar	255	Y	Name of the item
TiffName	NVarChar	255	Y	Picture Name
TiffStream	VarBinaryMax	-1	Y	Picture BLOB Item
Type	Int	4	Y	See Face Frame Types
WMFName	NVarChar	255	Y	Picture Name
WMFStream	VarBinaryMax	-1	Y	Picture BLOB Item

FaceFrameImagesParts

Column	Datatype	Size	Nullable	Description
ID	UniqueIdentifier	16	N	PK - Unique ID Auto Generated
LinkIDCategory	NVarChar	255	Y	Microvellum Foreign Link Key
LinkIDFaceFrameImage	NVarChar	255	Y	Microvellum Foreign Link Key
LinkIDPart	NVarChar	255	Y	Microvellum Foreign Link Key
LinkIDWorkOrder	NVarChar	255	Y	Microvellum Foreign Link Key
Modified	Bit	1	Y	True if the item has been modified

FaceFrameImagesSubassemblies

Column	Datatype	Size	Nullable	Description
ID	UniqueIdentifier	16	N	PK - Unique ID Auto Generated
LinkIDCategory	NVarChar	255	Y	Microvellum Foreign Link Key
LinkIDFaceFrameImage	NVarChar	255	Y	Microvellum Foreign Link Key
LinkIDSubassembly	NVarChar	255	Y	Microvellum Foreign Link Key
LinkIDWorkOrder	NVarChar	255	Y	Microvellum Foreign Link Key
Modified	Bit	1	Y	True if the item has been modified

Hardware

Column	Datatype	Size	Nullable	Description
BasePoint	Int	4	Y	Base Point
BasePointX	Float	8	Y	Base Point X
BasePointY	Float	8	Y	Base Point Y
BasePointZ	Float	8	Y	Base Point Z
Code	NVarChar	255	Y	Code
CodeFormula	VarCharMax	-1	Y	Code Formula
Comments	VarCharMax	-1	Y	Comments
Comments1	VarCharMax	-1	Y	Comments1
Comments2	VarCharMax	-1	Y	Comments2
Comments3	VarCharMax	-1	Y	Comments3
Depth	Float	8	Y	Depth
Grain	Int	4	Y	See Grain Direction Types
GrainFormula	VarCharMax	-1	Y	Grain Formula
HandlingCode	NVarChar	255	Y	Handling Code
HandlingCodeFormula	VarCharMax	-1	Y	Handling Code Formula
HatchType	Int	4	Y	See Hatch Types
Height	Float	8	Y	Height
ID	UniqueIdentifier	16	N	PK - Unique ID Auto Generated
Index	Int	4	Y	Index
InventoryAvailableQty	Float	8	Y	Inventory Available Qty
InventoryCurrentQty	Float	8	Y	Inventory Current Qty
InventoryMinQty	Float	8	Y	Inventory Min Qty
IsFormulaMaterial	Bit	1	Y	Is Formula Material
LinkID	NVarChar	255	Y	Microvellum Primary Link Key
LinkIDBottomFaceRendering	NVarChar	255	Y	Microvellum Foreign Link Key
LinkIDCategory	NVarChar	255	Y	Microvellum Foreign Link Key
LinkIDCoreRendering	NVarChar	255	Y	Microvellum Foreign Link Key
LinkIDDefaultVendor	NVarChar	255	Y	Microvellum Foreign Link Key
LinkIDEQPart	NVarChar	255	Y	Microvellum Foreign Link Key
LinkIDMaterial	NVarChar	255	Y	Microvellum Foreign Link Key
LinkIDParentSubAssembly	NVarChar	255	Y	Microvellum Foreign Link Key
LinkIDProcessingStations	VarCharMax	-1	Y	Microvellum Foreign Link Key
LinkIDProduct	NVarChar	255	Y	Microvellum Foreign Link Key
LinkIDProject	NVarChar	255	Y	Microvellum Foreign Link Key
LinkIDSheetSize	NVarChar	255	Y	Microvellum Foreign Link Key
LinkIDSubAssembly	NVarChar	255	Y	Microvellum Foreign Link Key
LinkIDTopFaceRendering	NVarChar	255	Y	Microvellum Foreign Link Key
LinkIDVendor	NVarChar	255	Y	Microvellum Foreign Link Key
LinkIDWorkOrder	NVarChar	255	Y	Microvellum Foreign Link Key
MarkUp	Float	8	Y	Mark Up
MarkUpFormula	VarCharMax	-1	Y	Mark Up Formula
MaterialCommentsFormula	VarCharMax	-1	Y	Material Comments Formula
MaterialFlipSetting	Int	4	Y	Material Flip Setting
MaterialLaborValue	Float	8	Y	Material Labor Value
MaterialLaborValueFormula	VarCharMax	-1	Y	Material Labor Value Formula
MaterialXData1	VarCharMax	-1	Y	Material XData1
MaterialXData1Formula	VarCharMax	-1	Y	Material XData1 Formula
MaterialXData2	VarCharMax	-1	Y	Material XData2
MaterialXData2Formula	VarCharMax	-1	Y	Material XData2 Formula
MaterialXData3	VarCharMax	-1	Y	Material XData3
MaterialXData3Formula	VarCharMax	-1	Y	Material XData3 Formula
Modified	Bit	1	Y	True if the item has been modified
Name	NVarChar	255	Y	Name of the item
PartType	Int	4	Y	See Part Types
Quantity	Float	8	Y	Quantity
Region	Int	4	Y	See Material Regions
RotationX	Float	8	Y	Rotation X
RotationY	Float	8	Y	Rotation Y
RotationZ	Float	8	Y	Rotation Z
ScanCode	NVarChar	255	Y	Scan Code
SkipSpreadsheetSync	Bit	1	Y	Skip Spreadsheet Sync
Thickness	Float	8	Y	Thickness
TotalQuantity	Float	8	Y	Total Quantity
Type	Int	4	Y	See Material Types
UnitType	Int	4	Y	See Material Price Unit Types
VendorCost	Float	8	Y	Vendor Cost
WasteFactor	Float	8	Y	Waste Factor
WasteFactorFormula	VarCharMax	-1	Y	Waste Factor Formula
Width	Float	8	Y	Width

HardwareProcessingStations

Column	Datatype	Size	Nullable	Description
ID	UniqueIdentifier	16	N	PK - Unique ID Auto Generated
LinkID	NVarChar	255	Y	Microvellum Primary Link Key
LinkIDBatch	NVarChar	255	Y	Microvellum Foreign Link Key
LinkIDCategory	NVarChar	255	Y	Microvellum Foreign Link Key
LinkIDHardware	NVarChar	255	Y	Microvellum Foreign Link Key
LinkIDProcessingStation	NVarChar	255	Y	Microvellum Foreign Link Key
LinkIDWorkOrder	NVarChar	255	Y	Microvellum Foreign Link Key
Modified	Bit	1	Y	True if the item has been modified
Name	NVarChar	255	Y	Name of the item

MicrovellumSystem

Column	Datatype	Size	Nullable	Description
ApplicationVersion	NVarChar	255	Y	Application Version
BundleSeed	Int	4	Y	Bundle Seed
DefaultMaterialFlipValue	Int	4	Y	Default Material Flip Value
ID	UniqueIdentifier	16	N	PK - Unique ID Auto Generated
LinkID	NVarChar	255	Y	Microvellum Primary Link Key
Modified	Bit	1	Y	True if the item has been modified
Name	NVarChar	255	Y	Name
ServerQueueLocation	NVarChar	255	Y	Server Queue Location
StorageGroupSeed	Int	4	Y	Storage Group Seed

OptimizationResultAssociates

Column	Datatype	Size	Nullable	Description
ID	UniqueIdentifier	16	N	PK - Unique ID Auto Generated
Index	Int	4	Y	Index
LinkIDChild	NVarChar	255	Y	Microvellum Foreign Link Key
LinkIDParent	NVarChar	255	Y	Microvellum Foreign Link Key
LinkIDWorkOrder	NVarChar	255	Y	Microvellum Foreign Link Key

OptimizationResults

Column	Datatype	Size	Nullable	Description
AlreadyPrinted	Bit	1	Y	Already Printed
BorderCoordinatesString	VarCharMax	-1	Y	Border Coordinates String
EBBottomRotated	NVarChar	255	Y	EB Bottom Rotated
EBLeftRotated	NVarChar	255	Y	EB Left Rotated
EBRightRotated	NVarChar	255	Y	EB Right Rotated
EBTopRotated	NVarChar	255	Y	EB Top Rotated
EdgeBoreBottomRotated	NVarChar	255	Y	Edge Bore Bottom Rotated
EdgeBoreLeftRotated	NVarChar	255	Y	Edge Bore Left Rotated
EdgeBoreRightRotated	NVarChar	255	Y	Edge Bore Right Rotated
EdgeBoreTopRotated	NVarChar	255	Y	Edge Bore Top Rotated
Face5Barcode	NVarChar	255	Y	Face5 Barcode
Face5FileName	NVarChar	255	Y	Face5 File Name
Face6Barcode	NVarChar	255	Y	Face6 Barcode
Face6FileName	NVarChar	255	Y	Face6 File Name
FullFace6FileName	NVarChar	255	Y	Full Face6 File Name
FullFileName	NVarChar	255	Y	Full File Name
ID	UniqueIdentifier	16	N	PK - Unique ID Auto Generated
Index	Int	4	Y	Index
IsScrap	Bit	1	Y	Is Scrap
JPegStream	VarBinaryMax	-1	Y	Jpeg Stream
LabelImageName	NVarChar	255	Y	Label Image Name
LabelRotation	Float	8	Y	Label Rotation
LabelX	Float	8	Y	Label X
LabelY	Float	8	Y	Label Y
Length	Float	8	Y	Length
LinkID	NVarChar	255	Y	Microvellum Primary Link Key
LinkIDChildSheet	NVarChar	255	Y	Microvellum Foreign Link Key
LinkIDMaterial	NVarChar	255	Y	Microvellum Foreign Link Key
LinkIDPart	NVarChar	255	Y	Microvellum Foreign Link Key
LinkidProcessingStation	NVarChar	255	Y	Microvellum Foreign Link Key
LinkIDSheet	NVarChar	255	Y	Microvellum Foreign Link Key
LinkIDSheetSize	NVarChar	255	Y	Microvellum Foreign Link Key
LinkIDStack	NVarChar	255	Y	Microvellum Foreign Link Key
LinkIDStrip	NVarChar	255	Y	Microvellum Foreign Link Key
LinkIDWorkOrder	NVarChar	255	Y	Microvellum Foreign Link Key
LinkIDWorkOrderBatch	NVarChar	255	Y	Microvellum Foreign Link Key
MachinePoint	Int	4	Y	See Part Machine Points
Name	NVarChar	255	Y	Name
OptimizedQuantity	Int	4	Y	Optimized Quantity
OptimizerFlipped	Bit	1	Y	Optimizer Flipped
OptimizerRotated	Bit	1	Y	Optimizer Rotated
OptimizerRotationAngle	Float	8	Y	Optimizer Rotation Angle
PartQtyIndex	Int	4	Y	Part Qty Index
PrintFlag	Bit	1	Y	Print Flag
PrintFlags	NVarChar	255	Y	Print Flags
ScrapName	NVarChar	255	Y	Scrap Name
ScrapType	Int	4	Y	See Scrap Types
TiffStream	VarBinaryMax	-1	Y	Picture BLOB Item
Type	Int	4	Y	See Sheet Optimizer Types
Width	Float	8	Y	Width
WMFName	NVarChar	255	Y	WMF Name
WMFNameFace6	NVarChar	255	Y	WMF Name Face6
WMFStream	VarBinaryMax	-1	Y	WMF Stream
WMFStreamDimensioned	VarBinaryMax	-1	Y	WMF Stream Dimensioned
WMFStreamFace6	VarBinaryMax	-1	Y	WMF Stream Face6
WMFStreamFace6Dimensioned	VarBinaryMax	-1	Y	WMF Stream Face6 Dimensioned
XCoord	Float	8	Y	X Coord
YCoord	Float	8	Y	Y Coord

Parts

Column	Datatype	Size	Nullable	Description
AdjustedCutPartLength	Float	8	Y	Adjusted Cut Part Length
AdjustedCutPartWidth	Float	8	Y	Adjusted Cut Part Width
Barcode	NVarChar	255	Y	Barcode
BasePoint	Int	4	Y	Base Point
BasePointX	Float	8	Y	Base Point X
BasePointY	Float	8	Y	Base Point Y
BasePointZ	Float	8	Y	Base Point Z
Code	NVarChar	255	Y	Code
CodeFormula	VarCharMax	-1	Y	Code Formula
Comments	VarCharMax	-1	Y	Comments
Comments1	VarCharMax	-1	Y	Comments1
Comments2	VarCharMax	-1	Y	Comments2
Comments3	VarCharMax	-1	Y	Comments3
CutPartLength	Float	8	Y	Cut Part Length
CutPartWidth	Float	8	Y	Cut Part Width
DontIncludeRoutesinNestBorder	Bit	1	Y	Don’t Include Routes in Nest Border
DrawToken2DElv	NVarChar	255	Y	Draw Token 2D Elv
DrawToken3D	NVarChar	255	Y	Draw Token 3D
DXFFileName	NVarChar	255	Y	DXF File Name
EdgeNameBottom	NVarChar	255	Y	Edge Name Bottom
EdgeNameBottomWMF	NVarChar	255	Y	Edge Name Bottom WMF
EdgeNameLeft	NVarChar	255	Y	Edge Name Left
EdgeNameLeftWMF	NVarChar	255	Y	Edge Name Left WMF
EdgeNameRight	NVarChar	255	Y	Edge Name Right
EdgeNameRightWMF	NVarChar	255	Y	Edge Name Right WMF
EdgeNameTop	NVarChar	255	Y	Edge Name Top
EdgeNameTopWMF	NVarChar	255	Y	Edge Name Top WMF
EdgeSequence	NVarChar	255	Y	Edge Sequence
Face6Barcode	NVarChar	255	Y	Face6 Barcode
Face6FileName	NVarChar	255	Y	Face6 Filename
Filename	NVarChar	255	Y	File Name
FinishPriority	NVarChar	255	Y	Finish Priority
FullFace6FileName	NVarChar	255	Y	Full Face6 File Name
FullFileName	NVarChar	255	Y	Full Filename
Grain	Int	4	Y	See Grain Direction Types
GrainFormula	VarCharMax	-1	Y	Grain Formula
HandlingCode	NVarChar	255	Y	Handling Code
HandlingCodeFormula	VarCharMax	-1	Y	Handling Code Formula
HatchType	Int	4	Y	See Hatch Types
HboreBarcodeLeft	NVarChar	255	Y	Hbore Barcode Left
HboreBarcodeLower	NVarChar	255	Y	Hbore Barcode Lower
HboreBarcodeRight	NVarChar	255	Y	Hbore Barcode Right
HboreBarcodeUpper	NVarChar	255	Y	Hbore Barcode Upper
HboreFileNameLeft	NVarChar	255	Y	Hbore File Name Left
HboreFileNameLower	NVarChar	255	Y	Hbore File Name Lower
HboreFileNameRight	NVarChar	255	Y	Hbore File Name Right
HboreFileNameUpper	NVarChar	255	Y	Hbore File Name Upper
ID	UniqueIdentifier	16	N	PK - Unique ID Auto Generated
Index	Int	4	Y	Index
InventoryAvailableQty	Float	8	Y	Inventory Available Qty
InventoryCurrentQty	Float	8	Y	Inventory Current Qty
InventoryMinQty	Float	8	Y	Inventory Min Qty
IrregularShape	NVarChar	255	Y	Irregular Shape
IsFormulaMaterial	Bit	1	Y	Is Formula Material
JPegStream	VarBinaryMax	-1	Y	Jpeg BLOB Stream
LabelPosition	NVarChar	255	Y	Label Position
Length	Float	8	Y	Length
LinkID	NVarChar	255	Y	Microvellum Primary Link Key
LinkIDBottomFaceRendering	NVarChar	255	Y	Microvellum Foreign Link Key
LinkIDCategory	NVarChar	255	Y	Microvellum Foreign Link Key
LinkIDCoreRendering	NVarChar	255	Y	Microvellum Foreign Link Key
LinkIDDefaultVendor	NVarChar	255	Y	Microvellum Foreign Link Key
LinkIDEQPart	NVarChar	255	Y	Microvellum Foreign Link Key
LinkIDMaterial	NVarChar	255	Y	Microvellum Foreign Link Key
LinkIDParentSubAssembly	NVarChar	255	Y	Microvellum Foreign Link Key
LinkIDProcessingStations	VarCharMax	-1	Y	Microvellum Foreign Link Key
LinkIDProduct	NVarChar	255	Y	Microvellum Foreign Link Key
LinkIDProject	NVarChar	255	Y	Microvellum Foreign Link Key
LinkIDSheetSize	NVarChar	255	Y	Microvellum Foreign Link Key
LinkIDSubAssembly	NVarChar	255	Y	Microvellum Foreign Link Key
LinkIDTopFaceRendering	NVarChar	255	Y	Microvellum Foreign Link Key
LinkIDVendor	NVarChar	255	Y	Microvellum Foreign Link Key
LinkIDWorkOrder	NVarChar	255	Y	Microvellum Foreign Link Key
Location1	NVarChar	255	Y	Location1
Location2	NVarChar	255	Y	Location2
MachinePoint	NVarChar	255	Y	Machine Point
MarkUp	Float	8	Y	Mark Up
MarkUpFormula	VarCharMax	-1	Y	Mark Up Formula
MaterialCode	NVarChar	255	Y	Material Code
MaterialComments	NVarChar	255	Y	Material Comments
MaterialCommentsFormula	VarCharMax	-1	Y	Material Comments Formula
MaterialFlipSetting	Int	4	Y	See Material Flip Settings
MaterialLaborValue	Float	8	Y	Material Labor Value
MaterialLaborValueFormula	VarCharMax	-1	Y	Material Labor Value Formula
MaterialName	NVarChar	255	Y	Material Name
MaterialThickness	Float	8	Y	Material Thickness
MaterialType	Int	4	Y	See Material Types
MaterialXData1	VarCharMax	-1	Y	Material XData1
MaterialXData1Formula	VarCharMax	-1	Y	Material XData1 Formula
MaterialXData2	VarCharMax	-1	Y	Material XData2
MaterialXData2Formula	VarCharMax	-1	Y	Material XData2 Formula
MaterialXData3	VarCharMax	-1	Y	Material XData3
MaterialXData3Formula	VarCharMax	-1	Y	Material XData3 Formula
Modified	Bit	1	Y	True if the item has been modified
Name	NVarChar	255	Y	Name of the item
OverProductionQuantity	NVarChar	255	Y	Over Production Quantity
OverridePartCutLength	Float	8	Y	Override Part Cut Length
OverridePartCutThickness	Float	8	Y	Override Part Cut Thickness
OverridePartCutWidth	Float	8	Y	Override Part Cut Width
Par1	NVarChar	255	Y	Par1
Par2	NVarChar	255	Y	Par2
Par3	NVarChar	255	Y	Par3
PartType	Int	4	Y	See Part Types
PerfectGrainCaption	NVarChar	255	Y	Perfect Grain Caption
PrintFlag	Bit	1	Y	Print Flag
Quantity	Float	8	Y	Quantity
Region	Int	4	Y	See Material Regions
RotationX	Float	8	Y	Rotation X
RotationY	Float	8	Y	Rotation Y
RotationZ	Float	8	Y	Rotation Z
Row_ID	Int	4	Y	Row ID
RunFieldNameFace5	NVarChar	255	Y	Run Field Name Face5
RunFieldNameFace6	NVarChar	255	Y	Run Field Name Face6
ScanCode	NVarChar	255	Y	Scan Code
SkipSpreadsheetSync	Bit	1	Y	Skip Spreadsheet Sync
Thickness	Float	8	Y	Thickness
TiffStream	VarBinaryMax	-1	Y	Tiff Stream
TotalQuantity	Float	8	Y	Total Quantity
Type	Int	4	Y	See Material Types
UDID	NVarChar	255	Y	UDID
UnderProductionQuantity	NVarChar	255	Y	Under Production Quantity
UnitType	Int	4	Y	See Material Price Unit Types
VendorCost	Float	8	Y	Vendor Cost
WasteFactor	Float	8	Y	Waste Factor
WasteFactorFormula	VarCharMax	-1	Y	Waste Factor Formula
Width	Float	8	Y	Width
WMFName	NVarChar	255	Y	WMF Name
WMFNameFace6	NVarChar	255	Y	WMF Name Face6
WMFStream	VarBinaryMax	-1	Y	WMF Stream
WMFStreamDimensioned	VarBinaryMax	-1	Y	WMF Stream Dimensioned
WMFStreamFace6	VarBinaryMax	-1	Y	WMF Stream Face6
WMFStreamFace6Dimensioned	VarBinaryMax	-1	Y	WMF Stream Face6 Dimensioned
XD01	NVarChar	255	Y	XD01
XD02	NVarChar	255	Y	XD02
XD03	NVarChar	255	Y	XD03
XD04	NVarChar	255	Y	XD04
XD05	NVarChar	255	Y	XD05
XD06	NVarChar	255	Y	XD06
XD07	NVarChar	255	Y	XD07
XD08	NVarChar	255	Y	XD08
XD09	NVarChar	255	Y	XD09
XD10	NVarChar	255	Y	XD10
XD11	NVarChar	255	Y	XD11
XD12	NVarChar	255	Y	XD12
XD13	NVarChar	255	Y	XD13
XD14	NVarChar	255	Y	XD14
XD15	NVarChar	255	Y	XD15
XD16	NVarChar	255	Y	XD16
XD17	NVarChar	255	Y	XD17
XD18	NVarChar	255	Y	XD18

PartsProcessingStations

Column	Datatype	Size	Nullable	Description
ID	UniqueIdentifier	16	N	PK - Unique ID Auto Generated
LinkIDPart	NVarChar	255	Y	Microvellum Foreign Link Key
LinkIDProcessingStation	NVarChar	255	Y	Microvellum Foreign Link Key
LinkIDWorkOrder	NVarChar	255	Y	Microvellum Foreign Link Key

PlacedSheets

Column	Datatype	Size	Nullable	Description
BarCode	NVarChar	255	Y	Bar Code
Code	NVarChar	255	Y	Code
CodeFormula	VarCharMax	-1	Y	Code Formula
Comments	NVarChar	255	Y	Comments
CPOUTName	NVarChar	255	Y	CPOUT Name
CPOUTNumber	Int	4	Y	CPOUT Number
Face6BarCode	NVarChar	255	Y	Face6 Bar Code
Face6FileName	NVarChar	255	Y	Face6 File Name
Filename	NVarChar	255	Y	File Name
FullFace6FileName	NVarChar	255	Y	Full Face6 File Name
FullFileName	NVarChar	255	Y	Full File Name
Grain	Int	4	Y	See Grain Direction Types
GrainFormula	VarCharMax	-1	Y	Grain Formula
HandlingCode	NVarChar	255	Y	Handling Code
HandlingCodeFormula	VarCharMax	-1	Y	Handling Code Formula
HatchType	Int	4	Y	See Hatch Types
ID	UniqueIdentifier	16	N	PK - Unique ID Auto Generated
Index	Int	4	Y	Index
InventoryAvailableQty	Float	8	Y	Inventory Available Qty
InventoryCurrentQty	Float	8	Y	Inventory Current Qty
InventoryMinQty	Float	8	Y	Inventory Min Qty
IsFormulaMaterial	Bit	1	Y	Is Formula Material
IsGrainContainer	Bit	1	Y	Is Grain Container
JPegStream	VarBinaryMax	-1	Y	Jpeg Stream
LeadingLengthTrim	Float	8	Y	Leading Length Trim
LeadingLengthTrimFormula	VarCharMax	-1	Y	Leading Length Trim Formula
LeadingWidthTrim	Float	8	Y	Leading Width Trim
LeadingWidthTrimFormula	VarCharMax	-1	Y	Leading Width Trim Formula
Length	Float	8	Y	Length
LengthFormula	VarCharMax	-1	Y	Length Formula
LinkID	NVarChar	255	Y	Microvellum Primary Link Key
LinkIDBottomFaceRendering	NVarChar	255	Y	Microvellum Foreign Link Key
LinkIDCategory	NVarChar	255	Y	Microvellum Foreign Link Key
LinkIDCoreRendering	NVarChar	255	Y	Microvellum Foreign Link Key
LinkIDDefaultVendor	NVarChar	255	Y	Microvellum Foreign Link Key
LinkIDMaterial	NVarChar	255	Y	Microvellum Foreign Link Key
LinkIDMaterialStorageLocation	NVarChar	255	Y	Microvellum Foreign Link Key
LinkIDProcessingStation	NVarChar	255	Y	Microvellum Foreign Link Key
LinkIDSheetSize	NVarChar	255	Y	Microvellum Foreign Link Key
LinkIDStack	NVarChar	255	Y	Microvellum Foreign Link Key
LinkIDSubType	NVarChar	255	Y	Microvellum Foreign Link Key
LinkIDTopFaceRendering	NVarChar	255	Y	Microvellum Foreign Link Key
LinkIDWorkOrder	NVarChar	255	Y	Microvellum Foreign Link Key
LinkIDWorkOrderBatch	NVarChar	255	Y	Microvellum Foreign Link Key
MarkUp	Float	8	Y	Mark Up
MarkUpFormula	VarCharMax	-1	Y	Mark Up Formula
MaterialCommentsFormula	VarCharMax	-1	Y	Material Comments Formula
MaterialCost	Float	8	Y	Material Cost
MaterialCostFormula	VarCharMax	-1	Y	Material Cost Formula
MaterialFlipSetting	Int	4	Y	See Material Flip Settings
MaterialLaborValue	Float	8	Y	Material Labor Value
MaterialLaborValueFormula	VarCharMax	-1	Y	Material Labor Value Formula
MaterialXData1	VarCharMax	-1	Y	Material XData1
MaterialXData1Formula	VarCharMax	-1	Y	Material XData1 Formula
MaterialXData2	VarCharMax	-1	Y	Material XData2
MaterialXData2Formula	VarCharMax	-1	Y	Material XData2 Formula
MaterialXData3	VarCharMax	-1	Y	Material XData3
MaterialXData3Formula	VarCharMax	-1	Y	Material XData3 Formula
Modified	Bit	1	Y	True if the item has been modified
Name	NVarChar	255	Y	Name of the item
OptimizationPriority	Int	4	Y	Optimization Priority
OptimizationPriorityFormula	VarCharMax	-1	Y	Optimization Priority Formula
OptimizationType	Int	4	Y	See Sheet Optimizer Types
QtyFormula	VarCharMax	-1	Y	Qty Formula
Quantity	Float	8	Y	Quantity
Region	Int	4	Y	See Material Regions
SawFileName	NVarChar	255	Y	Saw File Name
Scrap	NVarChar	255	Y	Scrap
ScrapType	Int	4	Y	See Scrap Types
SkipSpreadsheetSync	Bit	1	Y	Skip Spreadsheet Sync
SpredsheetColumn	Int	4	Y	Spreadsheet Column
Thickness	Float	8	Y	Thickness
TiffStream	VarBinaryMax	-1	Y	Tiff Stream
TrailingLengthTrim	Float	8	Y	Trailing Length Trim
TrailingLengthTrimFormula	VarCharMax	-1	Y	Trailing Length Trim Formula
TrailingWidthTrim	Float	8	Y	Trailing Width Trim
TrailingWidthTrimFormula	VarCharMax	-1	Y	Trailing Width Trim Formula
Type	Int	4	Y	See Material Types
UnitType	Int	4	Y	See Material Price Unit Types
WasteFactor	Float	8	Y	Waste Factor
WasteFactorFormula	VarCharMax	-1	Y	Waste Factor Formula
Width	Float	8	Y	Width
WidthFormula	VarCharMax	-1	Y	Width Formula
WMFStream	VarBinaryMax	-1	Y	WMF Stream
WMFStreamFace6	VarBinaryMax	-1	Y	WMF Stream Face6
Yield	Float	8	Y	Yield

Products

Column	Datatype	Size	Nullable	Description
ActivityPath	NVarChar	255	Y	Activity Path
ActivityPathShort	NVarChar	255	Y	Activity Path Short
AncorType	Int	4	Y	See End Types
Angle	Float	8	Y	Angle
Comments	NVarChar	255	Y	Comments
Comments1	NVarChar	255	Y	Comments1
Comments2	NVarChar	255	Y	Comments2
Comments3	NVarChar	255	Y	Comments3
CopiedLinkIDList	NVarChar	255	Y	Copied LinkID List
DateShipped	DateTime	8	Y	Date Shipped
Depth	Float	8	Y	Depth
DrawIndex	Int	4	Y	Draw Index
Extruded	Bit	1	Y	Extruded
Height	Float	8	Y	Height
ID	UniqueIdentifier	16	N	PK - Unique ID Auto Generated
IsBuyOut	Bit	1	Y	Is Buy Out
ItemNumber	NVarChar	255	Y	Item Number
JPegName	NVarChar	255	Y	Jpeg Name
JPegStream	VarBinaryMax	-1	Y	Jpeg Stream
LinkID	NVarChar	255	Y	Microvellum Primary Link Key
LinkIDCategory	NVarChar	255	Y	Microvellum Foreign Link Key
LinkIDLibrary	NVarChar	255	Y	Microvellum Foreign Link Key
LinkIDLocation	NVarChar	255	Y	Microvellum Foreign Link Key
LinkIDProductGroup	NVarChar	255	Y	Microvellum Foreign Link Key
LinkIDProject	NVarChar	255	Y	Microvellum Foreign Link Key
LinkIDRelease	NVarChar	255	Y	Microvellum Foreign Link Key
LinkIDSpecificationGroup	NVarChar	255	Y	Microvellum Foreign Link Key
LinkIDWall	NVarChar	255	Y	Microvellum Foreign Link Key
LinkIDWorkOrder	NVarChar	255	Y	Microvellum Foreign Link Key
Modified	Bit	1	Y	True if the item has been modified
Name	NVarChar	255	Y	Name of the item
PerfectGrainChar	NVarChar	255	Y	Perfect Grain Character
PrintFlag	Bit	1	Y	Print Flag
PrintFlags	NVarChar	255	Y	Print Flags
ProductSpecGroupName	NVarChar	255	Y	Product Specification Group Name
Quantity	Int	4	Y	Quantity
QuantityShipped	Int	4	Y	Quantity Shipped
QuoteName	NVarChar	255	Y	Quote Name
RoomComponentType	Int	4	Y	See Kitchen Object Types
RoomName	NVarChar	255	Y	Room Name
Row_ID	Int	4	Y	Row ID
ScanCode	NVarChar	255	Y	Scan Code
ShippingTicketName	NVarChar	255	Y	Shipping Ticket Name
TiffName	NVarChar	255	Y	Picture Name
TiffStream	VarBinaryMax	-1	Y	Picture BLOB Item
Type	Int	4	Y	See Product Use Types
UITreeFilter	Int	4	Y	UI Tree Filter
Width	Float	8	Y	Width
WMFName	NVarChar	255	Y	Picture Name
WMFStream	VarBinaryMax	-1	Y	Picture BLOB Item
WorkBook	VarBinaryMax	-1	Y	Workbook
WorkOrderName	NVarChar	255	Y	Work Order Name
X	Float	8	Y	X
Y	Float	8	Y	Y
Z	Float	8	Y	Z

ProductsPrompts

Column	Datatype	Size	Nullable	Description
ID	UniqueIdentifier	16	N	PK - Unique ID Auto Generated
LinkIDProduct	NVarChar	255	Y	Microvellum Foreign Link Key
LinkIDPrompt	NVarChar	255	Y	Microvellum Foreign Link Key
LinkIDSubassembly	NVarChar	255	Y	Microvellum Foreign Link Key
LinkIDWorkOrder	NVarChar	255	Y	Microvellum Foreign Link Key

Prompts

Column	Datatype	Size	Nullable	Description
ControlType	Int	4	Y	See Control Types
HideOnReports	Bit	1	Y	Hide On Reports
ID	UniqueIdentifier	16	N	PK - Unique ID Auto Generated
IsQuantity	Bit	1	Y	Is Quantity
LinkID	NVarChar	255	Y	Microvellum Primary Link Key
LinkIDCategory	NVarChar	255	Y	Microvellum Foreign Link Key
LinkIDProduct	NVarChar	255	Y	Microvellum Foreign Link Key
LinkIDSubassembly	NVarChar	255	Y	Microvellum Foreign Link Key
LinkIDWorkOrder	NVarChar	255	Y	Microvellum Foreign Link Key
Modified	Bit	1	Y	True if the item has been modified
Name	NVarChar	255	Y	Name of the item
Type	Int	4	Y	See Prompt Types
Value	NVarCharMax	-1	Y	Value

Routes

Column	Datatype	Size	Nullable	Description
ActualToolName	NVarChar	255	Y	Actual Tool Name
Aggregate	Bit	1	Y	Aggregate
AngleDepth	Float	8	Y	Angle Depth
BinaryToolValue	Int	4	Y	Binary Tool Value
CenterX	Float	8	Y	Center X
CenterY	Float	8	Y	Center Y
Diameter	Float	8	Y	Diameter
DiameterOffset	Float	8	Y	Diameter Offset
DontDrawLead	Bit	1	Y	Don’t Draw Lead
DontDrawLeadOut	Bit	1	Y	Don’t Draw Lead Out
DoublePass	Bit	1	Y	Double Pass
EndOffsetX	Float	8	Y	End Offset X
EndOffsetY	Float	8	Y	End Offset Y
EntrySpeed	Float	8	Y	Entry Speed
Face	Int	4	Y	See Panel Faces
FeedSpeed	Float	8	Y	Feed Speed
FirstVector	Int	4	Y	First Vector
HardwareZ	Float	8	Y	Hardware Z
HeightOffset	Float	8	Y	Height Offset
ID	UniqueIdentifier	16	N	PK - Unique ID Auto Generated
IncludeInBorderSkip	Bit	1	Y	Include In Border Skip
IntersX	Float	8	Y	Inters X
IntersY	Float	8	Y	Inters Y
IsAssociative	Bit	1	Y	Is Associative
IsLastPass	Bit	1	Y	Is Last Pass
IsMultiRoute	Bit	1	Y	Is Multi Route
IsPocketRouter	Bit	1	Y	Is Pocket Router
IsRegion	Bit	1	Y	Is Region
IsSteppedRoute	Bit	1	Y	Is Stepped Route
LastVector	Int	4	Y	Last Vector
LayerDepth	Float	8	Y	Layer Depth
LayerOffset	Int	4	Y	Layer Offset
LinkID	NVarChar	255	Y	Microvellum Primary Link Key
LinkIDCategory	NVarChar	255	Y	Microvellum Foreign Link Key
LinkIDPart	NVarChar	255	Y	Microvellum Foreign Link Key
LinkIDWorkOrder	NVarChar	255	Y	Microvellum Foreign Link Key
MachineUse	Int	4	Y	See Machine Use Types
MacroString	NVarChar	255	Y	Macro String
MaxDepthPerPass	Float	8	Y	Max Depth Per Pass
MaxX	Float	8	Y	Max X
MaxY	Float	8	Y	Max Y
MinX	Float	8	Y	Min X
MinY	Float	8	Y	Min Y
Modified	Bit	1	Y	True if the item has been modified
Name	NVarChar	255	Y	Name of the item
Offset	Int	4	Y	See Router Offsets
PassNumber900Tool	Int	4	Y	Pass Number 900 Tool
PeckingNumber	Int	4	Y	Pecking Number
Rotation	Float	8	Y	Rotation
RotationAngle	Float	8	Y	Rotation Angle
RotationSpeed	Float	8	Y	Rotation Speed
RouteAngle	Int	4	Y	Route Angle
RouteNum	Int	4	Y	Route Num
Sequence	Int	4	Y	Sequence
SetMillBulge	Float	8	Y	Set Mill Bulge
SetMillBulgeDirection	Int	4	Y	Set Mill Bulge Direction
shiftX	Float	8	Y	shift X
shiftY	Float	8	Y	shift Y
StartOffsetX	Float	8	Y	Start Offset X
StartOffsetY	Float	8	Y	Start Offset Y
Steps	Int	4	Y	Steps
ToolNumber	NVarChar	255	Y	Tool Number
ToolPriorityNumber	Int	4	Y	Tool Priority Number
ToolProfile	NVarChar	255	Y	Tool Profile
ToolType	Int	4	Y	See Tool Types
TotalRouteLength	Float	8	Y	Total Route Length
UseRouter	Bit	1	Y	Use Router
X	Float	8	Y	X
XOffset	Float	8	Y	X Offset
Y	Float	8	Y	Y
YOffset	Float	8	Y	Y Offset
Z	Float	8	Y	Z

SawCutLines

Column	Datatype	Size	Nullable	Description
EndX	Float	8	Y	End X
EndY	Float	8	Y	End Y
ID	UniqueIdentifier	16	N	PK - Unique ID Auto Generated
LinkID	NVarChar	255	Y	Microvellum Primary Link Key
LinkIDParent	NVarChar	255	Y	Microvellum Foreign Link Key
LinkIDPart	NVarChar	255	Y	Microvellum Foreign Link Key
LinkIDPlacedSheet	NVarChar	255	Y	Microvellum Foreign Link Key
LinkIDWorkOrder	NVarChar	255	Y	Microvellum Foreign Link Key
LinkIDWorkOrderBatch	NVarChar	255	Y	Microvellum Foreign Link Key
OffsetLeading	Float	8	Y	Offset Leading
OffsetTrailing	Float	8	Y	Offset Trailing
Phase	Int	4	Y	Phase
StartX	Float	8	Y	Start X
StartY	Float	8	Y	Start Y

Saws

Column	Datatype	Size	Nullable	Description
ActualToolName	NVarChar	255	Y	Actual Tool Name
BinaryToolValue	Int	4	Y	Binary Tool Value
Diameter	Float	8	Y	Diameter
DiameterOffset	Float	8	Y	Diameter Offset
EndX	Float	8	Y	End X
EndY	Float	8	Y	End Y
EndZ	Float	8	Y	End Z
EntrySpeed	Float	8	Y	Entry Speed
Face	Int	4	Y	See Panel Faces
FeedSpeed	Float	8	Y	Feed Speed
HeightOffset	Float	8	Y	Height Offset
ID	UniqueIdentifier	16	N	PK - Unique ID Auto Generated
IsAssociative	Bit	1	Y	Is Associative
LayerDepth	Float	8	Y	Layer Depth
LayerOffset	Int	4	Y	Layer Offset
LinkID	NVarChar	255	Y	Microvellum Primary Link Key
LinkIDCategory	NVarChar	255	Y	Microvellum Foreign Link Key
LinkIDPart	NVarChar	255	Y	Microvellum Foreign Link Key
LinkIDWorkOrder	NVarChar	255	Y	Microvellum Foreign Link Key
MachineUse	Int	4	Y	See Machine Use Types
MacroString	NVarChar	255	Y	Macro String
MaxX	Float	8	Y	Max X
MaxY	Float	8	Y	Max Y
MinX	Float	8	Y	Min X
MinY	Float	8	Y	Min Y
Modified	Bit	1	Y	True if the item has been modified
Name	NVarChar	255	Y	Name of the item
Offset	Int	4	Y	See Router Offsets
Rotation	Float	8	Y	Rotation
RotationSpeed	Float	8	Y	Rotation Speed
SawActualToolDiameter	Float	8	Y	Saw Actual Tool Diameter
Sequence	Int	4	Y	Sequence
ToolNumber	NVarChar	255	Y	Tool Number
ToolPriorityNumber	Int	4	Y	Tool Priority Number
ToolType	Int	4	Y	See Tool Types
UseRouter	Bit	1	Y	Use Router
X	Float	8	Y	X
Y	Float	8	Y	Y
Z	Float	8	Y	Z

SawStacks

Column	Datatype	Size	Nullable	Description
ID	UniqueIdentifier	16	N	PK - Unique ID Auto Generated
LinkID	NVarChar	255	Y	Microvellum Primary Link Key
LinkIDCategory	NVarChar	255	Y	Microvellum Foreign Link Key
LinkidProcessingStation	NVarChar	255	Y	Microvellum Foreign Link Key
LinkIDWorkOrder	NVarChar	255	Y	Microvellum Foreign Link Key
LinkIDWorkOrderBatch	NVarChar	255	Y	Microvellum Foreign Link Key
MaterialName	NVarChar	255	Y	Material Name
Modified	Bit	1	Y	True if the item has been modified
Name	NVarChar	255	Y	Name of the item
StackHeight	Int	4	Y	Stack Height

Sheets

Column	Datatype	Size	Nullable	Description
Code	NVarChar	255	Y	Code
CodeFormula	VarCharMax	-1	Y	Code Formula
Comments	NVarChar	255	Y	Comments
Grain	Int	4	Y	See Grain Direction Types
GrainFormula	VarCharMax	-1	Y	Grain Formula
HandlingCode	NVarChar	255	Y	Handling Code
HandlingCodeFormula	VarCharMax	-1	Y	Handling Code Formula
HatchType	Int	4	Y	See Hatch Types
ID	UniqueIdentifier	16	N	PK - Unique ID Auto Generated
Index	Int	4	Y	Index
InventoryAvailableQty	Float	8	Y	Inventory Available Qty
InventoryCurrentQty	Float	8	Y	Inventory Current Qty
InventoryMinQty	Float	8	Y	Inventory Min Qty
IsFormulaMaterial	Bit	1	Y	Is Formula Material
LeadingLengthTrim	Float	8	Y	Leading Length Trim
LeadingLengthTrimFormula	VarCharMax	-1	Y	Leading Length Trim Formula
LeadingWidthTrim	Float	8	Y	Leading Width Trim
LeadingWidthTrimFormula	VarCharMax	-1	Y	Leading Width Trim Formula
Length	Float	8	Y	Length
LengthFormula	VarCharMax	-1	Y	Length Formula
LinkID	NVarChar	255	Y	Microvellum Primary Link Key
LinkIDBottomFaceRendering	NVarChar	255	Y	Microvellum Foreign Link Key
LinkIDCategory	NVarChar	255	Y	Microvellum Foreign Link Key
LinkIDCoreRendering	NVarChar	255	Y	Microvellum Foreign Link Key
LinkIDDefaultVendor	NVarChar	255	Y	Microvellum Foreign Link Key
LinkIDMaterial	NVarChar	255	Y	Microvellum Foreign Link Key
LinkIDMaterialStorageLocation	NVarChar	255	Y	Microvellum Foreign Link Key
LinkIDProcessingStation	NVarChar	255	Y	Microvellum Foreign Link Key
LinkIDSheetSize	NVarChar	255	Y	Microvellum Foreign Link Key
LinkIDStack	NVarChar	255	Y	Microvellum Foreign Link Key
LinkIDSubType	NVarChar	255	Y	Microvellum Foreign Link Key
LinkIDTopFaceRendering	NVarChar	255	Y	Microvellum Foreign Link Key
LinkIDWorkOrder	NVarChar	255	Y	Microvellum Foreign Link Key
LinkIDWorkOrderBatch	NVarChar	255	Y	Microvellum Foreign Link Key
MarkUp	Float	8	Y	Mark Up
MarkUpFormula	VarCharMax	-1	Y	Mark Up Formula
MaterialCommentsFormula	VarCharMax	-1	Y	Material Comments Formula
MaterialCost	Float	8	Y	Material Cost
MaterialCostFormula	VarCharMax	-1	Y	Material Cost Formula
MaterialEstimateCost	Float	8	Y	Material Estimate Cost
MaterialFlipSetting	Int	4	Y	See Material Flip Settings
MaterialLaborValue	Float	8	Y	Material Labor Value
MaterialLaborValueFormula	VarCharMax	-1	Y	Material Labor Value Formula
MaterialXData1	VarCharMax	-1	Y	Material XData1
MaterialXData1Formula	VarCharMax	-1	Y	Material XData1 Formula
MaterialXData2	VarCharMax	-1	Y	Material XData2
MaterialXData2Formula	VarCharMax	-1	Y	Material XData2 Formula
MaterialXData3	VarCharMax	-1	Y	Material XData3
MaterialXData3Formula	VarCharMax	-1	Y	Material XData3 Formula
Modified	Bit	1	Y	True if the item has been modified
Name	NVarChar	255	Y	Name of the item
NumplacedParts	Int	4	Y	Number placed Parts
NumStrips	Int	4	Y	Num Strips
OptimizationPriority	Int	4	Y	Optimization Priority
OptimizationPriorityFormula	VarCharMax	-1	Y	Optimization Priority Formula
Pattern	Int	4	Y	Pattern
Picture	VarBinaryMax	-1	Y	Picture
PrintFlag	Bit	1	Y	Print Flag
QtyFormula	VarCharMax	-1	Y	Qty Formula
Quantity	Float	8	Y	Quantity
Region	Int	4	Y	See Material Regions
ScrapType	Int	4	Y	See Scrap Types
SkipSpreadsheetSync	Bit	1	Y	Skip Spreadsheet Sync
SpredsheetColumn	Int	4	Y	Spreadsheet Column
Thickness	Float	8	Y	Thickness
TrailingLengthTrim	Float	8	Y	Trailing Length Trim
TrailingLengthTrimFormula	VarCharMax	-1	Y	Trailing Length Trim Formula
TrailingWidthTrim	Float	8	Y	Trailing Width Trim
TrailingWidthTrimFormula	VarCharMax	-1	Y	Trailing Width Trim Formula
Type	Int	4	Y	See Material Types
UnitType	Int	4	Y	See Material Price Unit Types
WasteFactor	Float	8	Y	Waste Factor
WasteFactorFormula	VarCharMax	-1	Y	Waste Factor Formula
Width	Float	8	Y	Width
WidthFormula	VarCharMax	-1	Y	Width Formula

Subassemblies

Column	Datatype	Size	Nullable	Description
ActivityPath	NVarChar	255	Y	Activity Path
ActivityPathShort	NVarChar	255	Y	Activity Path Short
Angle	Float	8	Y	Angle
BayPosition	Float	8	Y	Bay Position
Comments	NVarChar	255	Y	Comments
Comments1	NVarChar	255	Y	Comments1
Comments2	NVarChar	255	Y	Comments2
Comments3	NVarChar	255	Y	Comments3
ContainsSubassemblies	Bit	1	Y	Contains Subassemblies
Depth	Float	8	Y	Depth
DrawIndex	Int	4	Y	Draw Index
Height	Float	8	Y	Height
ID	UniqueIdentifier	16	N	PK - Unique ID Auto Generated
IsBuyOut	Bit	1	Y	Is Buy Out
JPegName	NVarChar	255	Y	Picture Name
JPegStream	VarBinaryMax	-1	Y	Picture BLOB Item
LinkID	NVarChar	255	Y	Microvellum Primary Link Key
LinkIDCategory	NVarChar	255	Y	Microvellum Foreign Link Key
LinkIDLibrary	NVarChar	255	Y	Microvellum Foreign Link Key
LinkIDParentProduct	NVarChar	255	Y	Microvellum Foreign Link Key
LinkIDParentSubassembly	NVarChar	255	Y	Microvellum Foreign Link Key
LinkIDProject	NVarChar	255	Y	Microvellum Foreign Link Key
LinkIDWorkOrder	NVarChar	255	Y	Microvellum Foreign Link Key
Modified	Bit	1	Y	True if the item has been modified
ModifiedRowID	Int	4	Y	Modified Row ID
Name	NVarChar	255	Y	Name of the item
PerfectGrainCaption	NVarChar	255	Y	Perfect Grain Caption
Quantity	Int	4	Y	Quantity
ScanCode	NVarChar	255	Y	Scan Code
TiffName	NVarChar	255	Y	Picture Name
TiffStream	VarBinaryMax	-1	Y	Picture BLOB Item
Type	Int	4	Y	See Product Use Types
Width	Float	8	Y	Width
WMFName	NVarChar	255	Y	Picture Name
WMFStream	VarBinaryMax	-1	Y	Picture BLOB Item
WorkBook	VarBinaryMax	-1	Y	Workbook
X	Float	8	Y	X
Y	Float	8	Y	Y
Z	Float	8	Y	Z

Vectors

Column	Datatype	Size	Nullable	Description
ActualToolName	NVarChar	255	Y	Actual Tool Name
BinaryToolValue	Int	4	Y	Binary Tool Value
Bulge	Float	8	Y	Bulge
BulgeDirection	Int	4	Y	See Bulge Directions
CenterX	Float	8	Y	Center X
CenterY	Float	8	Y	Center Y
Diameter	Float	8	Y	Diameter
DiameterOffset	Float	8	Y	Diameter Offset
EntrySpeed	Float	8	Y	Entry Speed
Face	Int	4	Y	See Panel Faces
FeedSpeed	Float	8	Y	Feed Speed
HeightOffset	Float	8	Y	Height Offset
ID	UniqueIdentifier	16	N	PK - Unique ID Auto Generated
IsAssociative	Bit	1	Y	Is Associative
LinkID	NVarChar	255	Y	Microvellum Primary Link Key
LinkIDCategory	NVarChar	255	Y	Microvellum Foreign Link Key
LinkIDPart	NVarChar	255	Y	Microvellum Foreign Link Key
LinkIDRoute	NVarChar	255	Y	Microvellum Foreign Link Key
LinkIDWorkOrder	NVarChar	255	Y	Microvellum Foreign Link Key
MachineUse	Int	4	Y	See Machine Use Types
MacroString	NVarChar	255	Y	Macro String
MaxX	Float	8	Y	Max X
MaxY	Float	8	Y	Max Y
MinX	Float	8	Y	Min X
MinY	Float	8	Y	Min Y
Modified	Bit	1	Y	True if the item has been modified
Name	NVarChar	255	Y	Name of the item
Radius	Float	8	Y	Radius
Rotation	Float	8	Y	Rotation
RotationSpeed	Float	8	Y	Rotation Speed
Sequence	Int	4	Y	Sequence
ToolNumber	NVarChar	255	Y	Tool Number
ToolPriorityNumber	Int	4	Y	Tool Priority Number
ToolType	Int	4	Y	See Tool Types
VectorIndex	Int	4	Y	Vector Index
X	Float	8	Y	X
Y	Float	8	Y	Y
Z	Float	8	Y	Z

WorkOrderBatches

Column	Datatype	Size	Nullable	Description
DateCreated	DateTime	8	Y	Date Created
ID	UniqueIdentifier	16	N	PK - Unique ID Auto Generated
LinkID	NVarChar	255	Y	Microvellum Primary Link Key
LinkIDWorkOrder	NVarChar	255	Y	Microvellum Foreign Link Key
Name	NVarChar	255	Y	Name of the item

Microvellum Type Definitions

Category Types

None = 0

Companies = 1

Clients = 2

Vendors = 3

Ship Locations = 4

Contacts = 5

Materials = 6

Employees = 7

Estimates = 8

Groups = 9

Parts = 10

Products = 11

Project Report Templates = 12

Production Report Templates = 13

Business Report Templates = 14

Projects = 15

Departments = 16

Work Orders = 17

Batches = 18

Accessories = 19

Appliances = 20

Columns = 21

Doors = 22

Furniture = 23

Lights = 24

Windows = 25

Wall Lights = 26

Walls = 27

Locations = 28

Rooms = 29

Production Statistics Report Templates = 30

Subassembly Libraries = 31

Releases = 32

Specification Groups = 33

Moldings = 34

Sinks = 35

Product Price Options = 36

Product Price = 37

Product Section = 38

Product Style Configuration = 39

Project Settings = 40

Favorite Formulas = 41

Factory Layouts = 42

Shifts = 43

Libraries = 44

Library Drawing Tokens = 45

Library Machine Tokens = 46

Room Component Libraries = 47

Layers = 48

Profiles = 49

Router Bits = 50

Blocks = 51

Hardware = 52

Subassemblies = 53

Library Subassembly Entries = 54

Library Prompts = 55

Sheet Stock = 56

Solid Stock = 57

Buy Out = 58

Edge banding = 59

Shipping Tickets = 60

Accounting = 61

Material Composition = 62

Metafile Tokens = 63

2D Plan View Tokens = 64

2D Elv View Tokens = 65

Cross Section Tokens = 66

Elv Section Tokens = 67

Plan Section Tokens = 68

Virtual Routing Tokens = 69

Face Frame Tokens = 70

Activity Tokens = 71

Machining Tokens = 72

Prompts = 73

Nested Subassemblies = 74

Company/Contact Types

General = 0

Factory = 1

Client = 2

Vendor = 3

Ship Location = 4

Contractor = 5

Competitor = 6

Architect = 7

Buyer = 8

All = 10

Primary = 11

Drawing Types

Moldings = 34

Profiles = 49

Router Bits = 50

Hardware = 52

Product Use Types

None = 0

Library = 1

Purchasing Category = 2

Subassembly Library = 3

Unique Subassembly Library = 4

Project = 5

Template = 6

Overdrive Pro Products = 7

Toolbox Products = 8

Room Component Library = 9

Appliances Library = 10

Furniture Library = 11

Accessory Library = 12

Imported Project = 13

Product Group = 14

Template Schedule Project = 15

Material Types

None = 0

Sheet Stock = 2

Solid Stock = 3

Buy Out = 4

Edge Band = 5

Hardware = 6

Countertop = 7

Molding = 8

Cut Parts = 9

Sheets = 10

Processing Station Association Types

Other = 0

Nesting = 1

Sawing = 2

Face 6 = 3

Edge Bore = 4

Edge Band = 5

Single Part Machining = 6

Processing Station Types

Nesting Optimizer = 1

Single Part GCode = 2

Microvellum Sawing Optimizer = 3

Ardis Parts File = 4

Horizontal Boring = 5

Cutoff Saw = 6

Cut Rite MDB = 8

Cut Rite ASCII = 10

Schelling HPO = 11

Eurosoft Sawing Optimizer = 12

Blue Cell XML = 13

Bundle Items = 20

Data Source Types

None = 0

Company = 1

Microvellum Project = 10

Microvellum Work Order = 12

Microvellum Factory = 13

Product List = 14

Microvellum Graphics = 15

Overdrive Pro = 16

Microvellum Geometry = 17

Microvellum Setup = 19

Microvellum Quote = 20

Microvellum Shipping = 21

Microvellum Translator = 22

Databackend = 24

Microvellum Control = 25

Microvellum Secure = 26

Microvellum User = 115

Micro Manager Factory = 200

Microvellum Library Designer = 300

Business Objects = 500

Token Types

Undefined Token = 0

Construction Holes = 1

Shelf Holes = 2

Dado = 3

Saw = 4

Drawer Slide = 5

Series of Holes = 6

Shelf Holes Per Shelf = 7

Shelf Std = 8

Cam Lock = 9

Corner Notch = 10

Chamfer = 11

Radius Corner Notch = 12

Fillet = 13

3-Sided Notch = 14

Hole = 15

Cut Out = 16

Routed Hole = 17

Miter = 18

Profile = 19

Route = 20

Groove = 21

Pline = 22

Turning = 23

Modeez = 24

Pocket Mortise = 25

Hole Hwr = 26

Routed Hole Hwr = 27

Pline Hwr = 28

Hinge = 29

Molding = 30

Bending = 31

Carving = 32

DXF = 33

Hwr Array = 34

Unknown = 35

Cut Out Hwr = 36

Activity Token = 37

Shelf Std Per Shelf = 38

Pline From Holes = 39

Drawing Token Flat Shot Token = 40

Mortise and Tenon = 41

XPart Data = 42

Hwr Array Edge = 43

Edge band Token = 44

Process Unit Types

None = 0

Lin Inches = 1

Sq Inches = 2

Lin Feet = 3

Sq Feet = 4

Lin Millimeters = 5

Sq Millimeters = 6

Lin Centimeters = 7

Sq Centimeters = 8

Lin Meters = 9

Sq Meters = 10

Each = 11

Each Parts = 12

Each Subassemblies = 13

Each Products = 14

Weight in Pounds = 15

Volume in Cubic Ft = 16

Weight in Kilograms = 17

Volume in Cubic Meters = 18

Software Security Type

None = 0

Administrator = 1

Officer = 2

Manager = 3

User = 4

Agent = 5

Event Log Alert Types

None = 0

Display = 1

Inquiry = 2

Product Data = 3

Event Log Types

Message = 0

Exception = 1

User Activity = 3

Event Log Severity Levels

Info = 0 or 4

Warning = 1

Error = 2

Fatal = 3

Event Log Sources

General = 0

Work Order Creation = 1

Work Order Processing = 2

Plugin Services = 3

Project Wizard Modified = 4

Global Modified = 5

Cut Parts Modified = 6

Edge band Modified = 7

Hardware Modified = 8

Door Wizard Modified = 9

New Spec Group = 10

New Project Wizard = 11

New Global = 12

New Cut Parts = 13

New Edge band = 14

New Hardware = 15

New Door Wizard = 16

New Library Sub Created = 17

Library Sub Modified = 18

New Project Sub Created = 19

Project Sub Modified = 20

New Library Product Created = 21

Existing Library Product Modified = 22

Library Project Wizard Modified = 23

Library Global Modified = 24

Library Cut Parts Modified = 25

Library Edge band Modified = 26

Library Hardware Modified = 27

Library Door Wizard Modified = 28

New Library Spec Group Created = 29

New Library Project Wizard Created = 30

New Library Global File Created = 31

New Library Cut Parts File Created = 32

New Library Edge band File Created = 33

New Library Hardware File Created = 34

New Library Door Wizard File Created = 35

Library Designer Changes Committed = 36

Project Deleted = 37

Location Deleted = 38

Factory Modified = 39

Work Order Sheet Added = 40

Work Order Sheet Edited = 41

Work Order Sheet Deleted = 42

Work Order Sheet Name Changed = 43

Materials Were Created with Import File = 44

Materials Were Edited with Import File = 45

Label Placement Types

Center of Geometry = 0

Center of Gravity = 1

Center of Bounding Box = 2

Upper Left = 3

Upper Right = 4

Lower Left = 5

Lower Right = 6

Render Layer Types

None = 0

Room Component = 1

Product = 2

Grain Direction Types

Grain None = 0

Grain Length = 1

Grain Width = 2

Hatch Types

No Hatch = 0

PB Hatch = 1

Ply Hatch = 2

Wood Hatch = 3

Blocking = 4

Custom = 5

Material Regions

None = 0

United States = 1

Canada = 2

Australia = 4

UK = 16

EU = 32

Material Price Unit Types

None = 0

Sheet = 1

Sq Ft = 2

Lin Ft = 3

Each = 4

Pair = 5

Roll = 6

Lin Meter = 7

Sq Meter = 8

Board Ft = 9

Board Meter = 10

Liter = 11

Quart = 12

Gallon = 13

Cubic Ft = 20

Cubic Meter = 21

Nest Border Sequences

Least Travel = 0

Smallest to Largest = 1

Largest to Smallest = 2

Serpentine Left to Right = 3

Serpentine Right to Left = 4

Serpentine Bottom to Top = 5

Serpentine Top to Bottom = 6

Nest Drawing Groupings

No Grouping = 0

Group by Material = 1

Group All Together = 2

Nest Border Routing Optimization Types

Standard = 0

Common line = 1

Stay Down Way = 2

Nest Optimization Strategy

Small Parts to Center = 0

Best Yield = 1

Smallest X = 2

Smallest Y = 3

Nest Part Grouping Types

None = 0

Favor Item Number Best Yield = 1

Restrict to Item Number = 2

Parts with Face 6 Machining = 3

Favor Item Number Sequential = 4

Nest Set Mill Locations

Longest Edge = 0

Top Edge = 1

Bottom Edge = 2

Right Edge = 3

Left Edge = 4

Nest Text Format Types

Text List = 0

Text on Parts = 1

Small Part Handling Types

None = 0

No Special Treatment = 1

Double Pass = 2

Tabs = 3

Single Part Rotation Types

None = 0

Clockwise 90 = 1

Counterclockwise 90 = 2

Part Picture Types

None = 0

EMF = 1

WMF = 2

BMP = 3

JPG = 4

JPEG = 5

Processing Station Units

Metric = 0

Imperial = 1

End Types

Left End = 0

Right End = 1

Center = 2

Corner = 3

Corner Left = 4

Corner Right = 5

Kitchen Object Types

None = 0

Room Components = 1

Cabinets = 2

Appliances = 3

Furniture = 4

Accessories = 5

Moldings = 6

Cabinet Pricing = 7

Overdrive Pro = 8

Business Types (Bit Flags)

None = 0

Project = 1

Global Variables = 2

Products = 4

Product Prompts = 8

Report Category Types

Estimate = 1

Manufacturing = 2

Placed Part Labels = 3

Product Labels = 4

Shipping Ticket = 5

Vendor = 6

Pricing = 7

Time Clock = 8

Factory = 9

Material Labels = 10

Part Labels = 11

Work Orders = 12

Operations = 13

Design = 14

Saved View Grid Types

None = 0

Grid Inventory Materials = 1

Grid Project Activities = 2

Grid Purchased Materials = 3

Grid Ship Items = 4

Grid Time Records = 5

Grid Work Order Activities = 6

Grid Work Order Materials = 7

Grid Purchasing Cart = 8

Grid Purchase Orders = 9

Grid Ship Products = 10

Grid Ship Ticket Contents = 11

Grid Purchased Material History = 12

Grid Bundle Work Order Items = 13

Grid Bundles = 14

Grid Bundle Items = 15

Grid Processing Center Parts = 16

Grid Storage Group Fulfillment = 17

Grid Events = 18

Grid Part Info = 19

Grid Product List = 20

Saved View Types

None = 0

Grid Settings = 1

Filter Settings = 2

Saw Perfect Grain Types

None = 0

Initial Sheet = 2

Separate Operation = 3

Rounding Types

Up = 1

Down = 2

Standard = 3

Saw Axis Types

Not Specified = 0

Single Axis Saw = 1

Two Axis Single Feed = 2

Two Axis Multiple Feed = 3

Saw Cut Preferences

Not Set = 0

Rip First = 1

Best Sheet = 2

Cross First = 3

Favor Rip First = 4

Favor Cross First = 5

Saw Link Types

No Saw Link = 0

CPOUT Microvellum = 1

CPOUT Lite = 2

Sigma 65 = 3

Selco = 4

CPOUT Seesaw = 5

Sigma 90 = 6

Sigma 65 1 = 7

PRV = 8

Esa Kvara = 9

Mayer = 10

Pattern Exchange = 11

Schelling = 12

KDT XML = 13

Sigma Win Cut 12 = 14

CPOUT Enhanced Microvellum = 15

Opti planning XML = 16

Maestro Cut XML = 17

Machine Saw Units

Metric = 0

Imperial = 1

Imp Fractions = 2

Machine Origin Types

Machine None = 0

Machine Lower Left = 1

Machine Lower Right = 2

Machine Upper Right = 3

Machine Upper Left = 4

Microvellum Destroy Types

Full Sheet = 1

By Region = 2

Microvellum Scrap Save Types

None = 0

By Minimums = 1

From List = 2

Material Flip Settings

By Material = 0

Always Ask = 1

Always Flip = 2

Never Flip = 3

Scrap Types

None = 0

Saved = 1

Used = 2

Committed = 3

Work Order Status Types

None = 0

Estimate = 1

Scheduled Estimate = 2

Planned = 3

Scheduled = 4

Purchasing = 5

Manufacturing Active = 6

Manufacturing Complete = 7

Shipped = 8

Installed = 9

Completed = 10

Rejected = 11

In Queue = 12

Drill Bit Types

No Type = 0

Brad Point = 1

V Point = 2

Large Diameter = 3

Horizontal Bore Only = 4

Horizontal Bore Dowel = 5

Panel Faces

No Face = 0

Upper Edge = 1

Lower Edge = 2

Left Edge = 3

Right Edge = 4

Top Face = 5

Bottom Face = 6

Non-Original Face = 7

Machine Use Types

Machine and Draw = 0

Machine Only = 1

Draw Only = 2

Machine and Draw New = 3

Machine Only New = 4

Draw Only New = 5

Tool Types

None = 0

Vertical Drill = 1

Horizontal Drill = 2

Router = 3

Saw = 4

Vertical Y Axis Drill = 5

Vertical X Axis Drill = 6

Error Message Types

Machining Error = 1

Processing Error = 2

Face Frame Types

Top = 1

Bottom = 2

Left = 3

Right = 4

Front = 5

Back = 6

SW = 7

SE = 8

NE = 9

NW = 10

Face Frame = 11

Product = 12

Part Types

Not Specified = 0

Cut Part = 1

Hardware Part = 2

2D FL Part = 3

2D EL Part = 4

Molding = 5

Case Part = 6

Face Door = 7

Face Drawer Front = 8

Accessory = 9

Appliance = 10

Floor = 11

Ceiling = 12

Light = 13

Wall = 14

Wall Visible Straight = 15

Wall Visible Radius = 16

Wall Invisible Straight = 17

Wall Invisible Radius = 18

Soffit = 19

Column = 20

Countertop = 21

Door = 22

Window = 23

Furniture = 24

Sink = 25

Cabinet = 26

Room = 27

Retail Material Part = 28

No Wall = 29

Part Machine Points

0 = 0

1 = 1

2 = 2

3 = 3

4 = 4

5 = 5

6 = 6

7 = 7

8 = 8

1M = 9

2M = 10

3M = 11

4M = 12

5M = 13

6M = 14

7M = 15

8M = 16

Sheet Optimizer Types

None = 0

Saw = 1

Nest = 2

Ardis = 3

Single Part = 4

Cut Rite MDB = 5

Cut Rite ASCII = 6

Schelling HPO = 7

Blue Cell XML = 8

Control Types

None = 0

Text Box = 1

First Radio Button = 2

Dimmed First Radio Button = 20

Next Radio Button = 3

Dimmed Next Radio Button = 30

Check Box = 4

Combo Box = 5

Hidden = 6

Cut Parts Dialog Box = 7

Dimmed Cut Parts Dialog Box = 70

Edge band Dialog Box = 8

Dimmed Edge band Dialog Box = 80

Hardware Dialog Box = 9

Dimmed Hardware Dialog Box = 90

Dimmed Text Box = 10

Dimmed Check Box = 40

Dimmed Combo Box = 50

Label = 71

Dialog Box = 100

Prompt Types

Prompts from New Overdrive Pro Product = 2

Prompts from Existing Toolbox Product = 3

Prompts from New Toolbox Product = 4

Prompts Overwrite Overdrive Pro Product = 5

Prompts from Insert Overdrive Pro Product = 6

Prompts from Subassembly = 7

Router Offsets

No Offset = 0

Left Offset = 1

Right Offset = 2

Bulge Directions

No Bulge = 0

Clockwise Bulge = 2

Counterclockwise Bulge = 3

Related Articles
Changing Path to the Microvellum Data Folder
The Path to the Microvellum Data folder can be changed as necessary from the Microvellum Options page. Step 1: Open Toolbox Setup > Options > Utilities > Change Path to Microvellum Data. Step 2: Navigate to and select the desired folder containing ...
Project Factory Workbooks
Starting with Microvellum Toolbox build 24.1.0207.641, clients can create a project-level F! (Factory) Workbook. This feature allows for exporting the F! Workbook with the project, updating its content during library updates, and making changes ...
Database Management Utilities (Reference)
NOTICE: The Database Management Utility is a powerful tool that modifies large sections of data in the current configuration. ALWAYS back up your data before performing a data import. The Library Import functionality of Database Management is ...
Connecting Microvellum to an SQL Database (Unified Work Order Database)(Tutorial 3)
This is the third in a series of tutorials presenting the steps necessary to install and configure a new SQL Server database to work within Microvellum. It focuses on how to configure Microvellum to connect to the new SQL Server databases you have ...
Database Management Utilities (Overview)
NOTICE: The Database Management Utility is a powerful tool that modifies large sections of data in the current configuration. ALWAYS back up your data before performing a data import. The Library Import functionality of Database Management is ...

Recent Articles
Toolbox Release Notes | Build 24.1.1206.641
The following release notes apply to Toolbox build 24.1.1206.641 MV Server Nesting Fix There was a reported issue occurring when users attempted to remotely process work orders using a nesting station on MV Server. When attempting to process the work ...
Microvellum Foundation Library Release Notes | Build 24.1127
The following release notes apply to Microvellum Foundation Library build 24.1127. Additions Added a new Soffit product to the Upper Cabinet Accessories category. Added the Top Filler (Ceiling Scribe) option to Upper and Tall cabinets. (Corner ...
Toolbox Release Notes | Build 24.1.1125.641
The following release notes apply to Toolbox build 24.1.1125.641. IRIB Setmill Location Fix Fig. 1: Setmill being moved to the start of the route (top) rather than at the center of a straight line, as intended (bottom). There was an issue reportedly ...
Toolbox Release Notes | Build 24.1.1105.641
The following release notes apply to Toolbox build 24.1.1105.641 Nesting Fix Fig. 1: The fatal error that would occur during processing. There was reportedly an issue that occurred when clients attempted to process a work order using the nesting ...
Microvellum Foundation Library Release Notes | Build 24.1025
The following release notes apply to Microvellum Foundation Library build 24.1025. Additions Added new global variable “Remove Stop Dado On Bottom Edge” for wood drawer boxes. Check this option to run the dado through at the bottom of the sub front ...
