The Microvellum Office Furniture Library contains an in-depth collection of furniture products. This library is intended as a foundation for manufacturers to establish their own catalog. Products can be created and modified to suit an individual’s unique needs.

As is, the library boasts over a hundred global variables, and each product contains more than a dozen unique variables. It has a database that supports either Imperial OR Metric units. The Office Furniture Library is the first Microvellum library developed from the ground up to be used internationally, allowing data developers to share intellectual product development across the globe!

For installation and purchasing, please contact your account manager.

Microvellum LIVE Recording with a demo of the Office Furniture products:

Below, we list the products featured in this Office Furniture Library.  For more information about customizing these products, see our article covering  Office Furniture Expansion Options.

Office Accessories

Misc Part


Description:

Miscellaneous Part for general use.

Main Options:

  1. Parametric Sizing
  2. Edge Banding Options
  3. Pricing Options

Additional Info:

The single part can be used for machine testing, replacement parts, extra shelves, etc.


Office Board Room Tables

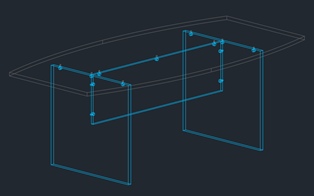

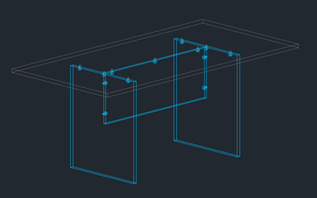

Boat Shape Board Room Table


Description:

Simple "boat shaped" boardroom table. Up to three different worktop segments. Has a left and right leg panel for support and one or two modesty panels.

Main Options:
  1. Parametric Sizing

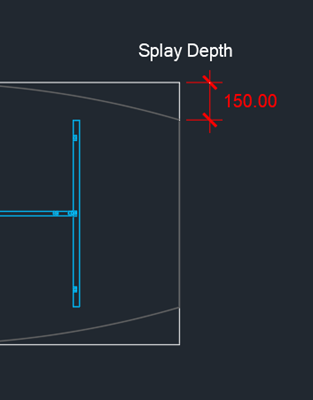

  2. Splay Depth:
    3.

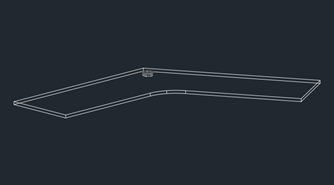

  3. Optional Two Piece Top

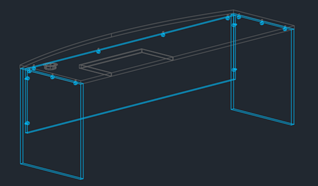

  4. Optional Cable Hole Placement (standard with 2 holes)  - Products containing cable (grommet) holes will have a number of different variables to provide flexibility in hole size and location.
    1. Cable Hole Type - 60mm/80mm
    2. Cable Hole Left
    3. Cable Hole Right
    4. Rear Corner Cable Hole
    5. Cable Hole Inset from Back
    6. Cable Hole Inset from Side
  5. Modesty Panel Height Adjustment
  6. Adjustable Top Overhang
  7. All Construction Methods

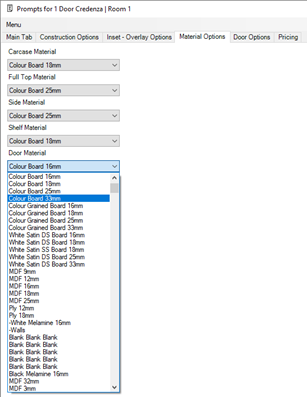

  8. Material Options   - Within every product in the library, users can modify each part's material by way of a combo box that points to a material list.
    9.
  9. Pricing Options

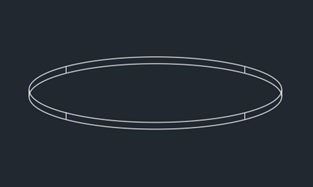

The shape of the worktop is automatically generated by a parametric polyline responding to the product Width, Depth, and Radius Depth values that are entered. Two separate parametric polylines are used. One for 3D drawing and one for machining to account for edgebanding deduction.

D Ended Board Room Table


Description:

Simple "D" Ended boardroom table. Up to three different worktop segments. Has a left and right leg panel for support and one or two modesty panels.

Main Options:
  1. Parametric Sizing
  2. Radius Depth

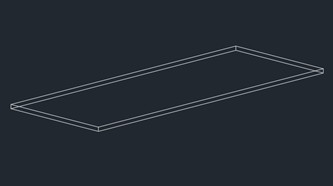

  3. Optional Two Piece Top
  4. Optional Cable Hole Placement (standard with 2 holes)
  5. Modesty Panel Height Adjustment
  6. Adjustable Top Overhang
  7. All Construction Methods
  8. Material Options
  9. Pricing Options
The shape of the worktop is automatically generated by a parametric polyline responding to the product Width, Depth, and Radius Depth values that are entered. Two separate parametric polylines are used. One for 3D drawing and one for machining to account for edgebanding deduction.

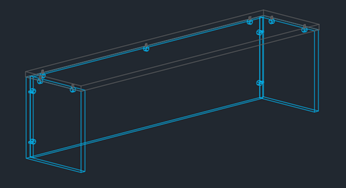

Rectangular Board Room Table


Description:

Simple rectangular shaped boardroom table. One or two different worktop segments. Has a left and right leg panel for support and one or two modesty panels.

Main Options:
  1. Parametric Sizing
  2. Optional Two Piece Top
  3. Optional Cable Hole Placement (standard with 2 holes)
  4. Modesty Panel Height Adjustment
  5. Adjustable Top Overhang
  6. All Construction Methods
  7. Material Options
  8. Pricing Options

Office Bookcases

1 Glass Door Bookcase


Description:

One door tall bookcase cabinet with glass doors.

Main Options:
  1. Parametric Sizing
  2. Adjustable Feet Height/Type
  3. Adjustable/Fixed Shelf Qty
  4. Left/Right/Back/Top/Bottom Finished Choices
  5. All Construction Methods
  6. Inset - Overlay Options
  7. Material Options
  8. Door Options
  9. Pricing Options
Books on the shelves are actual CAD blocks inside a subassembly.

2 Glass Door Bookcase


Description:

Two door tall bookcase cabinet with glass doors.

Main Options:
  1. Parametric Sizing
  2. Adjustable Feet Height/Type
  3. Adjustable/Fixed Shelf Qty
  4. Left/Right/Back/Top/Bottom Finished Choices
  5. All Construction Methods
  6. Inset - Overlay Options
  7. Material Options
  8. Door Options
  9. Pricing Options

Bookcase


Description:

Open bookcase cabinet, divisions.

Main Options:
  1. Parametric Sizing
  2. Adjustable Feet Height/Type
  3. Adjustable/Fixed Shelf Qty
  4. Left/Right/Back/Top/Bottom Finished Choices
  5. All Construction Methods
  6. Inset - Overlay Options
  7. Material Options
  8. Pricing Options

Bookcase with Divisions


Description:

Open bookcase cabinet, with up to five divisions.

Main Options:
  1. Parametric Sizing
  2. Adjustable Feet Height/Type
  3. Adjustable/Fixed Shelf Qty
  4. Division Qty
  5. Left/Right/Back/Top/Bottom Finished Choices
  6. All Construction Methods
  7. Inset - Overlay Options
  8. Material Options
  9. Pricing Options

Tall Bookcase


Description:

Open bookcase tall cabinet, without divisions.

Main Options:
  1. Parametric Sizing
  2. Adjustable Feet Height/Type
  3. Adjustable/Fixed Shelf Qty
  4. Left/Right/Back/Top/Bottom Finished Choices
  5. All Construction Methods
  6. Inset - Overlay Options
  7. Material Options
  8. Pricing Options

Tall Bookcase with Divisions


Description:

Open bookcase tall cabinet, with up to five divisions.

Main Options:
  1. Parametric Sizing
  2. Adjustable Feet Height/Type
  3. Adjustable/Fixed Shelf Qty
  4. Division Qty
  5. Left/Right/Back/Top/Bottom Finished Choices
  6. All Construction Methods
  7. Inset - Overlay Options
  8. Material Options
  9. Pricing Options

Office Credenzas

1 Door Credenza


Description:

One door credenza cabinet.

Main Options:
  1. Parametric Sizing
  2. Adjustable Feet Height/Type
  3. Adjustable/Fixed Shelf Qty
  4. Left/Right/Back/Top/Bottom Finished Choices
  5. All Construction Methods
  6. Inset - Overlay Options
  7. Material Options
  8. Door Options
  9. Pricing Options

2 Door Credenza


Description:

Two-door credenza cabinet.

Main Options:
  1. Parametric Sizing
  2. Adjustable Feet Height/Type
  3. Adjustable/Fixed Shelf Qty
  4. Left/Right/Back/Top/Bottom Finished Choices
  5. All Construction Methods
  6. Inset - Overlay Options
  7. Material Options
  8. Door Options
  9. Pricing Options

1 Door Tambour Credenza


Description:

One tambour sliding door credenza cabinet.

Main Options:
  1. Parametric Sizing
  2. Fascia Width
  3. Adjustable Feet Height/Type
  4. Adjustable/Fixed Shelf Qty
  5. Division Inset
  6. Left/Right/Back/Top/Bottom Finished Choices
  7. All Construction Methods
  8. Inset - Overlay Options
  9. Material Options
  10. Tambour Door Options
  11. Pricing Options
Includes POLYLINE tokens to machine for tambour doors.

2 Door Tambour Credenza


Description:

Two tambour sliding door credenza cabinet.

Main Options:
  1. Parametric Sizing
  2. Fascia Width
  3. Adjustable Feet Height/Type
  4. Adjustable/Fixed Shelf Qty
  5. Division Inset
  6. Left/Right/Back/Top/Bottom Finished Choices
  7. All Construction Methods
  8. Inset - Overlay Options
  9. Material Options
  10. Tambour Door Options
  11. Pricing Options
Includes POLYLINE tokens to machine for tambour doors.

3 Door Credenza


Description:

Three-door credenza cabinet.

Main Options:
  1. Parametric Sizing
  2. Adjustable Feet Height/Type
  3. Adjustable/Fixed Shelf Qty
  4. Left/Right/Back/Top/Bottom Finished Choices
  5. All Construction Methods
  6. Inset - Overlay Options
  7. Material Options
  8. Door Options
  9. Pricing Options

4 Door Credenza


Description:

Four-door credenza cabinet.

Main Options:
  1. Parametric Sizing
  2. Adjustable Feet Height/Type
  3. Adjustable/Fixed Shelf Qty
  4. Left/Right/Back/Top/Bottom Finished Choices
  5. All Construction Methods
  6. Inset - Overlay Options
  7. Material Options
  8. Door Options
  9. Pricing Options

Open Credenza


Description:

Open credenza cabinets, without divisions.

Main Options:
  1. Parametric Sizing
  2. Adjustable Feet Height/Type
  3. Adjustable/Fixed Shelf Qty
  4. Left/Right/Back/Top/Bottom Finished Choices
  5. All Construction Methods
  6. Inset - Overlay Options
  7. Material Options
  8. Pricing Options
Books on the shelves are actual CAD blocks inside a subassembly.

Open Credenza with Divisions


Description:

Open credenza cabinets with up to five divisions.

Main Options:
  1. Parametric Sizing
  2. Adjustable Feet Height/Type
  3. Adjustable/Fixed Shelf Qty
  4. Division Qty
  5. Left/Right/Back/Top/Bottom Finished Choices
  6. All Construction Methods
  7. Inset - Overlay Options
  8. Material Options
  9. Pricing Options
Books on the shelves are actual CAD blocks inside a subassembly.

Pigeon Hole Credenza


Description:

Open pigeon-hole credenza cabinet, with up to 10 divisions.

Main Options:
  1. Parametric Sizing
  2. Adjustable Feet Height/Type
  3. Shelf Qty
  4. Division Qty
  5. Left/Right/Back/Top/Bottom Finished Choices
  6. All Construction Methods
  7. Inset - Overlay Options
  8. Material Options
  9. Pricing Options

Semi-Circle Open Credenza


Description:

Half circle open credenza cabinet.

Main Options:
  1. Parametric Sizing
  2. Adjustable Feet Height/Type
  3. Adjustable/Fixed Shelf Qty
  4. Back/Top/Bottom Finished Choices
  5. Drill Cams Top/Bottom Inside
  6. All Construction Methods
  7. Inset - Overlay Options
  8. Material Options
  9. Pricing Options

Semi-Circle Tambour Door Credenza


Description:

Half circle tambour sliding door credenza cabinet.

Main Options:
  1. Parametric Sizing
  2. Adjustable Feet Height/Type
  3. Adjustable/Fixed Shelf Qty
  4. Back/Top/Bottom Finished Choices
  5. Drill Cams Top/Bottom Inside
  6. All Construction Methods
  7. Inset - Overlay Options
  8. Material Options
  9. Tambour Door Options
  10. Pricing Options
Includes POLYLINE tokens to machine for tambour doors.

Sliding Door Credenza


Description:

Two sliding door credenza cabinet.

Main Options:
  1. Parametric Sizing
  2. Adjustable Feet Height/Type
  3. Adjustable/Fixed Shelf Qty
  4. Left/Right/Back/Top/Bottom Finished Choices
  5. All Construction Methods
  6. Inset - Overlay Options
  7. Material Options
  8. Track Options
  9. Door Options
  10. Pricing Options

Starter Credenza


Description:

Open "starter" credenza cabinet.

Main Options:
  1. Parametric Sizing
  2. Adjustable Feet Height/Type
  3. Left/Right/Back/Top/Bottom Finished Choices
  4. All Construction Methods
  5. Inset - Overlay Options
  6. Material Options
  7. Pricing Options
This cabinet comes without any doors, shelves, divisions, or any interior components. Users can manually add whatever subassembly insert they wish using the subassembly interface within the product prompt interface (using the "pick point" or "pick corners" method).

Office Desks

Desk with Bow Front


Description:

Desk with bow front. Includes modesty panel, options for cable hole type, cable hole placement location, keyboard cutout, support legs, parametric polyline cutouts for the worktop.

Main Options:
  1. Parametric Sizing
  2. Radius Depth
  3. Modesty Panel Height
  4. Adjustable Foot Height
  5. Add Support Leg
  6. Edge Bottom of Ends
  7. All Construction Methods
  8. Inset - Overlay Options
  9. Material Options
  10. Keyboard Cutout/ Cable Hole Options
  11. Pricing Options
Two separate parametric polylines are used. One for 3D drawing and one for machining to account for edgebanding deduction.

Left Desk Return


Description:

Rectangular office desk left return piece. Includes modesty panel, options for cable hole type, and cable hole placement location.

Main Options:
  1. Parametric Sizing
  2. Modesty Panel Height
  3. Adjustable Foot Height
  4. Add Support Leg
  5. Edge Bottom of Ends
  6. All Construction Methods
  7. Inset - Overlay Options
  8. Material Options
  9. Cable Hole Options
  10. Pricing Options

Right Desk Return


Description:

Rectangular office desk right return piece. Includes modesty panel, options for cable hole type, and cable hole placement location.

Main Options:
  1. Parametric Sizing
  2. Modesty Panel Height
  3. Adjustable Foot Height
  4. Add Support Leg
  5. Edge Bottom of Ends
  6. All Construction Methods
  7. Inset - Overlay Options
  8. Material Options
  9. Cable Hole Options
  10. Pricing Options

P End Desk


Description:

Desk with "P" shaped end. Includes modesty panel, options for cable hole type, cable hole placement location, support legs, parametric polyline cutouts for the worktop.

Main Options:
  1. Parametric Sizing
  2. Diameter
  3. Blend Radius
  4. Left/Right Internal "P" End or Left/Right External "P" End
  5. Modesty Panel Height
  6. Adjustable Foot Height
  7. Add Support Leg
  8. Edge Bottom of Ends
  9. All Construction Methods
  10. Inset - Overlay Options
  11. Material Options
  12. Cable Hole Options
  13. Pricing Options
Two separate parametric polylines are used. One for 3D drawing and one for machining to account for edgebanding deduction. Includes options for orientation of the "P" shape (left, right, internal, external).

Splay Desk - 3 Piece Top


Description:

Three-piece desk with diagonal or radius inside corner. Includes two modesty panels, options for cable hole type, cable hole placement location, support legs, parametric polyline cutouts for the worktop.

Main Options:
  1. Parametric Sizing
  2. Return Width/Depth
  3. Corner Length
  4. Splay vs Radius Corner
  5. Left vs Right Hand Return
  6. Modesty Panel Height
  7. Adjustable Foot Height
  8. Add Support Leg
  9. Edge Bottom of Ends
  10. All Construction Methods
  11. Inset - Overlay Options
  12. Material Options
  13. Cable Hole Options
  14. Pricing Options
Each top segment has two separate parametric polylines. One for 3D drawing and one for machining to account for edgebanding deduction.

Standard Reception Desk


Description:

Standard reception desk with adjustable privacy hob.

Main Options:
  1. Parametric Sizing
  2. Hob Height/Depth
  3. Adjustable Foot Height
  4. Add Support Leg
  5. Edge Bottom of Ends
  6. All Construction Methods
  7. Inset - Overlay Options
  8. Material Options
  9. Keyboard Cutout/ Cable Hole Options
  10. Pricing Options

Straight Desk


Description:

Straight Rectangular Desk. Includes modesty panel, options for cable hole type, cable hole placement location, keyboard cutout, support legs, parametric polyline cutouts for the worktop.

Main Options:
  1. Parametric Sizing
  2. Modesty Panel Height
  3. Adjustable Foot Height
  4. Add Support Leg
  5. Edge Bottom of Ends
  6. All Construction Methods
  7. Inset - Overlay Options
  8. Material Options
  9. Keyboard Cutout/ Cable Hole Options
  10. Pricing Options

Office Drawer Cabinets

Drawer Cabinet


Description:

Drawer stack cabinet with up to seven drawers.

Main Options:
  1. Parametric Sizing
  2. Drawer Qty/ Type
  3. Toe Kick Height
  4. Adjustable Feet Height/Type
  5. Left/Right/Back/Top/Bottom Finished Choices
  6. Rails/Inset Top/Full Top
  7. All Construction Methods
  8. Inset - Overlay Options
  9. Material Options
  10. Drawer Options
  11. Pricing Options
Product contains a Drawer Front Calculator to size the drawer front heights.

Multiple Drawer Cabinet


Description:

Drawer stack cabinet with up to seven drawers high, four stacks wide.

Main Options:
  1. Parametric Sizing
  2. Drawer Qty/ Type
  3. Opening Qty
  4. Toe Kick Height
  5. Adjustable Feet Height/Type
  6. Left/Right/Back/Top/Bottom Finished Choices
  7. Rails/Inset Top/Full Top
  8. All Construction Methods
  9. Inset - Overlay Options
  10. Material Options
  11. Drawer Options
  12. Pricing Options
Product contains four different Drawer Front Calculators, one for each available opening, to size the drawer front heights.

Office Filing Cabinets

2 Drawer Filing Cabinet


Description:

Two-drawer file cabinet.

Main Options:
  1. Parametric Sizing
  2. Drawer Type
  3. Toe Kick Height
  4. Adjustable Feet Height/Type
  5. Left/Right/Back/Top/Bottom Finished Choices
  6. Rails/Inset Top/Full Top
  7. All Construction Methods
  8. Inset - Overlay Options
  9. Material Options
  10. Drawer Options
  11. Pricing Options
The product contains a Drawer Front Calculator to size the drawer front heights.

2 Drawer Lateral Filing Cabinet


Description:

Two-drawer lateral file cabinet.

Main Options:
  1. Parametric Sizing
  2. Drawer Type
  3. Toe Kick Height
  4. Adjustable Feet Height/Type
  5. Left/Right/Back/Top/Bottom Finished Choices
  6. Rails/Inset Top/Full Top
  7. All Construction Methods
  8. Inset - Overlay Options
  9. Material Options
  10. Drawer Options
  11. Pricing Options
The product contains a Drawer Front Calculator to size the drawer front heights.

3 Drawer Filing Cabinet


Description:

Three drawer file cabinet.

Main Options:
  1. Parametric Sizing
  2. Drawer Type
  3. Toe Kick Height
  4. Adjustable Feet Height/Type
  5. Left/Right/Back/Top/Bottom Finished Choices
  6. Rails/Inset Top/Full Top
  7. All Construction Methods
  8. Inset - Overlay Options
  9. Material Options
  10. Drawer Options
  11. Pricing Options
The product contains a Drawer Front Calculator to size the drawer front heights.

4 Drawer Filing Cabinet


Description:

Four drawer file cabinet.

Main Options:
  1. Parametric Sizing
  2. Drawer Type
  3. Toe Kick Height
  4. Adjustable Feet Height/Type
  5. Left/Right/Back/Top/Bottom Finished Choices
  6. Rails/Inset Top/Full Top
  7. All Construction Methods
  8. Inset - Overlay Options
  9. Material Options
  10. Drawer Options
  11. Pricing Options
The product contains a Drawer Front Calculator to size the drawer front heights.

Office Hutches

1 Door Hutch


Description:

One door hutch cabinet.

Main Options:
  1. Parametric Sizing
  2. Adjustable/Fixed Shelf Qty
  3. Height of Fixed Shelf
  4. Left/Right/Back/Top Finished Choices
  5. All Construction Methods
  6. Inset - Overlay Options
  7. Material Options
  8. Door Options
  9. Pricing Options

2 Door Hutch


Description:

Two-door hutch cabinet.

Main Options:
  1. Parametric Sizing
  2. Adjustable/Fixed Shelf Qty
  3. Height of Fixed Shelf
  4. Left/Right/Back/Top Finished Choices
  5. All Construction Methods
  6. Inset - Overlay Options
  7. Material Options
  8. Door Options
  9. Pricing Options

2 Door Open Center Hutch


Description:

Two-door hutch cabinet with an open center.

Main Options:
  1. Parametric Sizing
  2. Center Opening Width
  3. Adjustable/Fixed Shelf Qty
  4. Height of Fixed Shelf
  5. Left/Right/Back/Top Finished Choices
  6. All Construction Methods
  7. Inset - Overlay Options
  8. Material Options
  9. Door Options
  10. Pricing Options
Books on the shelves are actual CAD blocks inside a subassembly.

3 Door Hutch


Description:

Three-door hutch cabinet.

Main Options:
  1. Parametric Sizing
  2. Adjustable/Fixed Shelf Qty
  3. Height of Fixed Shelf
  4. Left/Right/Back/Top Finished Choices
  5. All Construction Methods
  6. Inset - Overlay Options
  7. Material Options
  8. Door Options
  9. Pricing Options

4 Door Hutch


Description:

Four-door hutch cabinet.

Main Options:
  1. Parametric Sizing
  2. Adjustable/Fixed Shelf Qty
  3. Height of Fixed Shelf
  4. Left/Right/Back/Top Finished Choices
  5. All Construction Methods
  6. Inset - Overlay Options
  7. Material Options
  8. Door Options
  9. Pricing Options

Open Hutch


Description:

Open hutch cabinet.

Main Options:
  1. Parametric Sizing
  2. Adjustable/Fixed Shelf Qty
  3. Height of Fixed Shelf
  4. Left/Right/Back/Top Finished Choices
  5. All Construction Methods
  6. Inset - Overlay Options
  7. Material Options
  8. Pricing Options

Open Hutch with Divisions No Shelf


Description:

Open hutch cabinet with up to 5 divisions, without a bottom shelf.

Main Options:
  1. Parametric Sizing
  2. Adjustable/Fixed Shelf Qty
  3. Division Qty
  4. Height of Fixed Shelf
  5. Left/Right/Back/Top Finished Choices
  6. All Construction Methods
  7. Inset - Overlay Options
  8. Material Options
  9. Pricing Options

Open Hutch with Divisions


Description:

Open hutch cabinet with up to 5 divisions.

Main Options:
  1. Parametric Sizing
  2. Adjustable/Fixed Shelf Qty
  3. Division Qty
  4. Height of Fixed Shelf
  5. Left/Right/Back/Top Finished Choices
  6. All Construction Methods
  7. Inset - Overlay Options
  8. Material Options
  9. Pricing Options

Office Mobile Cabinets

Open Mobile Cabinet


Description:

Open mobile cabinet on rolling casters.

Main Options:
  1. Parametric Sizing
  2. Castor Height/Type/Distance from Edge
  3. Left/Right/Back/Finished Choices
  4. All Construction Methods
  5. Inset - Overlay Options
  6. Material Options
  7. Pricing Options
This cabinet comes without any doors, shelves, divisions, or any interior components. Users can manually add whatever subassembly insert they wish using the subassembly interface within the product prompt interface (using the "pick point" or "pick corners" method).

Office Mobile Pedestals

2 Drawer Mobile Pedestal


Description:

Two Drawer mobile pedestal cabinet on rolling casters.

Main Options:
  1. Parametric Sizing
  2. Drawer Type
  3. Castor Height/Type/Distance From Edge
  4. Left/Right/Back/Top/Bottom Finished Choices
  5. Add Locking Bar
  6. Add Top Facia
  7. All Construction Methods
  8. Inset - Overlay Options
  9. Material Options
  10. Drawer Options
  11. Pricing Options
The product contains a Drawer Front Calculator to size the drawer front heights.

3 Drawer Mobile Pedestal


Description:

Three Drawer mobile pedestal cabinet on rolling casters.

Main Options:
  1. Parametric Sizing
  2. Drawer Type
  3. Castor Height/Type/Distance From Edge
  4. Left/Right/Back/Top/Bottom Finished Choices
  5. Add Locking Bar
  6. Add Top Facia
  7. All Construction Methods
  8. Inset - Overlay Options
  9. Material Options
  10. Drawer Options
  11. Pricing Options
The product contains a Drawer Front Calculator to size the drawer front heights.

4 Drawer Mobile Pedestal


Description:

Four Drawer mobile pedestal cabinet on rolling casters.

Main Options:
  1. Parametric Sizing
  2. Drawer Type
  3. Castor Height/Type/Distance From Edge
  4. Left/Right/Back/Top/Bottom Finished Choices
  5. Add Locking Bar
  6. Add Top Facia
  7. All Construction Methods
  8. Inset - Overlay Options
  9. Material Options
  10. Drawer Options
  11. Pricing Options
The product contains a Drawer Front Calculator to size the drawer front heights.

Office Occasional Tables

Rectangular Occasional Table with Shelf


Description:

Basic rectangular coffee table with an open shelf area below.

Main Options:
  1. Parametric Sizing
  2. Height of Shelf
  3. Adjustable Foot Height
  4. All Construction Methods
  5. Inset - Overlay Options
  6. Material Options
  7. Pricing Options

Rectangular Occasional Table


Description:

Basic rectangular coffee table with two half-lap machined legs.

Main Options:
  1. Parametric Sizing
  2. Adjustable Foot Height
  3. All Construction Methods
  4. Top Overhang Options
  5. Material Options
  6. Pricing Options

Round Occasional Table


Description:

Basic round coffee table with two half-lap machined legs.

Main Options:
  1. Parametric Sizing
  2. Diameter
  3. Adjustable Foot Height
  4. All Construction Methods
  5. Top Overhang Options
  6. Material Options
  7. Pricing Options
Two separate parametric polylines are used. One for 3D drawing and one for machining to account for edgebanding deduction.

Office Privacy Hobs

Radius Top Hob


Description:

Office privacy hob with radius top.

Main Options:
  1. Parametric Sizing
  2. Radius Depth
  3. Inset or Full Top
  4. Left/Right/Back/Top Finished Choices
  5. All Construction Methods
  6. Inset - Overlay Options
  7. Material Options
  8. Pricing Options
Two separate parametric polylines are used. One for 3D drawing and one for machining to account for edgebanding deduction.

Standard Hob


Description:

Office privacy hob.

Main Options:
  1. Parametric Sizing
  2. Inset or Full Top
  3. Left/Right/Back/Top Finished Choices
  4. All Construction Methods
  5. Inset - Overlay Options
  6. Material Options
  7. Pricing Options

Office Tall Cabinets

Tall 1 Door Coat Cabinet


Description:

One door tall coat cabinet with shelf and hanging rail.

Main Options:
  1. Parametric Sizing
  2. Toe Kick Height
  3. Adjustable Feet Height/Type
  4. Height of Fixed Shelf
  5. Hanging Rail Distance Below Shelf
  6. Left/Right/Back/Top/Bottom Finished Choices
  7. All Construction Methods
  8. Inset - Overlay Options
  9. Material Options
  10. Door Options
  11. Pricing Options

Tall 2 Door Coat Cabinet


Description:

Two-door tall coat cabinet with shelf and hanging rail.

Main Options:
  1. Parametric Sizing
  2. Toe Kick Height
  3. Adjustable Feet Height/Type
  4. Height of Fixed Shelf
  5. Hanging Rail Distance Below Shelf
  6. Left/Right/Back/Top/Bottom Finished Choices
  7. All Construction Methods
  8. Inset - Overlay Options
  9. Material Options
  10. Door Options
  11. Pricing Options

Tall 1 Door Split - Open Cabinet


Description:

One door split height open tall cabinet.

Main Options:
  1. Parametric Sizing
  2. Toe Kick Height
  3. Adjustable Feet Height/Type
  4. Adjustable/Fixed Shelf Qty
  5. Height of Fixed Shelf
  6. Left/Right/Back/Top/Bottom Finished Choices
  7. All Construction Methods
  8. Inset - Overlay Options
  9. Material Options
  10. Door Options
  11. Pricing Options
Books on the shelves are actual CAD blocks inside a subassembly.

Tall 2 Door Split - Open Cabinet


Descriptions:

Two-door split height open tall cabinet.

Main Options:
  1. Parametric Sizing
  2. Toe Kick Height
  3. Adjustable Feet Height/Type
  4. Adjustable/Fixed Shelf Qty
  5. Height of Fixed Shelf
  6. Left/Right/Back/Top/Bottom Finished Choices
  7. All Construction Methods
  8. Inset - Overlay Options
  9. Material Options
  10. Door Options
  11. Pricing Options
Books on the shelves are actual CAD blocks inside a subassembly.

Tall 1 Door Split Doors Cabinet


Description:

One door split height tall cabinet.

Main Options:
  1. Parametric Sizing
  2. Toe Kick Height
  3. Adjustable Feet Height/Type
  4. Adjustable/Fixed Shelf Qty
  5. Height of Fixed Shelf
  6. Left/Right/Back/Top/Bottom Finished Choices
  7. All Construction Methods
  8. Inset - Overlay Options
  9. Material Options
  10. Door Options
  11. Pricing Options

Tall 2 Door Split Door Cabinet


Description:

Two-door split height tall cabinet.

Main Options:
  1. Parametric Sizing
  2. Toe Kick Height
  3. Adjustable Feet Height/Type
  4. Adjustable/Fixed Shelf Qty
  5. Height of Fixed Shelf
  6. Left/Right/Back/Top/Bottom Finished Choices
  7. All Construction Methods
  8. Inset - Overlay Options
  9. Material Options
  10. Door Options
  11. Pricing Options

Tall 1 Door Stationary Cabinet


Description:

One door tall stationary cabinet.

Main Options:
  1. Parametric Sizing
  2. Toe Kick Height
  3. Adjustable Feet Height/Type
  4. Adjustable/Fixed Shelf Qty
  5. Left/Right/Back/Top/Bottom Finished Choices
  6. All Construction Methods
  7. Inset - Overlay Options
  8. Material Options
  9. Door Options
  10. Pricing Options

Tall 2 Door Stationary Cabinet


Description:

Two-door tall stationary cabinet.

Main Options:
  1. Parametric Sizing
  2. Toe Kick Height
  3. Adjustable Feet Height/Type
  4. Adjustable/Fixed Shelf Qty
  5. Left/Right/Back/Top/Bottom Finished Choices
  6. All Construction Methods
  7. Inset - Overlay Options
  8. Material Options
  9. Door Options
  10. Pricing Options

Tall Open Stationary Cabinet


Description:

Open tall stationary cabinet.

Main Options:
  1. Parametric Sizing
  2. Toe Kick Height
  3. Adjustable Feet Height/Type
  4. Adjustable/Fixed Shelf Qty
  5. Left/Right/Back/Top/Bottom Finished Choices
  6. All Construction Methods
  7. Inset - Overlay Options
  8. Material Options
  9. Pricing Options
Books on the shelves are actual CAD blocks inside a subassembly.

Tall Open Stationary Cabinet with Divisions


Description:

Open tall stationary cabinet with up to five divisions.

Main Options:
  1. Parametric Sizing
  2. Toe Kick Height
  3. Adjustable Feet Height/Type
  4. Adjustable/Fixed Shelf Qty
  5. Division Qty
  6. Left/Right/Back/Top/Bottom Finished Choices
  7. All Construction Methods
  8. Inset - Overlay Options
  9. Material Options
  10. Pricing Options
Books on the shelves are actual CAD blocks inside a subassembly.

Office Wall Cabinets

1 Door Wall Cabinet


Description:

One door wall cabinet.

Main Options:
  1. Parametric Sizing
  2. Adjustable/Fixed Shelf Qty
  3. Left/Right/Back/Top/Bottom Finished Choices
  4. All Construction Methods
  5. Inset - Overlay Options
  6. Material Options
  7. Door Options
  8. Pricing Options

2 Door Wall Cabinet


Description:

Two-door wall cabinet.

Main Options:
  1. Parametric Sizing
  2. Adjustable/Fixed Shelf Qty
  3. Left/Right/Back/Top/Bottom Finished Choices
  4. All Construction Methods
  5. Inset - Overlay Options
  6. Material Options
  7. Door Options
  8. Pricing Options

Bookshelf


Description:

Bookshelf unit.

Main Options:
  1. Parametric Sizing
  2. Left/Right/Back/Top/Bottom Finished Choices
  3. All Construction Methods
  4. Inset - Overlay Options
  5. Material Options
  6. Pricing Options

Open Wall Cabinet


Description:

Open wall cabinet.

Main Options:
  1. Parametric Sizing
  2. Adjustable/Fixed Shelf Qty
  3. Left/Right/Back/Top/Bottom Finished Choices
  4. All Construction Methods
  5. Inset - Overlay Options
  6. Material Options
  7. Pricing Options
Books on the shelves are actual CAD blocks inside a subassembly.

Open Wall Cabinet with Divisions


Description:

Open wall cabinet with up to five divisions.

Main Options:
  1. Parametric Sizing
  2. Adjustable/Fixed Shelf Qty
  3. Division Qty
  4. Left/Right/Back/Top/Bottom Finished Choices
  5. All Construction Methods
  6. Inset - Overlay Options
  7. Material Options
  8. Pricing Options
Books on the shelves are actual CAD blocks inside a subassembly.

Pigeon Hole Wall Cabinet


Description:

Open pigeon hole wall cabinet, with up to 10 divisions.

Main Options:
  1. Parametric Sizing
  2. Shelf Qty
  3. Division Qty
  4. Left/Right/Back/Top/Bottom Finished Choices
  5. All Construction Methods
  6. Inset - Overlay Options
  7. Material Options
  8. Pricing Options

Starter Wall Cabinet


Description:

Open "starter" wall cabinet.

Main Options:
  1. Parametric Sizing
  2. Left/Right/Back/Top/Bottom Finished Choices
  3. All Construction Methods
  4. Inset - Overlay Options
  5. Material Options
  6. Pricing Options
This cabinet comes without any doors, shelves, divisions, or any interior components. Users can manually add whatever subassembly insert they wish using the subassembly interface within the product prompt interface (using the "pick point" or "pick corners" method).

Office Worktops

120 Degree Worktop


Description:

120 degree angled worktop.

Main Options:
  1. Parametric Sizing
  2. WorkTop Depth Left/Right
  3. Radius Size
  4. Material Options
  5. Cable Hole Options
  6. Pricing Options
Shape of the worktop is automatically generated by a parametric polyline responding to the product Width, Depth, and Radius Depth values that are entered. Two separate parametric polylines are used. One for 3d drawing and one for machining to account for edgebanding deduction.

Kidney Desktop


Description:

Kidney shaped worktop.

Main Options:
  1. Parametric Sizing
  2. Material Options
  3. Pricing Options
The shape of the worktop is automatically generated by a parametric polyline responding to the product Width and Depth values that are entered.

L Shape Worktop


Description:

"L" shaped worktop with splay (image left) or radius corner (image right).

Main Options:
  1. Parametric Sizing
  2. WorkTop Depth Left/Right
  3. Splay vs Radius Corner
  4. Splay Width/Splay Blend Radius
  5. Radius Size
  6. Material Options
  7. Cable Hole Options
  8. Pricing Options
The shape of the worktop is automatically generated by a parametric polyline responding to the product Width, Depth, and Radius Depth values that are entered. Two separate parametric polylines are used. One for 3D drawing and one for machining to account for edgebanding deduction.

Oval Worktop


Description:

Oval shaped worktop.

Main Options:
  1. Parametric Sizing
  2. Material Options
  3. Pricing Options
The shape of the worktop is automatically generated by a parametric polyline responding to the product Width and Depth values that are entered. Two separate parametric polylines are used. One for 3D drawing and one for machining to account for edgebanding deduction.

P End Worktop


Description:

"P" shaped worktop.

Main Options:
  1. Parametric Sizing
  2. Diameter
  3. Blend Radius
  4. Left/Right Internal "P" End or Left/Right External "P" End
  5. Material Options
  6. Cable Hole Options
  7. Pricing Options
Two separate parametric polylines are used. One for 3D drawing and one for machining to account for edgebanding deduction. Includes options for orientation of the "P" shape (left, right, internal, external).

Round Worktop


Description:

Circle-shaped worktop.

Main Options:
  1. Parametric Sizing
  2. Diameter
  3. Material Options
  4. Pricing Options
The shape of the worktop is automatically generated by a parametric polyline responding to the product diameter value that is entered. Two separate parametric polylines are used. One for 3D drawing and one for machining to account for edgebanding deduction.

Straight Worktop


Description:

Rectangular shaped worktop.

Main Options:
  1. Parametric Sizing
  2. Material Options
  3. Pricing Options

We are proud to display this library in our “Quick Start Guide” and our detailed “Features and Options” (See Attachments Below).



    • Related Articles

    • Office Furniture Expansion Options

      This article provides a list and detailing of the options available for products in the Microvellum Office Furniture Library Expansion.  Office Furniture Construction Methods Products in the Office Furniture Expansion have access to all Foundation ...

    • The Staircase Expansion Overview

      About the Expansion The Microvellum Staircase Expansion contains a collection of staircase layouts to plug into the Foundation Library. This article will provide you with an overview of the Staircase Expansion and contains a listing of products, ...

    • Face Frame Expansion Overview

      Face Frame Expansion Overview The Microvellum Face Frame Expansion for the Foundation Library contains a broad collection of various Face Frame cabinet products intended to be used as a starting point for manufactures or create their own catalog. The ...

    • The Closet/Wardrobe Expansion Overview

      About the Expansion The Microvellum Closet/Wardrobe Expansion contains a wide collection of closet/wardrobe products, inserts, hardware, and customization options to complement the Foundation Library. This article will provide you with an overview of ...

    • Foundation Library Subassembly Inserts

      Foundation Library Subassembly Inserts This article will provide you with an overview of the Subassembly Inserts included within Microvellum's Foundation Library. Each subassembly has its own set of configurable options and can be inserted into a ...

    • Recent Articles

    • Toolbox Release Notes | Build 24.1.1206.641

      The following release notes apply to Toolbox build 24.1.1206.641 MV Server Nesting Fix There was a reported issue occurring when users attempted to remotely process work orders using a nesting station on MV Server. When attempting to process the work ...

    • Microvellum Foundation Library Release Notes | Build 24.1127

      The following release notes apply to Microvellum Foundation Library build 24.1127. Additions Added a new Soffit product to the Upper Cabinet Accessories category. Added the Top Filler (Ceiling Scribe) option to Upper and Tall cabinets. (Corner ...

    • Toolbox Release Notes | Build 24.1.1125.641

      The following release notes apply to Toolbox build 24.1.1125.641. IRIB Setmill Location Fix Fig. 1: Setmill being moved to the start of the route (top) rather than at the center of a straight line, as intended (bottom). There was an issue reportedly ...

    • Toolbox Release Notes | Build 24.1.1105.641

      The following release notes apply to Toolbox build 24.1.1105.641 Nesting Fix Fig. 1: The fatal error that would occur during processing. There was reportedly an issue that occurred when clients attempted to process a work order using the nesting ...

    • Microvellum Foundation Library Release Notes | Build 24.1025

      The following release notes apply to Microvellum Foundation Library build 24.1025. Additions Added new global variable “Remove Stop Dado On Bottom Edge” for wood drawer boxes. Check this option to run the dado through at the bottom of the sub front ...
