This brief article provides an overview of the Specification Group interface in Toolbox.

Click the menu commands "Toolbox Setup > Project Specification Groups."

Accessing Project Specification Groups

It is no longer just a list of spec groups. Now the interface displays a visual representation of the spec groups, along with their parts. You may now manipulate the spec groups and components, all from a single interface.

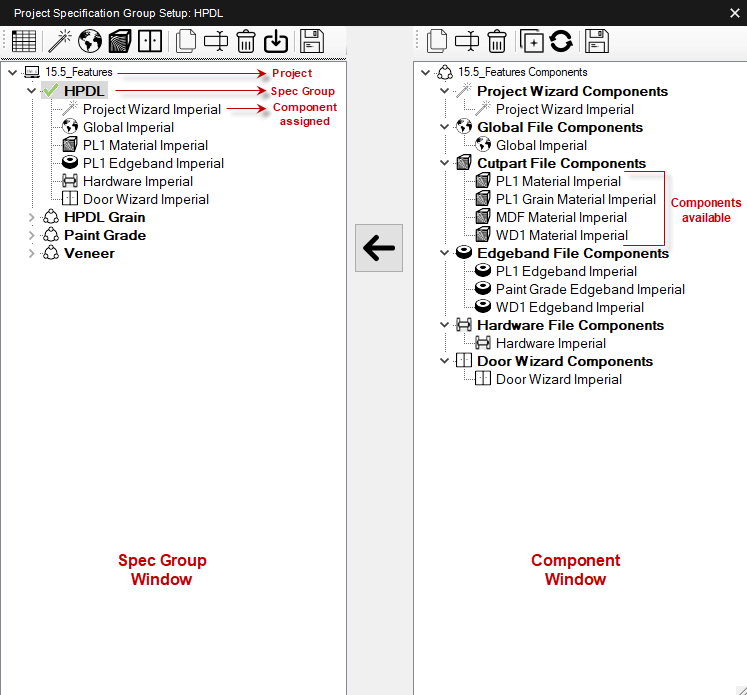

The left window is the Spec Group Window and contains a tree view of the spec groups followed by their assigned components.

The right window is the Components Window and contains a tree view of the component categories followed by the available component items in each category.

Project Specification Group Interface

If you click on one of the components in either the Spec Group Window of the Component Window, all of the components in the entire interface highlight in blue to show they use the same source file. This makes it easier to double-check that all the assigned components are correct when configuring spec groups.

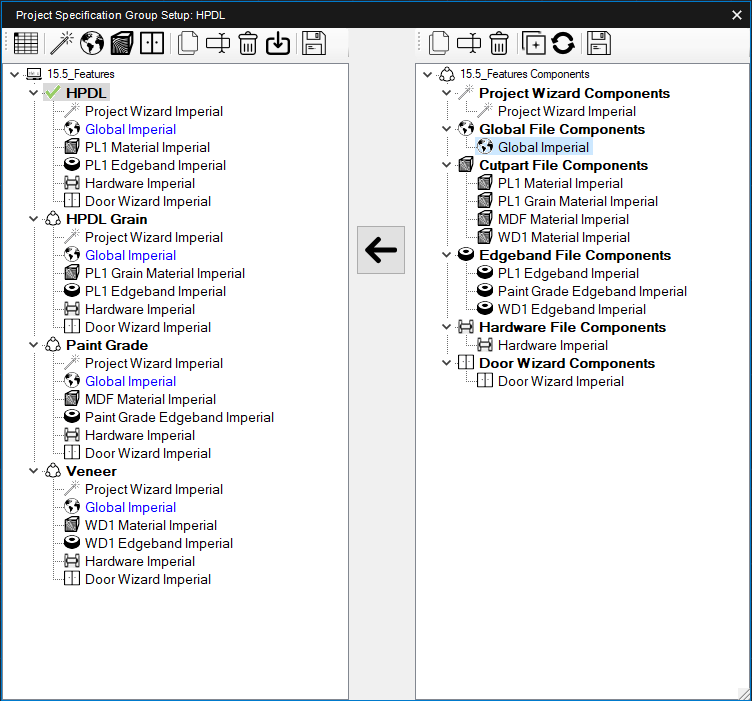

Specification Group Window and Component Window
Spec Group Buttons
  1. "Open Workbook Designer."
  2. "Open Project Wizard."
  3. "Open Global File."
  4. "Open Material File."
  5. "Access Material File Wizards."
  6. "Open Door Wizard."
  7. "Copy Selected Specification Group."
  8. "Rename Specification Group."
  9. "Delete Selected Specification Group."
  10. "Import Specification Group from Another Project."
  11. "Save Selected Specification Group to Template."
Component Buttons
  1. "Copy Selected Component."
  2. "Rename Selected Component."
  3. "Delete Selected Component."
  4. "Add Component from Template."
  5. "Revert Component from Template."
  6. "Save Component to Template."
Assign Component to Specification Group

"Assign Component to Specification Group."

There are short tutorials demonstrating the use of the new spec group interface elsewhere in the Knowledge Network.

A short video that demonstrates navigating the interface is attached to this article.


Here is an additional video demonstrating how to save a project level global variable back to the library template.
