About the Library Add-on

This is a “Master” Range Hood product capable of being used as is or saved back to the library numerous times in unlimited number of different combinations.  This Library Add-on is compatible with the Foundation Library. This article will provide you with an overview of the features included.

What is a Library Add-on?
Library Add-ons are considered stand-alone library data such as products, hardware, blocks or other materials. Contact your Account Manager to learn more about this Library Add-on.

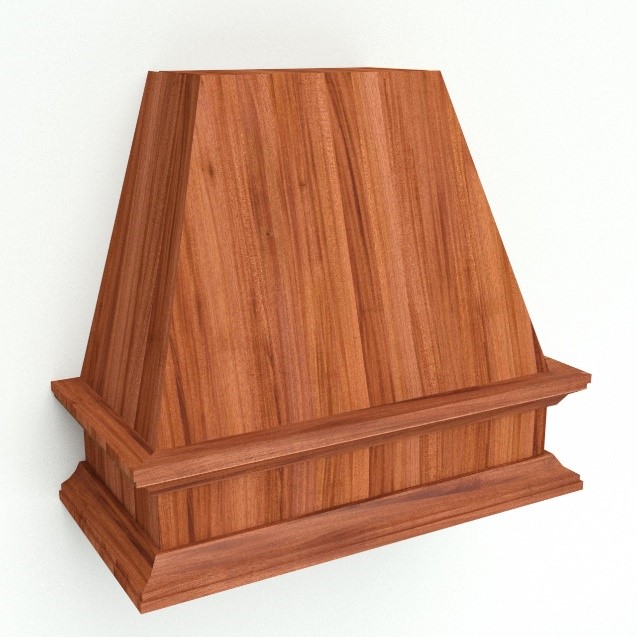

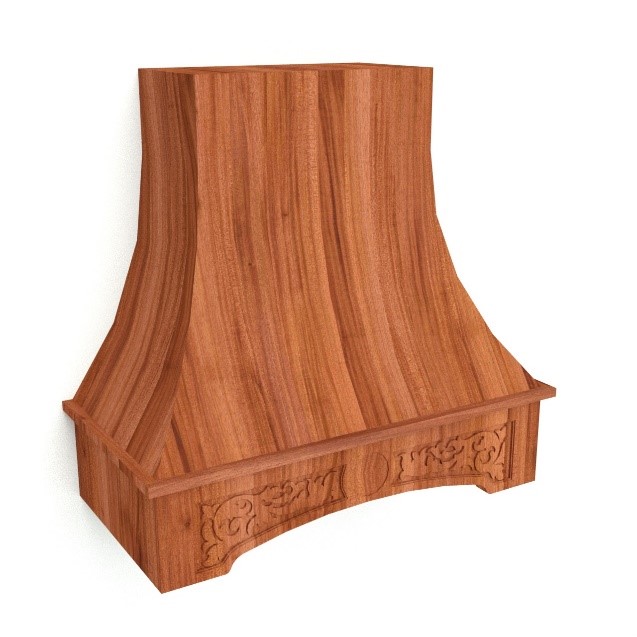

Range Hood Master


Main Options:


Projection Options:

  1. Side Offset - Distance to inset the projection from the end of the unit.
  2. Projection Side Angle - Enter a number in degrees to angle the sides of the projection. (0-89)
  3. Projection Depth - Adjust the product depth and Rear Face Depth to control.
  4. Projection Depth Top - Distance the slope is held off the wall at the top of the unit.
  5. Projection Height - Height of lower flat portion before slope
  6. Projection Arc Height - Height of projection arc.
  7. Slope Height - Height from top of lower projection to top of slope
  8. Bead Board options for Face and/or Slope
  9. Lower Projection Face/Ends options: Solid Panel/Veneer Panel/Door Panel/Carved Panel
  10. Lower Projection Top/Bottom Molding options
  11. “Keku Clip” Front Assembly option
  12. A table of Hood Fan Selection choices
  13. Custom Hood Cutout options

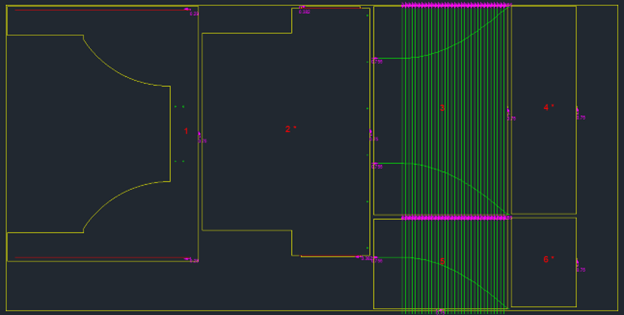

Example nest pattern:
