"Run Face 6 First" Toolfile Adjustments

"Run Face 6 First" Toolfile Adjustments

In build 15.5, the software has been revised to accommodate a new method of making trim cuts.  This revision gives the user better control over which corner gets trimmed without having to make extensive changes to the spreadsheet of the toolfile.

This also allows the user to control which way the tool is running, either clockwise or counterclockwise. Trim route direction is based on the same toolfile setting as the part border direction. That setting is "Border Route Direction."

In this article, we will briefly review the settings and how to control them.

Adjust which corner is getting the Face 6 Trim cut:

Open a toolfile in the spreadsheet environment (Options > Machining > Open a Tool File in Spreadsheet...).

Click on the tab "Settings."

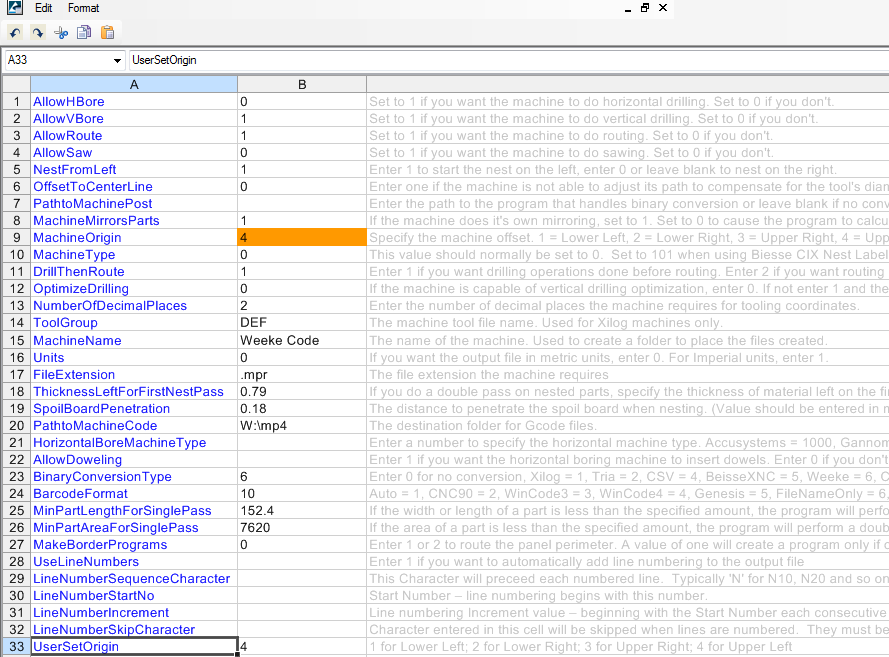

Find the variable in column A "UserSetOrigin" (usually found on row 33). Enter a value in column B (1 for Lower Left; 2 for Lower Right; 3 for Upper Right; 4 for Upper Left). See the example below.

If nothing is in that row, or it contains a different variable, enter the new variable name in column A "UserSetOrigin" for later use.  Add the following help text in column C: "1 for Lower Left; 2 for Lower Right; 3 for Upper Right; 4 for Upper Left."


If the tool compensation is incorrect on the trim cuts for Face 6, click the spreadsheet Settings tab again and find row 130.  For most, it will probably be blank.  Enter "ReverseToolComp (RUNFACE6)" in column A, and a value of 1 in column B to flip the tool comp. See the example below.

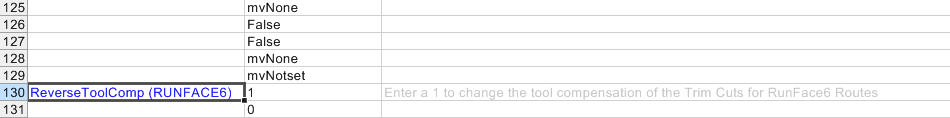

Toolfile Spreadsheet - ReverseToolComp
