This article highlights special prompts that Microvellum’s software specifically looks for to trigger certain events and features.


DATABASE PROMPTS

It is critical the three product/subassembly prompts below remain intact and unaltered in their location. At certain times Microvellum software will look in cells B1, B2, and B3 within the Prompts worksheet to collect the Width, Height, and Depth values. These values are populated into the product/subassembly record inside the Factory database. Therefore, moving or inserting other rows above these three will cause harm to the product or subassembly and prohibit Microvellum’s ability to use them.
  1. Width
  2. Height
  3. Depth

DRAWING PROMPTS

ELVNODIM

Setting a value to “1” will suppress the dimension of the product in 2D elevation view. Setting to zero or missing from the workbook, Toolbox will add a dimension annotation in the 2D elevation view.

ELVNOOUTLINE

Setting a value to “1” will suppress the outline of the project in 2D elevation view. Setting to zero or missing from the workbook, Toolbox will add an outline of the product in 2D elevation view.

ELVPRODUCTDESCRIPTION

Used to display the product description, catalog number, or other product identifier. The value should contain desired text to show in the product 2D elevation view. Most MV libraries allow this to be turned on/off in the Global Variables or through the product prompts.

ELVWHD

Used to display the Width, Height, and Depth of a product in elevation view. Most MV libraries allow this to be turned on/off in the Global Variables or through the product prompts.

FloorPlanCoordinates

Used to display the 2D floor plan of the product. Most modern MV libraries now use 2D Plan View Instruction tokens instead for greater control.

SUBASSEMBLY PROMPTS

If a subassembly contains any of the following defined names, Microvellum will populate the data from the parent product down to the Subassembly similar to how the Width, Height, Depth, & Bay Position are behaving. The same behavior works from a subassembly to any included nested subassemblies.

  1. Subassembly_X_Origin
  2. Subassembly_Y_Origin
  3. Subassembly_Z_Origin
  4. Subassembly_Z_Rotation
  5. PerfectGrainIndex
  6. Subassembly_Comment (only one that can contain a String value).



CONTROL OF ITEM NUMBER

ItemNumberX2DElv

Enter formula or value to position the product's 2D elevation item number in X.

ItemNumberZ2DElv

Enter formula or value to position the product's 2D elevation item number in Z.

ItemNumberX3D

Enter formula or value to position the product's 3D item number in X.

ItemNumberY3D

 Enter formula or value to position the product's 3D item number in Y.

ItemNumberZ3D

Enter formula or value to position the product's 3D item number in Z.

MISC

HeightAboveFloor

Enter formula or value to position the product a set distance from the floor to the top of the product.

Is_Buyout

Setting a value to “1” will cause all parts, edgebanding, and hardware to be considered “buyout”, meaning the parts will draw, but be omitted from the work order and not manufactured. If set to "1” on a subassembly prompt, then only those subassemblies, like a drawer, will be considered a buyout.

UseAsSubassembly

Setting a value of “0” will cause Microvellum to NOT include the Subassembly when making the subassembly report.

ProductCode

See Library Data Codes document for more information.

PRODUCT PROPERTY PROMPTS

ProductName

The prompt that gives users an opportunity to change the name of the product at the project level. This will update the product list.

ProductDescription

Same as ProductName (above) however Microvellum will not overwrite any formulas should they be found.

ProductMaterialfileName

Microvellum will populate the Specification Group Name.

ITEMNUMBER

  1. ProductComments
  2. ProductQuantity
  3. ProductAngle

If any of these prompts are present in a product, their values will update the corresponding properties of the product. Since formulas can be used for the values of these prompts, logic can be built into your products to modify these properties using the Wizard, global variables, or other criteria.

Info
These Prompts can both modify a property or return it.  It will populate the prompt if it was changed from the property or in the Product List interface.  Otherwise, it will update the property from the prompt value if it wasn’t changed from the property.

CutParts_Name

Microvellum will populate the name of the Specification Group’s CutParts component.

Edgeband_Name

Microvellum will populate the name of the Specification Group’s Edgebanding component

LibraryName

Only used when the command "Rebuild Products from Library" is used.  This prompt should be populated with a hard-locked value that matches a library products name.  If this prompt is found in a product that value will be used to find a matching library product instead of the current product name.  This prompt is best used when using formula driven names for the "ProductName" system prompt.

WallOffset

This feature allows the user to specify a distance to offset the product from the wall. This is useful when needing to allow for scribe or other wall furring that might be applied to the wall prior to cabinet installation. The feature is controlled on an individual product basis by adding a prompt to the product named WallOffset. You can use Library designer to add the prompt to an entire category of products or the entire library. You can also add any number of global variables to provide different offset values to different categories of cabinets.

STARTER/DESIGNER PRODUCTS

 The presence of certain defined prompts triggers the Opening Calculator:

  1. Left_Stile_Width or Left_Side_Thickness
  2. Right_Stile_Width or Right_Side_Thickness
  3. Mid_Stile_Width or Partition_Thickness
  4. Opening_Qty*
  5. Opening_1_Width*
  6. Opening_2_Width*
  7. Opening_3_Width*
  8. Opening_4_Width*
  9. Opening_5_Width*
  10. Opening_6_Width*
  11. Opening_7_Width*
  12. Opening_8_Width*
  13. Opening_9_Width*
  14. Opening_10_Width*
  15. Last_Opening_Width*
And in the Subassemblies:
Bay_Position:
*Removed from MV frameless library data 2014 (System Calculator no longer used. Custom calculator feature used now instead.)

PRICE BASED ESTIMATION*

  1. ProductDescription
  2. Product Price Total
  3. Product Price
  4. Product Price Adjustment
  5. Product Price Markup
  6. Product Price Overhead
  7. Product Price Overhead Markup
  8. Product Price Engineering
  9. Product Price Engineering Markup
  10. Product Price Manufacturing Tax
  11. Product Price Shipping
  12. Product Price Shipping Markup
  13. Product Price Shipping Tax
  14. Product Price Install
  15. Product Price Install Markup
  16. Product Price Install Tax

 *Not used in the Foundation Library

COST BASED ESTIMATION*

  1. Product Cost Total
  2. Product Cost Adjustment
  3. Product Cost Material
  4. Product Cost Material Markup
  5. Product Cost Material Tax
  6. Product Cost Material Total
  7. Product Cost Labor
  8. Product Cost Labor Markup
  9. Product Cost Labor Tax
  10. Product Cost Labor Total
  11. Product Cost Profit
  12. Product Cost Profit Markup
  13. Product Cost Overhead
  14. Product Cost Overhead Markup
  15. Product Cost Engineering
  16. Product Cost Engineering Markup
  17. Product Cost Shipping
  18. Product Cost Shipping Markup
  19. Product Cost Shipping Tax
  20. Product Cost Install
  21. Product Cost Install Markup
  22. Product Cost Install Tax

 *Not used in the Foundation Library. Functionality moved to a Costing Report

 HIDDEN EXTRUDED PROMPTS

 There are two special hidden prompt structures used for products that are extruded along a polyline path. They create a two-way means of communication between the spreadsheet and AutoCAD. Since a polyline can consist of multiple segments of straight and curved lines, it is often necessary to find the point where two segments intersect when the polyline is offset by a certain amount. Since calculating these points is complex, Microvellum has devised a mechanism to provide the information to the spreadsheet. The user can then use the values passed to the spreadsheet to create formulas for plate parts and machining required to build the product.

Offset_x

x being an incremental number that allows you to use more than one Offset prompt. The value of Offset_x is the offset distance from the polyline path that you are looking for. Use a positive number for a left offset and a negative number for a right offset.

 There are four more Prompts required to complete the offset structure:

  1. LX_x
  2. LY_x
  3. RX_x
  4. RY_x
It is important to understand that “x” is an incremental number that allows you to use more than one Offset prompt.

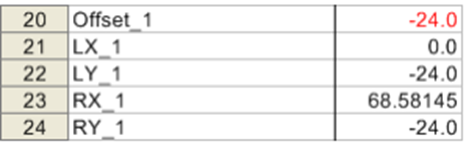

On the next page is a diagram that should help explain how the program is going to populate the Offset structure with helpful information. Let’s say that you wanted the first offset structure to calculate the countertop depth. In the prompt “Offset_1” you would type a formula similar to this: =-Depth

In this example the variable “Depth” is equal to 24. If you were to extrude the product along the polyline below, here is how the offset structure would be populated by the program.

 CurvedPart_x

“x” being an incremental number that allows you to use more than one CurvedPart prompt structure. As the name implies, this prompt facilitates the task of drawing a part containing a routing path to make it a curved part. Die wall plates and countertop decks are two examples of where you might use this prompt structure. The value of CurvedPart_x consists of two numbers separated by either a pipe or a comma. The two numbers represent two offset points from the polyline part. Use a positive number for a left offset and a negative number for a right offset.

  1.  LXA_x
  2. LYA_x
  3. RXA_x
  4. RYA_x
  5. LXB_x
  6. LYB_x
  7. RXB_x
  8. RYB_x
  9. BULGEA_x
  10. BULGEB_x
  11. PANELWIDTH_x
  12. PANELLENGTH_x
  13. BASEPOINTX_x
  14. BASEPOINTY_x
  15. LEFTANGLE_x
  16. RIGHTANGLE_x
  17. CENTERPOINTX_x
  18. CENTERPOINTY_x
  19. Left_Angle
  20. Right_Angle
  21. Previous_Width
  22. Next_Width
  23. Previous_Bulge
  24. Bulge
  25. Next_Bulge
  26. Previous_Center_Angle
  27. Next_Center_Angle

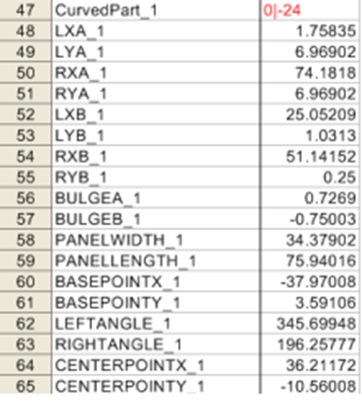

This prompt structure works very similar to the offset structure that was previously described. In fact, the first eight prompts provide the same coordinate information described in the offset structure.

The two special prompt structures make creating these extruded products much easier.

The best way to learn how to build your own extruded product, is to study some of the extruded products already built by Microvellum.
