The purpose of this article is to provide a reference for the updated Tool File and Machining tabs. These interface changes can be found in Toolbox builds 15.6.2201 and greater.

Getting There

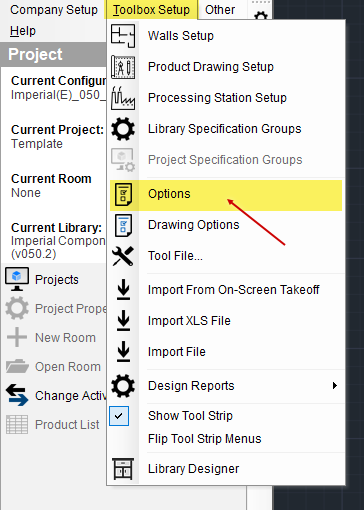

Fig. 01 - Access for Tool Files and Machining Properties

Tool File Interface

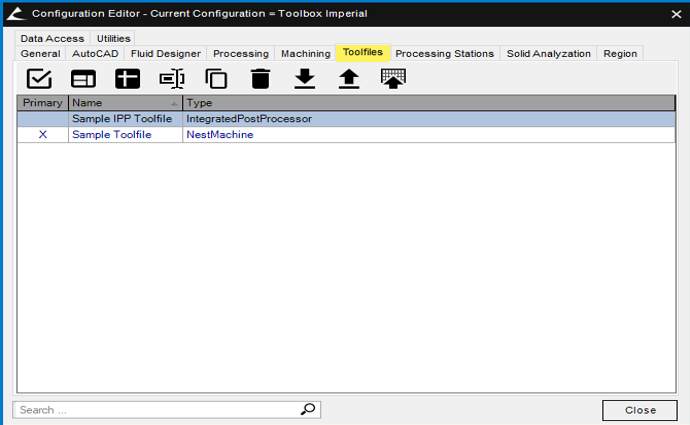

Fig. 02 - Access for Tool Files

The Tool File menu provides the user with a variety of commands.


Fig. 03 – Tool File Command Buttons

  1. Set as Primary -  Allows user to set a primary Tool File from a list of Tool Files.
  2. Edit in User Interface -  Opens the Tool File user interface.
  3. Edit in Spreadsheet -  Opens the selected Tool File in the Tool File Spreadsheet.
  4. Rename -  Enables renaming of the selected Tool File.
  5. Copy -  Copies selected Tool File.
  6. Delete -  Deletes selected Tool Files.
  7. Import -  Imports Tool Files.
  8. Export -  Exports Tool Files.
  9. Export as XLSX -  Exports selected Tool Files as an XLSX.

Each Tool File row can be individually selected by single left-clicking. Double left-clicking a row will open a new window to edit the Tool File in the user interface. The user can select multiple rows while holding ctrl + left click to select only the rows desired. Additionally, the user can hold shift while selecting two rows, and all the rows in-between will be selected.

Machining Interface

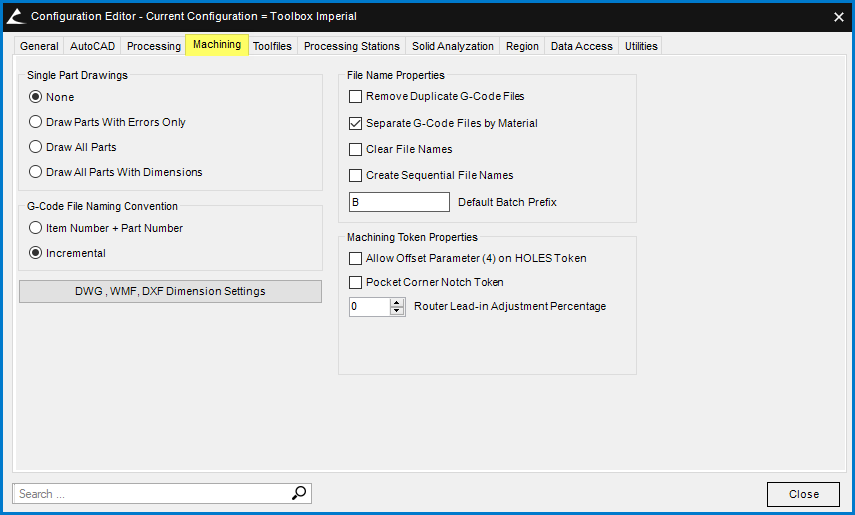

Fig. 04 - Access for Machining Properties

The Machining tab and some of its contents are now separate from the Toolfile options and include all the same functionality as previous versions.

A standard search bar was added to all of the option tabs.


Fig. 05 – Search Bar in Options Tabs

The search bar will enable the user to locate the desired command or property with ease.


Fig. 06 - Search Bar Finding the Desired Command or Property
