Tutorial: Adding a Microvellum Command Button

Tutorial: Adding a Microvellum Command Button

To minimize the number of clicks necessary when using Toolbox, we are providing this article as a tutorial for setting up your Toolbox Custom Toolbar with command buttons that activate the command directly without clicking several buttons.

A list of these commands are found in this article: Toolbox Commands List

Because accessing Edit Design Data requires a couple of manual clicks, we've decided to use this as our example below.

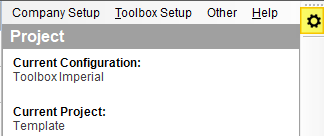

  1. Click on the cog button for  Edit Custom Toolbar .
    2. Edit Custom Toolbar

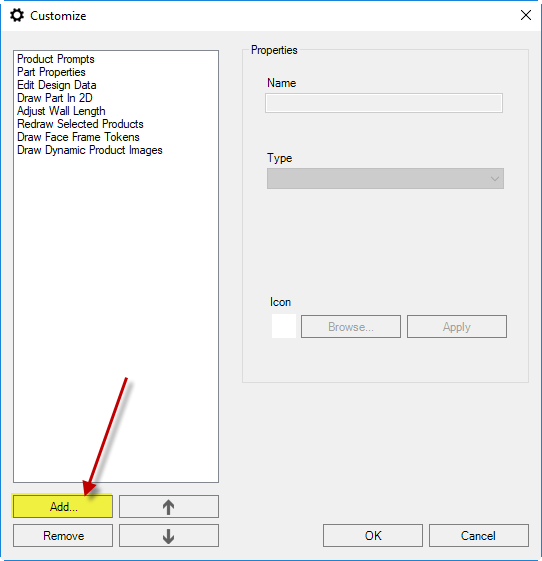

  2. Click the  Add  button.
    3. Add
  3. If adding an  internal  Toolbox command:

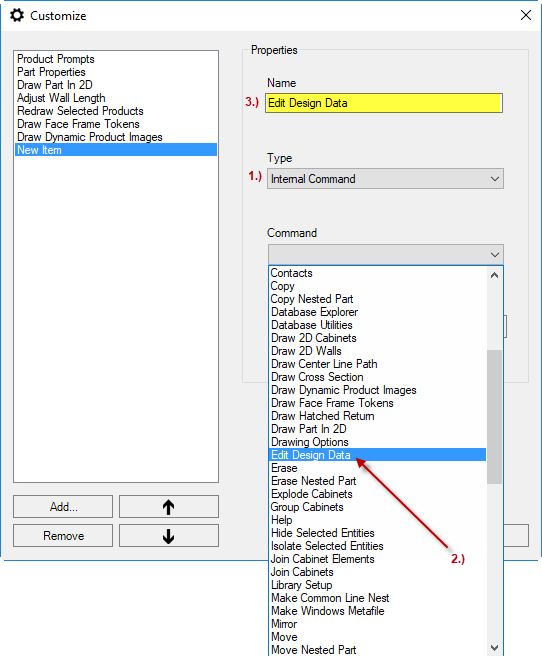

    1. Make sure the dropdown list of command types is set to internal command. Select it, if not.
    2. Click to display the Command List. In this tutorial, we are creating a button to edit the product design data, so we'll select Edit Design Data from the list. This automatically populates the name of the new command.
    3. The button icon is predefined if selecting an internal Toolbox command.

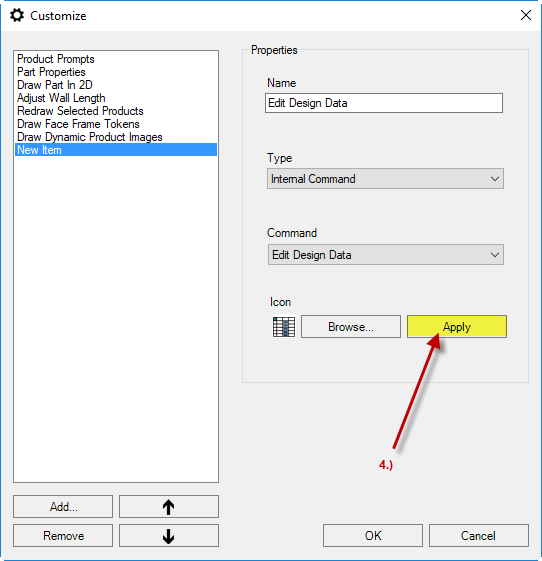

    4. Click Apply.

    Click Apply
  4. If adding an  AutoCAD  command:
    1. Click to drop down the list of command types and select AutoCAD Command.
    2. Give your new button a name that matches its function.
    3. Enter the AutoCAD command name form the Command dropdown list.
    4. Click Browse to select the AutoCAD icon file.
    5. Click the Apply button.

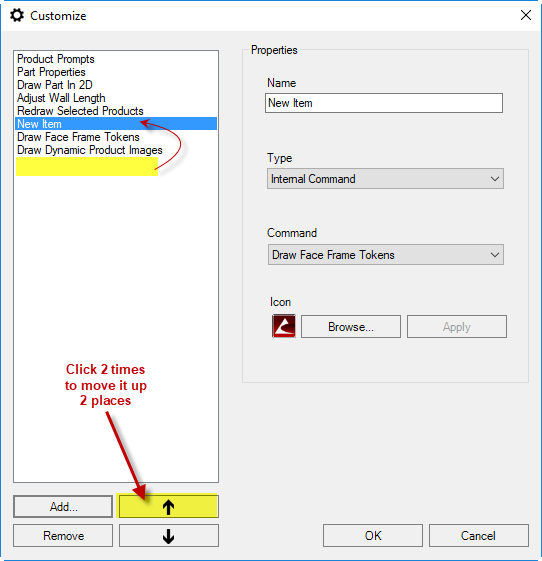

  5. Click the newly created button in the list of buttons on the left and click the up or down arrows to locate the new command in the list as desired. In this tutorial, we locate it 3rd from the bottom of the toolbar.
    6. Click the arrows to move the new item where desired.
  6. Click OK.

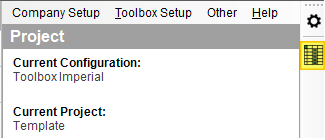

You are now ready to use your new Toolbox custom button as you configured it.
