3DPOLY Command

3DPOLY Command

Creates a 3D polyline.

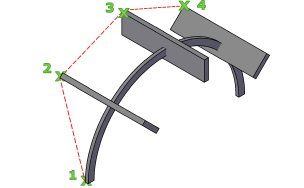

A 3D polyline is a connected sequence of straight line segments created as a single object. 3D polylines can be non-coplanar; however, they cannot include arc segments.

The following prompts are displayed:
Start Point of Polyline
Specifies the first point in the 3D polyline.
Endpoint of Line
Draws a straight line from the previous point to the specified new point. The prompt is repeated until you press Enter to end the command.

Undo
Deletes the last line created. You can continue drawing from the previous point.

Close
Draws a closing line from the endpoint back to the first point, and then ends the command. To be closed, a 3D polyline must contain at least two lines.
