How to Export Subassemblies using Database Management

How to Export Subassemblies using Database Management

The articles in this section of the Knowledge Base involve importing and exporting from the Database Management window. For general information regarding the Database Management tool, or how to access it, see Database Management Utilities (Overview).

This simplified article provides a brief tutorial for exporting Subassemblies using the Database Management Utility.

All records associated with the selected Subassembly(s) are NOT transferred by default. Records such as Nested Subassemblies and Materials should be selected independently.

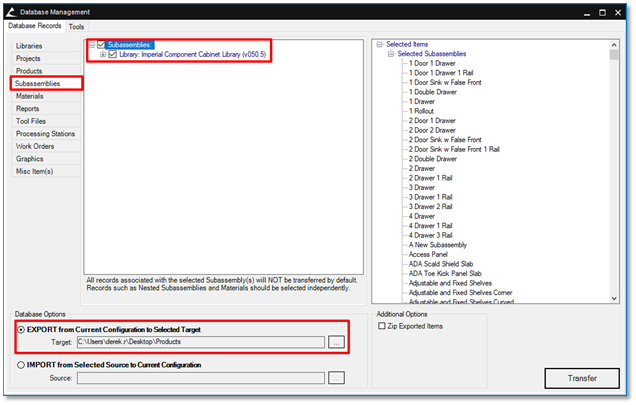

Select the Subassemblies tab > select the Subassembly(s) to be exported > accept the file to be exported to or browse for a different location.


Fig. 01 – Database Management Utilities – Export Subassemblies

Additional Options

When exporting a Subassembly, the following Additional Options are available:


Fig. 02 – Additional Options when Exporting Subassemblies

  1. Zip Exported Items – Check this box to create a compressed zip file named the same as the folder selected for the export files. The zip file contains the same files as the subfolders created in the folder designated for the export files and is located at the same level as the folder selected.

Once everything has been selected for export, and any desired additional options included select Transfer.

With the Database Management utility, multiple items from multiple categories can be exported at once.

Resolving Duplicates

When the file being exported to is empty, or lacking a MicrovellumFactory.sdf database, a database is automatically created with the exported data inside. When the file being exported to already has a MicrovellumFactory.sdf database, and this database features duplicate information, the Resolve Duplicate Names window appears. When there is no duplicate information, the data being exported is appended to the database.

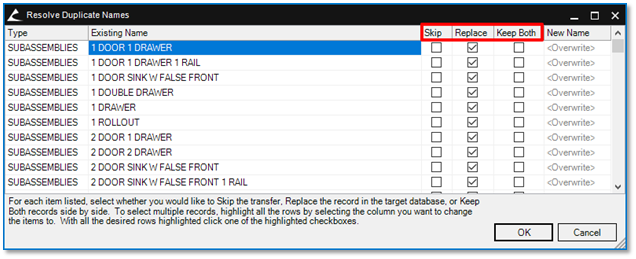

Fig. 03 – Resolve Duplicate Names

There are three options to resolve duplicates:

  1. Skip – Does not change the existing item, and an additional item is not added. The item is ignored.
  2. Replace – Replaces the item in the target location that has the duplicate name.
  3. Keep Both – Appends to the target location. A new name must be given to the item.

  4. Fig. 04 – New Name

Export Folder Structure

A MicrovellumFactory.sdf database is created containing the subassemblies exported.


Fig. 05 – Folder Structure
