View Single Part G-Code Results

View Single Part G-Code Results

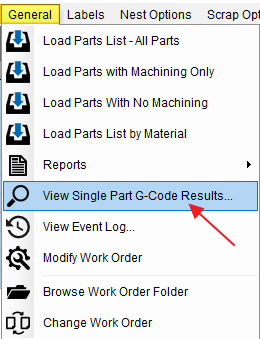

If you would like to see the single part g-code files that were created for a Single Part G-Code processing station, you can select the View Single Part G-Code Results menu item in the Processing Center.

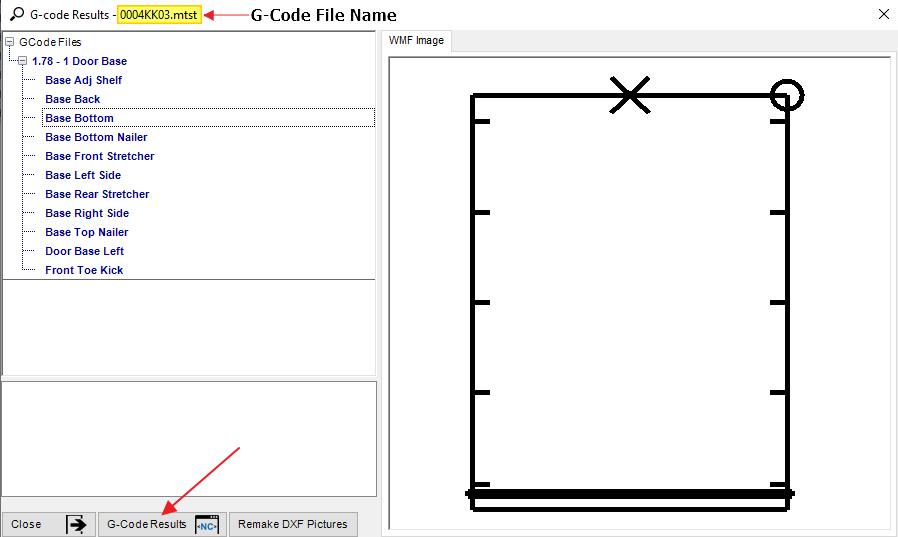

This will display the results window. From this window, you can expand the tree structure on the left side to see all the parts that were processed. Selecting a part in the list will display a picture of the part as well as the G-Code file name at the top of the window. Select the G-Code Results button to display the g-code for the selected part.

You can only view single part programs if there were parts processed with a Single Part G-Code processing station with a valid toolfile. Otherwise, an error message will be displayed, saying “G-Code for the selected work order has not been processed yet.”
