What’s New in Toolbox 2025 (OEM)
Work smarter, faster with Toolbox 2025 (OEM). With an OEM Subscription, you’ll gain access to the latest toolsets and innovative features of Toolbox 2025.
Improvements
Toolbox UI Overhaul
- OEM 2025 introduces several updates to the appearance and layout of various interfaces. These changes were made to maintain Toolbox OEM 2025's compatibility with AutoCAD 2025, which has transitioned from its .Net 4.x software development framework to the new .Net 8.0 framework, a major release of the .NET platform by Microsoft that offers improved performance, new features, and enhancements across the framework.
- As such, multiple different options and features within Toolbox (having been designed with the 4.x framework) needed to be re-coded and updated to ensure that clients will be able to use the software reliably well into the future.
Toolbox Palette

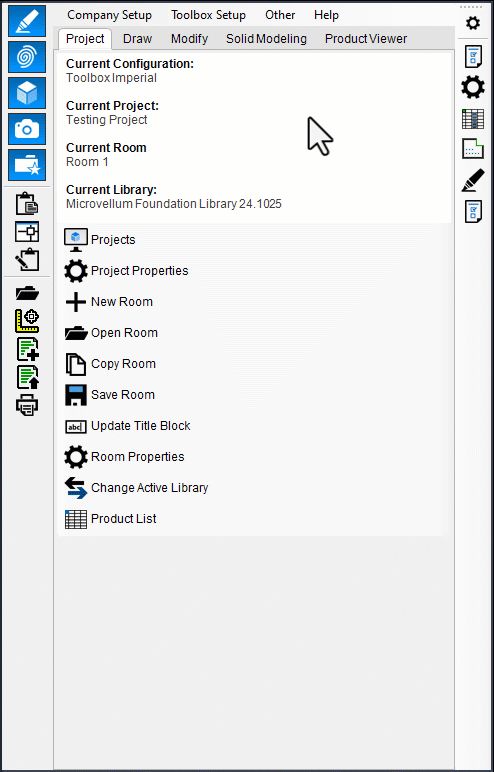

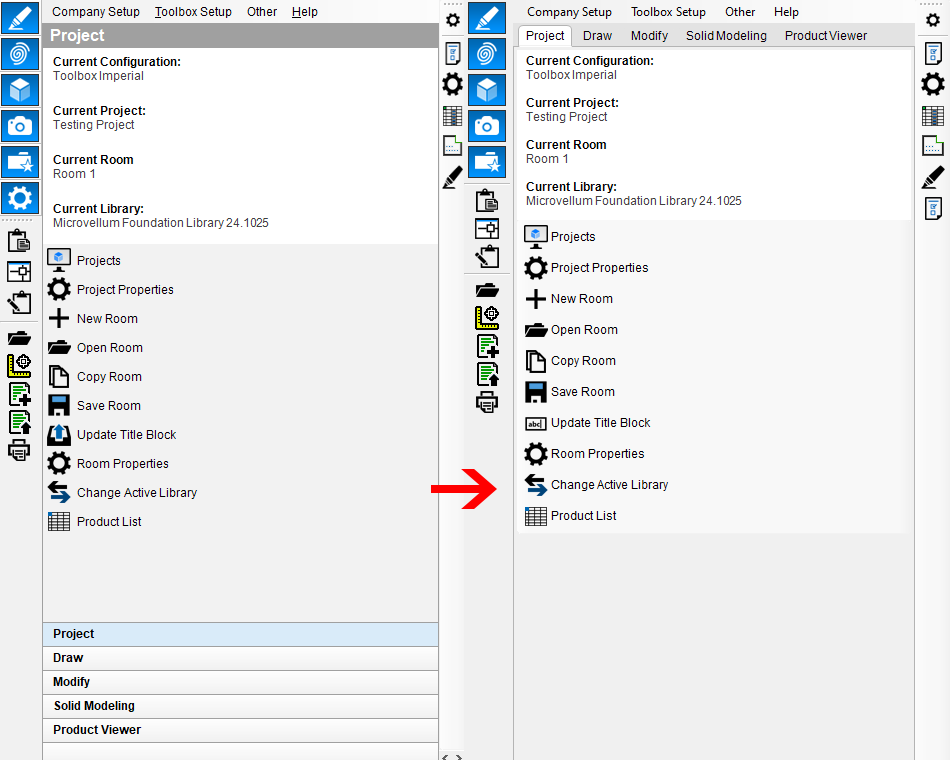

Among the many UI changes, the Toolbox palette has received a prominent overhaul to its appearance:
- No options or features have been removed from the palette, only relocated to enable a far cleaner, less cluttered workspace.
- The various options available on the quick menu have been converted to pop-out menus.
- Various tabs, such as the Draw, Modify, or Solid Modeling tab have been moved to smaller scale tabs at the top of the palette, and options within those tabs to interact with products or tools have been placed along the left and right edges of the palette interface.
Part Properties

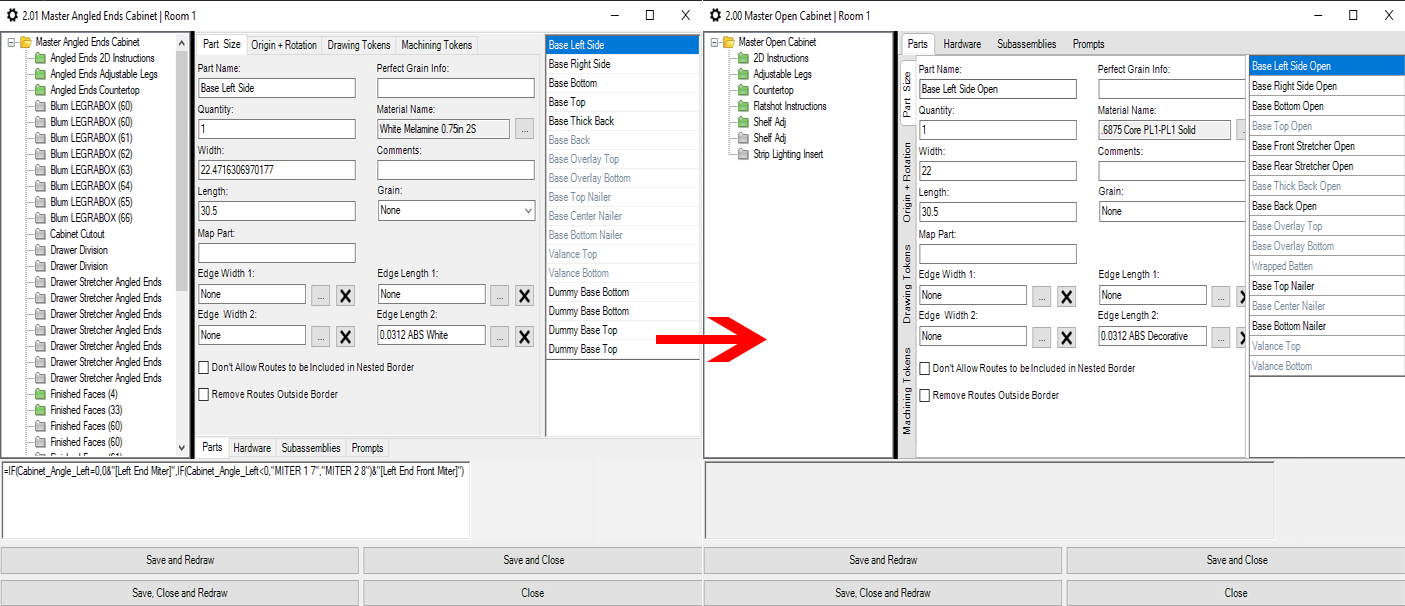

- The Part Properties interface has received a similar update to its appearance, with multiple tabs such as Part Size, Origin + Rotation, Drawing Tokens, etc. being relocated to the left edge of the central interface, reducing visual clutter and enabling users to transition between different sections of the interface more smoothly.
- Similarly, no functions have been removed, only relocated.
Processing and Performance Improvements
- The speed at which products can be drawn, both in 2D and 3D, has improved in Toolbox OEM 2025. While results may vary from machine to machine, during testing, individual products that featured multiple blocks, such as hinges, drawer slides, appliances, etc., drew at a noticeably faster speed in OEM 2025 compared to OEM 2024.
New AutoCAD System Variables
New System Variables | Description |
DX12FRAMERATEUNLIMITED | Enables variable sync monitor optimization. |
HPDRAWMODE | Controls the drawing mode used when defining new boundaries to hatch or fill. |
HPPATHALIGNMENT | Specifies the alignment of new drawn paths to be hatched or filled. |
HPPATHWIDTH | Specifies the width of new drawn paths to be hatched or filled. |
Updated AutoCAD Commands
Updated Commands | Description | Changes |
DATAEXTRACTION | Extracts drawing data and merges data from an external source to a data extraction table or external file. | New data extraction templates are stored in the DXEX file format and are not compatible with AutoCAD 2024 and earlier releases. |
HATCH | Fills an enclosed area or selected objects with a hatch pattern, solid fill, or gradient fill. | Draw boundary option was added. |
OPEN | Opens an existing drawing file. | Improved file open performance when opening a drawing that contains large numbers of annotation scales. |
PAN | Shifts the view without changing the viewing direction or magnification. | General performance improvements. |
ZOOM | Increases or decreases the magnification of the view in the current viewport. | General performance improvements. |
Obsoleted AutoCAD System Variables
System Variables | Description | Change |
TRUSTEDDOMAINS | Specifies the domain names or URLs from which AutoCAD can run JavaScript code. | Removed. |
