Point-to-Point Processing Station Controls and Settings

Point-to-Point Processing Station Controls and Settings

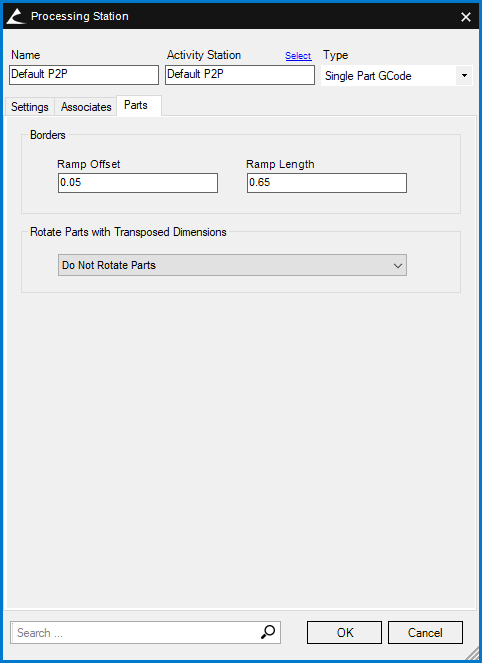

The Parts tab allows you to control the lead-in offset and ramp, as well as to control whether parts need to be rotated if the dimensions have been transposed.
